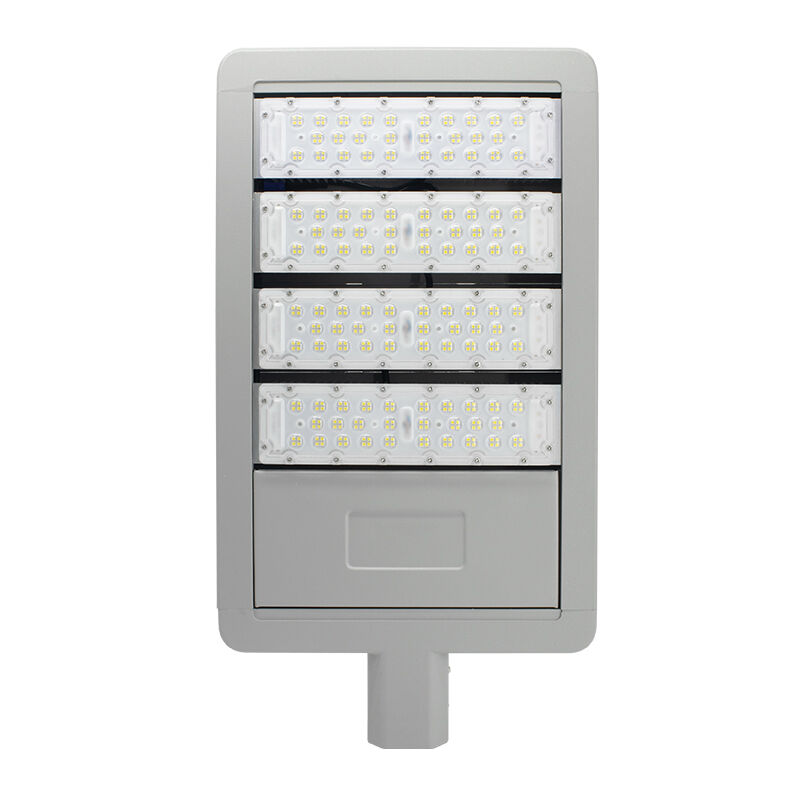

IP66 Weatherproof 200 Watts LED Street Light 50W 200W with Separate Replaceable Module

Minimum Order Quantity : 10 Price : Negotiated
Packaging Details : normal carton or customised Delivery Time : 8-15 working days
Payment Terms : T/T, Western Union, MoneyGram Supply Ability : 10000pcs/month
Place of Origin: Shen Zhen, China Brand Name: SUNRISE
Certification: CE ROHS Model Number: SU-LDP200W

Detail Information

Beam Angle: 75X160° Input Voltage: AC100-277V / AC220-240V
Chip: Osram LED 3030 SMD Warranty: 5 Years
SPD: 6KV / 10KV Function: Support Sensor / Dimming / Low Voltage
Material: Aluminum Working Time: 50000H @L80B70 Ta25°C

Product Description

Characteristics:
1. SUPER BRIGHT LED SOURCE.

- Street light using super bright 3030 SMD LEDs as light source to meet high light luminous efficiency 110-120lm/W and keep long working life.

2. OPTIOCAL LENS.
- The beam angle is 75X160°.
- Adopts high quality and large angle optical PC lens with high light transmission and against yellowing and corrosion proof.

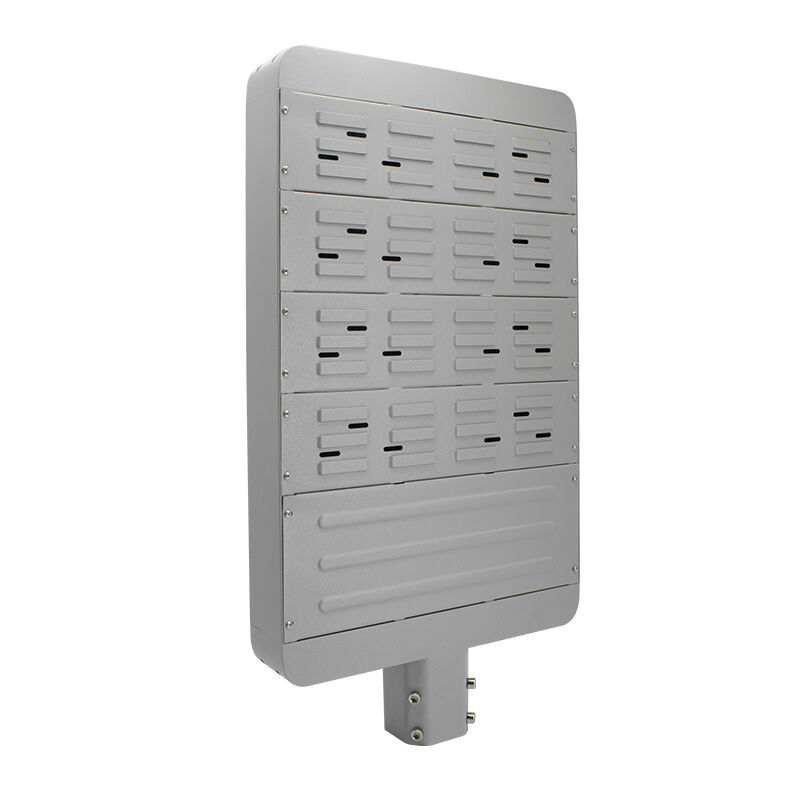

3. DIE-CASTING ALUMINUM, BETTER HEAT SINKING.
- High density and thick durable aluminum , faster heat sinking, treated with graphene. coating, which has better thermal
conductivity and stronger weather resistance, heavy weight, efficient heat dissipation, and extended service life.
- This outdoor light also comes with a thickened metal bracket and rubber cable, easy installation, more stable.

4. CONSTANT CURRENT DRIVER SOLUTION.
- Street light using high quality driver solution to keep good performance and high efficiency, stable working and quality
guaranteed.

5. FREE REPLACEMENT, EASY INSTALLATION.
- Street lights offer warranty 3 or 5 years. During this period, any product problem can be replaced freely. The lamp is very easy installation. If required, arm pole and accessories can be both provided.

6. WIDE APPLICATIONS.
- The street light could be used for road lighting such as garden, plaza, playground, highway, city and walkway lighting etc.



Product Descriptions of LED Street Light:



Product Name Outdoor LED Street Light 50W 100W 150W 200W 250W 300W
Product Model SU-LDP200W
Rated Power (W) 200W
Dimension (mm) L616*W330*H75mm
Input Voltage AC220-240V / AC100-277V, 50/60Hz
Driver Mode Constant current driver (Brand driver)
Light Source Lumileds SMD3030 Leds
Color

 3000K-3200K       Warm White

   4000K-4500K       Nautral White

6000K-6500K        White Cold

Housing Material Die-casting Aluminum
Body Color Grey
Pipe Diameter D60mm
Cover PC with lens
Beam Angle 75X160°
CRI >70Ra / 80Ra
PF >0.95
Surge Protection L/N-PE 15KV, L-N 6KV
Shockproof Level IK08
Cable Length 3*0.75mm2 H05RN-F 500mm
SDCM ≤15%
THD ≤5
IP Rating IP66
Work Temperature -30 ~ +50C°
Life Span 50,000 Hours
Warranty 5 Years
