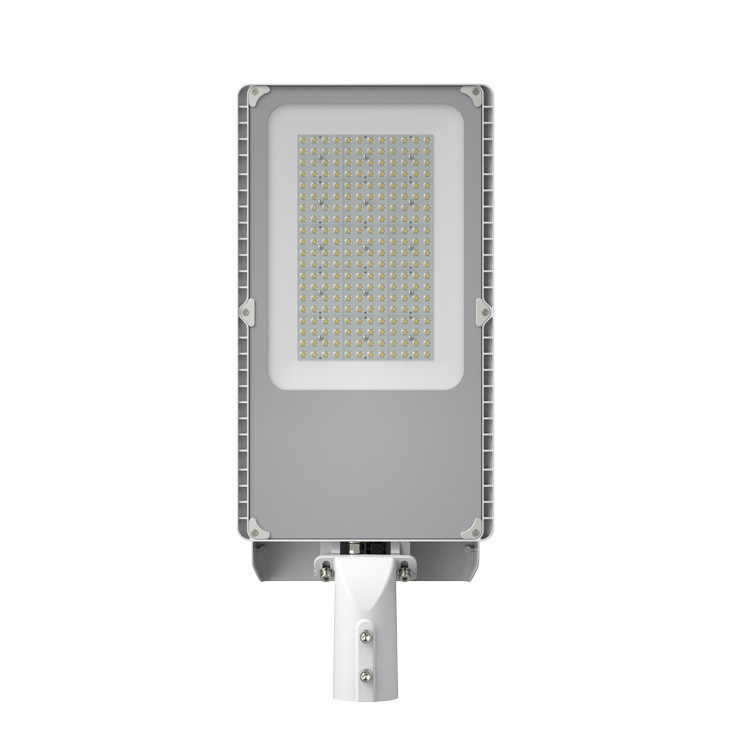

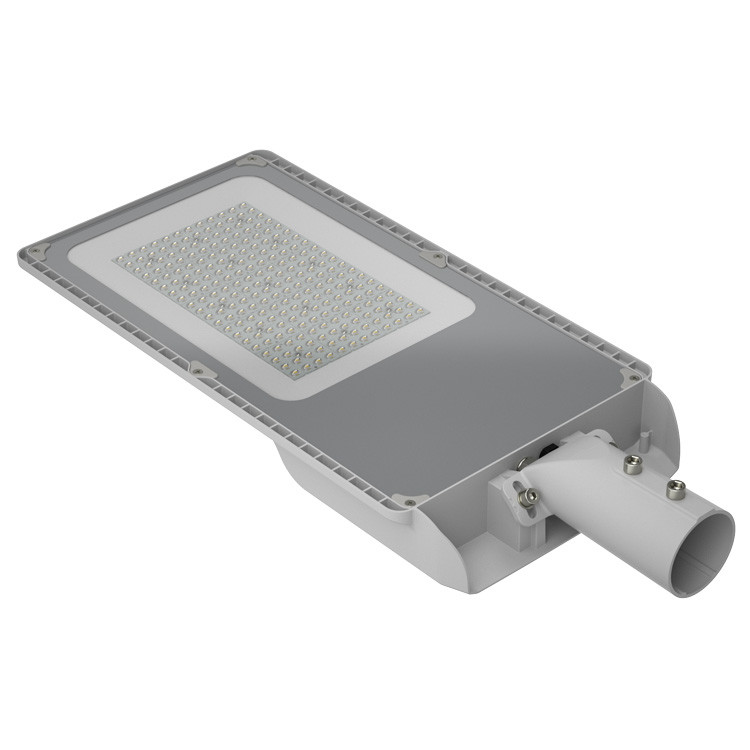

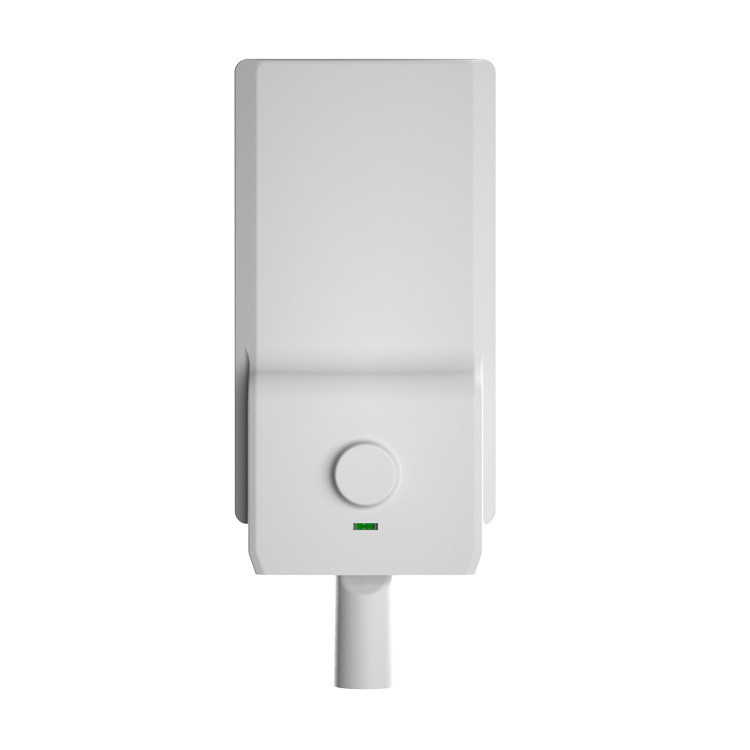

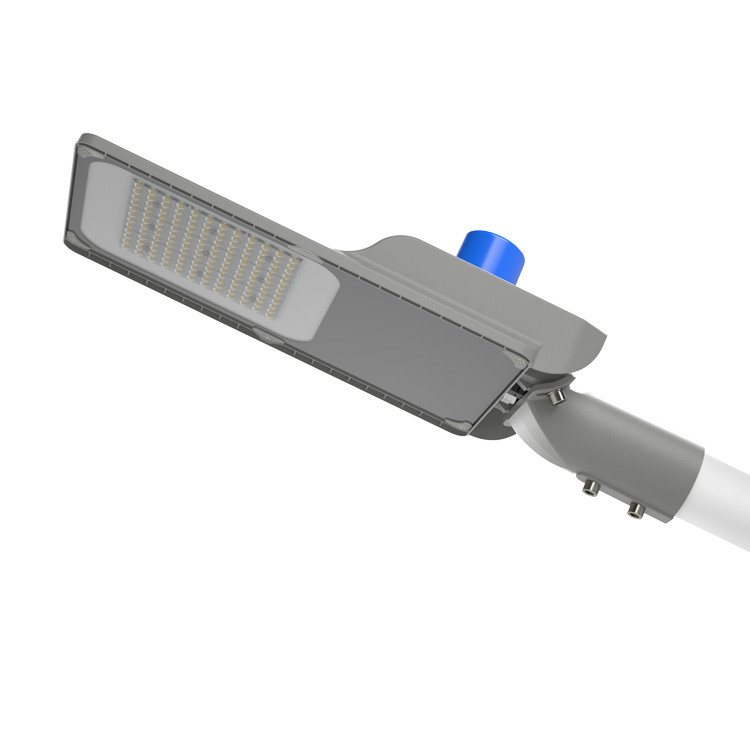

10KV Waterproof Outdoor LED Street Lights D60mm Pipe High Hardness

Minimum Order Quantity : 100 PCS Price : Negotiated
Packaging Details : carton or customised Delivery Time : 7-18 days
Payment Terms : T/T, Western Union, MoneyGram Supply Ability : 20000pcs per month
Place of Origin: Shen Zhen, China Brand Name: SUNRISE
Model Number: SU-LD200

Detail Information

Name: Outdoor LED Street Lamp Light Efficiency: 120lm/W
Pipe Diamater: 60mm Beam Angle: T2M, T3M, T4M, 60°, 90°, 70x140°
PF: 0.9 IP Rating: IP66 Waterproof
Installing Height: 6-15 Meters Surge Protection: 6-10KV
High Light:

Outdoor LED Street Lights OD60mm

,

Outdoor LED Street Light OD60mm

,

10KV waterproof street light

Product Description

Waterproof Outdoor Led Street Lamp Pipe Diameter 60mm High Quality 10KV



Product Parameters of Led Street Lamp:

Product Name Led Street Lamp LD
SKU SU-LD50 SU-LD100 SU-LD150 SU-LD200
Rated Power 50W 100W 150W 200W
Input Voltage AC85-265V, 50/60Hz
Light Efficiency 120lm/W
Product Dimension 515*190*98mm 575*242*109mm 615*262*110mm 685*287*110mm
Pipe Diameter D60mm
Driver Constant Current Isolated Driver
Light Source SMD3030 Led
CCT 2700k, 3000k, 4500k, 5500k, 6500k
Body Material Die-casting aluminum
Cover PC
Beam Angle T2M, T3M, T4M, 60°, 90°, 70X140°
CRI >70
PF >0.9
Surge Protection 6KV
Degree of Protection IK08
Waterproof Protection IP66
Work Temperature -40 ~ +50 Deg.
Life Span 50,000H
Warranty 3 Years



Dimensions of Led Street Lamp:

10KV Waterproof Outdoor LED Street Lights D60mm Pipe High Hardness 0

10KV Waterproof Outdoor LED Street Lights D60mm Pipe High Hardness 1

10KV Waterproof Outdoor LED Street Lights D60mm Pipe High Hardness 2

10KV Waterproof Outdoor LED Street Lights D60mm Pipe High Hardness 3





Product Structure of Led Street Lamp:

10KV Waterproof Outdoor LED Street Lights D60mm Pipe High Hardness 4



Light Distribution Diagram of Led Street Lamp:

10KV Waterproof Outdoor LED Street Lights D60mm Pipe High Hardness 5



Installations of Led Street Lamp:

10KV Waterproof Outdoor LED Street Lights D60mm Pipe High Hardness 6



Applications of Led Street Lamp:

10KV Waterproof Outdoor LED Street Lights D60mm Pipe High Hardness 7
