Product Description
Product Descriptions:
1. THICK ALUMINUM BODY, BETTER HEAT SINKING.
- Using high density and thick die-casting aluminum as the housing with good heat dissipation, corrosion proof. The street light follows better thermal conductivity and stronger weather resistance, heavy weight, efficient heat dissipation, and extended service life.

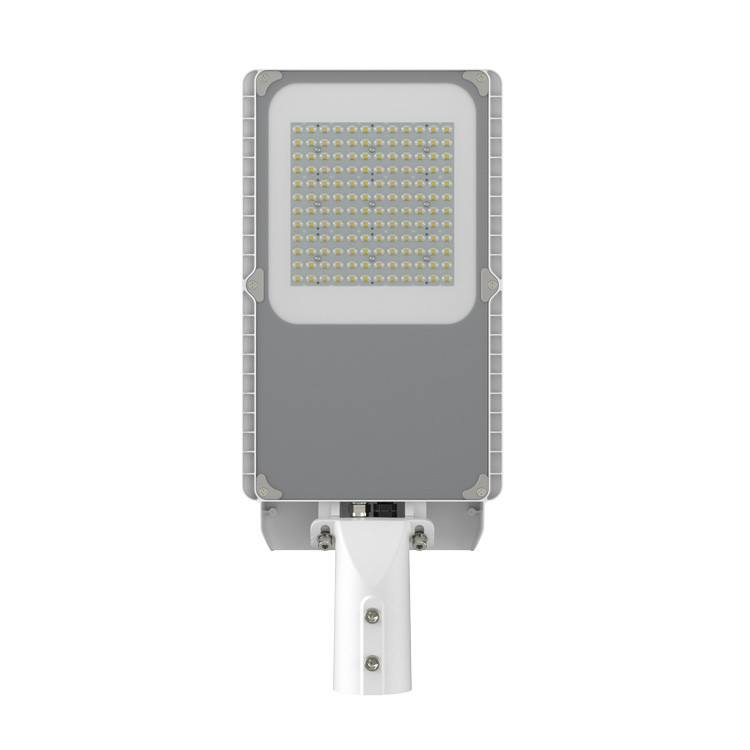

2. SUPER BRIGHT LED SOURCE.
- Because of the excellent body, LD model takes high lumen SMD3030 / SMD5050 beads to meet high light efficiency 120lm/W or 150lm/W, low light decay.
3. CONSTANT CURRENT DRIVER.
- LD model street light adopts constant current driver with more stable performance and circuit protection, able to meet power factor 0.9, perfectly meeting full power consumption. Moreover, famous brand drivers are available.
4. SMART FUNCTIONS AVAILABLE.

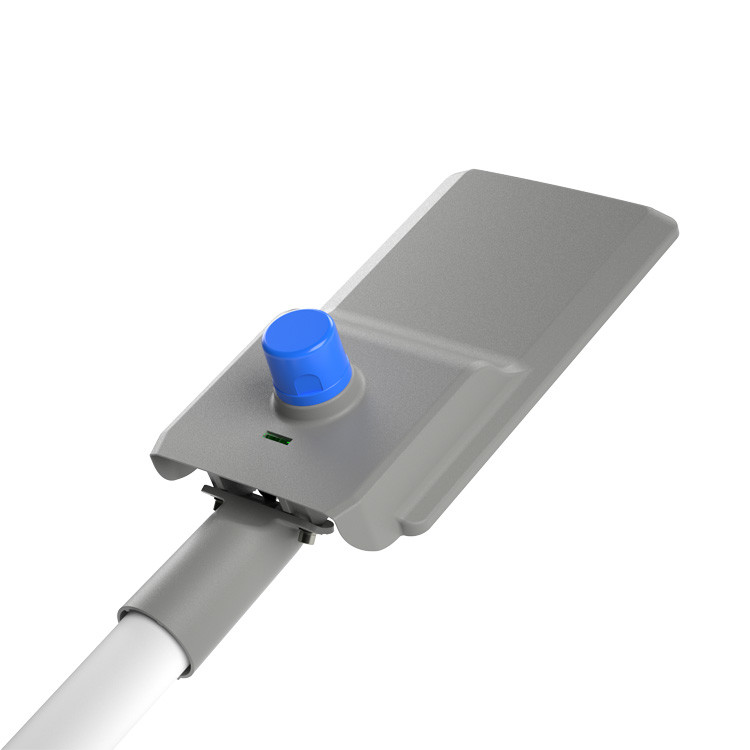

- Based on the perfect performance, this street lights can be available to have 0-10V dimming, Dali dimming, triac dimming, photocell sensor / daylight sensor, radar sensor and DMX512 etc for your different usages.
5. OPTICAL PC COVER, NOT YELLOWING.
- Available to make different beam angles such as T2M, T3M, T4M, 60°, 90°, 70X140°.
6. WIDE APPLICATIONS.
- Because of the high lumen brightness output, the street lamp can be applicable for street lighting such as stadium sport fields, tennis court, airports, harbors, square, garden, yard, park, plaza, wharf, station etc.
7. FREE REPLACEMENT, EASY INSTALLATION
- Offer warranty 3-5 years. During this period, any product problem can be replaced freely.
Product Parameters of Led Street Lamp:
| Product Name |
Led Street Lights |
| SKU |
SU-LD50 |
SU-LD100 |
SU-LD150 |
SU-LD200 |
| Rated Power |
30W / 50W |
80W / 100W |
120W / 150W |
180W / 200W |
| Input Voltage |
AC85-265V, 50/60Hz |
| Light Efficiency |
120lm/W |
| Product Dimension |
515*190*98mm |
575*242*109mm |
615*262*110mm |
685*287*110mm |
| Pipe Diameter |
D60mm |
| Driver |
Constant Current Isolated Driver |
| Light Source |
SMD3030 Led |
| CCT |
2700k, 3000k, 4500k, 5500k, 6500k |
| Body Material |
Die-casting aluminum |
| Cover |
PC |
| Beam Angle |
T2M, T3M, T4M, 60°, 90°, 70X140° |
| CRI |
>70 |
| PF |
>0.9 |
| Surge Protection |
6KV |
| Degree of Protection |
IK08 |
| Waterproof Protection |
IP66 |
| Work Temperature |
-40 ~ +50 Deg. |
| Life Span |
50,000H |
| Warranty |
3 / 5 Years |
Dimensions of Led Street Lamp:
Product Structure of Led Street Lamp:
Light Distribution Diagram of Led Street Lamp:
Installations of Led Street Lamp:
Applications of Led Street Lamp:
Our services:
- We provide various technique support and installation instructions.
- We can provide all data of the products you have ordered.
- We can customize different color temperature for the flood lights.
- We can design stickers of the flood lights for you.
- We can adjust creative structure of the flood lights you are asking.
- We accept logo, image, package customization.
- We can provide laser marking for the flood lights, and no MOQ.
- OEM, ODM welcome.
