Product Description

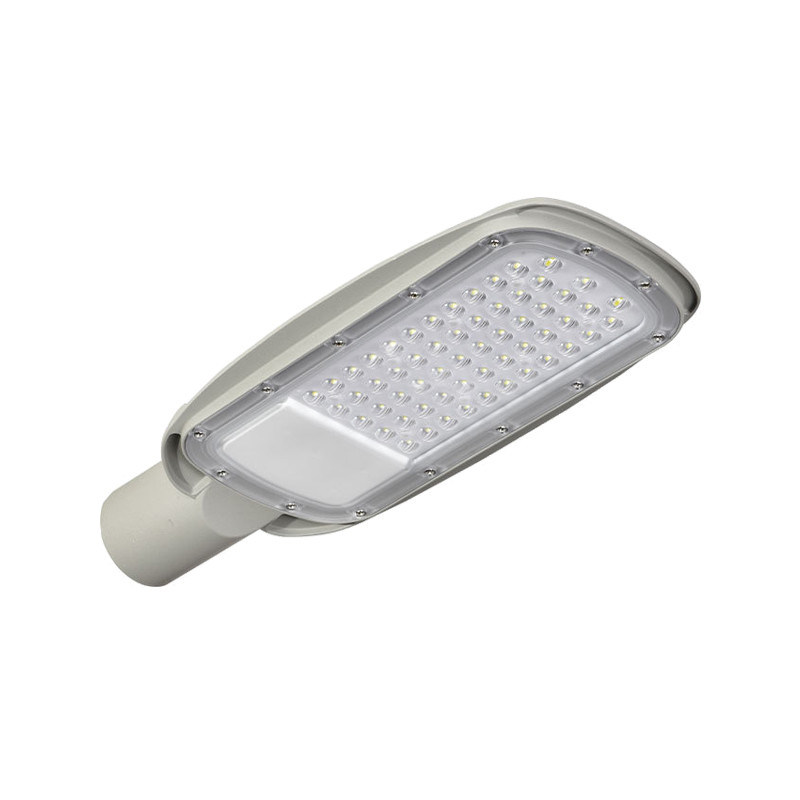

Osram Chip DOB LED Outdoor Street Light Super Bright 120lm / W IP65 Waterproof
Product Descriptions of DOB LED Outdoor Street Light:
| Product Name |
DOB LED Outdoor Street Light |
| Product Model |
SU-LDA80 |
SU-LDA120 |
SU-LDA180 |
| Rated Power (W) |
80 Watts |
120 Watts |
180 Watts |
| Dimension (mm) |
470*200*75 |
530*220*75 |
600*250*75 |
| Input Voltage |
AC100-130V or 200-240V, 50/60Hz |
| Driver Mode |
DOB (driver on board) |
| Light Source |
Osram SMD2835 |
| Color |
3000K-3200K Warm White |
| |
4000K-4500K Natural White |
| |
6000K-6500K Pure White |
| Housing Material |
Die casting Aluminum |
| Body Color |
Light-grey |
| Pipe Diameter |
60mm |
| Cover |
PC cover |
| Beam Angle |
65*135° |
| CRI |
>70 |
| PF |
>0.9 |
| Surge Protection |
4KV / 10KV |
| Shockproof Level |
IK07 |
| Cable Length |
500mm |
| IP Rating |
IP65 |
| Work Temperature |
-20 ~ +45C° |
| Life Span |
30,000 Hours |
| Warranty |
3 Years |
Product Descriptions:
► OPTICAL PC COVER
Street light adopts high quality and large angle optical PC lens with high light transmission and against yellowing and corrision.
► DIECASTING ALUMINUM, BETTER HEAT SINKING
High density and thick durable aluminum , faster heat sinking, treated with graphene coating, which has better thermal conductivity and stronger weather resistance, heavy weight, efficient heat dissipation, and extended service life. This outdoor light also comes with a thickened metal bracket and a 19.68 inch cable, easy installation, more stable.
► HIGH LUMEN LED SOURCE
Street light using super bright SMD 2835 LEDs as light source to meet high light luminous efficiency 100lm/W and keep long life span as well.
► DOB DRIVER SOLUTION - Street light using DOB (IC driver on board) solution to solve low cost and high efficiency, stable working and quality guaranteed.
► FREE REPLACEMENT, EASY INSTALLATION
Street lights offer warranty 3 years. During this period, any product problem can be replaced freely. The lamp is very easy installation. If required, arm pole and accessories can be both provided.

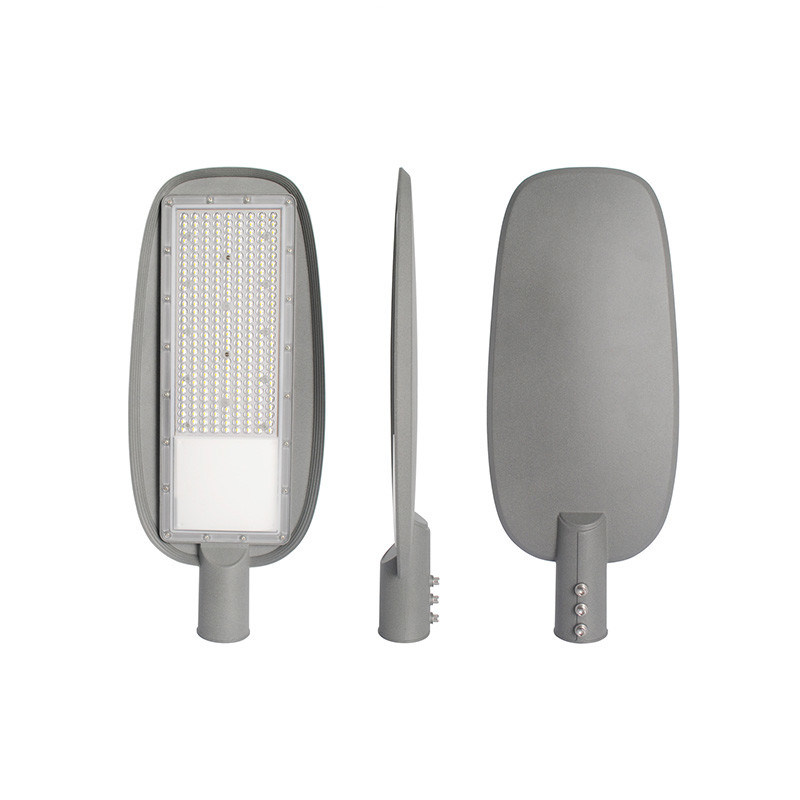

Product Details of DOB LED Outdoor Street Light:
Applications of DOB LED Outdoor Street Light:
- - Outdoor street, road lighting for highway, walkway, path, living areas.
Frequent Asked Questions of DOB LED Outdoor Street Light:
1. Can I have 1 sample to test before bulk quantity?
Re: Yes, 1 sample can be offered, and mixed order is welcome.
2. What brand of chip do you use?
Re: We use Osram LED super bright chip SMD2835 with efficiency 120lm/W.
3. Can I have special color like 2500K for sample?
Re: Yes, sure. But the colors need to be customised, so it will take 3-5 days to finish.
4. Can I have fixed driver for the DOB LED outdoor street light?
Re: Yes, that's possible. Please tell us your required driver brand! We can offer 3-5 years guarantee.
5. Can you make my logo on the glass and the box as private?
Re: Yes, we accept the customisation service. Please send us your logo diagram!
6. How long will the lead time take?
Re: Normally the leadtime takes 8-10 days for bulk quantity. For exact data, it depends on the ordering quantity.
7. How to deal with the faulty?
Re: First of all, we ensure all of raw materials have been tested before stocking and products must have strict test and aged before shipping till good-working. If unfortunately any faulty happend, we will replace or refund.
