Product Details:
|
| Product Name: | DOB LED Street Light | Material: | Aluminum |
|---|---|---|---|
| Beam Angle: | 65*135° | Driver Mode: | DOB (driver On Board) |
| Chip: | Osram LED 2835 SMD | Color: | 3000K, 4500K, 6500K |
| IP Rating: | IP65 Waterproof | Feature: | Corrision-proof, Pressure-proof |
| High Light: | DOB Outdoor LED Street Lights,200w led parking lot light,IP65 200W LED Street Lights |
||
Waterproof IP65 DOB LED Street Light 200W Grey Aluminum 3 Years Warranty
Quick Details of DOB LED Street Light:
► Product Type: Street Lights.
► Model: SU-LDA200W.
► Work voltage: AC100-240V, 50/60Hz.
► Chip: Osram SMD2835 LEDs.
► Light efficiency: 120lm / W.
► Pipe diameter: D60mm.
► Beam angle: 65*135°.
► Size: 600*250*75mm.
► Body material: thickened aluminum.
► Waterproof protection: IP65.
► Various smart serier: pir motion sensor, radar sensor, photocell sensor, microwave sensor, and remote control.
► Different wire length can be required.
Product Descriptions of DOB LED Street Light:
| Product Name | DOB LED Street Light | ||
| Product Model | SU-LDA100 | SU-LDA150 | SU-LDA200 |
| Rated Power (W) | 100 Watts | 150 Watts | 200 Watts |
| Dimension (mm) | 470*200*75 | 530*220*75 | 600*250*75 |
| Input Voltage | AC100-240V, 50/60Hz | ||
| Driver Mode | DOB (driver on board) | ||
| Light Source | Osram SMD2835 | ||
| Color | 3000K-3200K Warm White | ||
| 4000K-4500K Natural White | |||
| 6000K-6500K Pure White | |||
| Housing Material | Diecasting Aluminum | ||
| Body Color | Grey | ||
| Pipe Diameter | 60mm | ||
| Cover | PC cover | ||
| Beam Angle | 65*135° | ||
| CRI | >80 | ||
| PF | >0.9 | ||
| Surge Protection | 4KV | ||
| Shockproof Level | IK07 | ||
| Cable Length | 500mm | ||
| IP Rating | IP65 | ||
| Work Temperature | -20 ~ +45C° | ||
| Life Span | 30,000 Hours | ||
| Warranty | 3 Years | ||

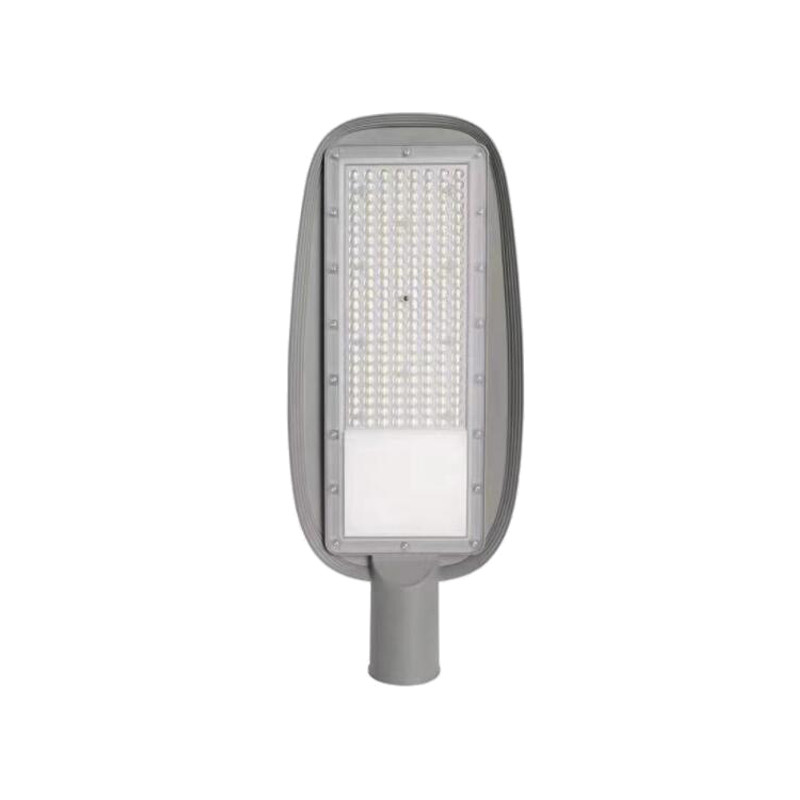

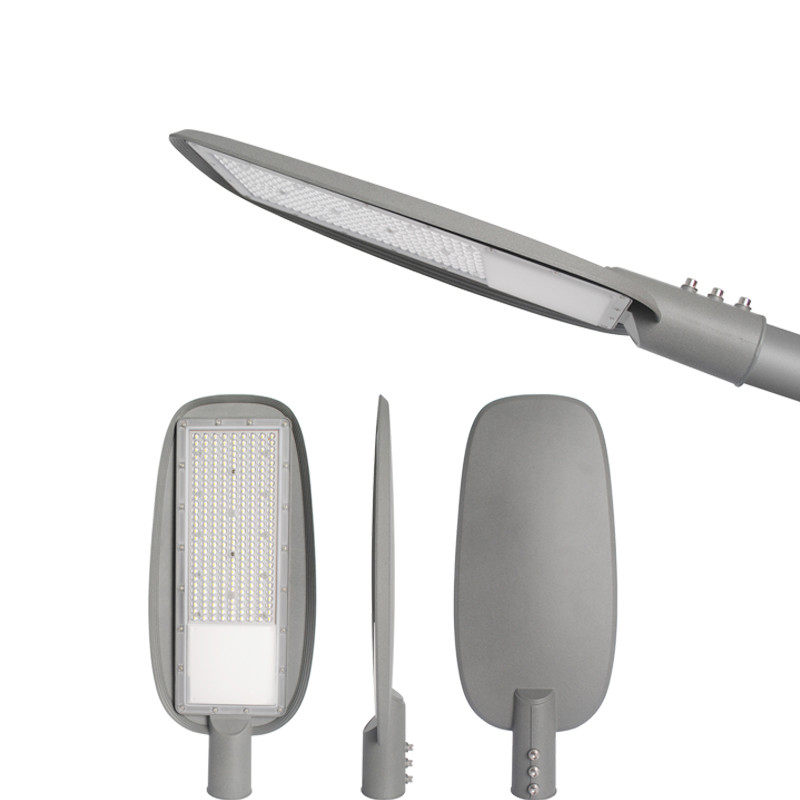

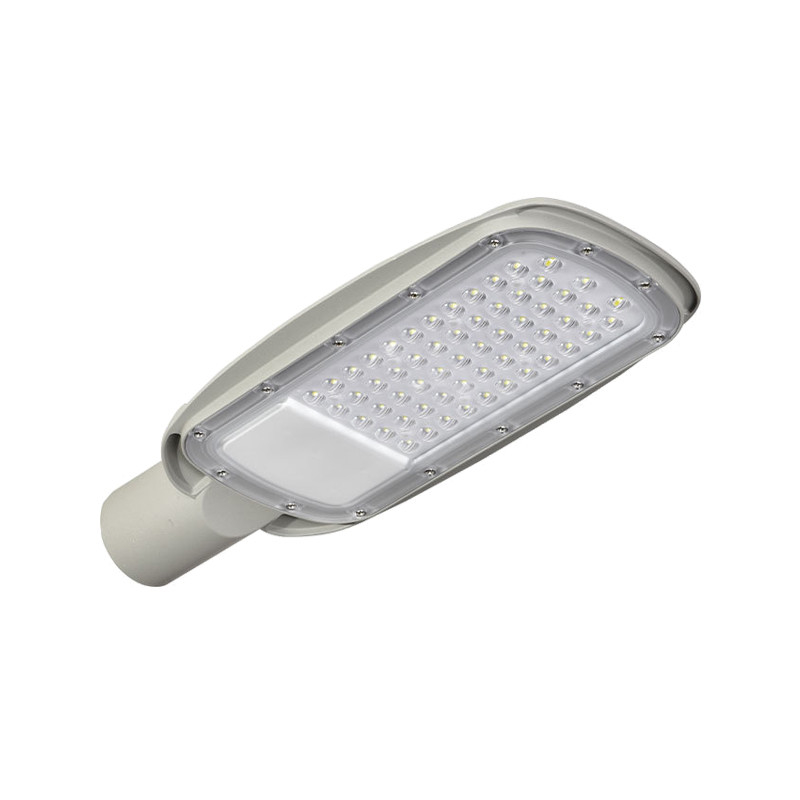

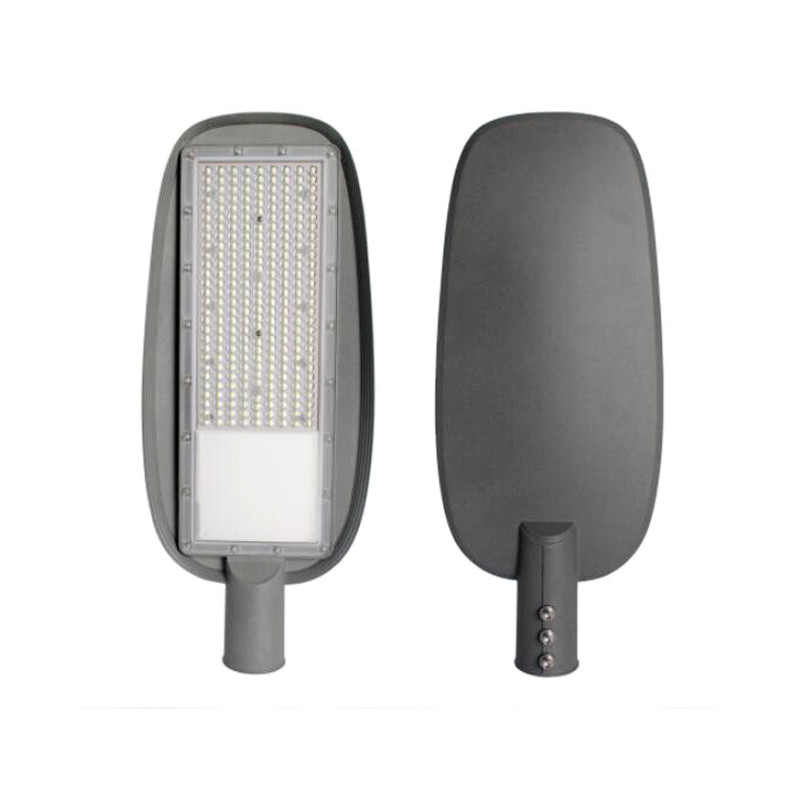

Product Details of DOB LED Street Light:
Applications of DOB LED Street Light:
- - Outdoor street, road lighting for highway, walkway, path, living areas.
Frequent Asked Questions of DOB LED Street Light:
1. Can I have 1 sample to test before bulk quantity?
Re: Yes, 1 sample can be offered, and mixed order is welcome.
2. What brand of chip do you use?
Re: We use osram LED super bright chip SMD2835 with efficiency 120lm/W.
3. Can I have special color like 2500K for sample?
Re: Yes, sure. But the colors need to be customised, so it will take 3-5 days to finish.
4. Can I have fixed driver for the DOB LED street light?
Re: Yes, that's possible. Please tell us your required driver brand! We can offer 3-5 years guarantee.
5. Can you make my logo on the glass and the box as private?
Re: Yes, we accept the customisation service. Please send us your logo diagram!
6. How long will the lead time take?
Re: Normally the leadtime takes 5-10 days. For exact data, it depends on the ordering quantity.
7. How to deal with the faulty?
Re: First of all, we ensure all of raw materials have been tested before stocking and products must have strict test and aged before shipping till good-working. If unfortunately any faulty happend, we will replace or refund.
