Product Description
Product Specifications:
|
Product Name
|
Ufo High Bay Light
|
|
SKU
|
SU-GK100W
|
SU-GK150W
|
SU-GK200W
|
|
Rated Power
|
100W
|
150W
|
200W
|
|

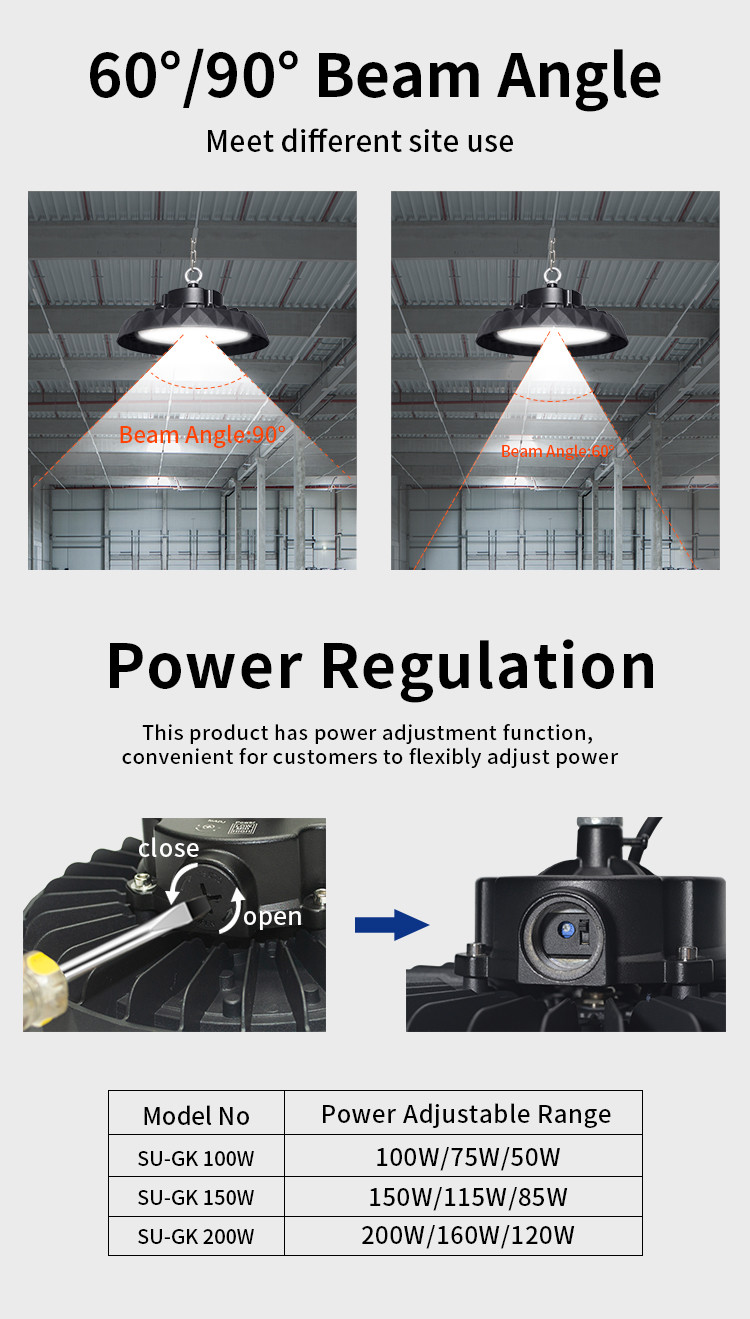

Adjustable Power Scope
|
100W/75W/50W
|
150W/115W/85W
|
200W/160W/120W
|
|
Dimension (mm)
|
Ø253*119mm
|
Ø327*119mm
|
Ø360*119mm
|
|
Light Efficiency
|
140-150lm/W
|
|
Input Voltage
|
AC220-240V, AC100-277V, 50/60Hz
|
|
Driver Mode
|
Constant current driver
|
| Power Output |
100% (±2%) |
|
CCT
|
2700K, 3000K, 4000K, 5000K, 6500K
|
|
Light Source
|
Lumileds SMD2835 LED
|
|
Material
|
Aluminum + PC
|
| Driver Mode |
Constant current |
|
Beam Angle
|
60°, 90°, 120°
|
|
CRI
|
>80Ra
|
|
PF
|
>0.9
|
|
Surge Protection
|
6KV
|
|
SDCM
|
≤10%
|
|
Working Temperature
|
≤5
|
|
Storage Temperature
|
-40 ~ +50°C
|
|
Installation
|
-50 ~ +60°C
|
|
Application
|
Warehouse, big supermarket, shopping mall, workshop, factory,
|
|
Recommendation Use
|
Commercial and industrial ceiling lighting
|
|
Additional custom
|
1. Brand Driver is possible.
2. LED light source can be customized.
3. Color temperature can be customized.
4. 3 / 5 / 8 years warranty can be customized.
5. Cable and plug can be customized.
6. Adjusting Power / CCT / Brightness can be customized.
7. 0-10V, Dali dimming available.
|
Product Descriptions:
1. SUPER BRIGHT & ENERGY SAVING
- UFO LED high bay light uses super bright and high lumen SMD 2835 LEDs to make high light efficiency 140-150lm/W or 100-110lm/W, saving more than 90% of power. It adopts the most advanced patch technology and convex design to offer brighter lighting and adjustable bigger range of illumination.
2. DIE-CASTING ALUMINUM BODY
- The LED high bay light UFO adopts integrated thick aluminum as lamp body with better heat sinking to prolong lamp's lifespan, and the housing follows with corrosion-proof, shock-proof, applicable for long-time use.
3. IP65 WATERPROOF PROTECTION
- This LED highbay light makes IP65 water proof protecting with good heat resistant, good frost resistant, corrosion-proof, and able to resist all extreme serious weather conditions.
4. OPTIONAL BEAM ANGLES
- Taking 90% high-transparent PC cover with optical lens, able to choose different beam angles (90° and 120°).
The PC can be protected again yellowing and with better weather ability, and 120° follows with tempered glass cover.
5. CUSTOMIZATION SERIVCE
- 80w, 100w, 120w, 150w, 180w and 200W high bay lamp can be customized to 0-10V / Dali dimming, and microwave sensor as required.
6. WIDELY APPLICATIONS
- The hook hanging and strong bracket allow the high bay light suitable for many usages like warehouse, oil station, subway, train station, air station, airport, logistic transport center, checkpoint, big supermarket, shopping center, shop, workshop, factory, steelworks industrial and commercial wet lighting locations.
Our Services:
- We provide various technique support and installation instructions.
- We can provide all data of the products you have ordered.
- We can customize different color temperature.
- We can customize different power.
- We can adjust creative structure of the flood lights you are asking.
- We accept logo, image, package customization.
- We can provide laser marking for the flood lights, and no MOQ.
- OEM, ODM welcome.
Product Show:
