Product Description
Product Specifications:
|
Product Name
|
High Bay Led Lights
|
|
SKU
|
SU-GK02A100W
|
SU-GK02A150W
|
SU-GK02A200W
|
SU-GK02A240W |
|
Rated Power
|
100W
|
150W
|
200W
|
240W |
| Power Output |
100% (±2%) |
|
Dimension (mm)
|
Ø200*145mm
|
Ø241*142mm
|
Ø281*148mm
|
Ø321*152mm |
|
Light Efficiency
|
110-120lm/W
|
|
Input Voltage
|
AC100-277V, 50/60Hz
|
|
Drive Mode
|
Constant current
|
| Driver |
ZH Driver, Lifud, Sosen, |
|
CCT
|
2700K, 3000K, 4000K, 5000K, 6500K
|
|
Light Source
|
SMD2835 LED (San'an or Philips)
|
|
Material
|
Aluminum + PC
|
|
Beam Angle
|
60°, 90°, 120°
|
| Dim Support |
0-10V, Dali, DMX512, or PWM |
|
CRI
|
>80Ra
|
|
PF
|
>0.9
|
|
Surge Protection
|
L/N-PG 6KV, L/N 5KV
|
| Power Cord |
H05RN-F |
| Protection Rank |
IP65 / IK07 |
| Life span |
50000H @ L70/B50 |
|
SDCM
|
≤10%
|
|
Working Temperature
|
≤5
|
|
Storage Temperature
|
-40 ~ +50°C
|
|
Installation
|
-45 ~ +60°C
|
|
Application
|
Warehouse, big supermarket, shopping mall, workshop, factory, gym, shed, farm,
|
|
Recommendation Use
|
Commercial and industrial ceiling panel lighting
|
|
Additional custom
|
1. Famous driver brand is optional.
2. LED beads can be customized.
3. Color temperature can be customized.
4. 3 / 5 years warranty can be customized.
5. Cable and plug can be customized.
6. Adjusting Power / CCT / Brightness can be customized.
7. 0-10V, Dali dimming available.
|
Product Descriptions:

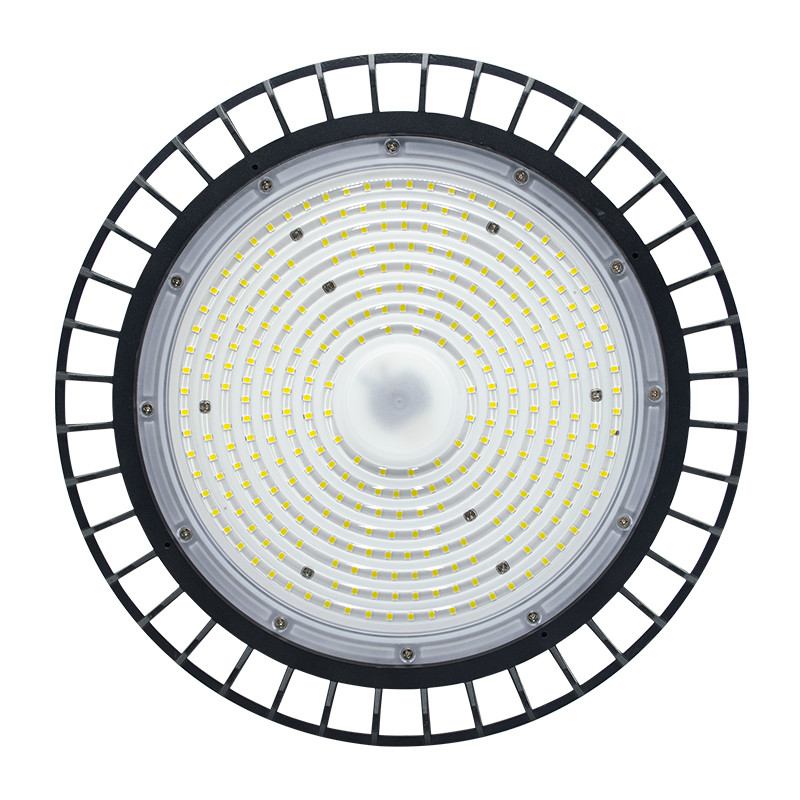

1. SUPER BRIGHT & ENERGY SAVING
- UFO LED high bay light uses super bright and high lumen SMD 2835 LEDs to make high light efficiency 110-120lm/W, saving more than 90% of power. It adopts the most advanced patch technology and convex design to offer brighter lighting and adjustable bigger range of illumination.
2. DIE-CASTING ALUMINUM BODY
- The LED high bay light UFO adopts integrated thick aluminum as lamp body with better heat sinking to prolong lamp's lifespan, and the housing follows with corrosion-proof, shock-proof, applicable for long-time use.
3. IP65 WATERPROOF PROTECTION
- This LED highbay light makes IP65 water proof protecting with good heat resistant, good frost resistant, corrosion-proof, and able to resist all extreme serious weather conditions.
4. OPTIONAL BEAM ANGLES
- Taking 90% high-transparent PC cover with optical lens, able to choose different beam angles (60, 90 and 120).
The PC can be protected again yellowing and with better weather ability, and 120° follows with tempered glass cover.
5. CUSTOMIZATION SERIVCE
- 80w, 100w, 120w, 150w, 180w, 200W, and 240W high bay lamp can be customized to 0-10V / Dali / DMX512 / PWM dimming, and microwave and radar sensor as required.
6. WIDELY APPLICATIONS

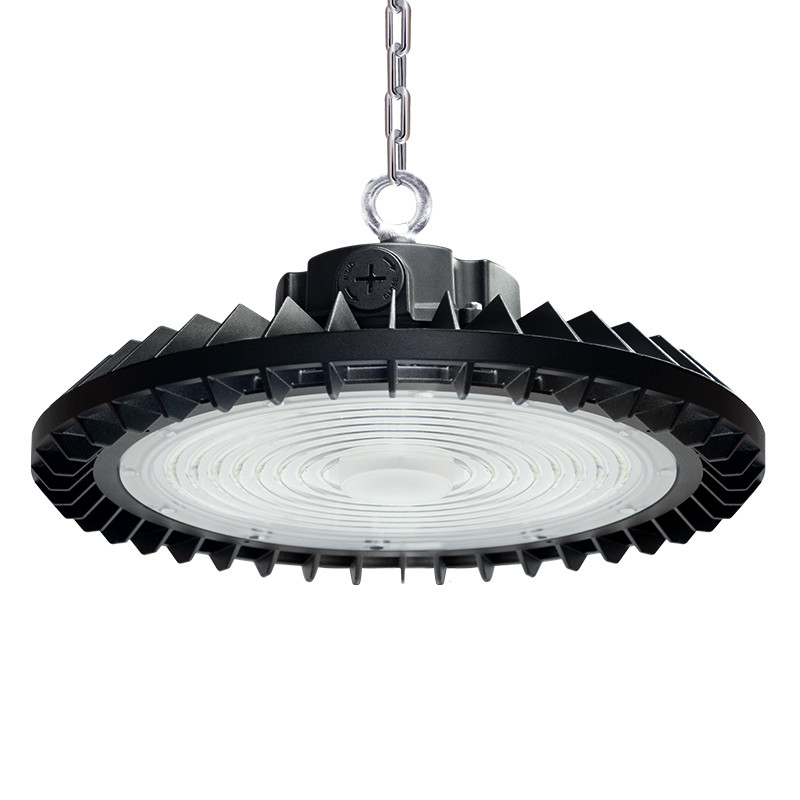

- The hook hanging and strong bracket allow the high bay light suitable for many usages like warehouse, oil station, subway, train station, air station, logistic transport center, checkpoint, big supermarket, shopping center, shop, workshop, factory, steelworks industrial and commercial wet lighting locations.
