Product Details:
|
| Name: | LED UFO High Bay Light | LED Type: | SMD2835 Chip |
|---|---|---|---|
| Warranty: | 5 Years | Beam Angle: | 60°, 90°, 120° |
| Size: | D308*H155mm | Color: | 3000K, 4500K, 6500K |
| Body Color: | Black | Surge Protection: | 6KV |
| High Light: | 22000 Lumens dimmable high bay led,150W led high bay lights dimmable,10V LED UFO High Bay Light |
||

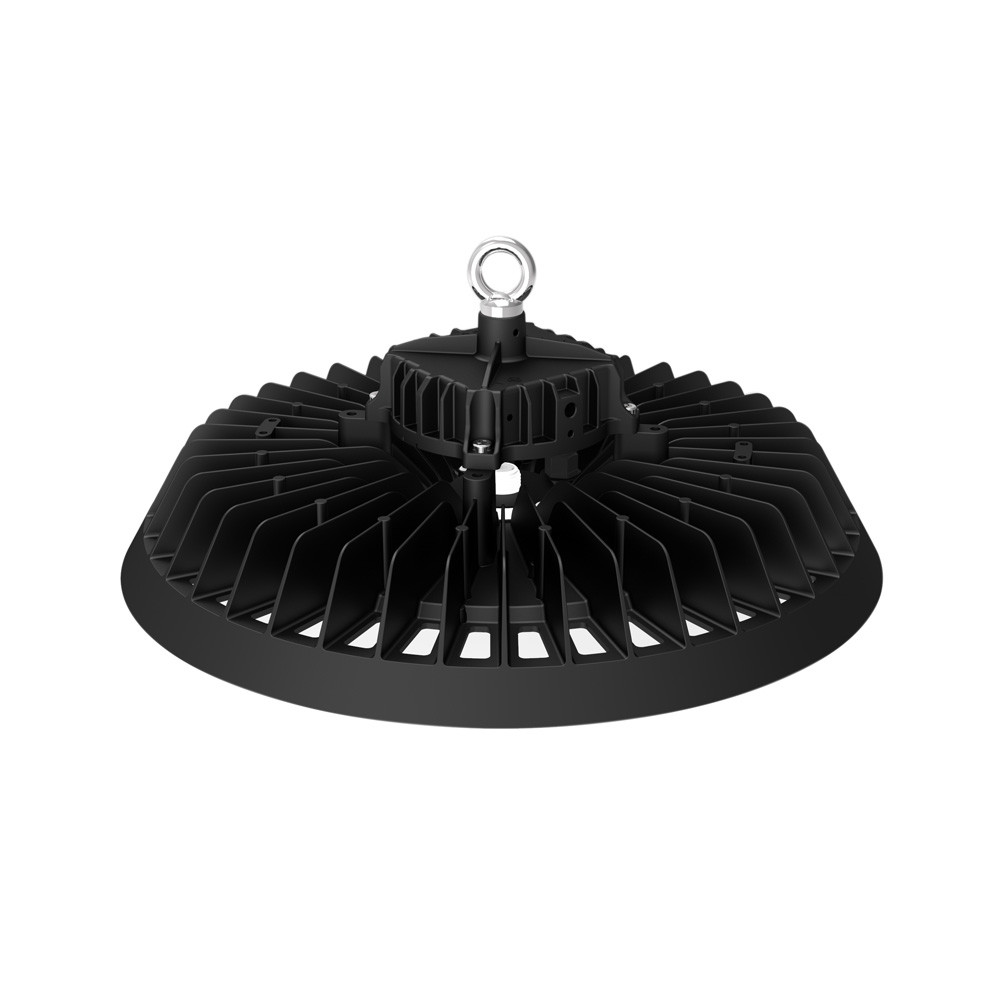

0-10V Dimmable LED UFO High Bay Light 150W 22000 Lumens Black Aluminum
Quick Details of LED UFO High Bay Light:
◆ High power and super bright SMD2835 LED light source.
◆ Lumen flux: 22000lm for 150 watts.
◆ Light efficiency: 150lm/W.
◆ Optional wattages: 100W, 150W and 200W or customised.
◆ Input work voltage: AC85-265V, 50/60Hz.
◆ Color: 2700K, 3000K, 4500K, 6500K.
◆ Beam angle: 60°, 90°, 120°.
◆ Anti-surge protection level: IK07.
◆ Waterproof protection: IP65 waterproof.
◆ Material: die-casting aluminum.
◆ Cover: PC material.
◆ Control mode: DALI dimmable, 0-10V dimmable, color temperature dimmable.
◆ Sensor mode: PIR motion sensor, microwave sensor, radar sensor, light sensor / photocell sensor (optional).
◆ Body color: White, Black (optional).
◆ Application: workshop, factory, warehouse, supermarket, gym, exhibition hall, counter, and arena.
◆ Long lifes, no strobo, no radiation, strong lighting, low electricity, better heat dissipation.
Descriptions of LED UFO High Bay Light:
The UFO LED high bay light is very welcome and popular in markets. The model is simple appearance and constant-current driver solution. The housing material is integrated diecasting aluminum with corrosion-proof, weather-roof and the cover is optical PC with 60, 90 and 120 degree. It is waterproof IP65 for indoor and outdoor lighting. The installation can have chain and bracket two ways.
Specifications of LED UFO High Bay Light:
| Product Name | 0-10V Dimmable LED High Bay Light | ||
| SKU | SU-GKA100W | SU-GKA150W | SU-GKA200W |
| Rated Wattage | 100 Watts | 150 Watts | 200 Watts |
| Dimension (mm) | D253 x H149mm | D308 x H155mm | D354 x H160mm |
| Lumen Flux | 15000lm | 22500lm | 30000lm |
| Input Voltage | AC85-265V, 50/60Hz | ||
| Light Source | SMD2835 LED chips | ||
| Color Temperature | 2700K, 3000K, 4500K, 6500K | ||
| CRI | >80 | ||
| Light Efficiency | 150lm/W | ||
| Power Factory | >0.9 | ||
| Driver Mode | Constant Current Isolated driver | ||
| Beam Angle | 60, 90°, 120° | ||
| Material | Die-casting aluminum | ||
| Cover | PC | ||
| Body Color | Black, White | ||
| Work Temperature | -40 ~50 centigrade | ||
| Surge Protection | 6KV | ||
| Shock-proof | IK07 | ||
| IP Rating | IP65 waterproof | ||
| Lifespan | 50,000H | ||
Details Show of LED UFO High Bay Light:
Installations of LED UFO High Bay Light:
Applications of LED UFO High Bay Light:
About Us:
Frequent Questions of LED UFO High Bay Light:
1. How many pieces can I take as the trial order?
Re: The MOQ is 100 PCS. If 1pc sample is needed, welcome to your trial order.
2. Can it be Dali dimmable?
Re: Yes, this model can be DALI dimmable and 0-10V dimmable.
3. Can I have 2500K warmer color?
Re: Yes, the color can be customised.
4. What brand of driver do you use inside?
Re: This GKA series is adopted brand driver with 5 years warranty.
5. What color body can I choose?
Re: There are black or white body color optional.
6. How will you send me the goods?
Re: For sample, we will send you by express as it's the fastest. If you have idea, please kindly tell. For bulk, we often ship by air or sea.
7. How to deal with the faulty?
Re: First of all, we are confident of our quality. All of products have a course of double tests before shipping. If unfortunately, the faulty comes from our product itself, we will replace or return.
