Product Details:
|
| Name: | Dimmable High Bay LED Lights | Warranty: | 5 Years |
|---|---|---|---|
| Surge Protection: | 6KV | Beam Angle: | 60°, 90°, 120° |
| Size: | D253*H149mm | Body Color: | White |
| Material: | Aluminum | ||
| High Light: | dimmable ufo led lights IK07,dimmable high bay lights 200W,high bay dimmable led lights 30000lm |
||
Driver Dimmable High Bay LED Lights 200W 30000lm 5 Years Warranty
Quick Details of Dimmable High Bay LED Lights:
◆ High power and super bright Epistar SMD3030 LED light source.
◆ Light efficiency: 150lm/W.
◆ Optional wattages: 100W, 150W and 200W or customised.
◆ Input work voltage: AC85-265V, 50/60Hz.
◆ Color: 2700K, 3000K, 4500K, 6500K.
◆ Beam angle: 60°, 90°, 120°.
◆ Anti-surge protection level: IK07.
◆ Waterproof protection: IP65.
◆ Material: aluminum.
◆ Cover: PC material.
◆ Control mode: DALI dimmable, 0-10V dimmable, color temperature dimmable.
◆ Body color: White, Black (optional).
◆ Application: workshop, factory, warehouse, supermarket, gym, exhibition hall, counter, and arena.
◆ Long lifes, no strobo, no radiation, strong lighting, low electricity, better heat dissipation.
Descriptions of Dimmable High Bay LED Lights:
The UFO LED high bay light is very welcome and popular in markets. The model is simple appearance and constant-current driver solution. The housing material is integrated diecasting aluminum with corrosion-proof, weather-roof and the cover is optical PC with 60, 90 and 120 degree. It is waterproof IP65 for indoor and outdoor lighting.
The installation can have chain and bracket two ways.
Specifications of Dimmable High Bay LED Lights:
| Product Name | DALI Dimmable High Bay LED Light | ||
| SKU | SU-GKA100W | SU-GKA150W | SU-GKA200W |
| Rated Wattage | 100 Watts | 150 Watts | 200 Watts |
| Dimension (mm) | D253 x H149mm | D308 x H155mm | D354 x H160mm |
| Luminous Flux | 15000lm | 22500lm | 30000lm |
| Input Voltage | AC85-265V, 50/60Hz | ||
| Light Source | SMD2835 LED chips | ||
| Color Temperature | 2700K, 3000K, 4500K, 6500K | ||
| CRI | >80 | ||
| Light Efficiency | 150lm/W | ||
| Power Factory | >0.9 | ||
| Driver Mode | Constant Current Isolated driver | ||
| Beam Angle | 60, 90°, 120° | ||
| Material | Die-casting aluminum | ||
| Cover | PC | ||
| Body Color | Black, White | ||
| Work Temperature | -40 ~50 centigrade | ||
| Surge Protection | 6KV | ||
| Shock-proof | IK07 | ||
| IP Rating | IP65 waterproof | ||
| Lifespan | 50,000H | ||
| Warranty | 5 Years | ||

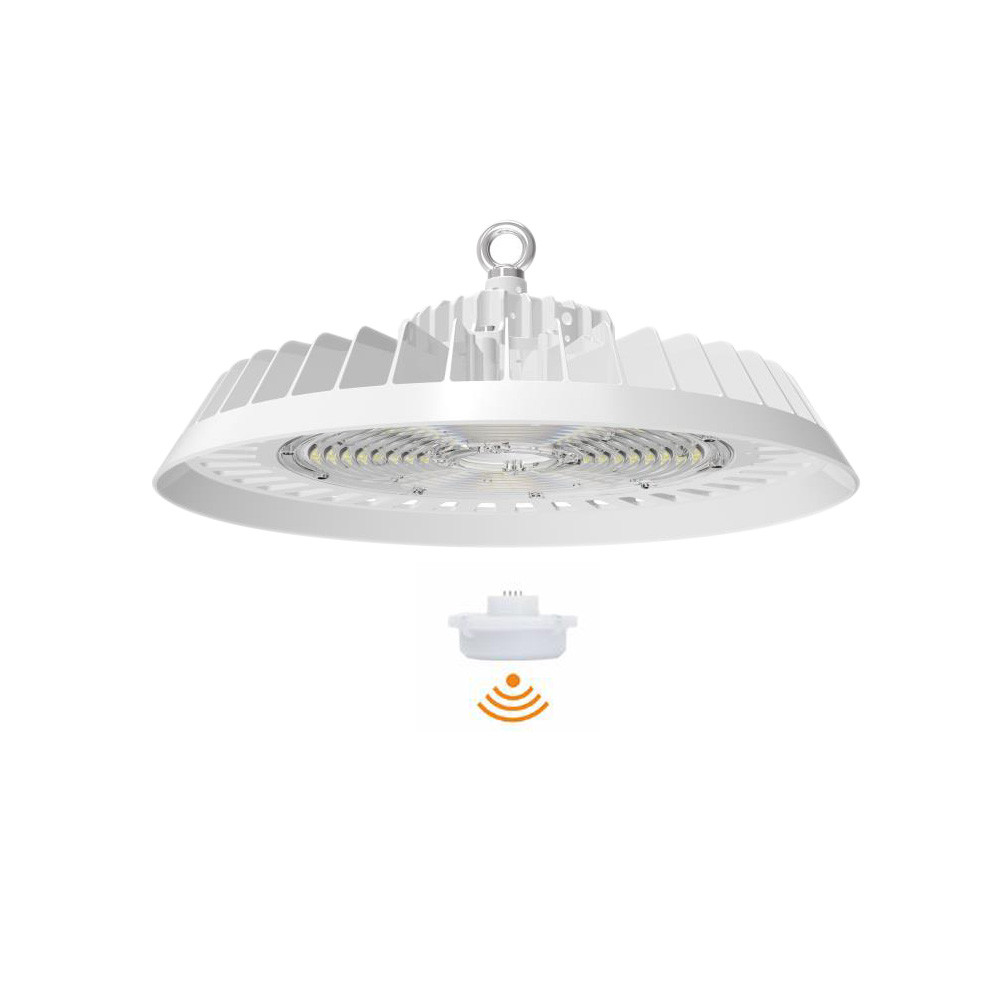

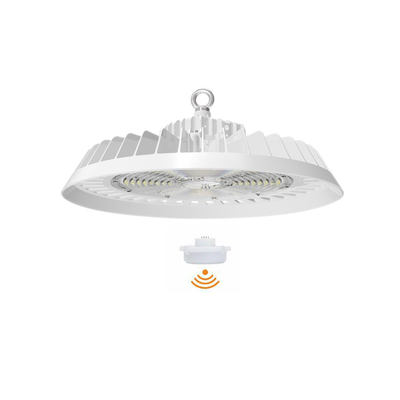

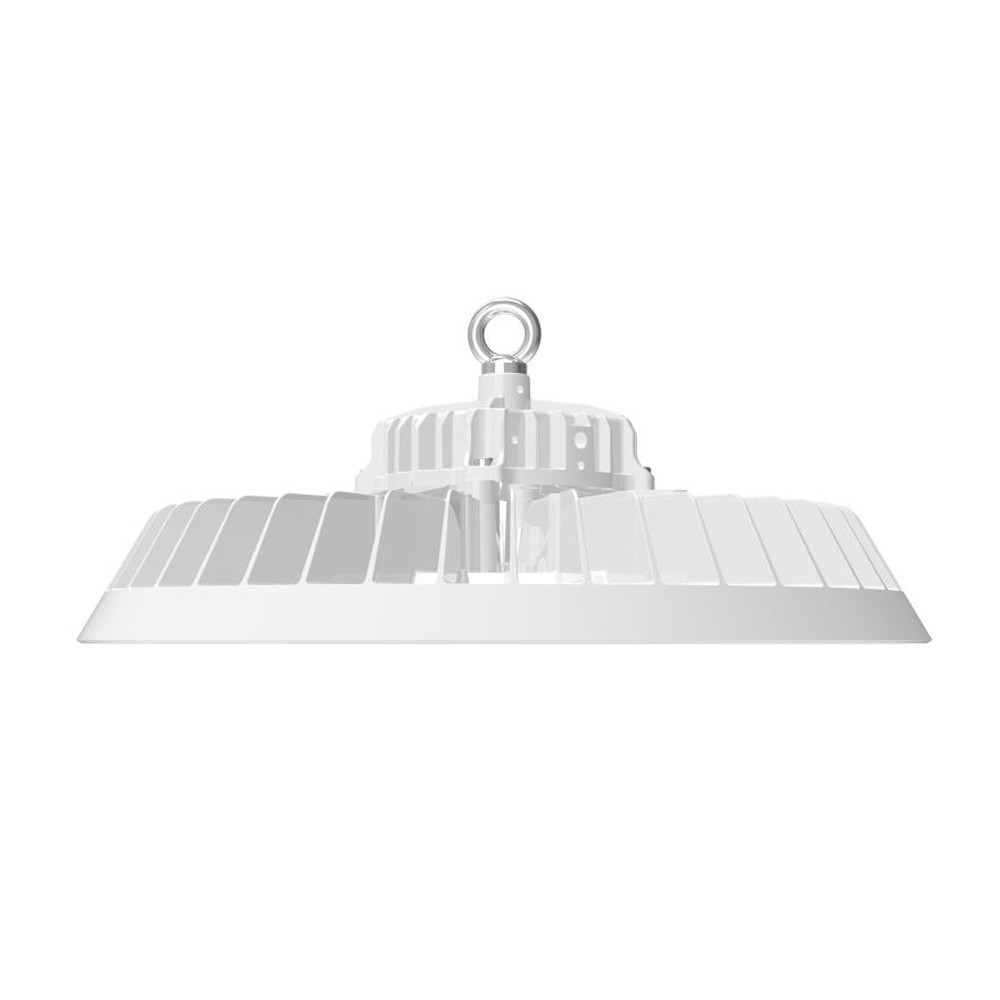

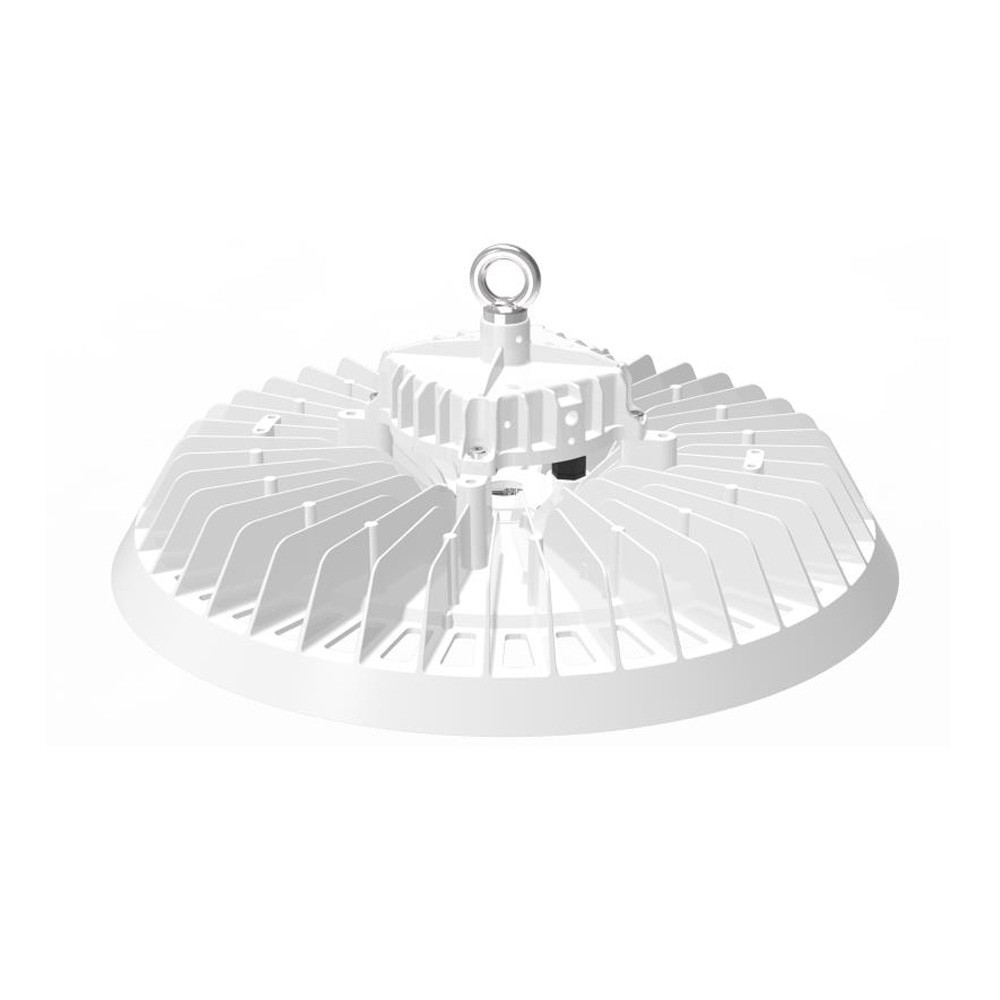

Details Show of Dimmable High Bay LED Lights:
Installations of Dimmable High Bay LED Lights:
Applications of Dimmable High Bay LED Lights:
About Us:
Frequent Questions of Dimmable High Bay LED Lights:
1. How many pieces can I take as the trial order?
Re: The MOQ is 100 PCS. If 1pc sample is needed, welcome to your trial order.
2. Can it be Dali dimmable?
Re: Yes, this model can be DALI dimmable and 0-10V dimmable.
3. Can I have 2500K warmer color?
Re: Yes, the color can be customised.
4. What brand of driver do you use inside?
Re: This GKA series is adopted brand driver with 5 years warranty.
5. Can I have my logo on the product and box?
Re: Yes, we accept OEM/ODM. Just send us your logo diagram and your idea.
6. Will you have pallet for the cartons if I order bulk quantity?
Re: Yes, we can have pallet for bulk quantity for safe transportation if required.
7. How will you send me the goods?
Re: For sample, we will send you by express as it's the fastest. If you have idea, please kindly tell. For bulk, we often ship by air or sea.
8. How to deal with the faulty?
Re: First of all, we are confident of our quality. All of products have a course of double tests before shipping. If unfortunately, the faulty comes from our product itself, we will replace or return.
