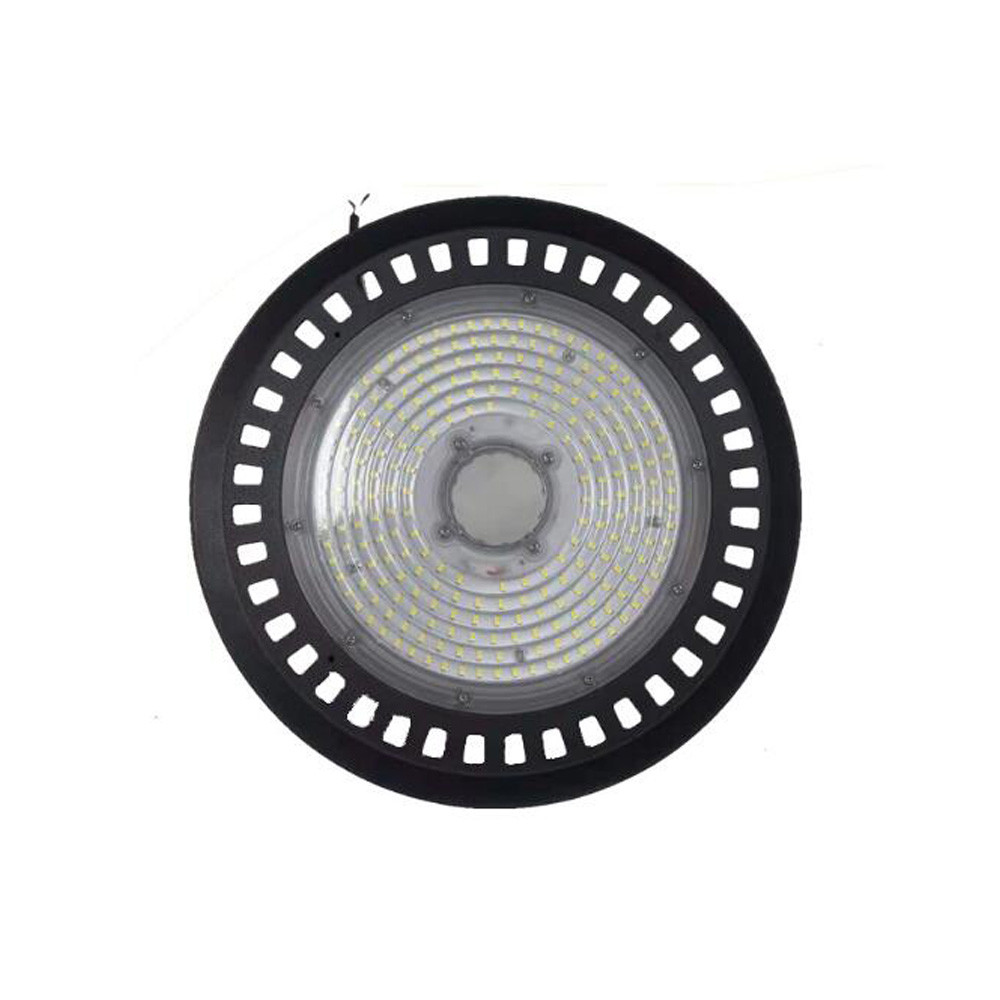

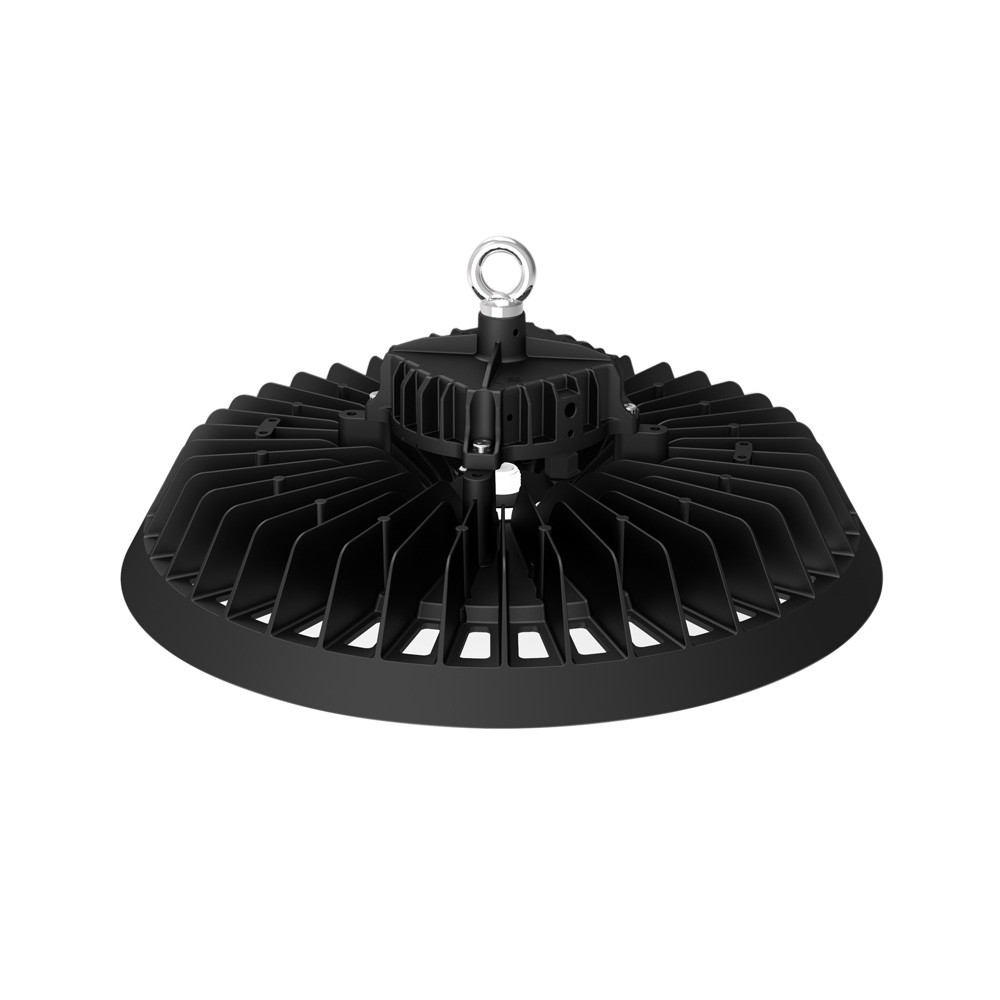

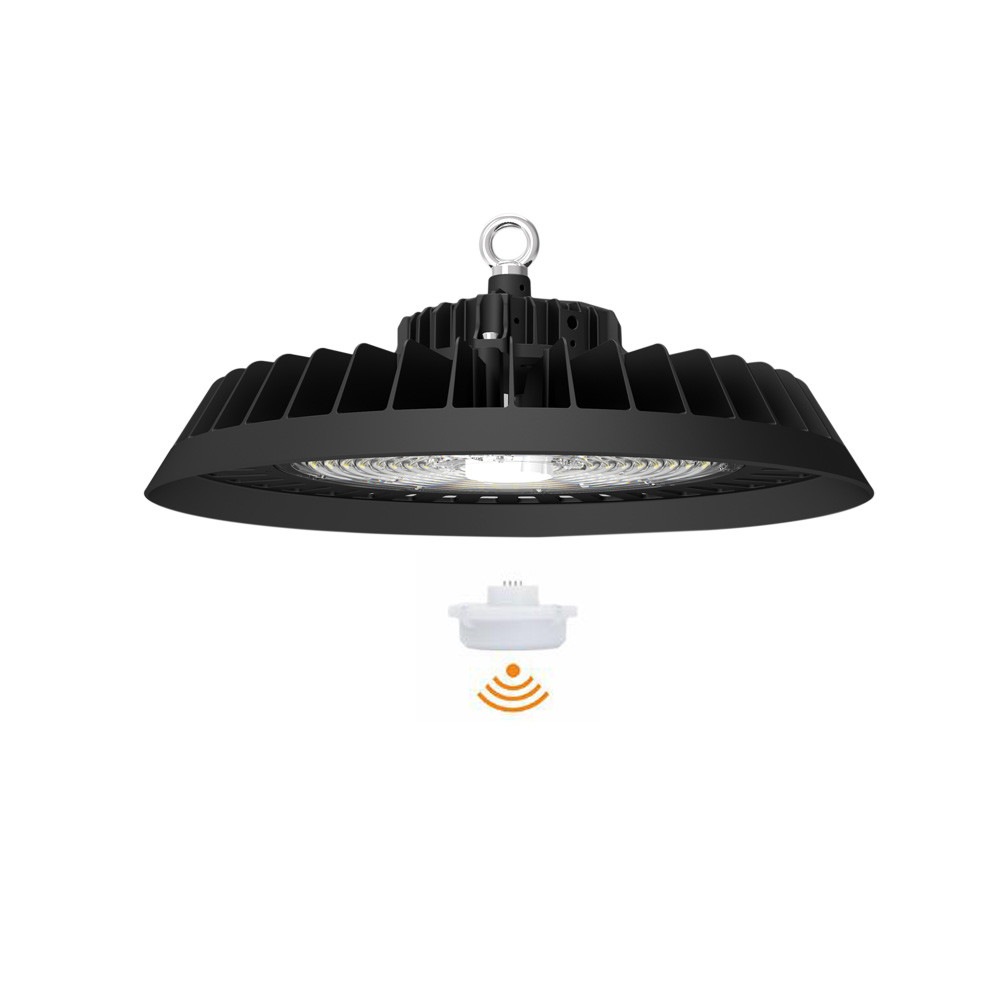

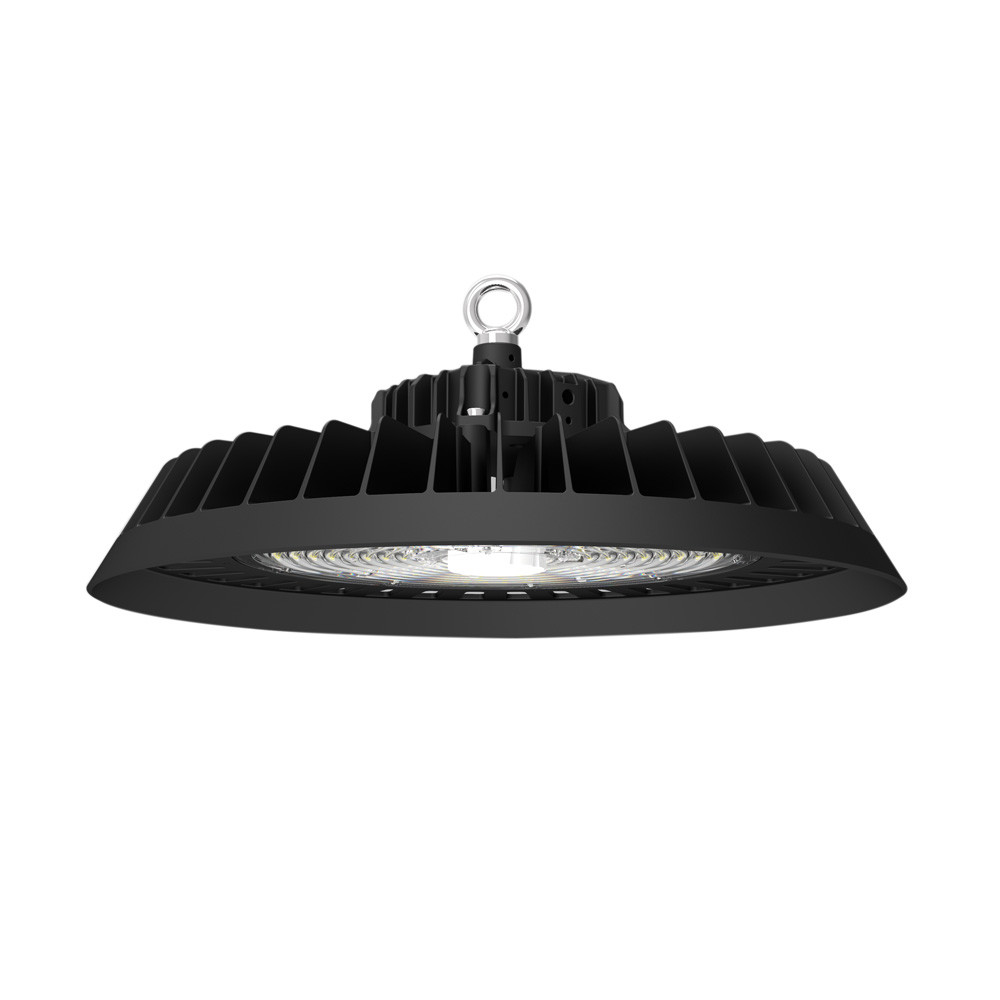

ODM Commercial 100 Watt UFO LED Highbay Lights IP65 With Microwave Sensor

Product Description

Microwave Sensor LED Highbay Lights 200W 150W 100W IP65 Commercial Lighting



Quick Details of Microwave Sensor LED Highbay Lights:

◆  High power and super bright SMD2835 LED light source.

◆  Lumen flux: 30000lm for 200 watts.

◆  Light efficiency: 150lm/W.

◆  Optional wattages: 100W, 150W and 200W or customised.

◆  Input work voltage: AC85-265V, 50/60Hz.

◆  Color: 2700K, 3000K, 4500K, 6500K.

◆  Beam angle: 60°, 90°, 120°.

◆  Anti-surge protection level: IK07.

◆  Waterproof protection: IP65 waterproof.

◆  Material: die-casting aluminum.

◆  Cover: PC material.

◆  Control mode: DALI dimmable, 0-10V dimmable, color temperature dimmable.

◆  Sensor mode: PIR motion sensor, microwave sensor, radar sensor, light sensor / photocell sensor (optional).

◆  Body color: White, Black (optional).

◆  Application: workshop, factory, warehouse, supermarket, gym, exhibition hall, counter, and arena.

◆  Long lifes, no strobo, no radiation, strong lighting, low electricity, better heat dissipation.



Descriptions of Microwave Sensor LED Highbay Lights:

    The microwave sensor LED highbay light is very welcome and popular in markets. The highbay light is simple appearance and constant-current driver solution. The housing material is integrated diecasting aluminum with corrosion-proof, weather-roof and the cover is optical PC with 60, 90 and 120 degree.

     This unique design LED highbay lights could be used in wet location. IP 65 water proof this rating means our UFO high bay is protected against dust-tight and water ingress coming through a nozzle made possible through a driver inside the product. The UFO high bay lighting fixtures come with a big heat sink manufactured out of aluminum for excellent heat dissipation.

     The installation method of LED highbay light can have chain and bracket two ways.



Specifications of Microwave Sensor LED Highbay Lights:

Product Name	Microwave Sensor LED Highhay Light
SKU	SU-GKA100W	SU-GKA150W	SU-GKA200W
Rated Wattage	100 Watts	150 Watts	200 Watts
Dimension (mm)	D253 x H149mm	D308 x H155mm	D354 x H160mm
Lumen Flux	15000lm	22500lm	30000lm
Input Voltage	AC85-265V, 50/60Hz
Light Source	SMD2835 LED chips
Color Temperature	2700K, 3000K, 4500K, 6500K
CRI	>80
Light Efficiency	150lm/W
Power Factory	>0.9
Driver Mode	Constant Current Isolated driver
Beam Angle	60, 90°, 120°
Material	Die-casting aluminum
Cover	PC
Body Color	Black, White
Work Temperature	-40 ~50 centigrade
Surge Protection	6KV
Shock-proof	IK07
IP Rating	IP65 waterproof
Lifespan	50,000H



Details Show of Microwave Sensor LED Highbay Lights:











Installations of Microwave Sensor LED Highbay Lights:



Applications of Microwave Sensor LED Highbay Lights:



About Us:



Frequent Questions of Microwave Sensor LED Highbay Lights:

1. How many pieces can I take as the trial order?

   Re: The MOQ is 10 PCS. If 1pc sample is needed, welcome to your trial order.



2. Can it be Dali dimmable?

   Re: Yes, this model can be DALI dimmable and 0-10V dimmable.



3. Can I have my logo on the product?

   Re: Yes, we accept the customised service.



4. What brand of driver do you use inside?

   Re: This GKA series is adopted brand driver with 5 years warranty.



5. What color body can I choose?

   Re: There are black or white body color optional.



6. Can I have colorful box for the model?

   Re: Yes, you can. The package can be made as your requests.



7. How will you send me the goods?

   Re: For sample, we will send you by express as it's the fastest. If you have idea, please kindly tell. For bulk, we often ship by air or sea.



8. How to deal with the faulty?

   Re: First of all, we are confident of our quality. All of products have a course of double tests before shipping. If unfortunately, the faulty comes from our product itself, we will replace or return.
