Product Details:
|
| Name: | UFO LED Mining High Bay Lights | Warranty: | 5 Years |
|---|---|---|---|
| Size: | D350*H170mm | Power: | 100W, 150W, 200W |
| Sensor Available: | Yes | Material: | Diecasting Aluminum |
| High Light: | Aluminum UFO High Bay Lights,Lumileds UFO High Bay Lights,100W UFO LED High Bay Light |
||
Waterproof High Bay Lights UFO 200W 150W 100W Lumileds LEDs With 60 90 120 Angle
Quick details for Waterproof High Bay Lights:
► Adopting high power and super bright Lumileds SMD2835 LEDs light source.
► Finished light efficiency can reach 150-160lm/W.
► Available power: 100W, 150W, 200W and customised.
► Beam angle: 60, 90 and 120 degree.
► Waterproof protection: IP65.
► Body material: High-quality pure aluminum.
► Cover material: PC cover against UV, never yellowing.
► Driver mode: constant-current driver (Chinese brand or brand, or customised).
► Dimmer optional: Dali dimming, 0-10V dimming, CCT dimming.
► Sensor method optional: Radar sensor.
► Control method: Remote control.
Descriptions of Waterproof High Bay Lights:
The waterproof high bay lights is very welcome and popular in markets now for its widely usages. It is not only simple but modern. This adopts constant-current driver solution (brand driver optional), and the housing is integrated diecasting aluminum with high corrosion-proof, weather-roof and the cover is optical PC with 60, 90 and 120 degree. It is waterproof IP65 for indoor and outdoor lighting.
The high bay lights is widely used for plant, factory, workshop, warehouse, storehouse, logistic center, exhibition center, gas station, gym, shipyard and supermarkets etc.
The installation can be ring installation and pipe installation two ways.
Datasheet of Waterproof High Bay Lights:
| Product Name | Waterproof High Bay Lights | ||
| SKU | SU-GKF100 | SU-GKF150 | SU-GKF200 |
| Rated Power | 100 Watts | 150 Watts | 200 Watts |
| Dimension | D241 x H149mm | D298 x H164mm | D350 x H170mm |
| Luminous Flux | 15000-16000lm | 22500-24000lm | 30000-32000lm |
| Input Voltage | 85-265VAC, 50/60Hz | ||
| Light Source | Lumileds SMD2835 LEDs | ||
| CRI | >80 | ||
| Light Efficiency | 150-160lm/W | ||
| Sensor Mothod | Motion Sensor, Radar Sensor, Microwave Sensor | ||
| Control Method | Remote Control | ||
| Power Factor | >0.9 | ||
| Driver Mode | Constant-current isolated driver ( or Chinese brand free option) | ||
| Beam Angle | 60°, 90°, 120° | ||
| Body Material | Die-casting aluminum | ||
| Cover | PC cover (not yellowing) | ||
| Body Color | Black | ||
| Work Temperature | -40 ~ 50 centigrade | ||
| Surge Protection | 6KV | ||
| Shock-proof Class | IK07 | ||
| Waterproof Rank | IP65 | ||
| Life Span | 50,000H | ||
| Warranty | 5 Years | ||
| Net Weight | 2.2 KG | 2.5 KG | 3.2 KG |

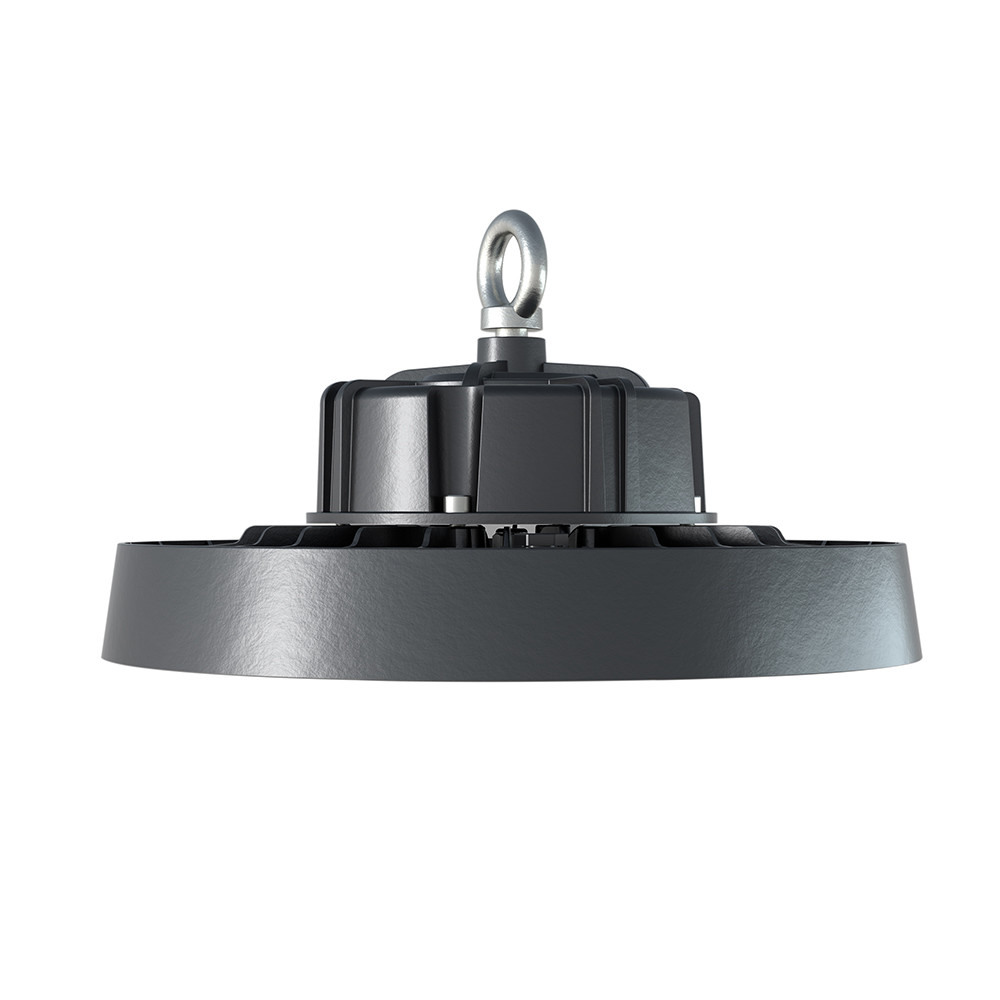

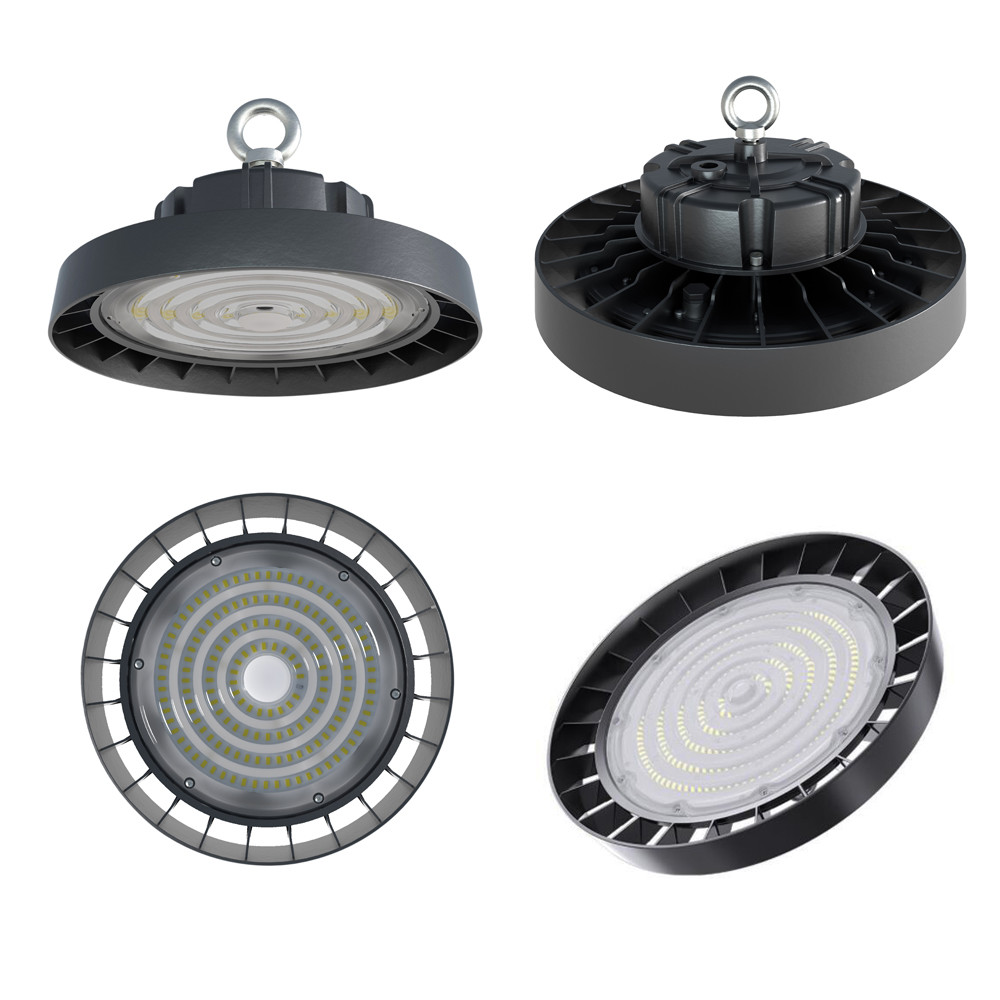

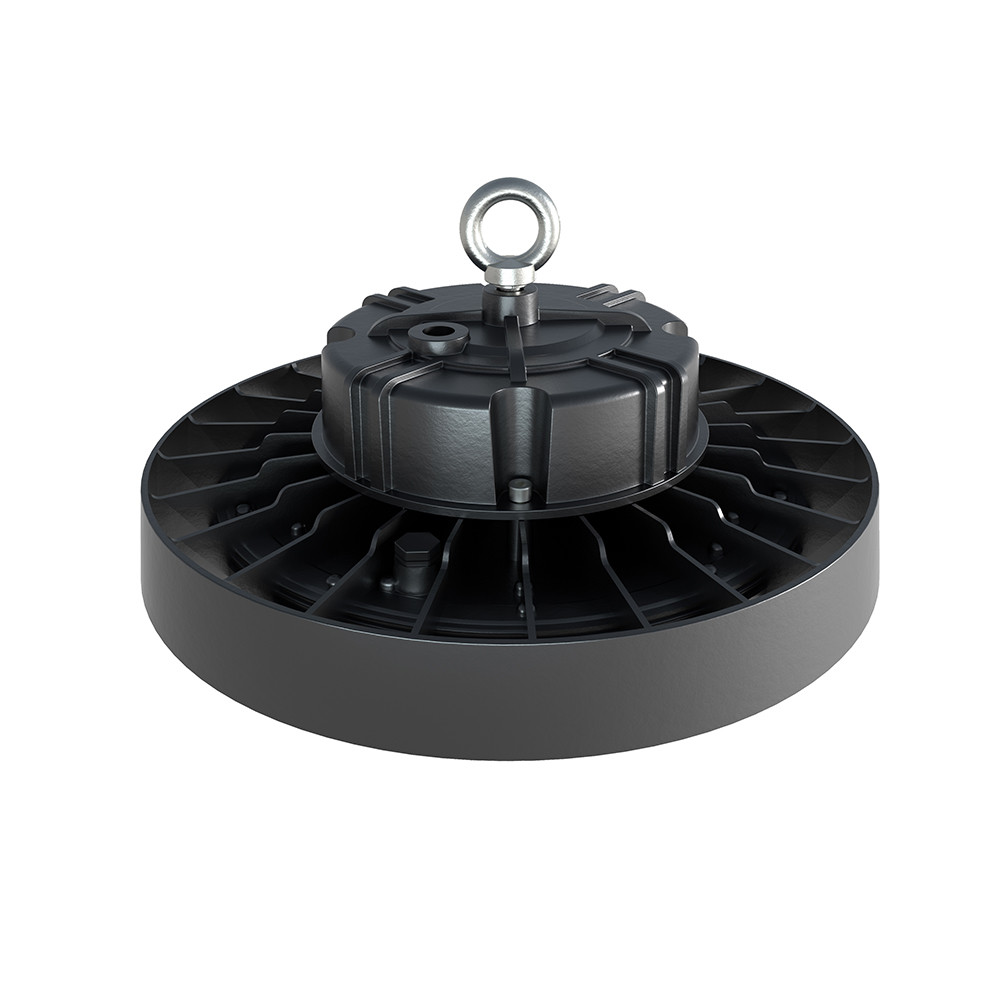

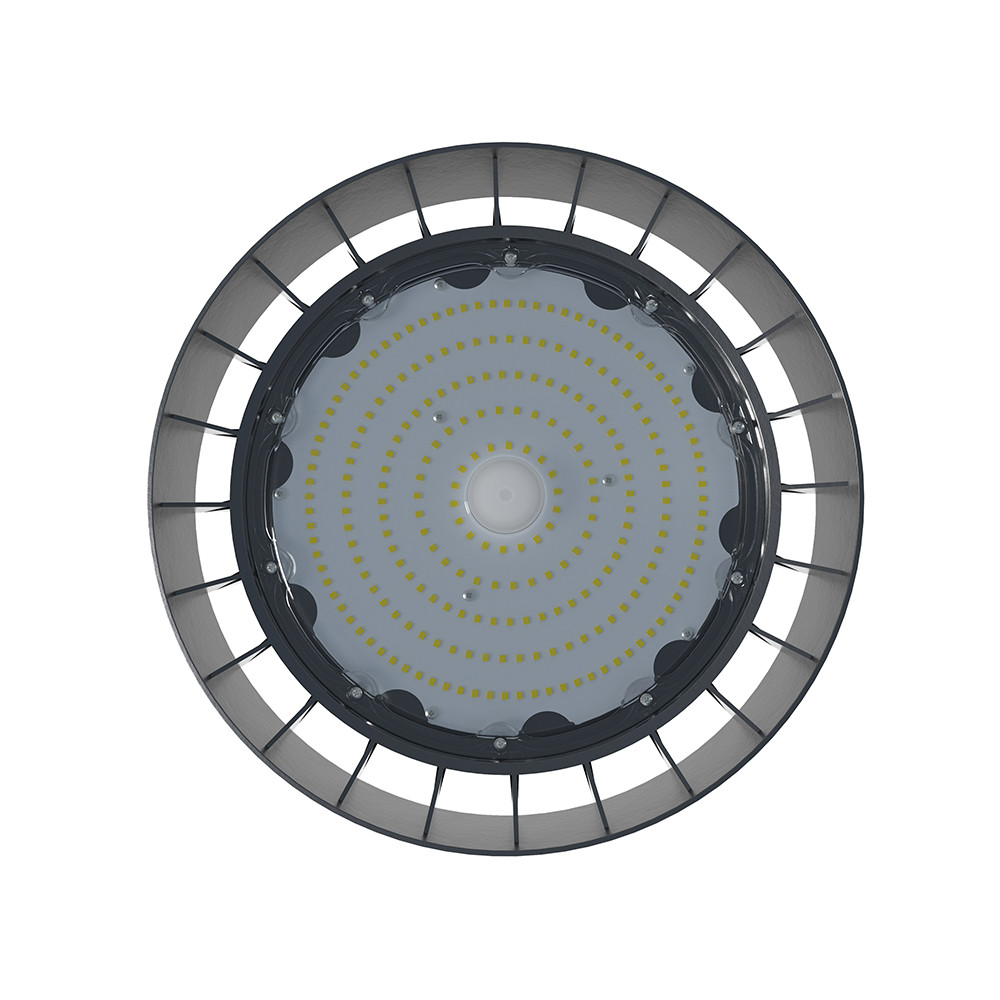

Product Show of Waterproof High Bay Lights:
60°, 90° and 120° Beam Angle for Waterproof High Bay Lights
Installations of Waterproof High Bay Lights:
Applications of Waterproof High Bay Lights:
About SUNRISE:
Frequent Asked Queations of Waterproof High Bay Lights:
1. Can the waterproof high bay lights dimmable?
Re: Yes, it can be dimmable. Please contact our sales!
2. Do you have warmer color?
Re: Yes, the normal colors are 3000K, 4500K, and 6500K. Other colors can be customised. Please send us!
3. What brand of driver do you use for the waterproof high bay lights?
Re: The driver can be Chinese brand, brand or others. Different drivers gave different prices.
4. Can I take 1 sample before bulk quantity?
Re: Yes, welcome to the sample order. 1pc or mixed samples are welcome.
5. How will you send me the goods?
Re: The logistic ways can be express, air or sea shipping. We could give you the lowest shipping cost.
6. How to deal with the faulty?
Re: First of all, we are confident of our quality. All of products have a course of double tests before shipping. If unfortunately, the faulty comes from our product itself, we will replace or return.
