Product Details:
|
Name: | LED Street Lights | Material: | Die-casting Aluminum |
---|---|---|---|
Pipe Diamater: | 60mm | Beam Angle: | T2M, T3M, T4M, 60°, 90°, 70x140° |
CRI: | >0.8 | IP Rating: | IP66 Waterproof |
Installing Height: | 6-15 Meters | Surge Protection: | 6-10KV |
High Light: | motion sensor flood lights dustproof,smart motion flood light 50w,200w motion detector flood light |

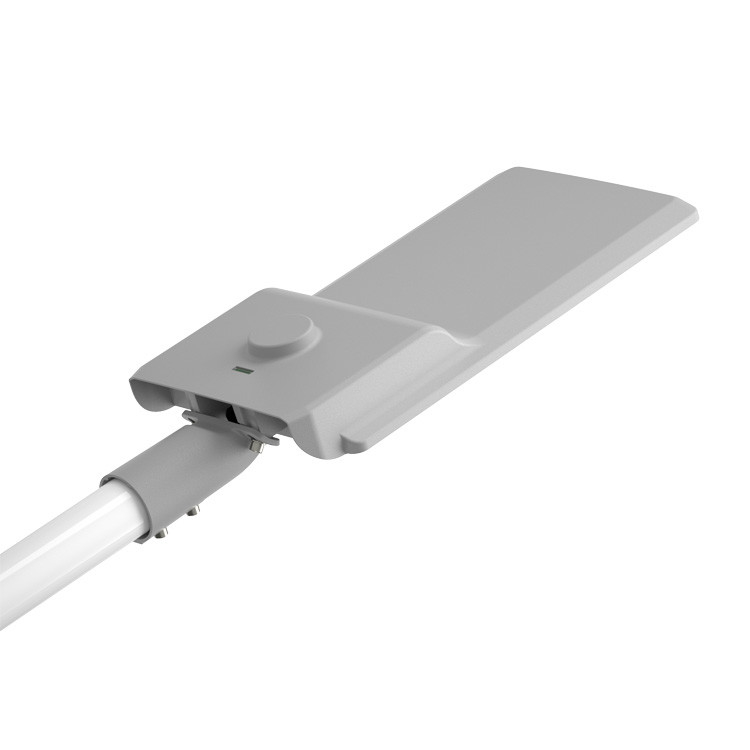

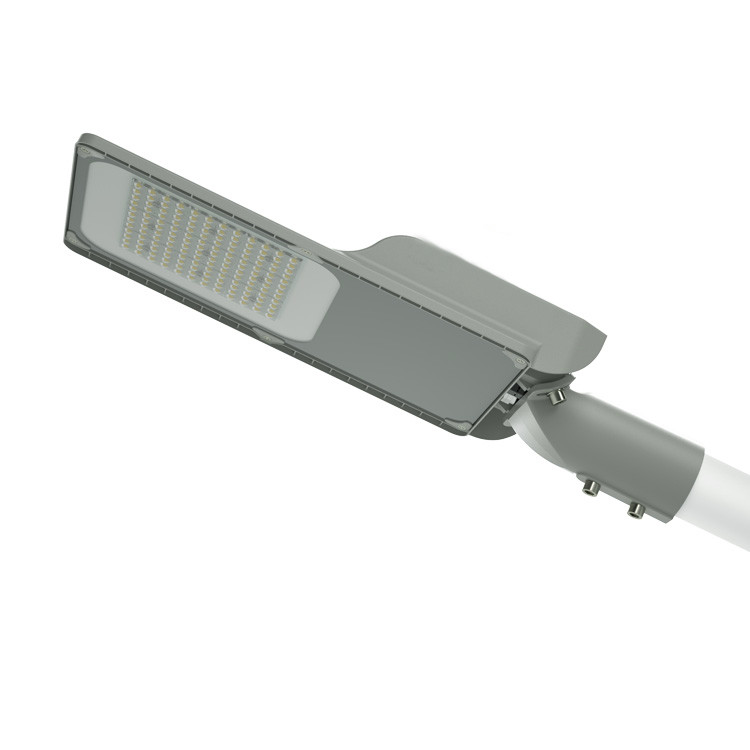

2022 New Design Outdoor LED Street Lights Smart Motion Sensor
Descriptions of Outdoor LED Street Lights:
The outdoor LED street light is up-graded appearance in 2022. It adopts superior and thick diecasting aluminum with corrison-proof, weather-proof. The radiator adopts advanced formable element analysis technology to improve product heat structure design, so the lamp's temperature can be nicely controlled, so it will get very low temperature tolerance between the internal and the external, and smooth heat-sink and lumen is high.
This light can get various beam angle such as T2M, T3M, T4M, 60°, 90°, 70X140° for different requests of the applications. The LED street light can be widely used in street, road outdoor waterproof light for highway, path, parks and living areas.
Structure details of LED Street Lights:

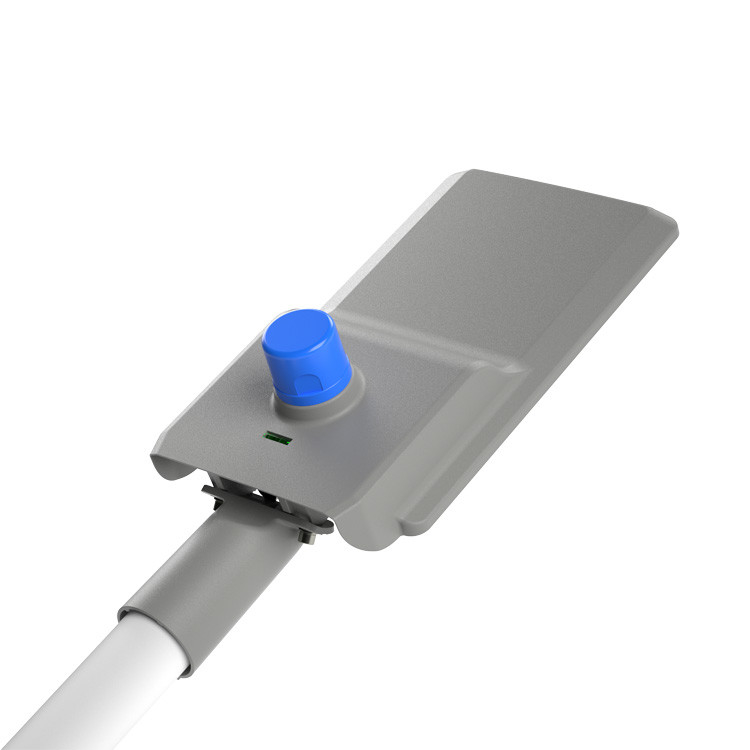

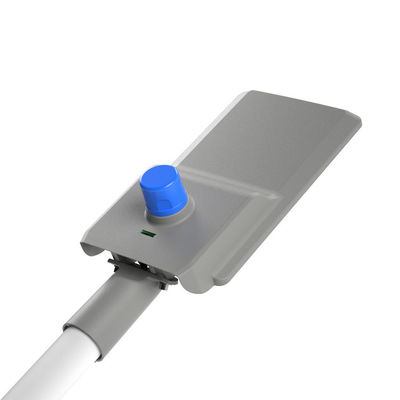

1. Optional motion sensor.
2. ADC12 die-casting aluminum radiator, efficiency more 96W/M.K.
3. High thermal aluminum PCB, fast heat-running to decrease light failure.
4. SMD5050 LEDs get 150Im/W after finished.
5. Optical PC lens, accurate light control, UV-proof and never yellowing.
6. Nano-plastic reflector, never yellowing after long use.
7. Tempered glass cover.
8. Support famous brand drivers like Meanwell, Sosen etc
9. Adjustable aluminum bracket.
Product Parameters of Outdoor LED Street Lights:
Product Name | Led Street Light LD | ||
Part No. | SU-LD50 | SU-LD100 | SU-LD200 |
Rated Power | 50W | 100W | 200W |
Input Voltage | AC85-265V, 50/60Hz | ||
Light Efficiency | 120lm/W | ||
Product Dimension | 515x190*98mm | 575x242x109mm | 685x287x110mm |
Pipe Diameter | D60mm | ||
Driver | Constant Current Isolated Driver | ||
Light Source | SMD3030 Led | ||
CCT | 2700k, 3000k, 4500k, 5500k, 6500k | ||
Body Material | Die-casting aluminum | ||
Cover | PC | ||
Beam Angle | T2M, T3M, T4M, 60°, 90°, 70X140° | ||
CRI | >70 | ||
PF | >0.9 | ||
Surge Protection | 6KV | ||
Degree of Protection | IK08 | ||
Waterproof Protection | IP66 | ||
Work Temperature | -40 ~ +50 Deg. | ||
Life Span | 50,000H | ||
Warranty | 3 Years |
Dimensions of Outdoor LED Street Lights:
Structure Diagram of Outdoor LED Street Lights:
Light Distribution of Outdoor LED Street Lights:
- Optical lens: T2M, T3M, T4M, 60°, 90°, 70X140°
Installations of Outdoor LED Street Lights:
- Horizontal installation and vertical installation.
Applications of Outdoor LED Street Lights:
- Outdoor street, road lighting for highway, walkway, path, living areas.
