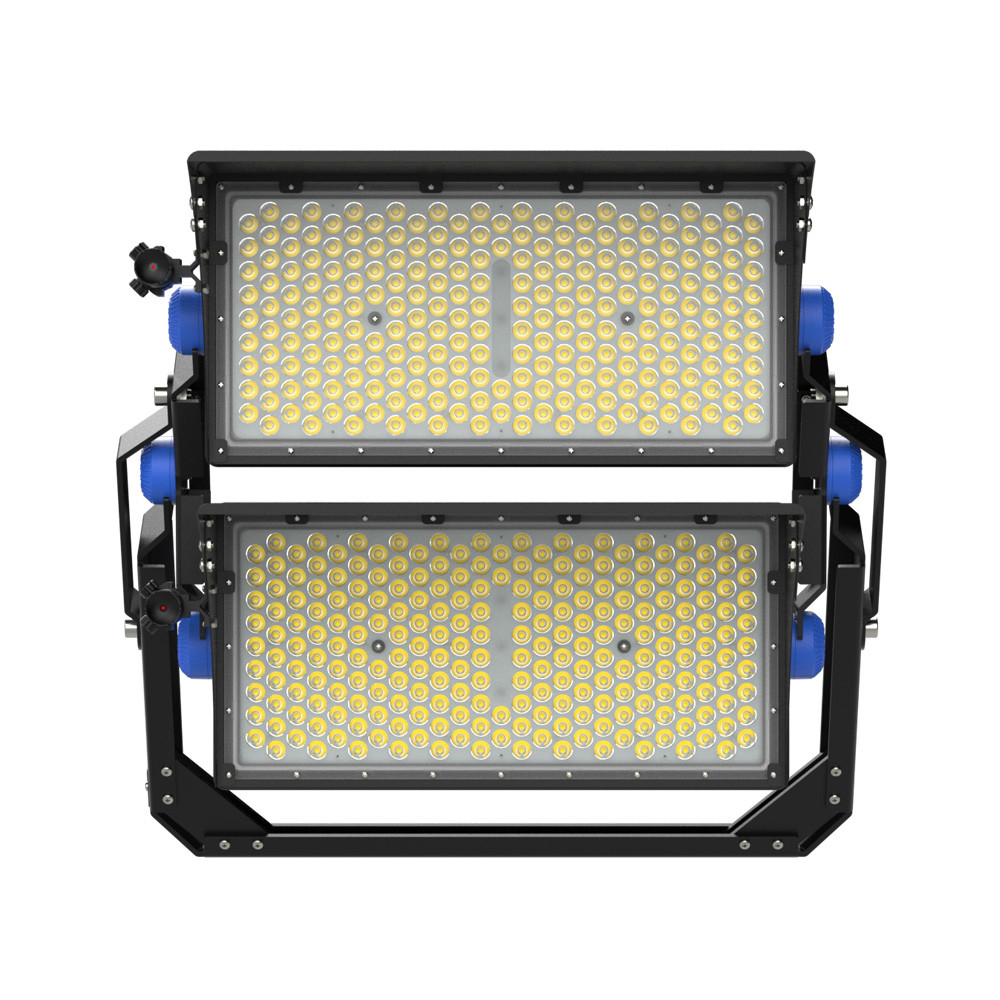

Dali Dimmable LED Stadium Flood Lights 1000 Watt Arena Lights IP65 Black Aluminum

Dali Dimmable LED Stadium Flood Lights 1000 Watt Arena Lights IP65 Black Aluminum
Dali Dimmable LED Stadium Flood Lights 1000 Watt Arena Lights IP65 Black Aluminum Dali Dimmable LED Stadium Flood Lights 1000 Watt Arena Lights IP65 Black Aluminum Dali Dimmable LED Stadium Flood Lights 1000 Watt Arena Lights IP65 Black Aluminum

Large Image :  Dali Dimmable LED Stadium Flood Lights 1000 Watt Arena Lights IP65 Black Aluminum

Product Details:
Place of Origin: Shen Zhen, China
Brand Name: SUNRISE
Model Number: SU-LS1000
Payment & Shipping Terms:
Minimum Order Quantity: 10 PCS
Price: Negotiated
Packaging Details: normal carton size: 395x170x315mm
Delivery Time: 10-15 days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 8000pcs/month

Dali Dimmable LED Stadium Flood Lights 1000 Watt Arena Lights IP65 Black Aluminum

Description
Name: LED Stadium Lights 1000 Watts Warranty: 5 Years
Driver Mode: Meanwell ELG Driver Light Source: Philips 3030 Led
Beam Angle: 15°, 30°, 45°, 60° IP Rating: IP65 Waterproof
Support Dimmer: Yes Surge Protection: 6KV-10KV
High Light:

Dimmable LED stadium flood lights

,

1000w led stadium lights

,

1000 watt arena lights IP65

Dali Dimmable LED Stadium Lights 1000 Watts Black Aluminum IP65

Product Features of LED Stadium Lights 1000 Watts:
- The built-in upgraded 464 pcs super bright LED chips can produce 150000 high output brightness, which is much brighter than other light source.
- Up-cutting light visor stops the light ray scattering to the sky, reduce light waste. It can be moved away.
- Quick-installed laser sight, easily adjust the direction of illumination to achieve the max. lux and uniformity. Moreover, it can shorten the installation and layout time and save technician cost.
- Adopting high-density durable and strudy die-casting aluminum, strong structure, nice and stable performance as well as good heat dissipation.
- High efficiency PHILIPS driver / Tai Wan MeanWell driver.
- High quality Lumileds / Cree / Philips LEDs to 140-150lm/W.
- Single module 500w, smaller size, convenient installation and use for stadium sport sites.
- Waterproof protection IP65, able to work in wet and rain surroundings.
- IK08, 6KV-10KV surge protection.
- Passing the 4000v high voltage testing.
- Comparing to traditional metal halid lamps can save energy 70%-80%.
- No flash, no RF, no ultra violet radiation.
- Support mart function: 0-10V dimming, PMW signal, Timing optional, light sensor / Photocell and DMX512.

Product Structure of LED Stadium Lights 1000 Watts:
1. Up-cutting visor:stop the upward light ray scattering,reducing light waste.
2. Optical PC lens,never yellowing.
3. Waterproof silicon ring,UV-resistant and reliable.
4. 3030/5050 SMD light source optional.
5. Aluminum base with high themal conductivity,fast heat sinking to reduce light decay.
6. Laser sight to minimize the installation time and lower labor cost.
7. ADC12 die-casting aluminum radiator,high efficiency up to 96W/M.K.
8. Breathing heat sink to prevent the sealing problems caused by thermal expansion and cold contraction
9. Aluminum case for singal external waterproof driver isolated to lamp body for longer lifespan of the lamp.

Product Introduction of LED Stadium Lights 1000 Watts:

     This is the latest design with over-thick aluminum material and novel appearance for commercial or industrial lighting. The shell is pure die-cast aluminum ADC12# with features of anti-pressure, high-strength, and anti-corrosion, and PC cover, waterproof IP65. It adopts constant current isolated MeanWell driver.
     This light is widely used in square, plaza, wharf, stadium, construction sites, stations, soccer, subway, metro, airport, sculpture, workshop, supermarkets and factory etc.

Parameters of LED Stadium Lights 1000 Watts:

SKU SU-LS1000 SU-LS1500 SU-LS2000
Input Voltage AC85-265V, 50/60Hz
Rated Wattage 1000W 1500W 2000W
Light Source SMD3030 Philips Chip Led
Product Dimension 665x603x574 665x885x811 665x885x811
Luminous Flux 150lm/W
CCT 2700k, 3000k, 4500k, 6000k, 6500k
Body Material Die-cast Aluminum
Cover PC Lens
CRI >80
PF >0.9
Surge Protection 6KV
Driver Mode Constant current driver
Driver Brand Meanwell ELG Driver
Beam Angle 15, 30, 45, 60 degree
Work Temperature -40 ~ +50 Deg
Protection Class IK06 / IP65
Warranty 5 Years
Life Span 50,000 Hours
Control Mode 0-10V, DALI, RGBW, DMX512


Dali Dimmable LED Stadium Flood Lights 1000 Watt Arena Lights IP65 Black Aluminum 0Dali Dimmable LED Stadium Flood Lights 1000 Watt Arena Lights IP65 Black Aluminum 1
Dali Dimmable LED Stadium Flood Lights 1000 Watt Arena Lights IP65 Black Aluminum 2
Dali Dimmable LED Stadium Flood Lights 1000 Watt Arena Lights IP65 Black Aluminum 3
Dali Dimmable LED Stadium Flood Lights 1000 Watt Arena Lights IP65 Black Aluminum 4

Dimension of of LED Stadium Lights 1000 Watts:
Dali Dimmable LED Stadium Flood Lights 1000 Watt Arena Lights IP65 Black Aluminum 5Dali Dimmable LED Stadium Flood Lights 1000 Watt Arena Lights IP65 Black Aluminum 6

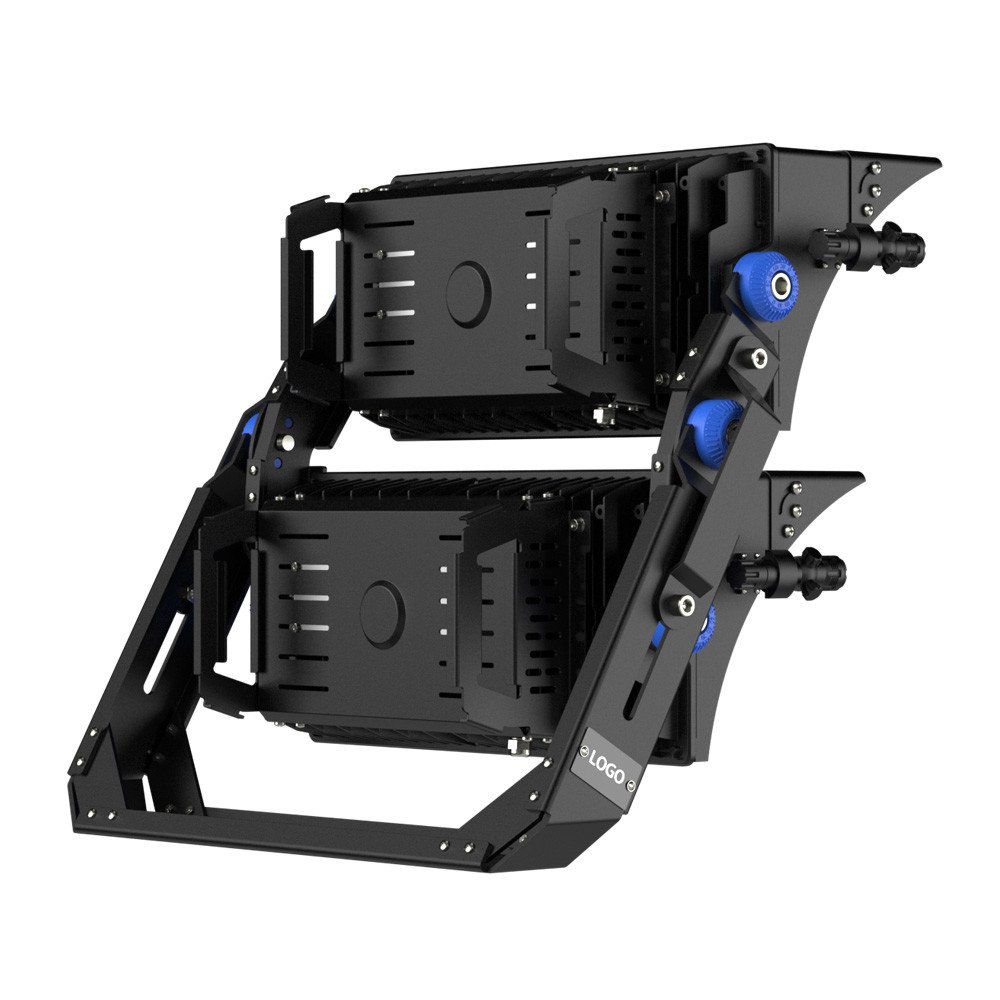

Structure figure of LED Stadium Lights 1000 Watts:
Dali Dimmable LED Stadium Flood Lights 1000 Watt Arena Lights IP65 Black Aluminum 7

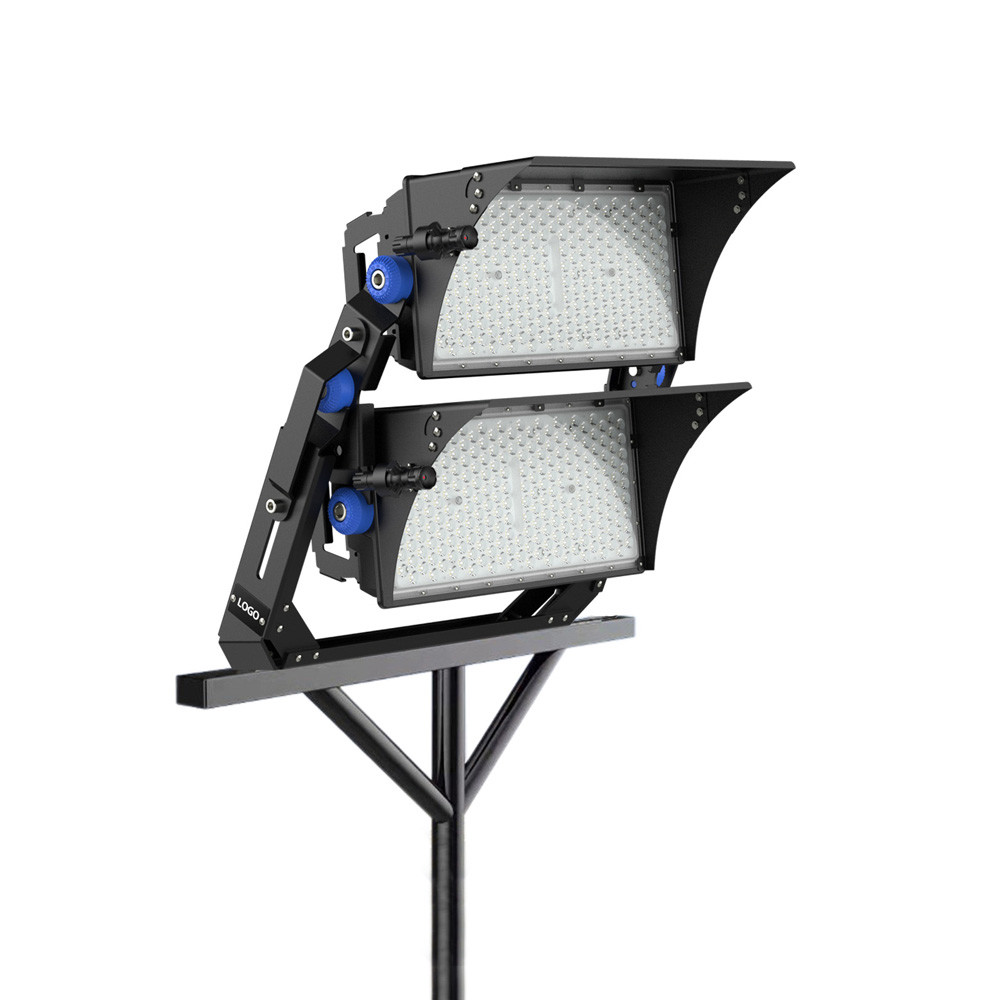

Installations of LED Stadium Lights 1000 Watts:
Dali Dimmable LED Stadium Flood Lights 1000 Watt Arena Lights IP65 Black Aluminum 8


Applications of LED Stadium Lights 1000 Watts:
Dali Dimmable LED Stadium Flood Lights 1000 Watt Arena Lights IP65 Black Aluminum 9

Frequent Queations of High Mast LED Flood Lights:
1. Can I buy 1pc for test?
Re: Yes, 1pc can be offered. Mixed trial order is welcome.

2. Can the high mast led flood light be dimmable?
Re: Yes, it can be dimmable type made if required.

3. How long will you send out for 1pc?
Re: 1 sample can be shipped within 3-5 days.

4. Do you have different driver for this high mast led flood lights?
Re: Yes, surely. The driver brand can be decided on your idea.

5. Can I move the laser sight away?
Re: The laser sight is helpful when installation. If you don't need, it can be moved away.

6. How long will I get the goods?
Re: For sample, we will send by express and it will takes about 5 days to deliver. For bulk quantity, we will send by sea or air. It will usually take 15-30 days to deliver.
