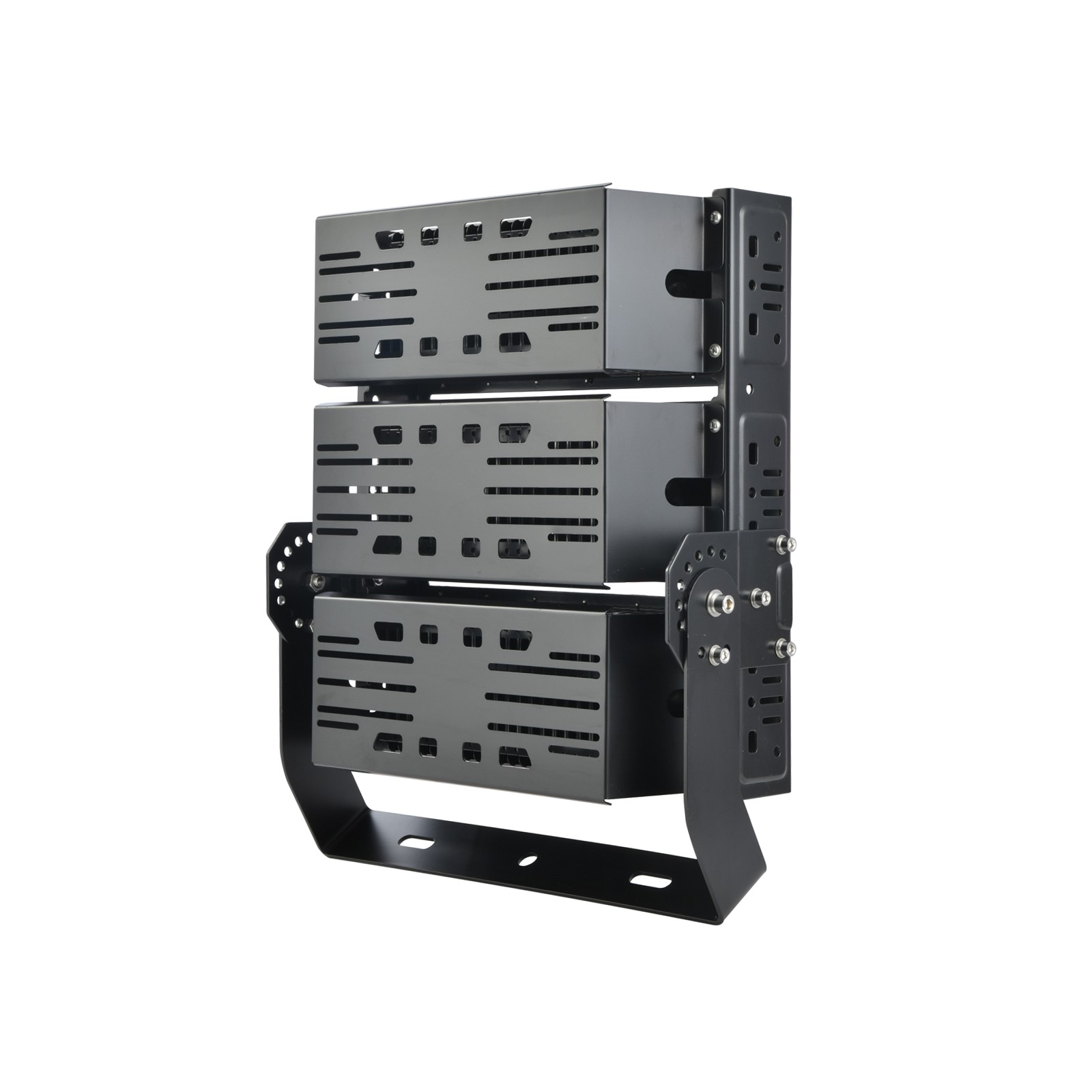

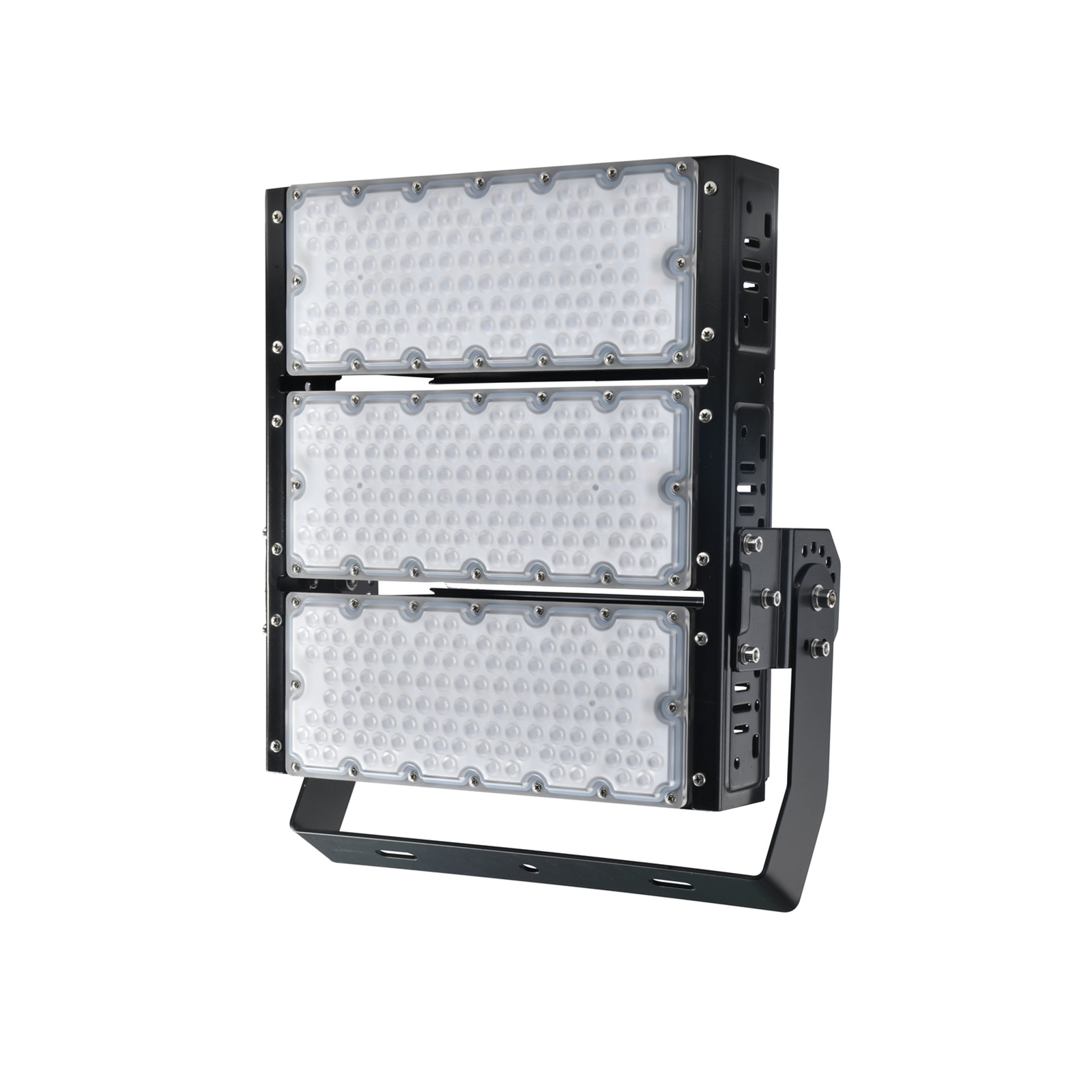

Manufacturer High Driveway Tunnel Lighting Led Flood Light 600w 500w 400w 300W 200W 100w

Minimum Order Quantity : 10 PCS Price : Negotiated
Packaging Details : normal carton size: 395x170x315mm or customised Delivery Time : 10-15 days
Payment Terms : T/T, Western Union, MoneyGram Supply Ability : 10000pcs/month
Place of Origin: Shen Zhen, China Brand Name: SUNRISE
Certification: CE ROHS Model Number: SU-QP300

Detail Information

Name: Flood Light Outdoor Led IP65 Size: 366*436*142mm
Packing Size: 470*375*200mm Lumen: 120lm/W
PF: >0.9 IP Rating: IP65 Waterproof
Light Source: SMD 3030 Usage: Street, Road, Sport Fields
High Light:

200W LED Tunnel Lighting

,

120lm/ W 300 watt led outdoor flood light

,

led flood light 300w ip66

Product Description

Descriptions of Dimmable Tunnel Light​:

    The LED tunnel light is adopted the integrated die-casting aluminum with high density, large heat dissipation area, and good thermal conductivity. The PC cover gets better light transmission, lame retardant and wear-resistant, strong oxidation resistance. The LEDs is made by single module, and each module is 100W. It can make 100w, 200w, 300w, 400w, 500w, and 600w. The Modules can be freely adjusted, so the installation is flexible and the bracket can be also adjusted as requested.



Product Features of Dimmable Tunnel Light​:

►  Adopting high-density durable and sturdy die-cast aluminium, strong structure, nice and stable performance as well as good heat dissipation.

►  High efficiency / MeanWell brand driver available.

►  High quality Lumileds / Cree / Leds to 120-150lm/W.

►  Single module 100w, smaller size, convenient installation and use for stadium sport sites.
►  Waterproof protection IP65, able to work in wet and rain surroundings.
►  IK08, 6KV-10KV surge protection.
►  Passing the 4000v high voltage testing.
►  Comparing to traditional metal halid lamps can save energy 70%-80%.
►  No flash, No RF, No ultra violet radiation.
►  Support mart function: 0-10V dimming, Dali dimmer, PIR motion sensor, Light sensor / Photocell and DMX512, Remote Control.


Specifications of Dimmable Tunnel Light​:

Product Name Dimmable LED Tunnel Lights
SKU SU-QP200 SU-QP300 SU-QP400
Product Dimension (mm) 366x311x142 366x436x142 366x561x142MM
Packing Size  (mm) 375x345x20mm 470x375x200mm 590x375x200mm
Input Voltage AC85-265V, 50/60Hz
Rated Wattages 200W 300W 400W
Lumen Flux 24000lm 36000lm 48000lm
Light Source SMD 3030 LED chips
Light Efficiency 120-150lm/W
CCT 2700, 3000k, 4500k, 6000k, 6500k (customised)
Body Material Die-cast Aluminum
Cover PC with lens
CRI >70
PF >0.9
Surge Protection 6KV
Driver Mode Constant current driver
Beam Angle 20°, 40°, 60°, 90°, 140x100° (optional)
Work Temperature -40 ~ +50 Deg
Protection Class IK07 / IP65
Warranty 5 Years
Control Mode 0-10V / Dali / RGBW



Dimension of Led Tunnel Lights:
Manufacturer High Driveway Tunnel Lighting Led Flood Light 600w 500w 400w 300W 200W 100w 0
Manufacturer High Driveway Tunnel Lighting Led Flood Light 600w 500w 400w 300W 200W 100w 1Manufacturer High Driveway Tunnel Lighting Led Flood Light 600w 500w 400w 300W 200W 100w 2Manufacturer High Driveway Tunnel Lighting Led Flood Light 600w 500w 400w 300W 200W 100w 3

Our services:
- We provide various technique support and installation instructions.
- We can provide all data of the products you have ordered.
- We can customize different color temperature for the flood lights.
- We can design stickers of the flood lights for you.
- We can adjust creative structure of the flood lights you are asking.
- We accept logo, image, package customization.
- We can provide laser marking for the flood lights, and no MOQ.
- OEM, ODM welcome.
