Product Details:
|
| Name: | LED Tunnel Lights | Input Voltage: | AC85-265V |
|---|---|---|---|
| Beam Angle: | 20°, 40°, 60°, 90° | CRI: | >80 |
| PF: | >0.9 | IP Rating: | IP65 Waterproof |
| High Light: | 500W Led Tunnel Lights,600W Led Tunnel Lights,IP65 Waterproof Tunnel Lights |
||

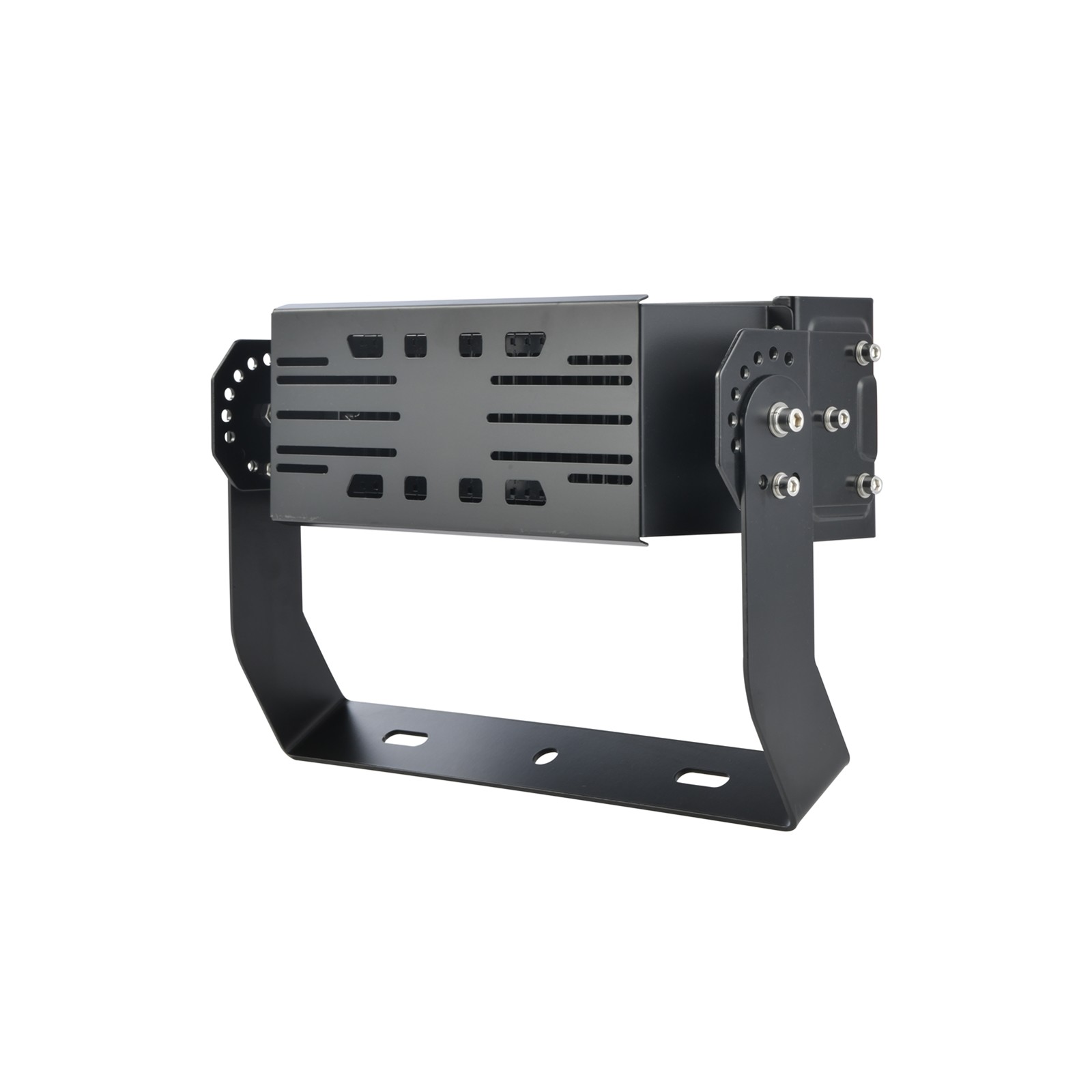

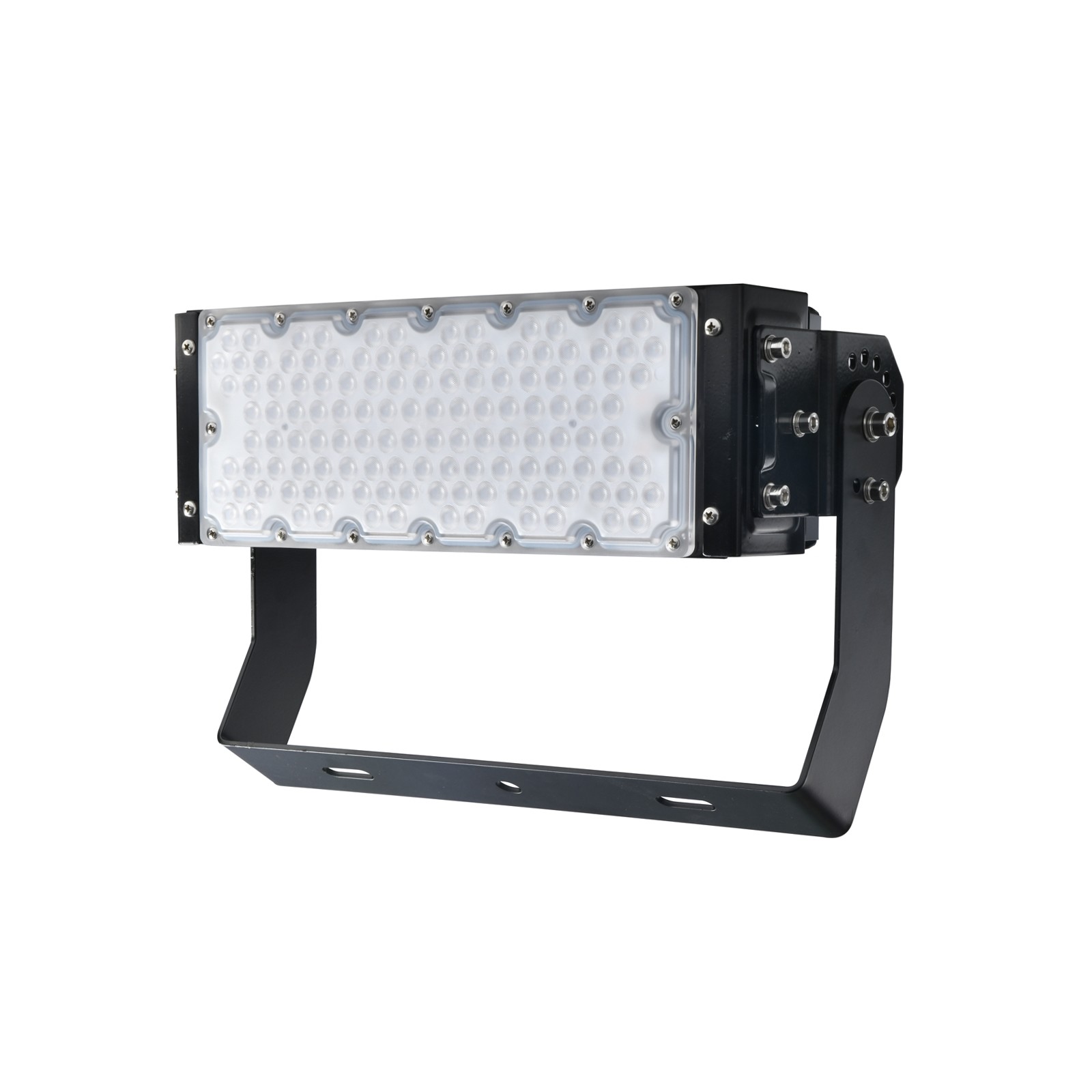

Modular Led Tunnel Lights 100w 200w 300w 400w 500w 600w Waterproof IP65
Descriptions of LED Tunnel Lights:
The LED tunnel light is adopted the integrated die-casting aluminum with high density, large heat dissipation area, and good thermal conductivity. The PC cover gets better light transmission, lame retardant and wear-resistant, strong oxidation resistance. The LEDs is made by single module, and each module is 100W. It can make 100w, 200w, 300w, 400w, 500w, and 600w. The Modules can be freely adjusted, so the installation is flexible and the bracket can be also adjusted as requested.
Product Features of LED Tunnel Lights:
► Adopting high-density durable and sturdy die-cast aluminium, strong structure, nice and stable performance as well as good heat dissipation.
► High efficiency / MeanWell brand driver available.
► High quality Lumileds / Cree / Leds to 120-150lm/W.
Specifications of LED Tunnel Lights:
| Product Name | Modular LED Tunnel Lights | ||
| Part No. | SU-QP100 | SU-QP200 | SU-QP300 |
| Input Voltage | AC85-265V, 50/60Hz | ||
| Rated Wattage | 100W | 200W | 300W |
| Light Source | SMD3030, SMD5050 | ||
| Product Dimension (mm) | 366 x 249 x 142 | 366 x 311 x 142 | 366 x 436 x 142 |
| Luminous Flux | 150lm/W | ||
| CCT | 2700, 3000k, 4500k, 6000k, 6500k | ||
| Body Material | Die-cast Aluminum | ||
| Cover | PC with lens | ||
| CRI | >80 | ||
| PF | >0.9 | ||
| Surge Protection | 6KV | ||
| Driver Mode | Constant current driver | ||
| Beam Angle | 20°, 40°, 60°, 90°, 140x100° | ||
| Work Temperature | -40 ~ +50 Deg | ||
| Protection Class | IK07 / IP65 | ||
| Ｗarranty | 5 Years | ||
| Control Mode | 0-10V / PWM / RGBW | ||
| Parking Size | 395 x 170 x 315mm x 1PC | ||
