|Name:||Module LED Stadium Light||LED Type:||Lumileds SMD3030|
|Efficiency:||150lm/W||Angle:||15°, 30°, 45°, 60°|
|Light Source:||Lumileds SMD3030||Driver:||Meanwell Driver ELG|
|Surge Protection:||6KV||Application:||Stadium For Football, Volleyball, Basketball|
IP65 High Mast LED Flood Lights,
led high mast flood lights 500 Watts,
Waterproof 500w led high mast light
Outdoor High Mast LED Flood Lights 500 Watts for Football Waterproof IP65
Product introduction of High Mast LED Flood Lights:
Thiis led stadium light is the latest design with over-thick aluminum material and novel appearance for commercial or industrial lighting. The shell is pure die-cast aluminum ADC12# with features of anti-pressure, high-strength, and anti-corrosion, and PC cover, waterproof IP65. It adopts constant current isolated MeanWell driver.
This light is widely used in square, plaza, wharf, stadium, construction sites, stations, soccer, subway, metro, airport, sculpture, workshop, supermarkets and factory etc.
Product Features of High Mast LED Flood Lights:
► The built-in upgraded 232 pcs super bright LED chips can produce 75000 high output brightness, which is much brighter than other light source.
►High-quality and thicken ADC 12 dia-cast aluminum, high thermal conductivity, fast heat sinking to protect long-time lifespan and
reduce light decay.
► Stainless steel bracket for 180 rotatable degree, adjust the directions as you hope.

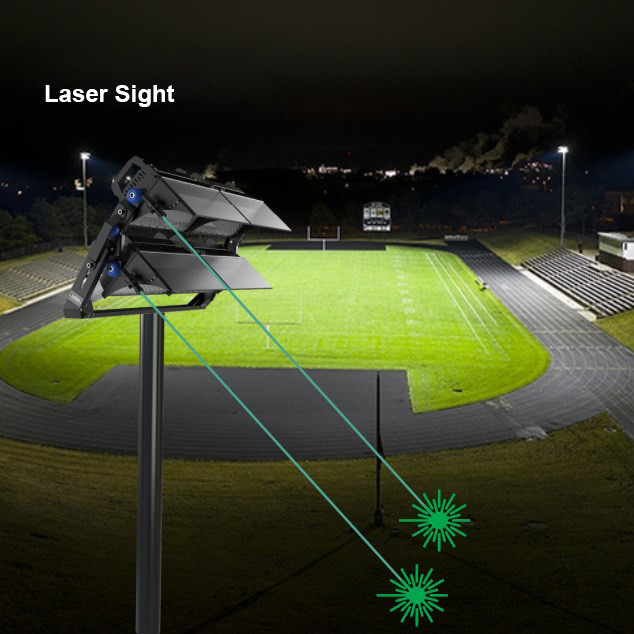

► Quick-installed laser sight, easily adjust the direction of illumination to achieve the max. lux and uniformity. Moreover, it can shorten the installation and layout time and save technician cost.
► Adopting high-density durable and sturdy die-cast aluminium, strong structure, nice and stable performance as well as good heat dissipation.
► High efficiency PHILIPS driver / Tai Wan Mean Well driver.
► High quality Lumileds / Cree / Philips LEDs to 140-150lm/W.
► Single module 500w, smaller size, convenient installation and use for stadium sport sites.
► Waterproof protection IP65, able to work in wet and rain surroundings.
► IK08, 6KV-10KV surge protection.
► Passing the 4000v high voltage testing.
► Comparing to traditional metal halid lamps can save energy 70%-80%.
► No flash, No RF, No ultra violet radiation.
► Support mart function: 0-10V dimming, DALI dimming, Motion Sensor, Radar Sensor, Light sensor / Photocell and DMX512.
Parameters of High Mast LED Flood Lights:
|Input Voltage||AC85-265V, 50/60Hz|
|Light Source||SMD3030 Philips lumileds Led|
|Product Dimension (mm)||L563xW313xH413||L665xW603xH574||L1166*W603*H573|
|CCT||2700k, 3000k, 4500k, 6000k, 6500k|
|Body Material||Die-cast Aluminum|
|Driver Mode||Constant current Driver|
|Driver Brand||Meanwell ELG Driver|
|Beam Angle||15°, 30°, 45°, 60°|
|Work Temperature||-40 ~ +50 Deg|
|Protection Class||IK08 / IP65|
|Life Span||50,000 Hours|
|Control Mode||0-10V / DALI / RGBW / DMX512|

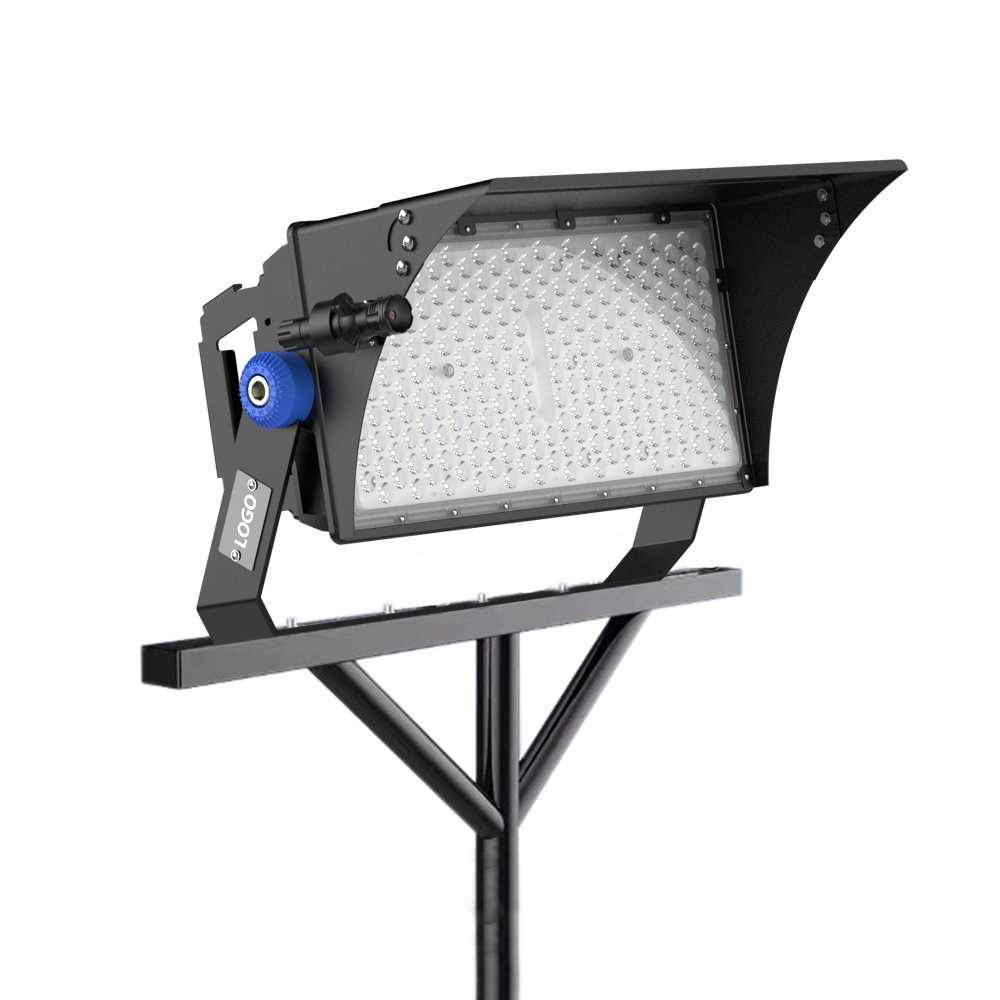

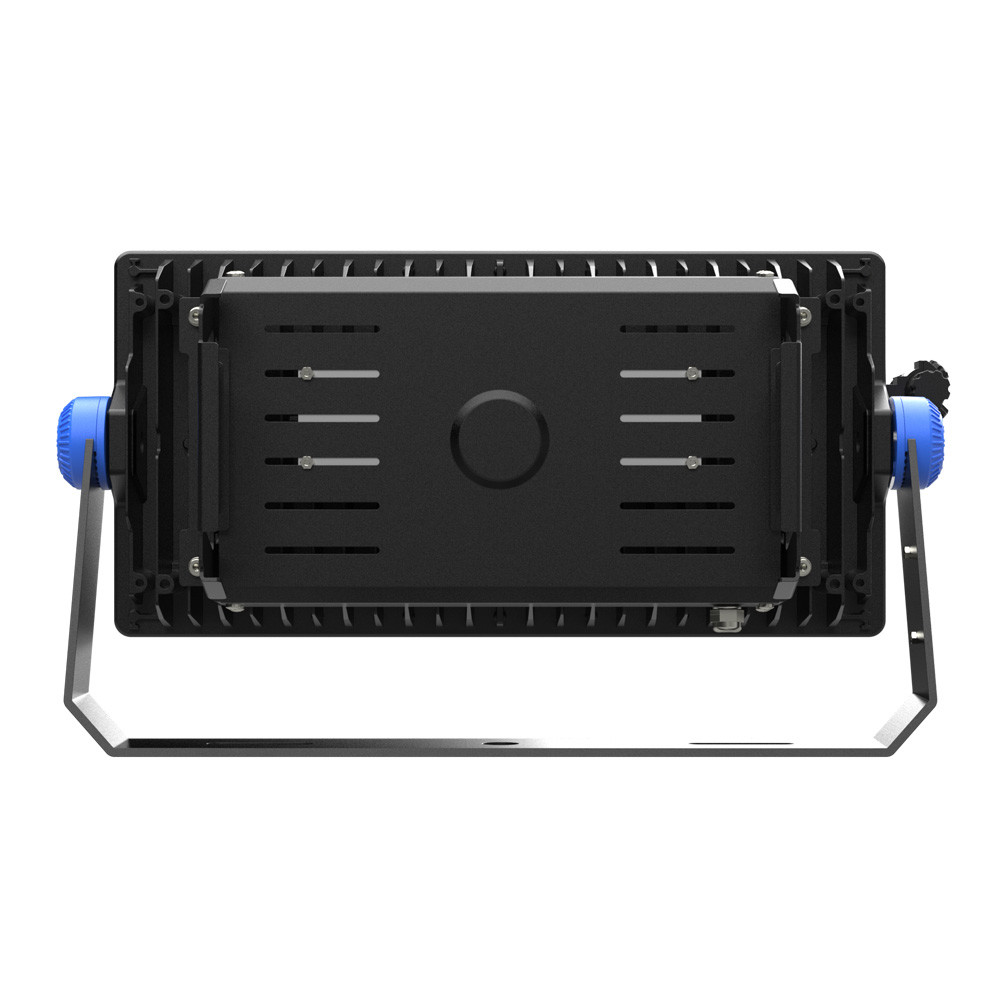

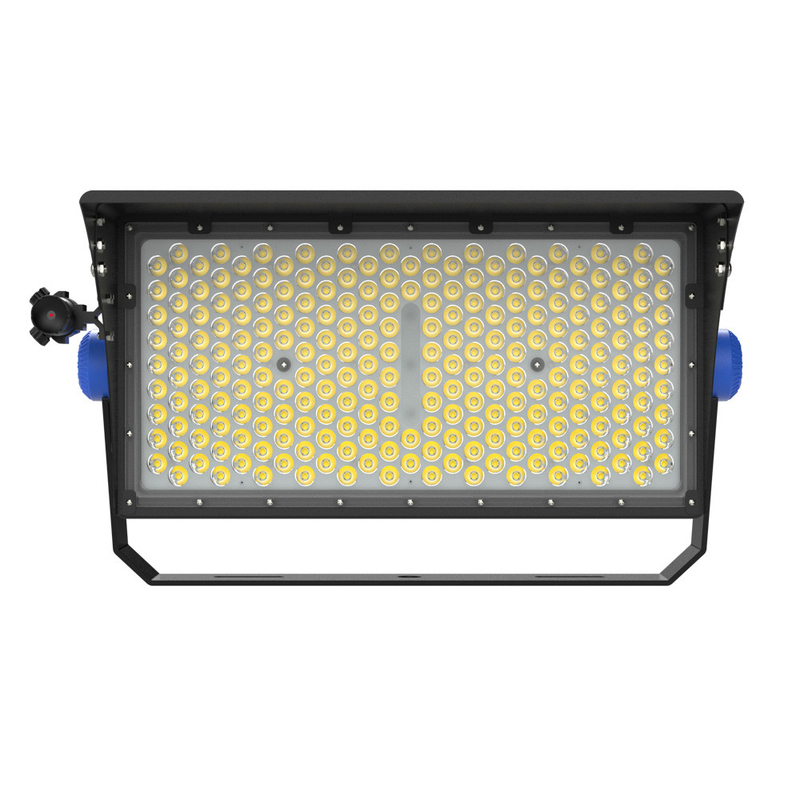

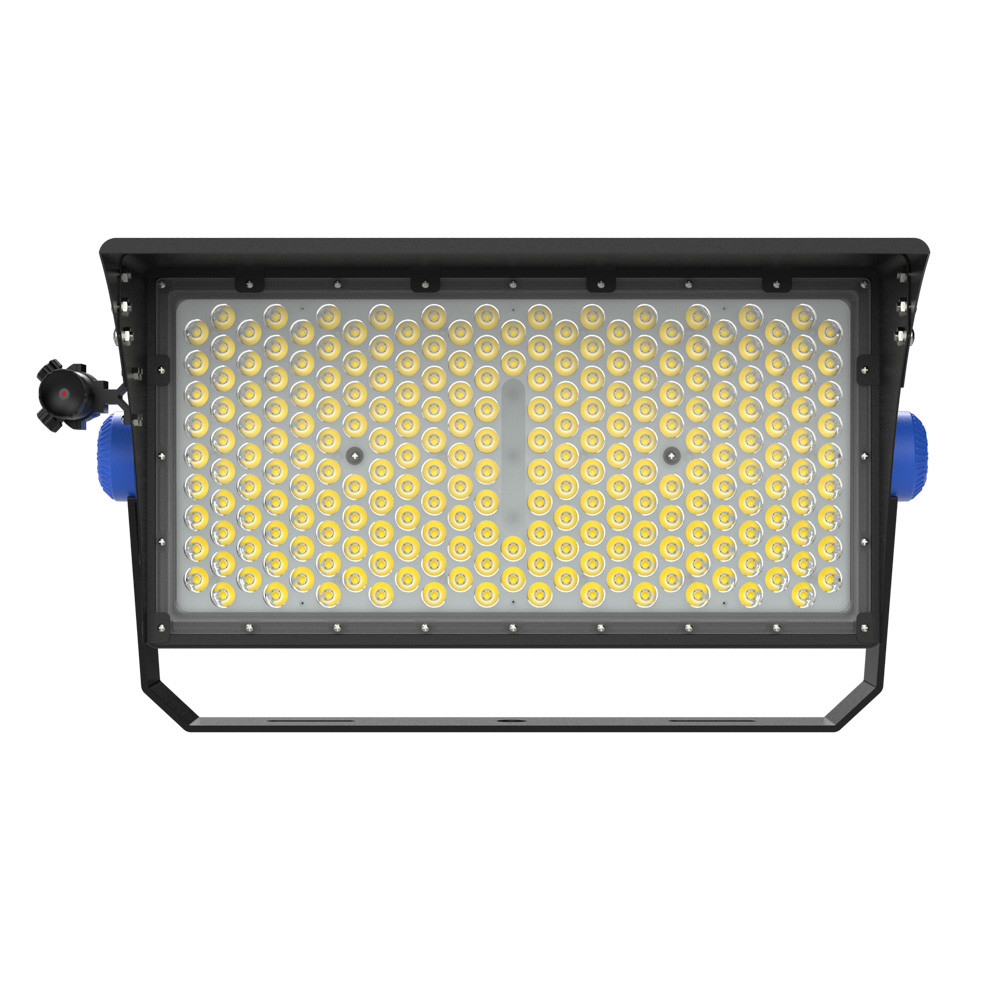

Details of High Mast LED Flood Lights:
Dimension of of High Mast LED Flood Lights:
