Stadium Outdoor Led High Pole Light 150lm/W 500W 1000W 150W 2000W LED Flood Light For Football Field

Product Description

Product Features of Football LED Stadium Floodlights:

- The built-in upgraded 928 pcs super bright LED chips can produce 225000 high output brightness, which is much brighter than other light source.

- Up-cutting light visor stops the light ray scattering to the sky, reduce light waste. It can be moved away.

- Quick-installed laser sight, easily adjust the direction of illumination to achieve the max. lux and uniformity. Moreover, it can shorten the installation and layout time and save technician cost.

- Adopting high-density durable and strudy die-casting aluminum, strong structure, nice and stable performance as well as good heat dissipation.

- High efficiency driver / Tai Wan MeanWell driver.

- High quality Lumileds / Cree LEDs to 140-150lm/W.

- Single module 500w, smaller size, convenient installation and use for stadium sport sites.

- Waterproof protection IP65, able to work in wet and rain surroundings.

- IK08, 6KV-10KV surge protection.

- Passing the 4000v high voltage testing.

- Comparing to traditional metal halid lamps can save energy 70%-80%.

- No flash, no RF, no ultra violet radiation.

- Support mart function: 0-10V dimming, DALI dimming, Brightness dimmable, color temperature dimmable, PIR motion sensor, light sensor / Photocell and DMX512.

Product structure of Football LED Stadium Floodlights:

1. Up-cutting visor:stop the upward light ray scattering,reducing light waste.
2. Optical PC lens,never yellowing.
3. Waterproof silicon ring,UV-resistant and reliable.
4. 3030/5050 SMD light source optional.
5. Aluminum base with high themal conductivity,fast heat sinking to reduce light decay.
6. Laser sight to minimize the installation time and lower labor cost.
7. ADC12 die-casting aluminum radiator,high efficiency up to 96W/M.K.
8. Breathing heat sink to prevent the sealing problems caused by thermal expansion and cold contraction
9. Aluminum case for singal external waterproof driver isolated to lamp body for longer lifespan of the lamp.

Product introduction of LED Stadium Flood Light

     This is the latest design with over-thick aluminum material and novel appearance for commercial or industrial lighting. The shell is pure die-cast aluminum with features of anti-pressure, high-strength, and anti-corrosion, and PC cover, waterproof IP65. It adopts constant current isolated MeanWell driver.

Parameters of Football LED Stadium Floodlights:

Dimension of Football LED Stadium Floodlights:

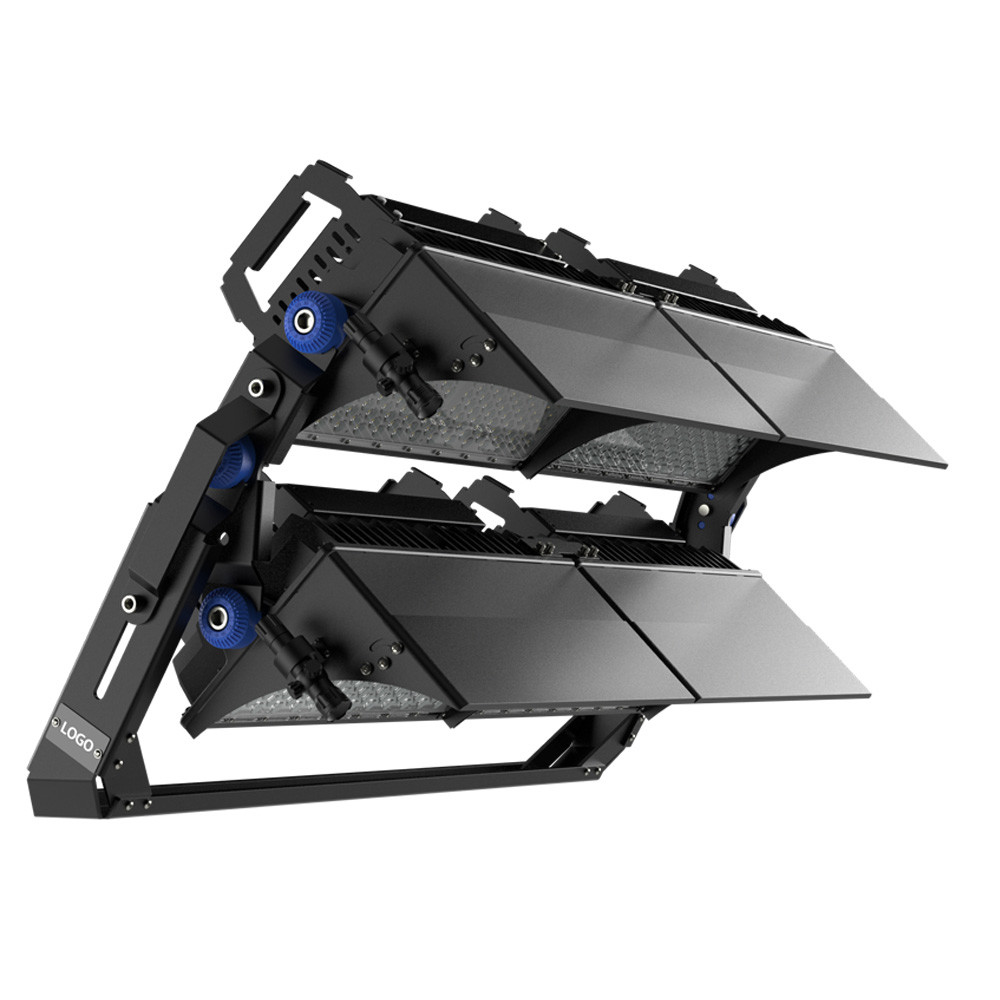

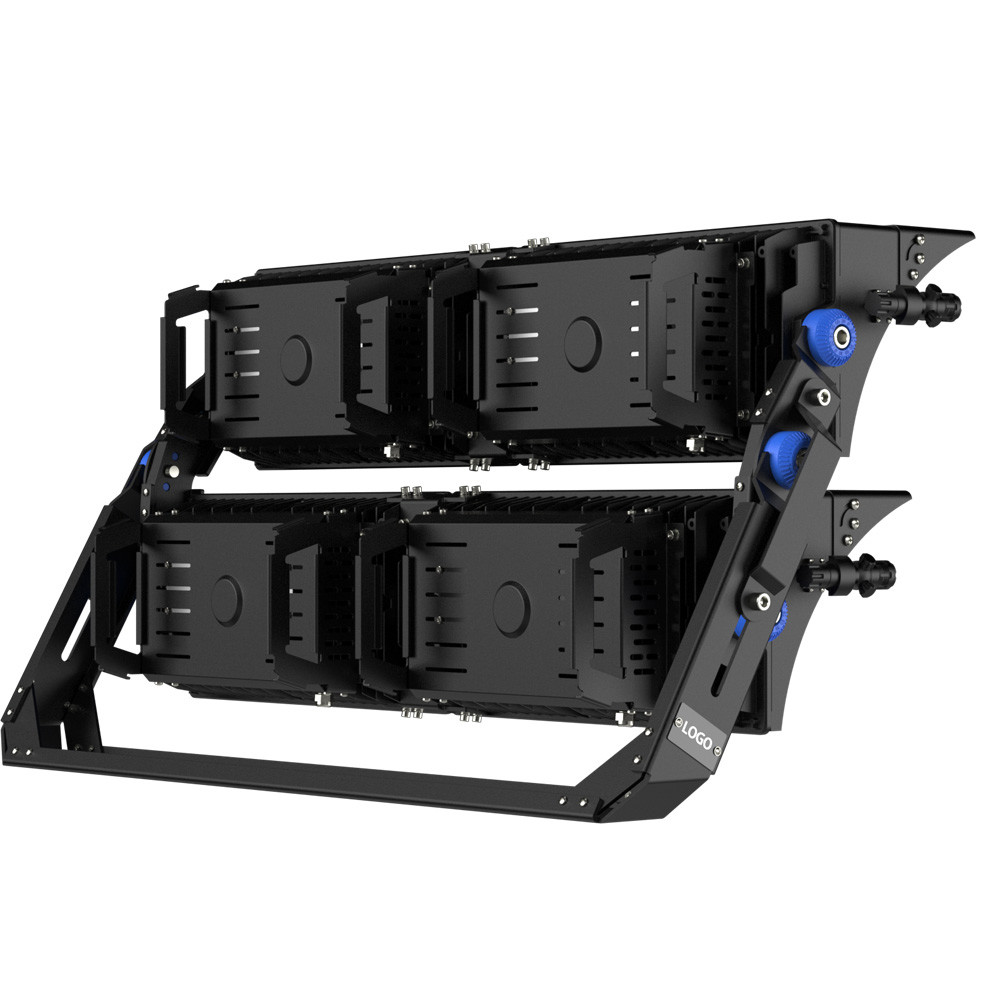

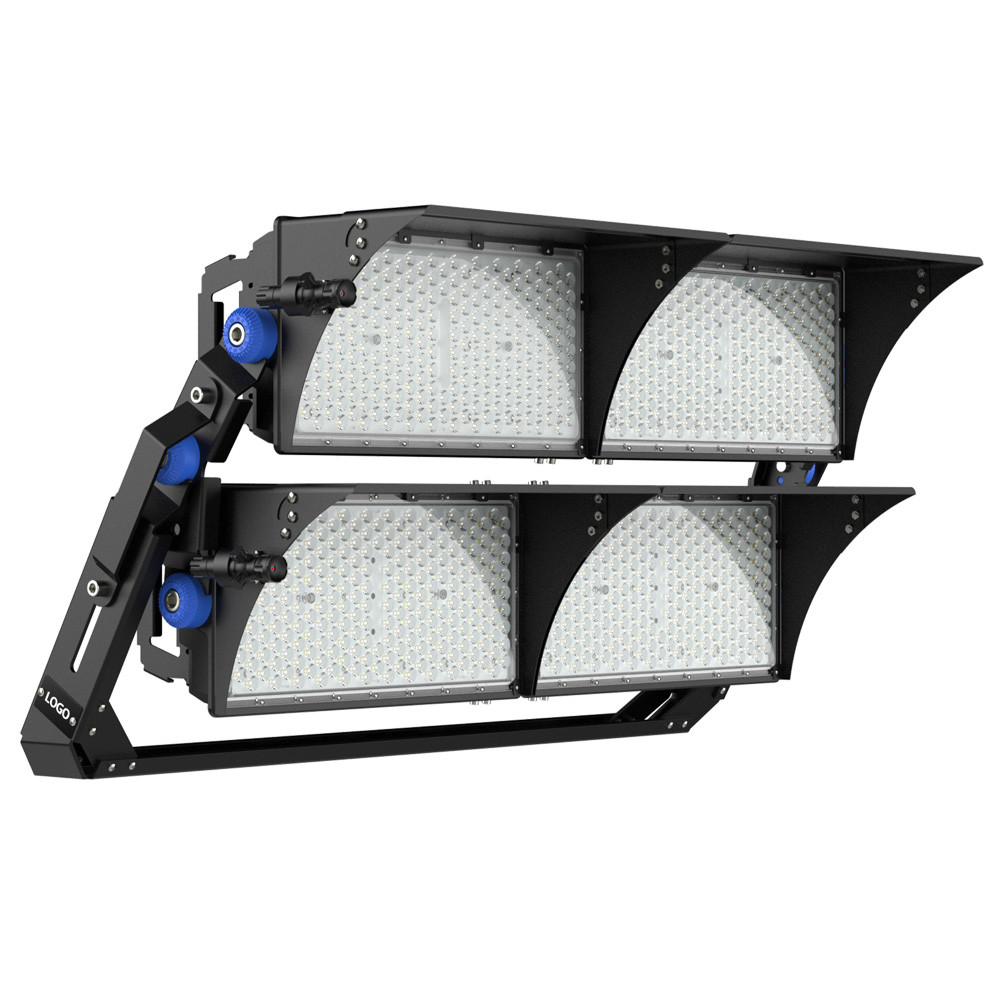

Details show of Football LED Stadium Floodlights:

Structure figure of Football LED Stadium Floodlights:

Installations of Football LED Stadium Floodlights:



Applications of Football LED Stadium Floodlights:

    This light is widely used in stadium, tunnel, square, plaza, wharf, construction sites, stations, soccer, subway, metro, airport, workshop etc.
