Product Details:
|
| Name: | LED Stadium Flood Light | Input Voltage: | AC85-265V Or 24V |
|---|---|---|---|
| Beam Angle: | 15°, 30°, 45°, 60° | Light Source: | 3030 Led |
| Material: | Aluminum | IP Rating: | IP65 Waterproof |
| Driver Mode: | MeanWell ELG | Surge Protection: | 6KV-10KV |
| High Light: | 1000W high mast LED flood light,high mast floodlight Sports Lighting,Waterproof 1000w led flood light |
||

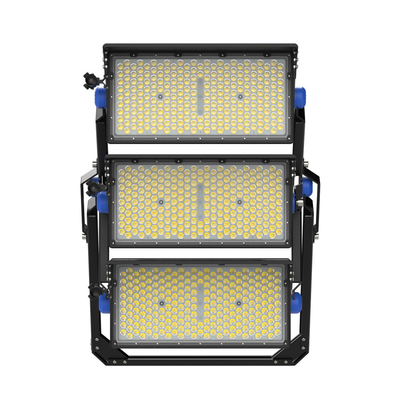

1000W 1500W High Mast LED Stadium Flood Light Waterproof Sports Lighting
Product Features of LED Stadium Flood Light
- The built-in upgraded 696 pcs super bright LED chips can produce 225000 high output brightness, which is much brighter than other light source.
- Up-cutting light visor stops the light ray scattering to the sky, reduce light waste. It can be moved away.
- Quick-installed laser sight, easily adjust the direction of illumination to achieve the max. lux and uniformity. Moreover, it can shorten the installation and layout time and save technician cost.
- Adopting high-density durable and strudy die-casting aluminum, strong structure, nice and stable performance as well as good heat dissipation.
- High efficiency driver / Tai Wan MeanWell driver.
- High quality Lumileds / Cree LEDs to 140-150lm/W.
- Single module 500w, smaller size, convenient installation and use for stadium sport sites.
- Waterproof protection IP65, able to work in wet and rain surroundings.
- IK08, 6KV-10KV surge protection.
- Passing the 4000v high voltage testing.
- Comparing to traditional metal halid lamps can save energy 70%-80%.
- No flash, no RF, no ultra violet radiation.
- Support mart function: 0-10V dimming, PMW signal, Timing optional, light sensor / Photocell and DMX512.
Product structure of LED Stadium Flood Light
1. Up-cutting visor:stop the upward light ray scattering,reducing light waste.
2. Optical PC lens,never yellowing.
3. Waterproof silicon ring,UV-resistant and reliable.
4. 3030/5050 SMD light source optional.
5. Aluminum base with high themal conductivity,fast heat sinking to reduce light decay.
6. Laser sight to minimize the installation time and lower labor cost.
7. ADC12 die-casting aluminum radiator,high efficiency up to 96W/M.K.
8. Breathing heat sink to prevent the sealing problems caused by thermal expansion and cold contraction
9. Aluminum case for singal external waterproof driver isolated to lamp body for longer lifespan of the lamp.
Product introduction of LED Stadium Flood Light
This is the latest design with over-thick aluminum material and novel appearance for commercial or industrial lighting. The shell is pure die-cast aluminum with features of anti-pressure, high-strength, and anti-corrosion, and PC cover, waterproof IP65. It adopts constant current isolated MeanWell driver.
Parameters of LED Stadium Flood Light
| SKU | SU-LS1000 | SU-LS1500 | SU-LS2000 |
| Input Voltage | AC85-265V, 50/60Hz | ||
| Rated Wattage | 1000W | 1500W | 2000W |
| Light Source | SMD3030 Chip Led | ||
| Product Dimension | 665x603x574 | 665x885x811 | 1166x603x573 |
| Luminous Flux | 140-150lm/W | ||
| CCT | 2700k, 3000k, 4500k, 6000k, 6500k | ||
| Body Material | Die-cast Aluminum | ||
| Cover | PC Lens 15°, 30°, 45°, 60° | ||
| CRI | >80 | ||
| PF | >0.9 | ||
| Surge Protection | 6KV | ||
| Driver Mode | Constant current driver | ||
| Driver Brand | Meanwell ELG Driver | ||
| Beam Angle | 15°, 30°, 45°, 60° | ||
| Work Temperature | -40 ~ +50 Deg | ||
| Protection Class | IK08 / IP65 | ||
| Ｗarranty | 5 Years | ||
| Life Span | 50,000 Hours | ||
| Control Mode | 0-10V, DALI, RGBW, DMX512 | ||
Dimension of of High Pole LED Flood Light:

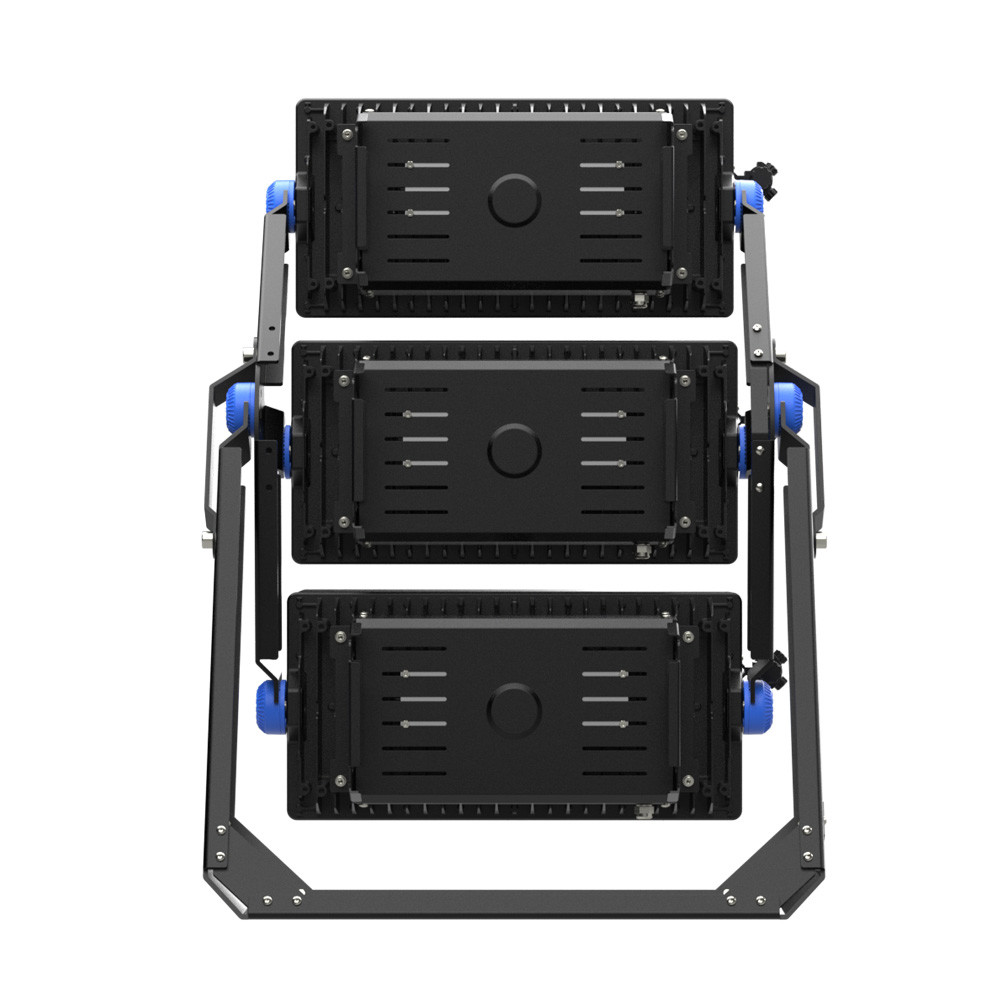

Details of LED Stadium Flood Light:
Structure figure of High Pole LED Flood Light:

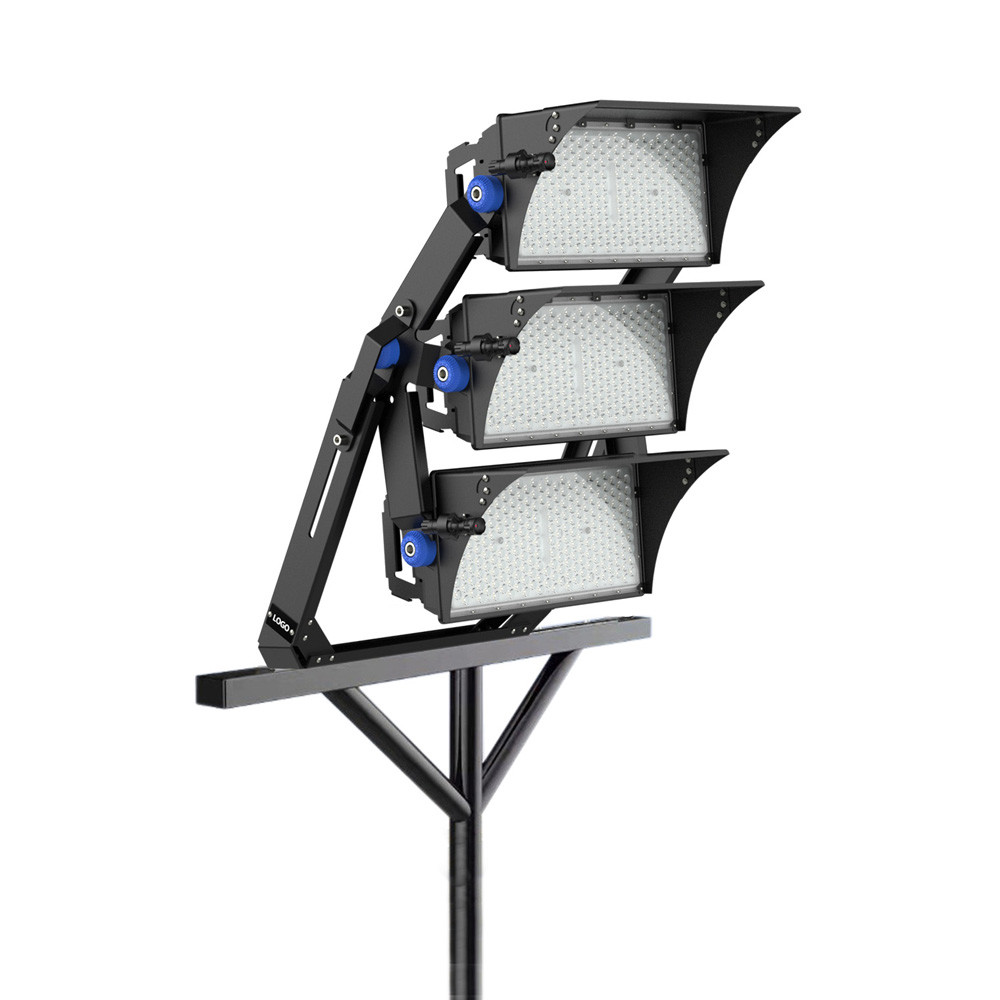

Installations of High Pole LED Flood Light:
