CRI80 500 Watt Led Stadium Lights For Backyard IP65 Waterproof Die Casting Aluminum

Certification
China Shenzhen Sunrise Lighting Co.,Ltd. certification
China Shenzhen Sunrise Lighting Co.,Ltd. certification
I'm Online Chat Now

CRI80 500 Watt Led Stadium Lights For Backyard IP65 Waterproof Die Casting Aluminum

CRI80 500 Watt Led Stadium Lights For Backyard IP65 Waterproof Die Casting Aluminum
CRI80 500 Watt Led Stadium Lights For Backyard IP65 Waterproof Die Casting Aluminum CRI80 500 Watt Led Stadium Lights For Backyard IP65 Waterproof Die Casting Aluminum CRI80 500 Watt Led Stadium Lights For Backyard IP65 Waterproof Die Casting Aluminum CRI80 500 Watt Led Stadium Lights For Backyard IP65 Waterproof Die Casting Aluminum

Large Image :  CRI80 500 Watt Led Stadium Lights For Backyard IP65 Waterproof Die Casting Aluminum

Product Details:
Place of Origin: Shen Zhen, China
Brand Name: SUNRISE
Model Number: SU-LS500
Payment & Shipping Terms:
Minimum Order Quantity: 10 PCS
Price: Negotiated
Packaging Details: normal carton size: 395x170x315mm
Delivery Time: 8-15 days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 20000pcs/month

CRI80 500 Watt Led Stadium Lights For Backyard IP65 Waterproof Die Casting Aluminum

Description
Name: Module LED Stadium Light Input Voltage: AC85-265V
Beam Angle: 15°, 30°, 45°, 60° Efficiency: 150lm/W
Light Source: Lumileds SMD3030 Driver: Meanwell Driver ELG
Surge Protection: 6KV Material: Aluminum
High Light:

CRI80 500 watt led stadium lights

,

stadium lights for backyard IP65

,

500W led stadium light

Module Led Stadium Light 500W Die Casting Aluminum IP65 Waterproof



Product introduction of Module Led Stadium Light:

     Thiis led stadium light is the latest design with over-thick aluminum material and novel appearance for commercial or industrial lighting. The shell is pure die-cast aluminum ADC12# with features of anti-pressure, high-strength, and anti-corrosion, and PC cover, waterproof IP65. It adopts constant current isolated MeanWell driver.

     This light is widely used in square/plaza, wharf, stadium, construction sites, stations, soccer, subway, metro, airport, sculpture, workshop, supermarkets and factory etc.



Product Features of Module Led Stadium Light:

► The built-in upgraded 232 pcs super bright LED chips can produce 75000 high output brightness, which is much brighter than other light source.

►High-quality and thicken ADC#12 dia-cast aluminum, high thermal conductivity, fast heat sinking to protect long-time lifespan and
reduce light decay.

► Stainless steel bracket for 180 rotatable degree, adjust the directions as you hope.

► Quick-installed laser sight, easily adjust the direction of illumination to achieve the max. lux and uniformity. Moreover, it can shorten the installation and layout time and save technician cost.

► Adopting high-density durable and sturdy die-cast aluminium, strong structure, nice and stable performance as well as good heat dissipation.

► High efficiency PHILIPS driver / Tai Wan Mean Well driver.

► High quality Lumileds / Cree / Philips LEDs to 140-150lm/W.

► Single module 500w, smaller size, convenient installation and use for stadium sport sites.

► Waterproof protection IP65, able to work in wet and rain surroundings.

► IK08, 6KV-10KV surge protection.

► Passing the 4000v high voltage testing.

► Comparing to traditional metal halid lamps can save energy 70%-80%.

► No flash, No RF, No ultra violet radiation.

► Support mart function: 0-10V dimming, DALI dimming, Motion Sensor, Radar Sensor, Light sensor / Photocell and DMX512.



Parameters of Module Led Stadium Light:

Part No. SU-LS500 SU-LS1000 SU-LS2000
Input Voltage AC85-265V, 50/60Hz
Rated Wattage 500W 1000W 2000W
Light Source SMD3030 Philips lumileds Led
Product Dimension (mm) L563xW313xH413 L665xW603xH574 L1166*W603*H573
Luminous Flux 150lm/W
CCT 2700k, 3000k, 4500k, 6000k, 6500k
Body Material Die-cast Aluminum
Cover PC Lens
CRI >80
PF >0.9
Surge Protection 6KV
Driver Mode Constant current Driver
Driver Brand Meanwell ELG Driver
Beam Angle 15°, 30°, 45°, 60°
Work Temperature -40 ~ +50 Deg
Protection Class IK08 / IP65
Warranty 5 Years
Life Span 50,000 Hours
Control Mode 0-10V / DALI / RGBW / DMX512

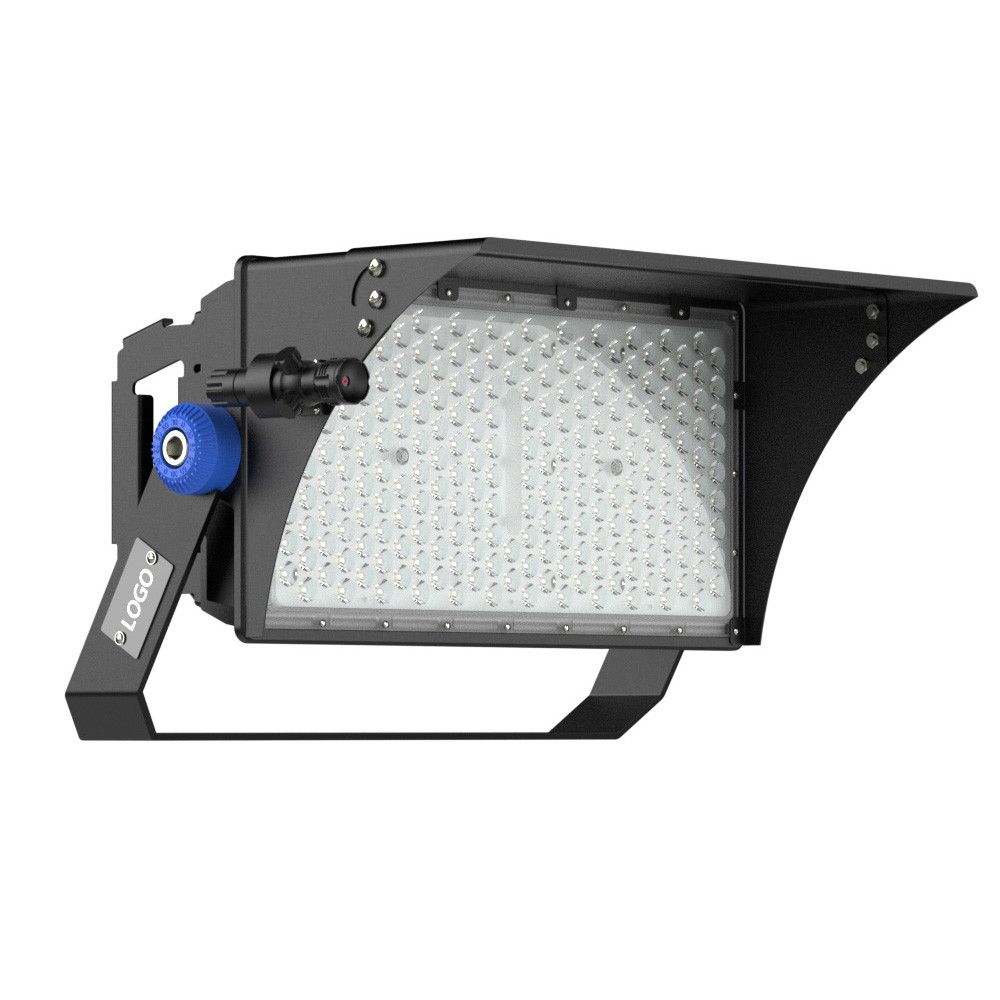

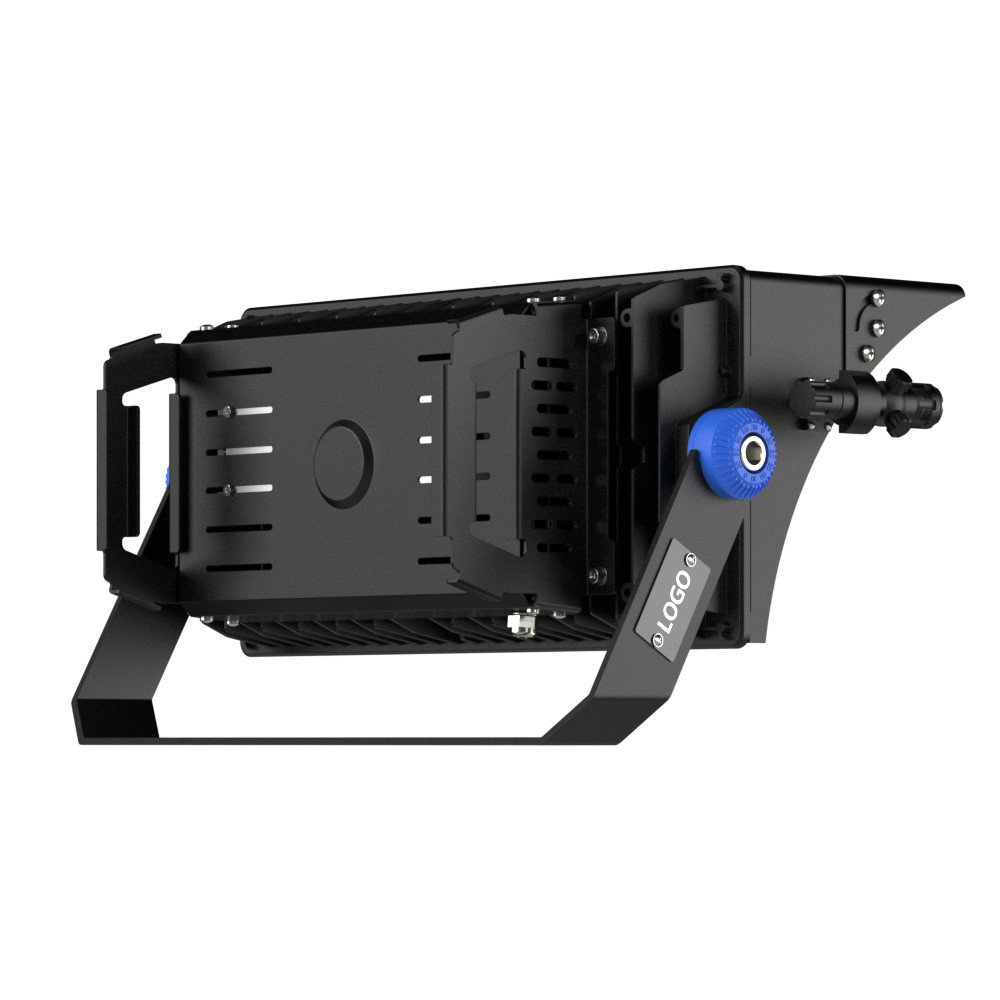

Details of Module Led Stadium Light:

CRI80 500 Watt Led Stadium Lights For Backyard IP65 Waterproof Die Casting Aluminum 0

CRI80 500 Watt Led Stadium Lights For Backyard IP65 Waterproof Die Casting Aluminum 1

CRI80 500 Watt Led Stadium Lights For Backyard IP65 Waterproof Die Casting Aluminum 2

CRI80 500 Watt Led Stadium Lights For Backyard IP65 Waterproof Die Casting Aluminum 3

CRI80 500 Watt Led Stadium Lights For Backyard IP65 Waterproof Die Casting Aluminum 4



Dimension of of Module Led Stadium Light:

CRI80 500 Watt Led Stadium Lights For Backyard IP65 Waterproof Die Casting Aluminum 5
CRI80 500 Watt Led Stadium Lights For Backyard IP65 Waterproof Die Casting Aluminum 6

Product Structure of of Module Led Stadium Light:

CRI80 500 Watt Led Stadium Lights For Backyard IP65 Waterproof Die Casting Aluminum 7

1. Up-cutting visor:stop the upward light ray scattering,reducing light waste.
2. Optical PC lens,never yellowing.
3. Waterproof silicon ring,UV-resistant and reliable.
4. 3030/5050 SMD light source optional.
5. Aluminum base with high themal conductivity,fast heat sinking to reduce light decay.

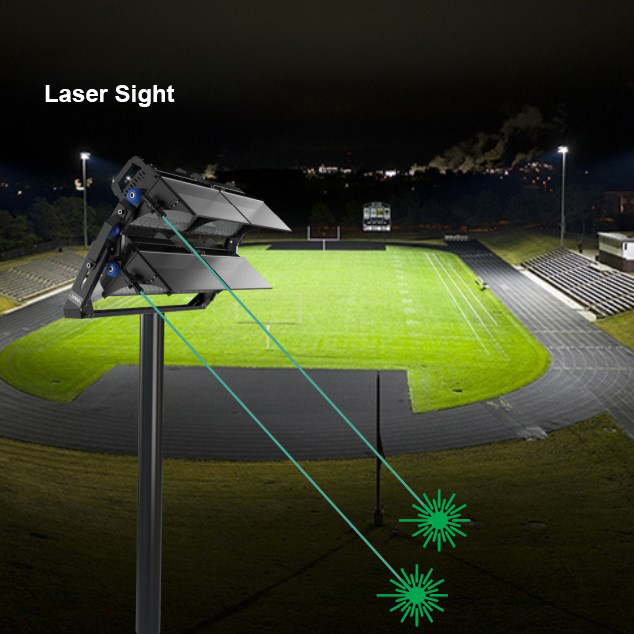

6. Laser sight to minimize the installation time and lower labor cost.
7. ADC12 die-casting aluminum radiator,high efficiency up to 96W/M.K.
8. Breathing heat sink to prevent the sealing problems caused by thermal expansion and cold contraction
9. Aluminum case for singal external waterproof driver isolated to lamp body for longer lifespan of the lamp.

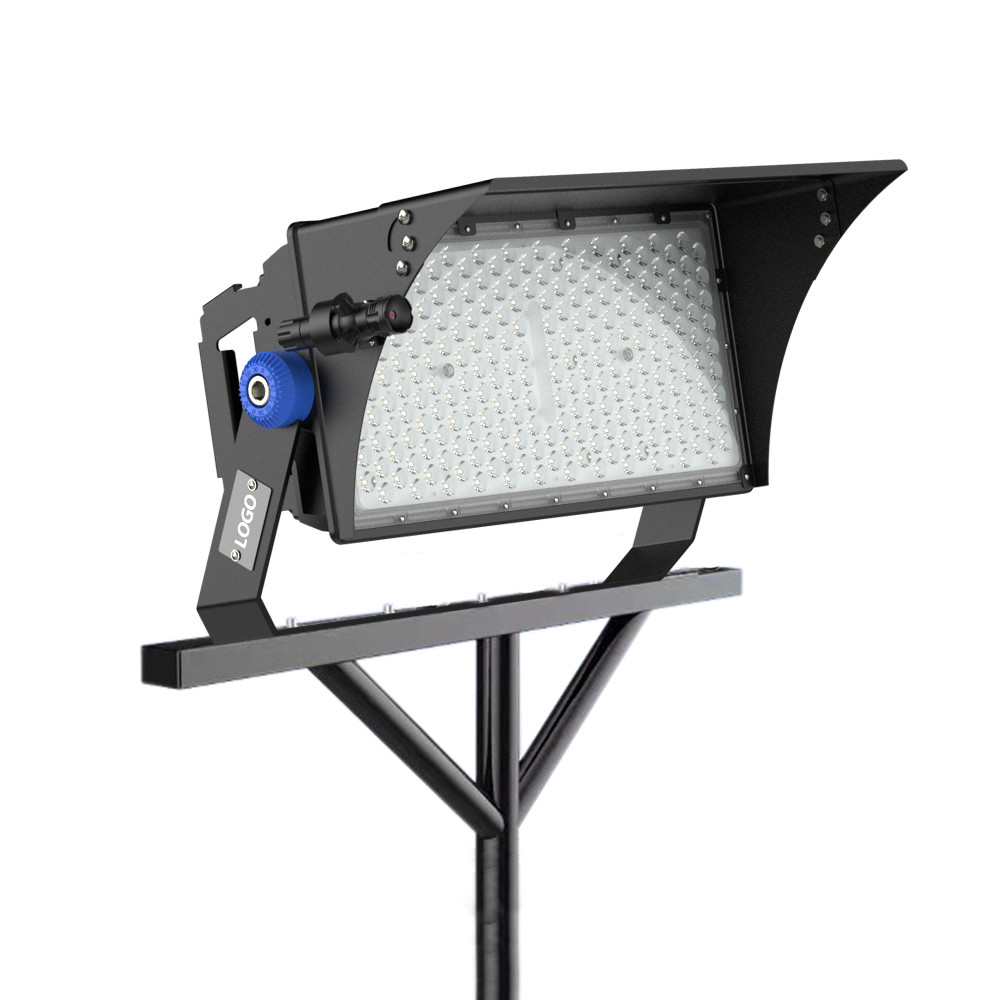

Installations of Module Led Stadium Light:

CRI80 500 Watt Led Stadium Lights For Backyard IP65 Waterproof Die Casting Aluminum 8

Applications of Module Led Stadium Light:
CRI80 500 Watt Led Stadium Lights For Backyard IP65 Waterproof Die Casting Aluminum 9

Frequent Queations of High Mast LED Flood Lights:
1. Can I buy 1pc for test?
Re: Yes, 1pc can be offered. Mixed trial order is welcome.

2. Can the high mast led flood light be dimmable?
Re: Yes, it can be dimmable type made if required.

3. How long will you send out for 1pc?
Re: 1 sample can be shipped within 3-5 days.

4. Do you have different driver for this high mast led flood lights?
Re: Yes, surely. The driver brand can be decided on your idea.

5. Can I move the laser sight away?
Re: The laser sight is helpful when installation. If you don't need, it can be moved away.

6. How long will I get the goods?
Re: For sample, we will send by express and it will takes about 5 days to deliver. For bulk quantity, we will send by sea or air. It will usually take 15-30 days to deliver.
