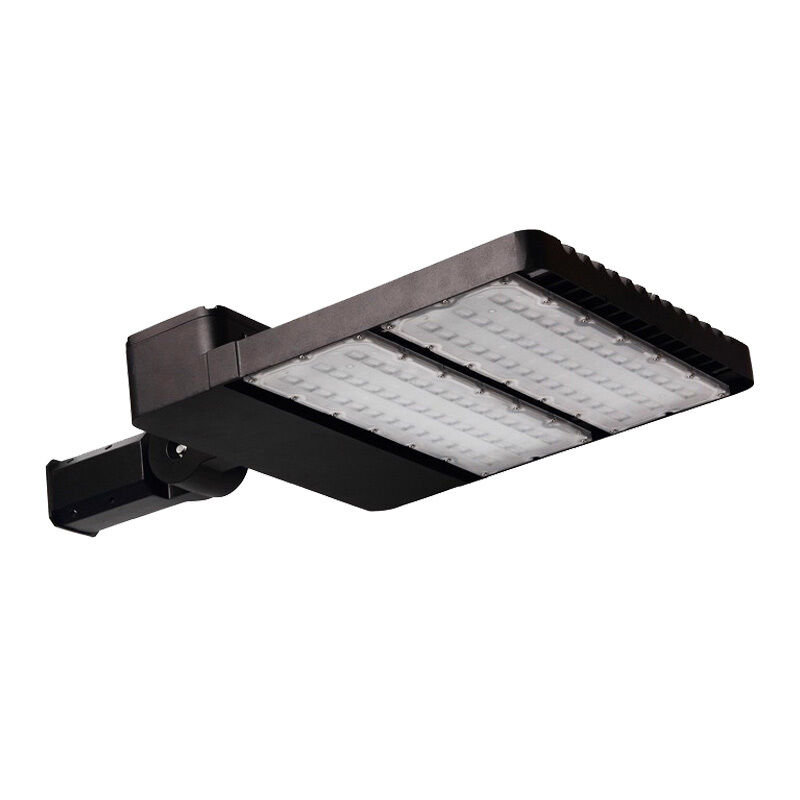

SUNRISE LED Street Lighting 300W

Minimum Order Quantity : 10 Price : Negotiated
Packaging Details : normal carton or customised Delivery Time : 8-15 working days
Payment Terms : T/T, Western Union, Supply Ability : 10000pcs/month
Place of Origin: Shen Zhen, China Brand Name: SUNRISE
Certification: CE ROHS Model Number: SU-TGD300W

Detail Information

Beam Angle: 120*90° / T3 / 60° (Optional) Input Voltage: AC100-277V / AC220-240V
Chip: Osram LED 3030 SMD Warranty: 5 Years
SPD: 6KV / 10KV (optional) Function: Support Sensor / Dimming / Low Voltage
Material: Aluminum Working Time: 50000H @L80B70 Ta25°C

Product Description

Product Descritptions:

♦ HIGH EFFICIENCY & LOW LIGHT DECAY SOURCE.
- Adopt super bright and high lumen 2835 / 5050 SMD LED for this model.
- Able to make high light efficiency 140-150lm/W.
- Saving energy and long lifespan.
- Available to have 100w, 150w, 200w, 300w or customized power.

♦ SELECTABLE BEAM ANGLES.
- The Floodlight offers 90x120° , 60° or T3 for different requests and applications.

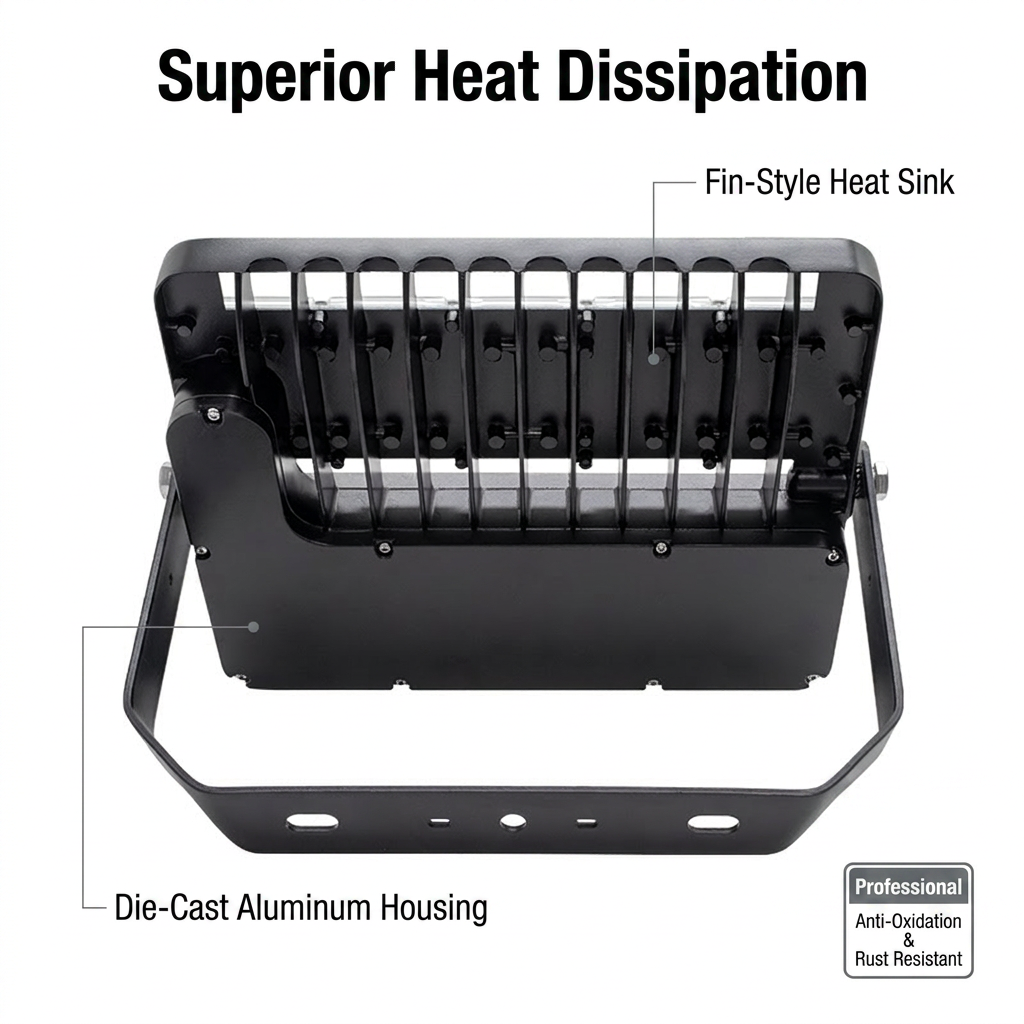

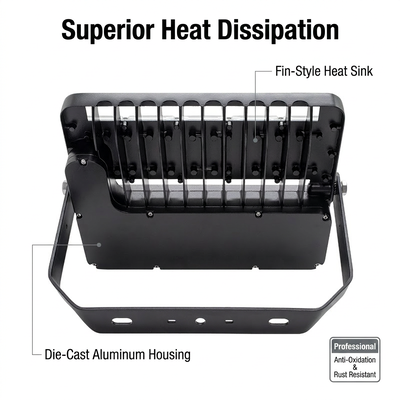

♦ DUABLE ALUMINUM HOUSING.
- High density and thickened aluminum shell, faster heat sinking.
- The housing is treated with paint coating with better thermal conductivity and stronger weather resistance, heavy weight, efficient heat dissipation, and extended service life.

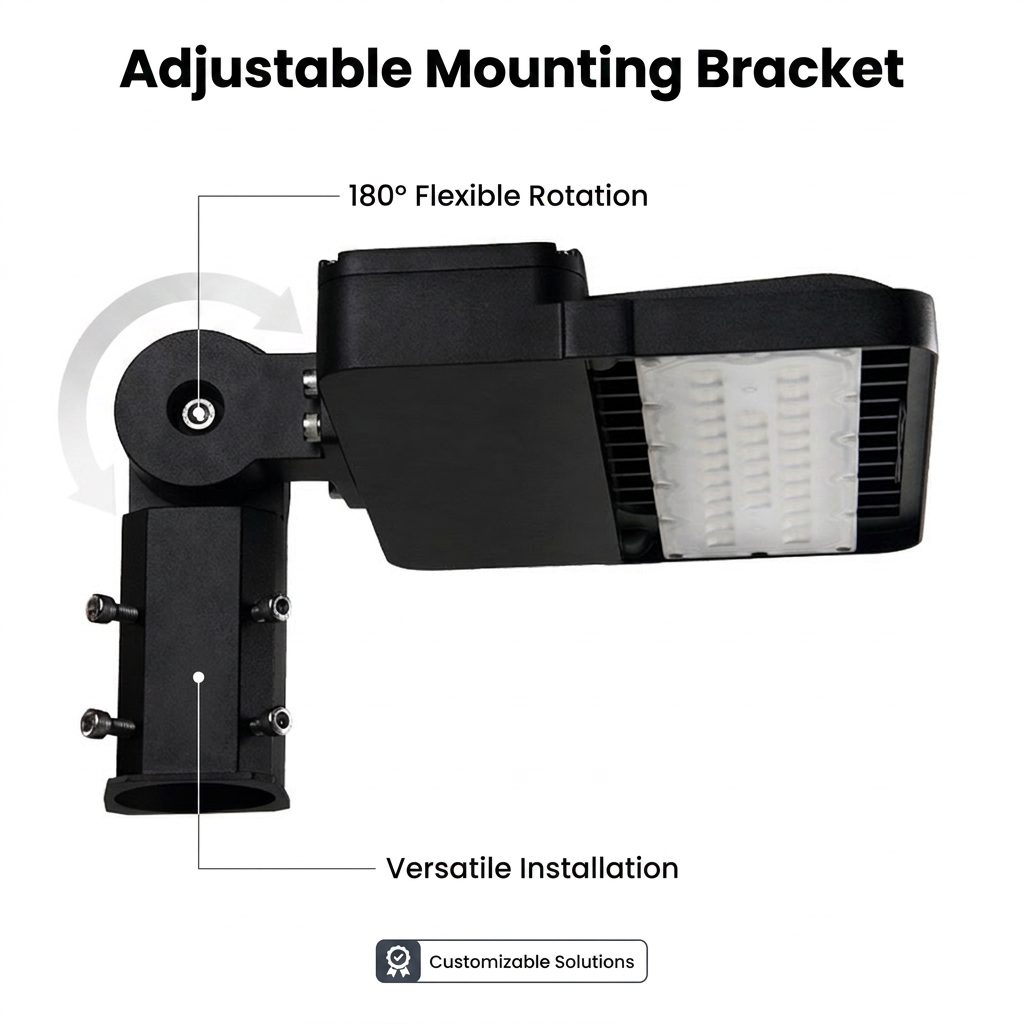

- This outdoor light comes with a thickened metal bracket, easier installation and better working. The supporter could be customized.


♦ SMART FUNCTIONS AVAILABLE:
- Based perfect performance, the LED flood light can be considered to produce smart functions: 0-10 dimming, Triac dimming, Dali dimming, Movement sensor, microwave radar sensor, or daylight / photocell sensor, DMX512 etc.

♦ HIGH PERFORMANCE DRIVER:
- LED flood light adopts constant current driver with stable performance and short circuit protection.
- The power factor >0.95, perfectly meeting full-load power consumption and conversion efficiency.
- Optional various famous brand drivers.

♦ FLEXIBLE SERVICE:
- The floodlight can be 5 years warranty according to the requests.
- Flexibility on customization such as lamp adjustment, logo, box or something else.

♦ WIDE APPLICATIONS:
- The floodlights can be applicable for many applications such as street, road, stadium sport fields, tennis court, football, baseball, volleyball, airports, harbors, squares, sign, advertisement, warehouse, logistics center, metro station, garden, street, park, plaza etc.

Product Descriptions of LED Street Light:



Product Name Outdoor LED Street Light 50W 100W 200W  300W
Product Model SU-TGD300W
Rated Power (W) 300W
Dimension (mm) L406*W505*H80mm
Input Voltage AC120-277V, 50/60Hz
Driver Mode Constant current driver (Brand driver)
Light Source Lumileds SMD3030 Leds
Color

 3000K-3200K       Warm White

   4000K-4500K       Nautral White

  5000K-5500K       Daylight White

6000K-6500K        White Cold

Housing Material Die-casting Aluminum
Body Color Black
Pipe Diameter D60mm
Cover PC with lens
Beam Angle 120*90° / T3 / 60°
CRI >80Ra
PF >0.95
Surge Protection L/N-PE: 6KV, L-N 6KV

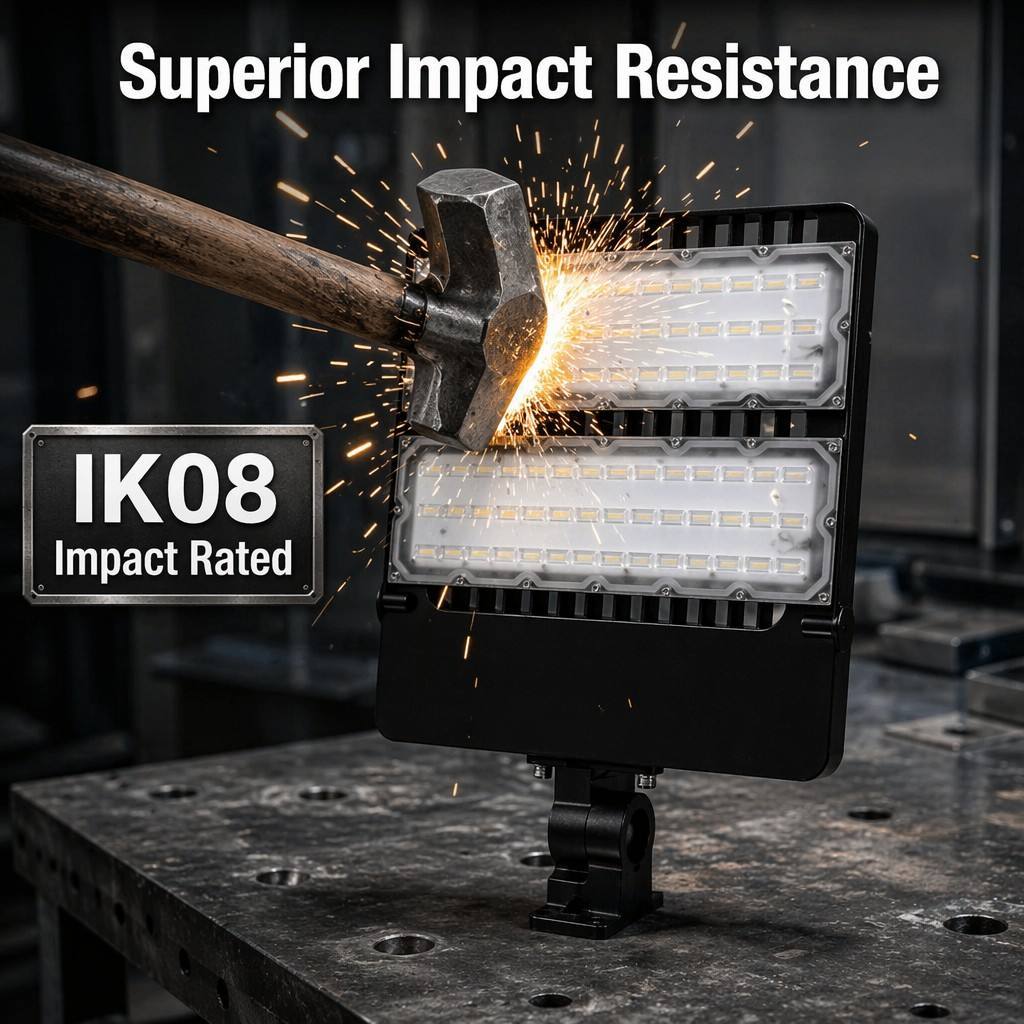

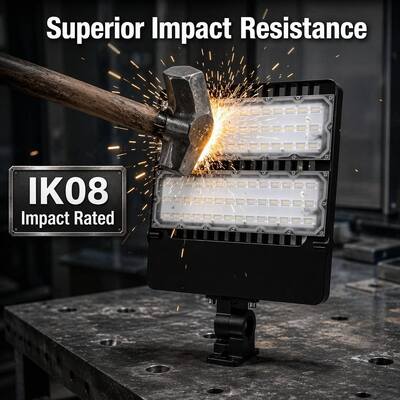

Shockproof Level IK08
Cable Length 3*0.75mm2 H05RN-F 500mm / 15inch
SDCM ≤15%
THD ≤5
IP Rating IP66
Work Temperature -30 ~ +50C°
Life Span 50,000 Hours
Warranty 5 Years



SUNRISE LED Street Lighting 300W



SUNRISE LED Street Lighting 300W



SUNRISE LED Street Lighting 300W
