Product Details:
|
| Name: | UFO LED Mining High Bay Lights | Warranty: | 5 Years |
|---|---|---|---|
| Size: | D298*H164mm | Power: | 100W, 150W, 200W |
| Beam Angle: | 60°, 90°, 120° | Material: | Diecasting Aluminum |
| High Light: | Isolated Driver UFO High Bay Lights,SMD2835 High Bay Lights,150lm/W UFO LED High Bay Light |
||
Isolated Driver UFO LED Mining High Bay Lights 150lm/W For Warehouse Logistic Center
Quick details for UFO LED Mining High Bay Lights:
► Adopting high power and super bright Lumileds SMD2835 LEDs light source.
► Finished light efficiency can reach 150lm/W.
► Available power: 100W, 150W, 200W and customised.
► Beam angle: 60, 90 and 120 degree.
► Waterproof protection: IP65.
► Driver mode: constant-current driver (Chinese brand or brand, or customised).
► Control method optional: Dali dimmer, 0-10V dimming, CCT dimming.
► Sensor method optional: Radar microwave sensor, remote.
Descriptions of UFO UFO LED Mining High Bay Lights:
The UFO LED mining high bay lights is very welcome and popular in markets now for its widely usages. It is not only simple but modern. This adopts constant-current driver solution (brand driver optional), and the housing is integrated diecasting aluminum with high corrosion-proof, weather-roof and the cover is optical PC with 60, 90 and 120 degree. It is waterproof IP65 for indoor and outdoor lighting.
The installation can have chain and bracket two ways.
Datasheet of UFO LED Mining High Bay Lights:
| Product Name | UFO LED Mining High Bay Lights | ||
| SKU | SU-GKF100 | SU-GKF150 | SU-GKF200 |
| Rated Power | 100 Watts | 150 Watts | 200 Watts |
| Dimension | D241 x H149mm | D298 x H164mm | D350 x H170mm |
| Luminous Flux | 15000-16000lm | 22500-24000lm | 30000-32000lm |
| Input Voltage | 85-265VAC, 50/60Hz | ||
| Light Source | Lumileds SMD2835 LEDs | ||
| CRI | >80 | ||
| Light Efficiency | 150-160lm/W | ||
| Power Factor | >0.9 | ||
| Driver Mode | Constant-current driver ( brand or Chinese brand free option) | ||
| Beam Angle | 60°, 90°, 120° | ||
| Body Material | Diecasting aluminum | ||
| Cover | PC cover (UV protection) | ||
| Body Color | Black | ||
| Work Temperature | -40 ~ 50 centigrade | ||
| Surge Protection | 6KV | ||
| Shock-proof Class | IK07 | ||
| Waterproof Rank | IP65 | ||
| Life Span | 50,000H | ||
| Warranty | 5 Years | ||
| Net Weight | 2.2 KG | 2.5 KG | 3.2 KG |

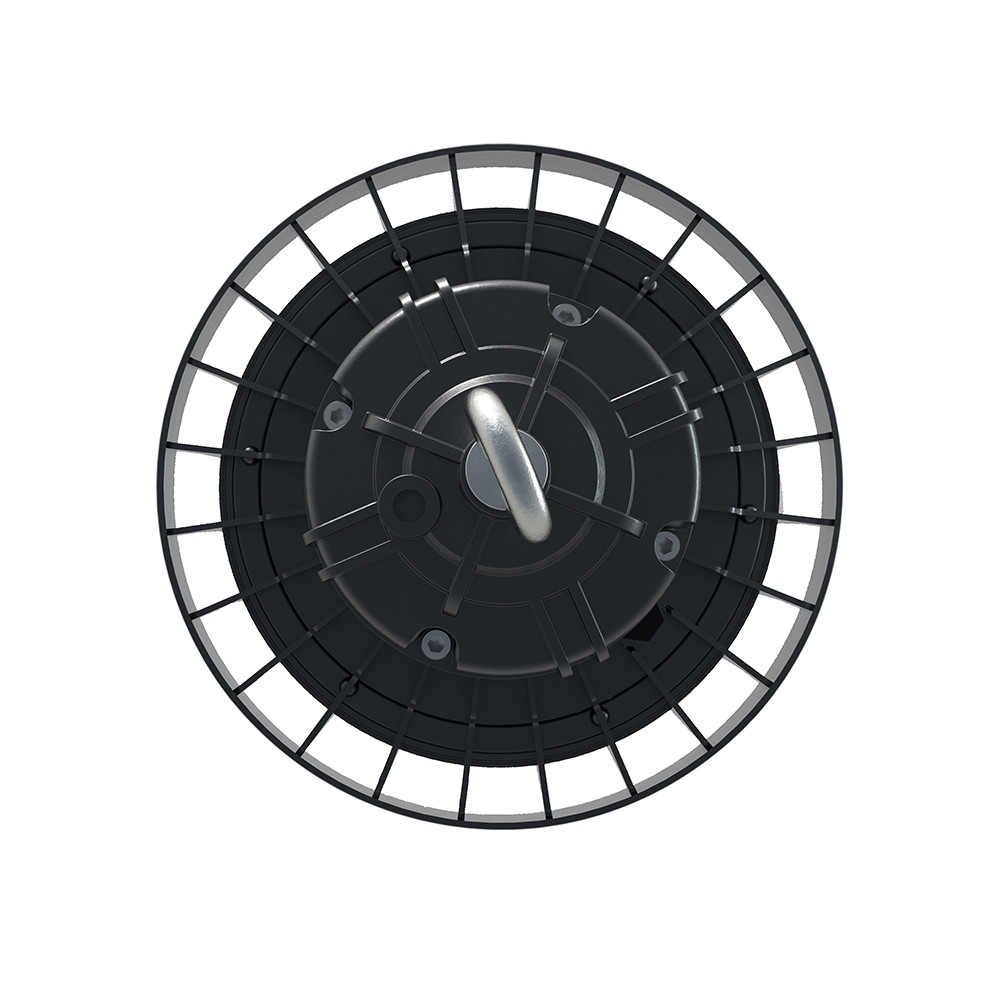

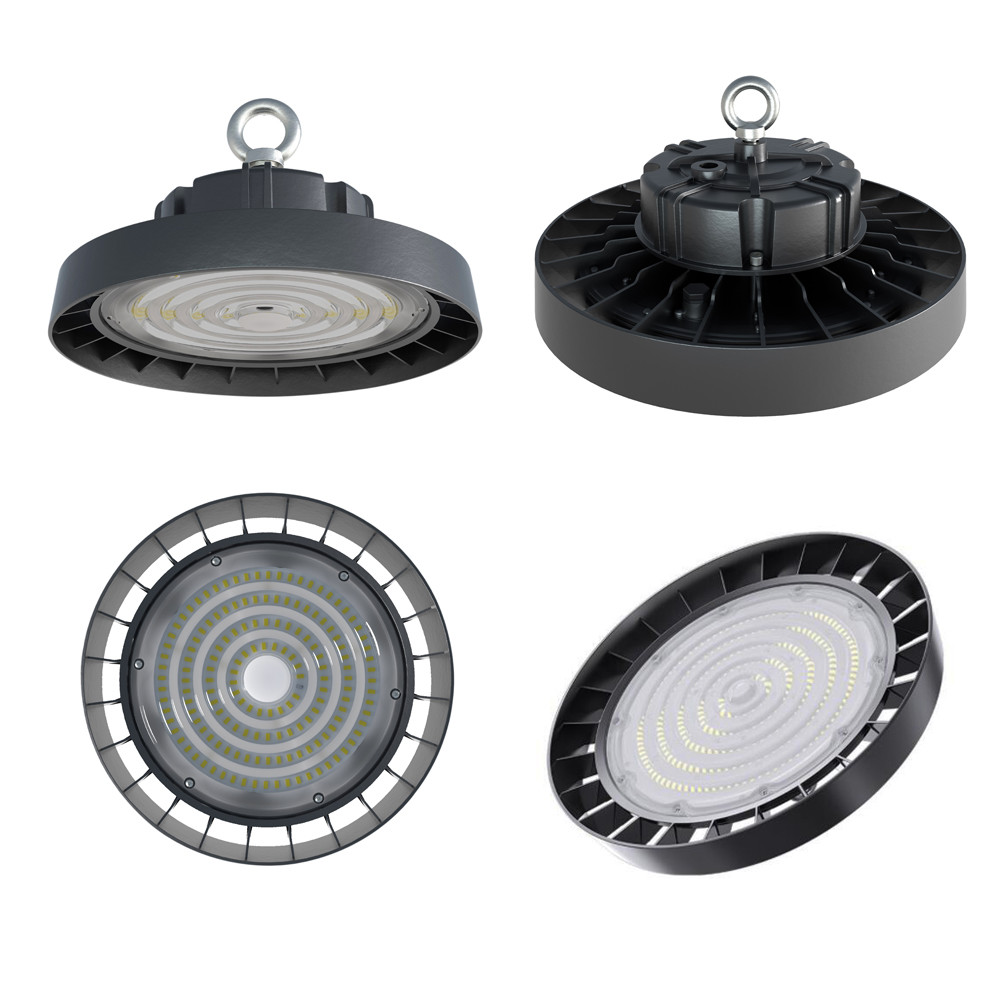

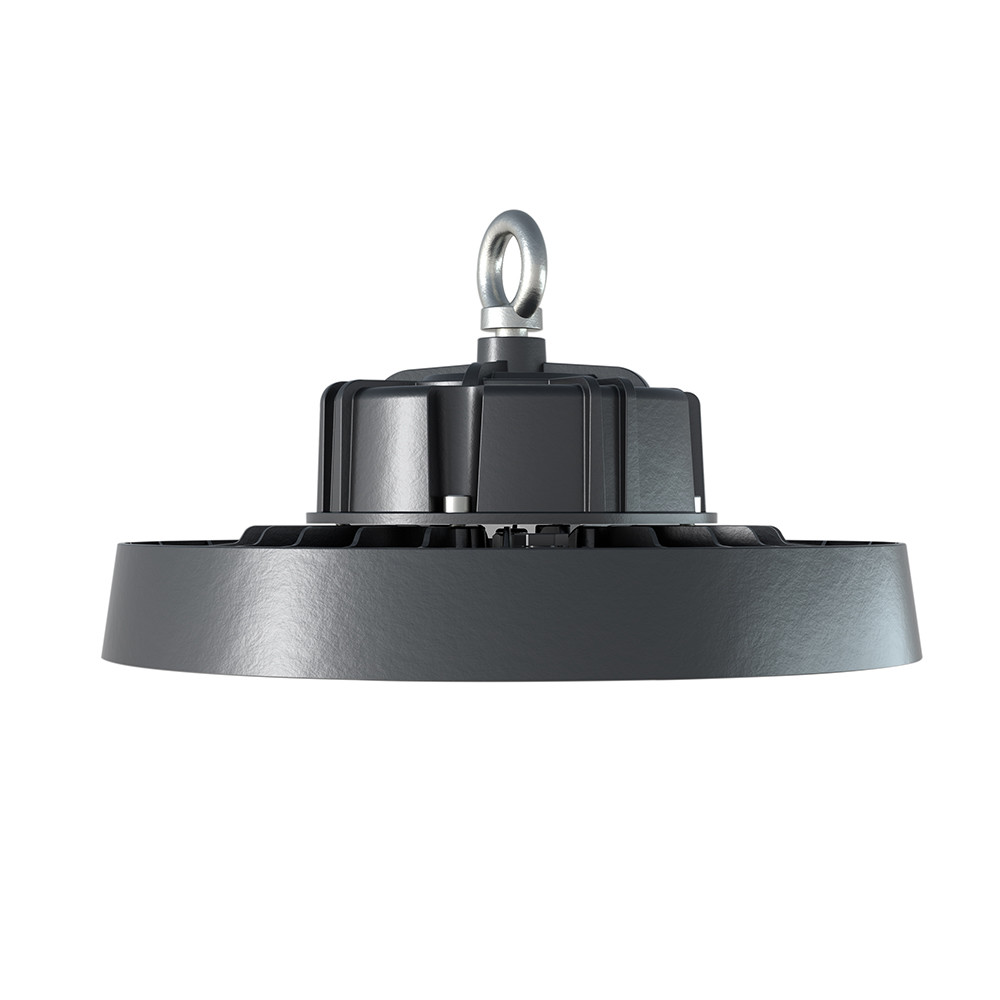

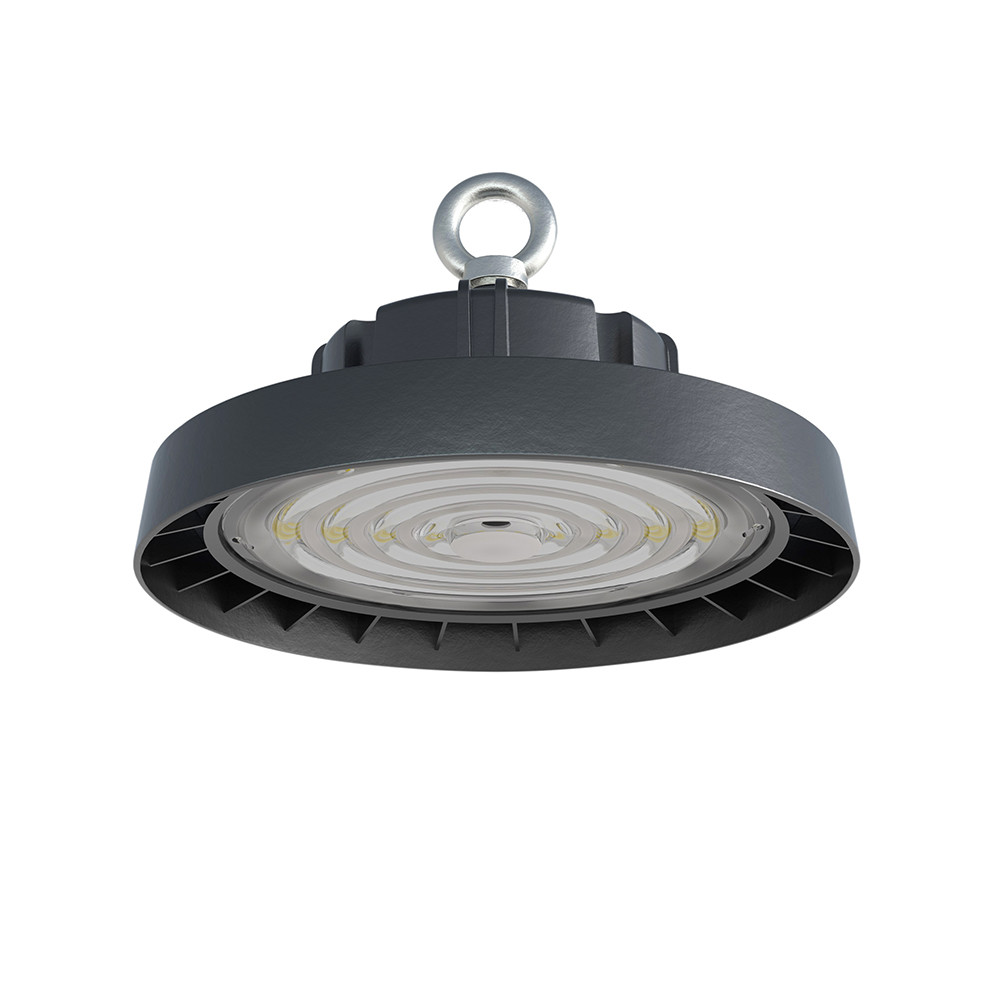

Product Show of UFO LED Mining High Bay Lights:
60°, 90° and 120° Beam Angle for the UFO LED Mining Lamp
Installations of UFO LED Mining High Bay Lights:
Applications of UFO LED Mining High Bay Lights:
About SUNRISE:
Frequent Asked Queations of UFO LED Mining High Bay Lights:
1. Can the UFO LED ming high bay lights be dimmable?
Re: Yes, it can be dimmable. Please contact us for details!
2. Do you have warmer color?
Re: Yes, the normal colors are 3000K, 4500K, and 6500K. Other colors can be customised. Please send us!
3. What brand of driver do you use for this UFO LED mining high bay lights?
Re: The driver can be Chinese brand, brand or others. Different drivers are possible.
4. Can I take 1 sample before bulk quantity?
Re: Yes, welcome to the sample order. 1pc or mixed samples are welcome.
5. Can you accept product customization?
Re: Yes, product customization service is possible. We have developing group. Please tell us your idea or send us your drawing.
6. How to deal with the faulty?
Re: First of all, we are confident of our quality. All of products have a course of double tests before shipping. If unfortunately, the faulty comes from our product itself, we will replace or return.
