- Adopt super bright and high lumen 2835 / 5050 SMD LED for this model.
- Able to make high light efficiency 100-110lm/W or 140-150lm/W.
- Saving energy and long lifespan.
- Available to have 100w, 150w, 200w, 300w or customized power.
♦ SELECTABLE BEAM ANGLES.
- The Floodlight offers 90x120° , 60° or T3 for different requests and applications.
♦ DUABLE ALUMINUM HOUSING.
- High density and thickened aluminum shell, faster heat sinking.
- The housing is treated with paint coating with better thermal conductivity and stronger weather resistance, heavy weight, efficient heat dissipation, and extended service life.

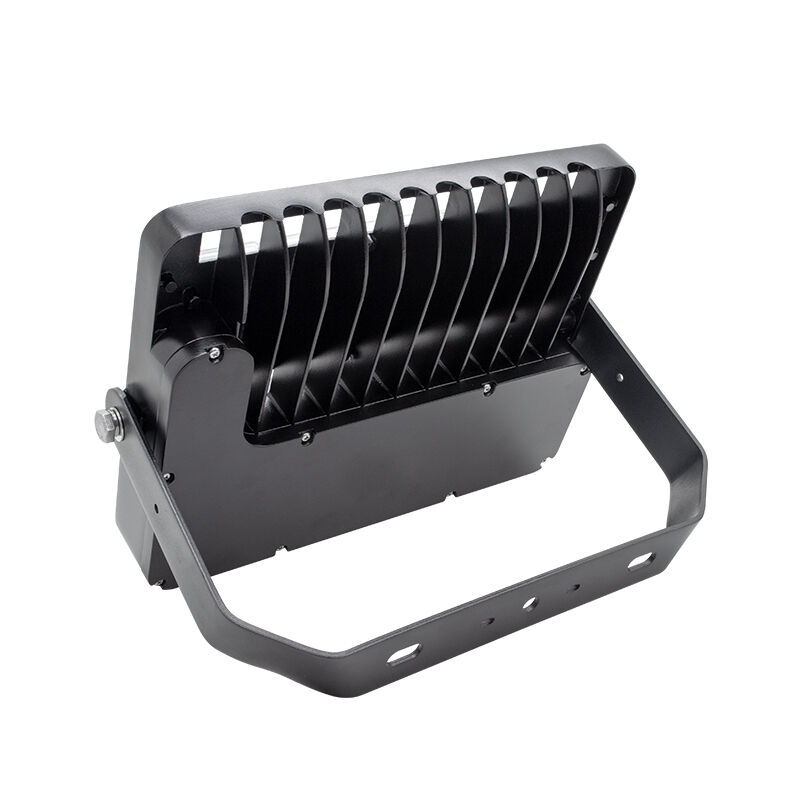

- This outdoor light comes with a thickened metal bracket and a 19.68 inch cable, easier installation and better working.
♦ SMART FUNCTIONS AVAILABLE:
- Based perfect performance, the LED flood light can be considered to produce smart functions: 0-10 dimming, Triac dimming, Dali dimming, Movement sensor, microwave radar sensor, or daylight / photocell sensor, DMX512 etc.
♦ HIGH PERFORMANCE DRIVER:
- LED flood light adopts constant current driver with stable performance and short circuit protection.
- The power factor >0.90, perfectly meeting full-load power consumption and conversion efficiency.
- Optional various famous brand drivers.
♦ FLEXIBLE SERVICE:
- The floodlight can be 3 years warranty according to the requests.
- Flexibility on customization such as lamp adjustment, logo, box or something else.
♦ WIDE APPLICATIONS:
- The floodlights can be applicable for many applications such as street, road, stadium sport fields, tennis court, football, baseball, volleyball, airports, harbors, squares, sign, advertisement, warehouse, logistics center, metro station, garden, street, park, plaza etc.
Technical Specifications:
| Product Name |
LED Flood Light |
| SKU |
SU-TGD100W |
| Rated Power |
100W |
| Work Voltage |
48V DC / AC |
| Optional Wattages |
100W, 150W, 200W, 300W |
| Dimension |
358*326*60MM |
| Efficiency |
150lm/W |
| Driver Mode |
Separate driver |
| Light Source |
SMD3030 LEDs |
| CCT |
3000K, 4000K, 5000K, 6000K |
| SDCM |
<5% |
| THD |
<15% |
| Material |
Aluminum + PC with lens |
| SPD |
L/N-PE: 4KV |
| CRI |
>80Ra |
| PF |
>0.95 |
| Beam Angle |
120*90° / T3 / 60° |
| Finished Body Color |
Black |
| Protection Grade |
IP65 / IK08 |
| Work Temperature |
-30°C ~ +50°C |
| Storage Temperature |
-40°C ~ +60°C |
| Work Humidity |
10% - 90% |
| Weight |
4.30 kg |
| Warranty |
3 Years |
