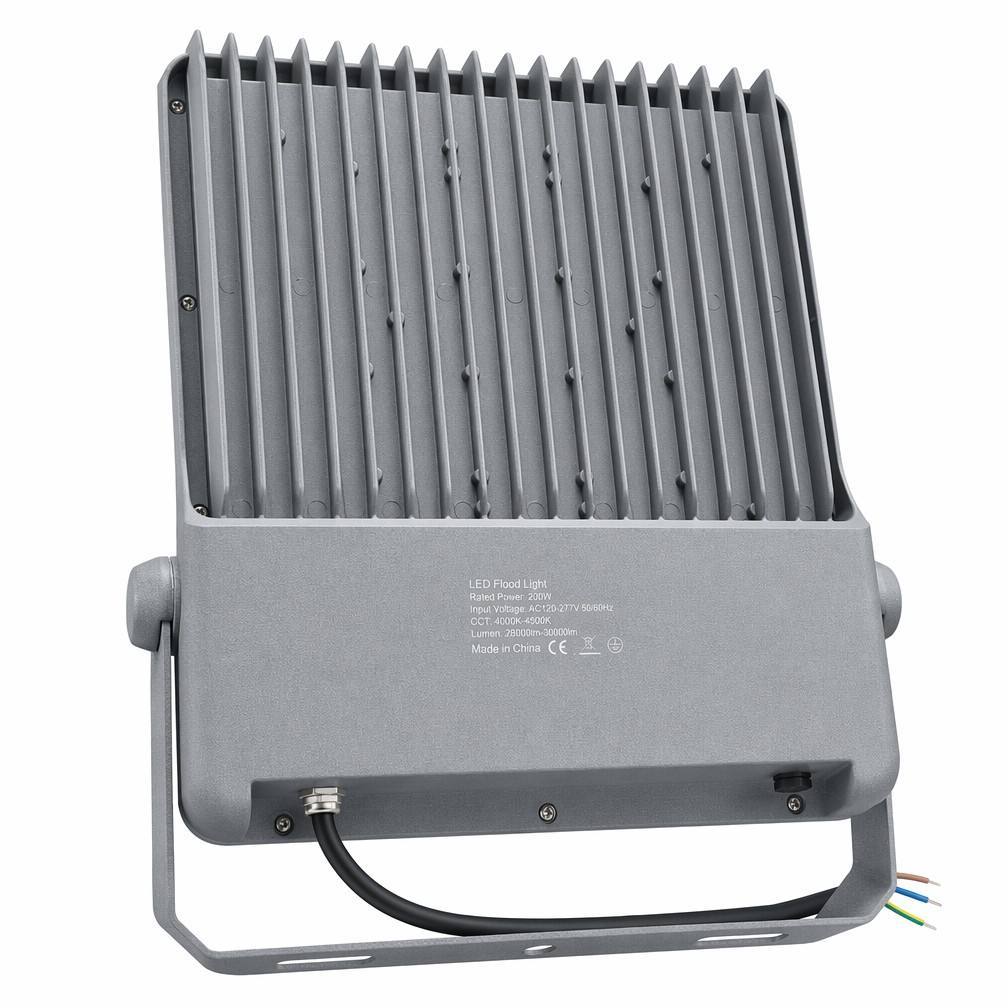

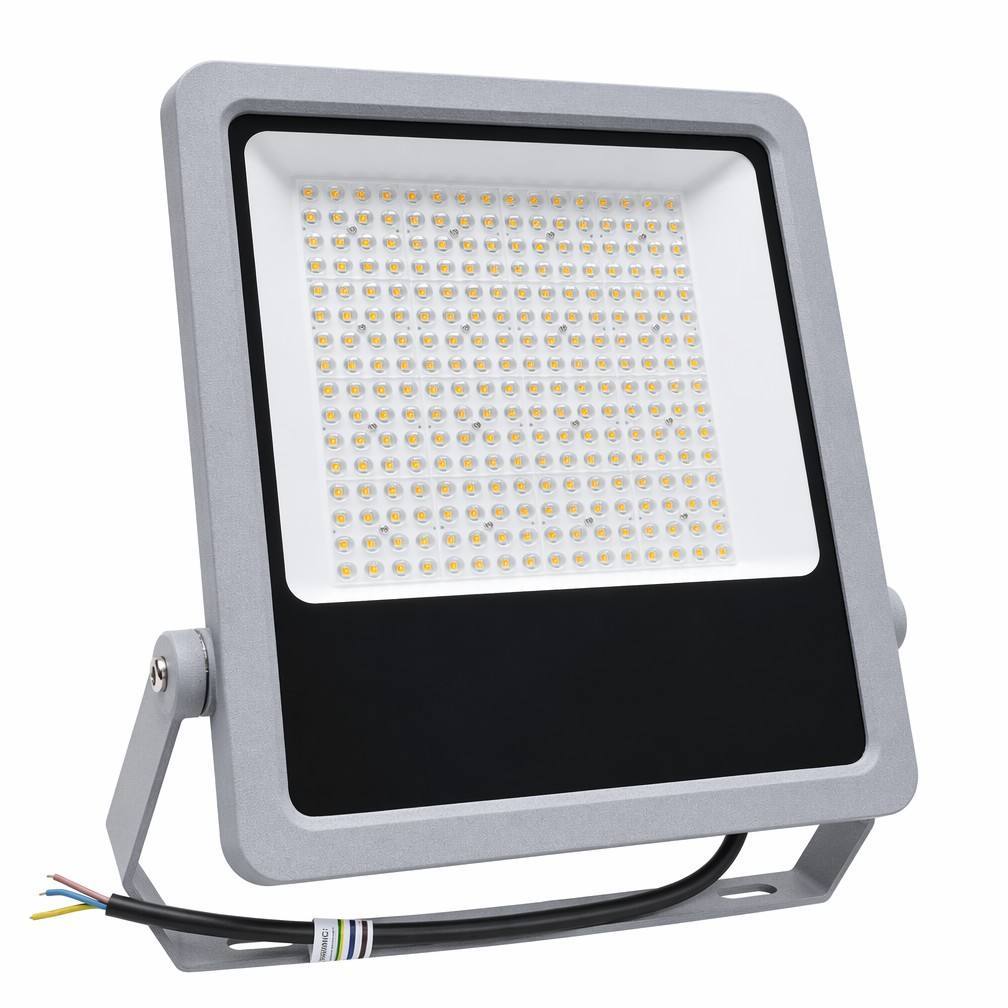

- Outdoor Led electric flood light uses super bright and high lumen SMD 2835 LEDs to make high light efficiency 140-150lm/W saving more than 90% of power. It adopts constant current driver inside, able to adopt various famous brand driver as required, available to make 50w, 100w, 150w, 200w, 300w and 400w, 500w and 600w or customization.
♦ SELECTABLE BEAM ANGLES:
- BDX flood light could offer 30, 60, 90° and 120° for different requests and applications. 30/60/90° is spot lighting with narrow light ray, and 120° is flood lighting with wide light ray.
♦ DUABLE DIECASTING ALUMINUM SHELL FOR BETTER HEAT SINKING:
- High density and thick die-cast aluminum, faster heat sinking, Sunrise outdoor LED flood light is treated with graphene coating, which has better thermal conductivity and stronger weather resistance, heavy weight, efficient heat dissipation, and extended service life. This outdoor light also comes with a thickened metal bracket and extra long cable, easier installation better working.
♦ SMART SYSTEM AVAILABLE:
- Based perfect performance, the LED flood light can be considered to produce smart functions: 1-10 dimming, Triac dimming, Dali dimming, Movement sensor, microwave radar sensor, or daylight / photocell sensor, DMX512 etc.
♦ HIGH POWER DRIVER:
- LED flood light adopts constant current driver with stable performance and circuit protection, able to meet power factor 0.95, perfectly meeting full load power consumption. Moreover, brand drivers are available.
♦ FREE REPLACEMENT, EASY INSTALLATION:
- LED flood lights offer warranty 5 years. During this period, any product problem can be replaced freely. The lamp is very easy installation.
♦ WIDE APPLICATIONS:
- With high lumen brightness output, the floodlights can be applicable for many applications such as bridge, passageway, yard, courtyard, garden, park, street, road, stadium sport fields, tennis court, football, baseball, volleyball, multiple functional area, airports, harbors, squares, sign, advertisement, warehouse, logistics center, metro station etc.
Technical Specifications:
| Item |
Outdoor LED Flood Lights |
| SKU |
SU-BDX200W |
| Rated Power |
200 Watts |
| Lamp Size |
416*352*58mm |
| Luminous Flux |
28000-30000lm |
| Available Warranges |
50W, 100W, 150W, 200W, 300W, 400W, 500W, 600W |
| Input Voltage |
AC120-277V / 220-240V
AC / DC 12V, 24V, 48V
|
| Efficiency |
140-150lm/W |
| Color |
3000K/4500K/5500K/6500K/R/G/B/Y or customization |
| LED Type |
SMD2835 |
| LED Brand |
Chinese LEDs, Osram, Lumileds |
| Driver Mode |
Contant current / Constant voltage |
| Driver Brand |
Lifud, Sosen, Done, Moso, Inventronics |
| SDCM |
<5% |
| THD |
<15% |
| SPD |
L/N-PE: 6KV
|
| Material |
Aluminum + tempered glass |
| Beam Angle |
30°, 60°, 90°, 120° |
| CRI |
>80Ra |
| PF |
>0.95 |
| Housing Color |
Grey / Black |
| Protection |
IP66 |
| Work Temperature |
-35°C~50°C |
| Working Time |
50,000 Hours |
| Warranty |
5 Years |
