Product Details:
|
| Name: | 30 Watt Led Floodlight | LED Chip: | Lumileds SMD 3030 |
|---|---|---|---|
| Angle: | 60°, 90°, 120° | Surge Protection: | 6KV |
| Color: | 6500K, 4000K, 3000K | Usage: | Industrial, Commercial |
| Warranty: | 5 Years | Material: | Aluminum |
| High Light: | IP66 4000k LED flood light,6KV 30 watt LED flood lights,Black Aluminum 6500k flood light |
||

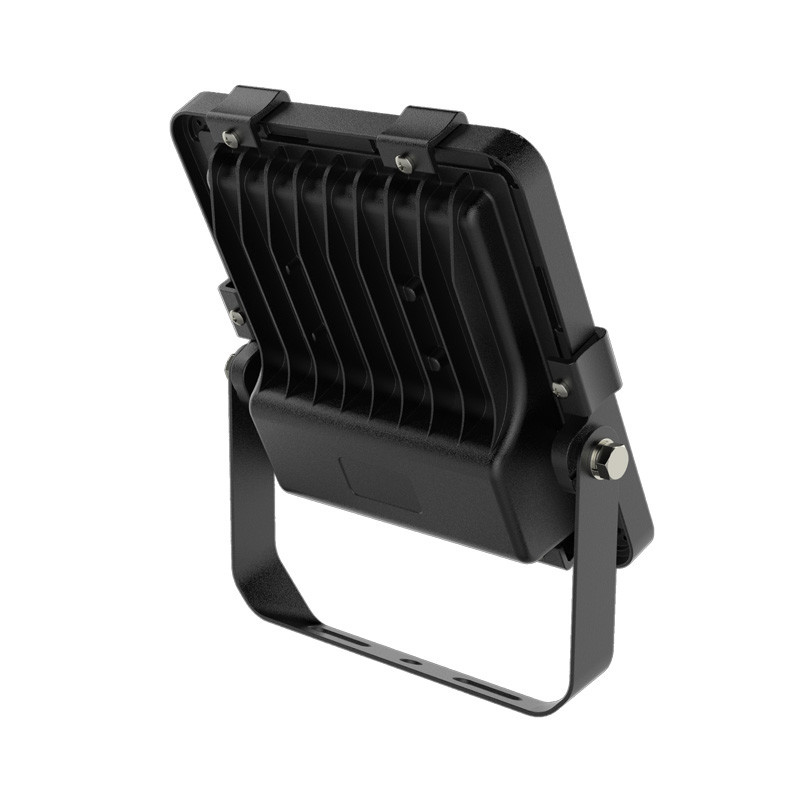

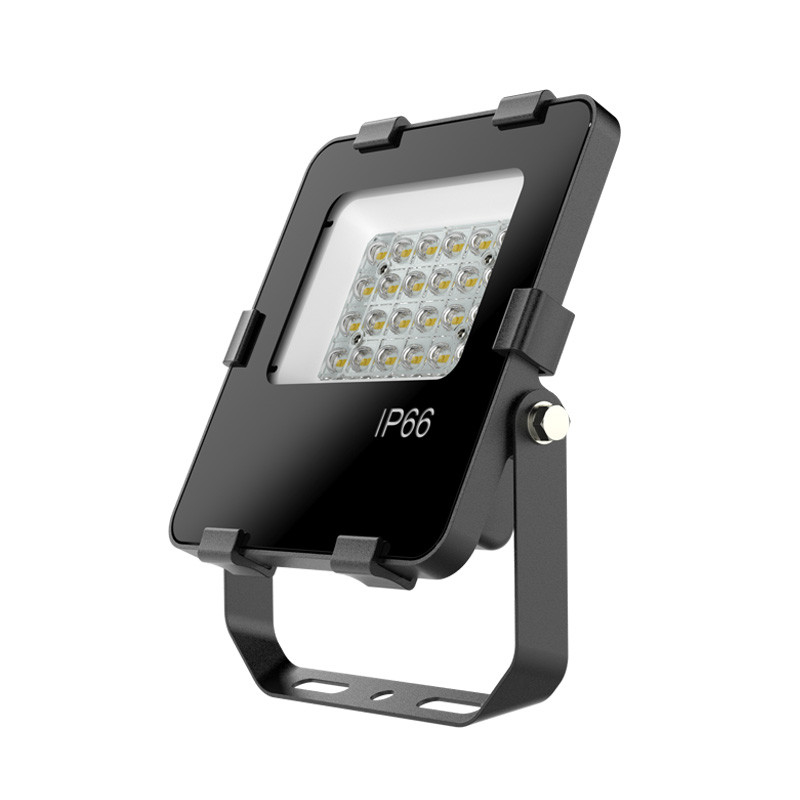

3000K 4000K 6500K 30 Watt LED Flood Lights Outdoor IP66 Black Aluminum
Quick details of 30 Watt LED Flood Lights:
1. Product type: Floodlights.
2. Model: SU-BJG30.
3. Rated power: 30 Watt.
4. Luminous flux: 3600lm.
5. Light efficiency: 120lm/W.
7. Dimension: L214*W197*H53mm.
8. Light source: Lumileds SMD 3030 super bright LED chips.
9. Optional wattages: 30 watt, 50 watt, 100 watt, 150 watt and 200 watt.
10. Driver mode: Constant current isolated driver.
11. IP rating: IP66 waterproof.
12. Beam angle: 60°, 90°, 120°.
13. Body material: die-casting aluminum.
14. Cover material: tempered glass.
15. Packing: 20PCS/ctn or customised box.
16. Warranty: 3-5 years.
17. Smart function available for 0-10V, Dali dimming, PIR / radar / microwave / photocell / light sensor, and DMX512 etc.
18. Driver brand can be choosed.
Descriptions of 30 Watt LED Flood Lights:
The Led Flood Light 30 Watt is the newest and high-end design with simple and classical appearance for outdoor industrial and commercial project high lumen waterproof lighting. The housing is pure die-casting aluminum ADC12# with anti-pressure, high-strength, anti-corrosion, and thick tempered glass cover. waterproof protection IP66. It adopts constant-current isolated driver AC solution. This product is full power with stablility and high light efficiency. It is widely used in hotel, home, gallery, stair, yard, road, street, door, room, yard, parking, car warehouse etc.
Customization is served for the different wattages!
| Product Name | Led flood light 30 watt | ||
| Part No. | SU-BJG30 | SU-BJG50 | SU-BJG100 |
| Input Voltage | AC85-265V, 50/60Hz | ||
| Rated Power | 30W | 50W | 100W |
| Light Source | SMD3030 Lumileds | ||
| Light Efficiency | 120lm/W | ||
| CCT | 2700K, 3000K, 4000K, 5000K, 6500K | ||
| Product Size (mm) | L214*W197*H53 | L254*W237*H51 | L281*W291*H50 |
| Driver | Constant Current Isolated Driver | ||
| Body Material | ADC12 Aluminum | ||
| Cover Material | Thickened Tempered Glass | ||
| CRI | >80 | ||
| PF | >0.9 | ||
| Housing Color | Black | ||
| Surge Protection | 6KV | ||
| Beam Angle | 60°, 90°, 120° | ||
| Class Protection | IK08, IP66 | ||
| Working Temperature | -40 ~ 50 Deg. | ||
| Parking | 20 PCS/ctn | 15 PCS/ctn | 10 PCS/ctn |
| Carton Size | 67*28*51cm | 78.5*28*30.5cm | 65*32*37.5cm |
Details Show of 30 Watt LED Flood Lights:
Dimensions of 30 Watt LED Flood Lights:
Structure of 30 Watt LED Flood Lights:
1. Tempered Glass Cover.
2. Waterproof Silicon Sealing Stripe.
3. Nano Plastic Reflector.
4. Optical PC Len against UV, Permanent Use Without Getting Yellow, High Temperature Assistance, No Deformation.
5. Suitable for SMD3030 LEDs, Higher Light Efficiency. is Available.
6. High-qualitied Aluminium PCB with High Heat Conduction, Faster Heat Cooling.
7. Able to work with MeanWell, SOSEN Brand Driver.
8. ADC12# Die-casting Aluminium Radiator, 96W/M.K
Lens 60 degree, 90 degree and 120 degree available of 30 Watt LED Flood Lights:
Installations of 30 Watt LED Flood Lights:
Applications of 30 Watt LED Flood Lights:
Frequent Asked Questions of 30 Watt LED Flood Lights:
1. Can I have 1 sample to test before bulk quantity?
Re: Yes, 1 sample can be offered, and mixed order is welcome.
2. What brand of chip do you use?
Re: We use lumileds SMD3030 LED chip with high lumen 120lm/W.
3. Can I have special color like 2200K or 2500K for sample?
Re: Yes, sure. But the colors need to be customised, so it will take 3-5 days to finish.
4. Is the 30 watt led flood light dimmable?
Re: Yes, it can make dimmable mode such as Dali, 0-10V dimming.
5. Can I have fixed driver for this 30 watt led flood light?
Re: Yes, that's possible. Please tell us your required driver brand! We can offer 3-5 years guarantee.
6. Can you make my logo on the glass and the box as private?
Re: Yes, we accept the customisation service. Please send us your logo diagram!
7. If I order 500pcs, how long will the lead time take?
Re: Normally 500pcs will take 10-15 days. If you have other additional requirements, then we will check the leadtime for you soon.
8. How to deal with the faulty?
Re: First of all, we ensure all of raw materials have been tested before stocking and products must have strict test and aged before shipping till good-working. If unfortunately any faulty happend, we will replace or refund.
