Product Description

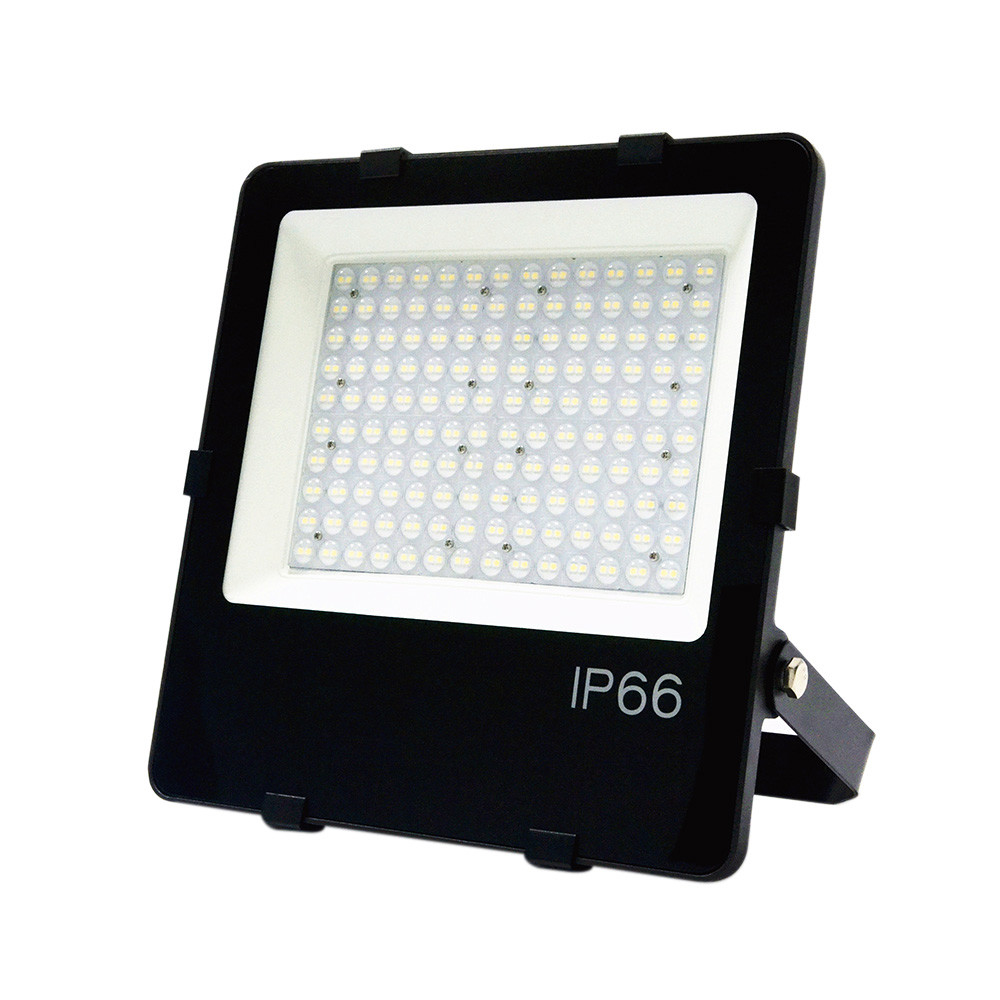

IP66 Waterproof LED Floodlights for Industrial Constant Current Driver
Quick Infomations for Waterproof LED Floodlights:
1. Rated wattage: 200 Watts.
2. Luminous flux: 24000lm.
3. Dimension: L351*W361*H63mm.
4. Light source: SMD3030 super bright LED chips.
5. Optional wattages: 30 watts, 50 watts, 100 watts, 150 watts and 200 watts.
6. Driver mode: Constant current isolated driver.
7. IP rating: IP66 waterproof.
8. Beam angle: 60°, 90°, 120°.
9. Body material: die-casting aluminum.
10. Cover material: tempered glass.
11. Packing: 5PCS/ctn or customised.
12. Warranty: 3-5 years.
Descriptions of Waterproof LED Floodlights:
The Waterproof LED Floodlights is the newest design with simple and classical appearance for outdoor industrial and commercial project high lumen lighting. The housing is pure die-casting aluminum ADC12# with anti-pressure, high-strength, anti-corrosion, and thick tempered glass cover. waterproof protection IP66. It adopts constant-current isolated driver AC solution. This product is full power with stablility and high light efficiency. It is widely used in hotel, home, gallery, stair, yard, road, street, door, room, yard, parking, car warehouse etc.
Customization is served for the different wattages!
Parameters of Waterproof LED Floodlights:
| Product Name |
Waterproof LED Floodlight |
| Part No. |
SU-BJG50 |
SU-BJG100 |
SU-BJG200 |
| Input Voltage |
AC85-265V, 50/60Hz, AC/DC12-48V |
| Rated Power |
50W |
100W |
200W |
| Light Source |
SMD3030 |
| Light Efficiency |
130lm/W |
| CCT |
2700k, 3000k, 4500k, 5000k, 6500k |
| Product Size |
L254xW237xH51 |
L281xW291xH50 |
L351xW361xH63 |
| Driver |
Constant Current Isolated Driver |
| Body Material |
ADC12 Aluminum |
| Cover Material |
Tempered Glass |
| CRI |
>70Ra / 80Ra |
| SDCM |
<5% |
| THD |
<15% |
| PF |
>0.9 |
| Housing Color |
Black |
| Surge Protection |
4KV-6KV |
| Beam Angle |
60°, 90°, 120° |
| Class Protection |
IK08, IP66 |
| Working Temperature |
-30 ~ 50 Deg. |
| Parking |
15 PCS |
10 PCS |
5 PCS |
| Carton Size |
78.5 x 28 x 30.5 |
65 x 32 x 37.5 |
39.5 x 38 x 43.5 |
Details Show of Waterproof LED Floodlights:
Dimensions of Waterproof LED Floodlights:
Structure of Waterproof LED Floodlights:
1. Tempered Glass Cover.
2. Waterproof Silicon Sealing Stripe.
3. Nano Plastic Reflector.
4. Optical PC Len against UV, Permanent Use Without Getting Yellow, High Temperature Assistance, No Deformation.
5. Suitable for SMD3030 LEDs, Higher Light Efficiency. is Available.
6. High-qualitied Aluminium PCB with High Heat Conduction, Faster Heat Cooling.
7. Able to work with MeanWell, SOSEN Brand Driver.

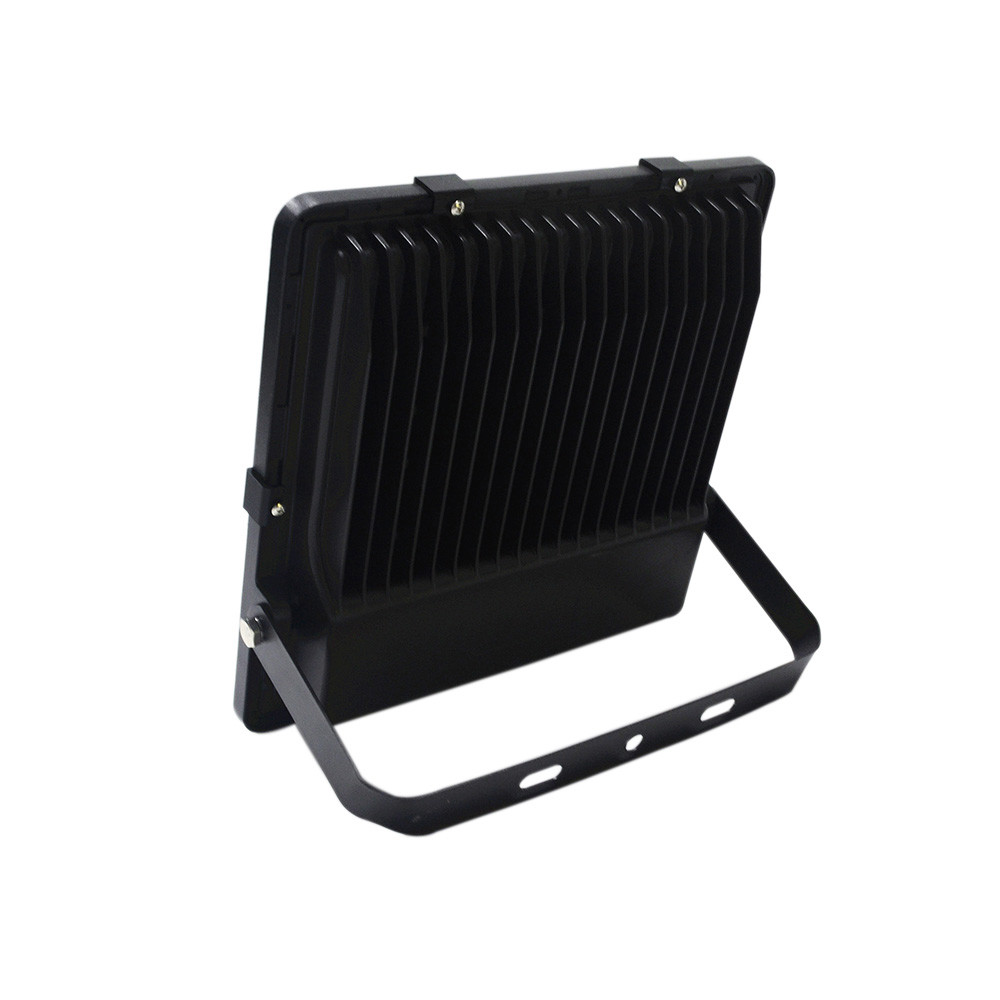

8. ADC12# Die-casting Aluminium Radiator, 96W/M.K
Lens 60 degree, 90 degree and 120 degree available of waterproof LED floodlights:
Installations of Waterproof LED Floodlights:
Applications of Waterproof LED Floodlights:
