Product Details:
|
| Name: | White LED Floodlight | Light Efficiency: | 19500 Lumens |
|---|---|---|---|
| Cover: | PC Cover | LED Chip: | Osram Smd3030 |
| Material: | Aluminum | CCT: | 2700, 3000k, 4500k, 6500k |
| Feature: | Corrision-proof, Pressure-proof | Beam Angle: | 60° |
| High Light: | Outdoor LED Flood Lights 150W,6500K soft white outdoor flood light,3000K soft white led flood lights |
||
Outdoor Soft White LED Floodlight 30W 50W 100W 150W 200W 3000K-6500K
Quick details of White LED Floodlight:
► Product type: Flood Lights.
► Model: SU-WS150.
► LED qty.: 180 PCS.
► Lumen index: 19500 lumens.
► Light source type: super bright LED chips SMD 3030 osram.
► Input work voltage: AC85-265V, 50/60Hz.
► Optional color temperature: normal 2700K, 3000K, 4500K, 6500K, 7000K+ and customised color.
► Available wattages: 30w, 50w, 100w, 150w and 200w.
► Surge protection: 4KV.
► Shock-proof class: IK07.
► Water-proof class: IP66.
► Material: die casting aluminum and optical PC lens with 60 Deg. and 120 Deg. optional.
► Optional narrow beam angle 60 degree and wide beam angle 120 degree.
► Various smart type: 0-10V dimming, Dali dimmming, pir motion sensor, radar sensor, photocel sensor, microwave sensor, DMX512 and remote control.
Descriptions of White LED Floodlight:
Product Parameters of White LED Floodlight:
| Product Name | White led Floodlight | ||
| Model | SU-WS50 | SU-WS100 | SU-WS150 |
| Input Voltage | AC85-265V, 50/60Hz | ||
| Power Consumption | 50W | 100W | 150W |
| Light Source | SMD 3030 Osram | ||
| Light Efficiency | 130lm/W | ||
| Color Temperature | 2700k, 3000k, 4500k, 5000k, 6500k | ||
| Product Size (mm) | L253*W211*H35 | L284*W241*H40 | L314*W272*H43 |
| Driver | Constant Current Isolated Driver | ||
| Body Material | ADC12 Aluminum | ||
| Cover Material | PC cover | ||
| CRI | >80 | ||
| PF | >0.9 | ||
| Housing Color | Black, White | ||
| Surge Protection | 4KV | ||
| Beam Angle | 60° | ||
| Class Protection | IK07, IP66 | ||
| Working Temperature: | -30 ~ 50 Deg. | ||
| Life Span | 50,000H | ||
| Warranty | 3 Years | ||
| Application | Square, Plaza, Construction Site, Mineral Estate, Supermarket, Wharf | ||

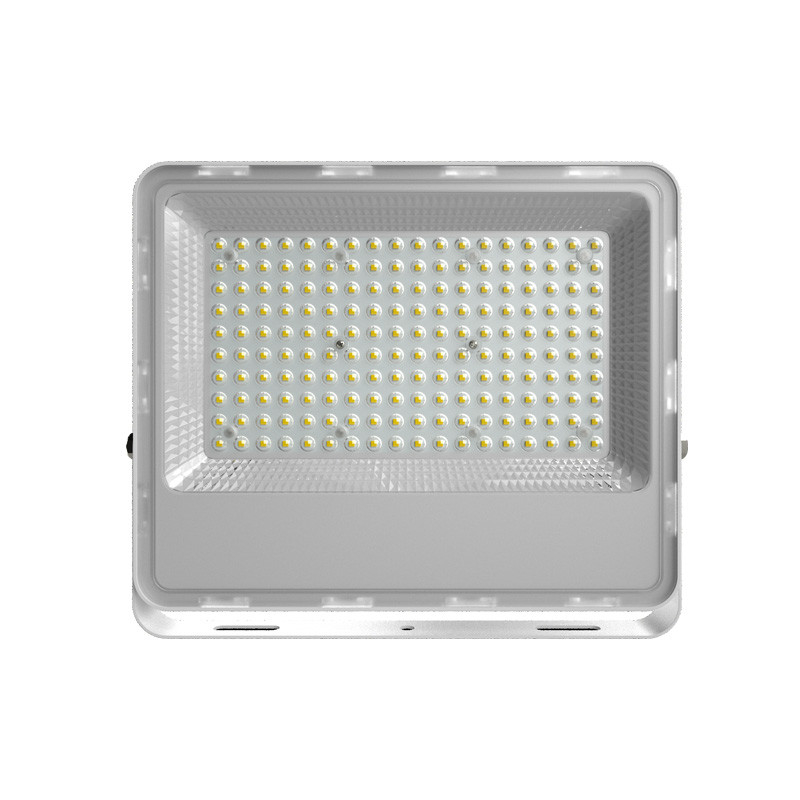

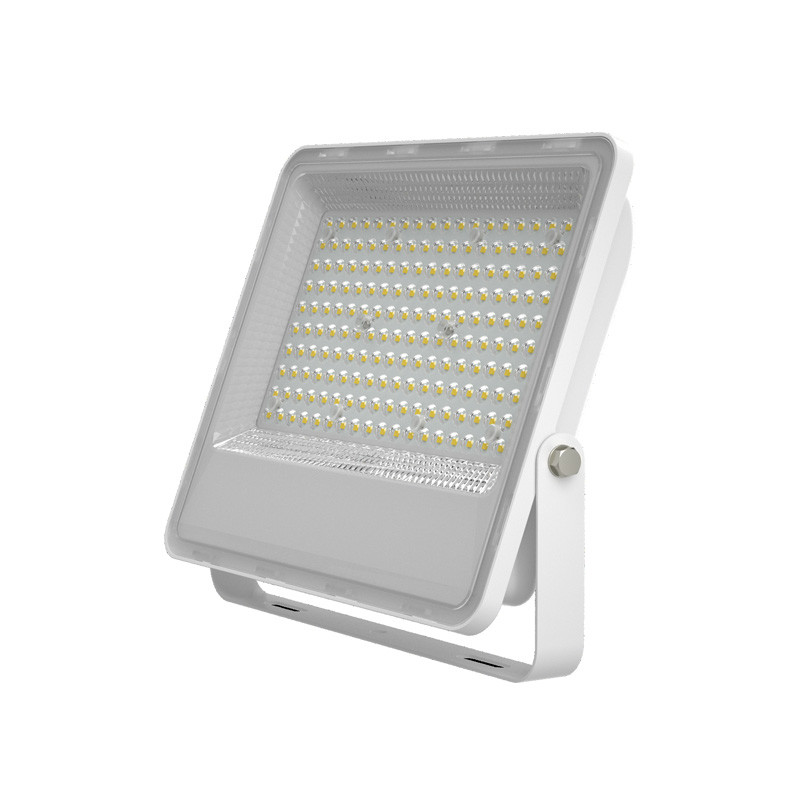

Product Show of White LED Floodlight:
Product figure of White LED Floodlight:
1. Optical PC lens against yellowing.
2. Waterproof silicon ring.
3. Nano-plastic reflector against the high temperature and UV, long use and never yellowing.
4. SMD3030 LED high light efficiency and lighting to further.
5. Aluminum base with high thermal conductivity,and faster heat running.
6. High-quality and famous brand driver: Meanwell, sosen etc.

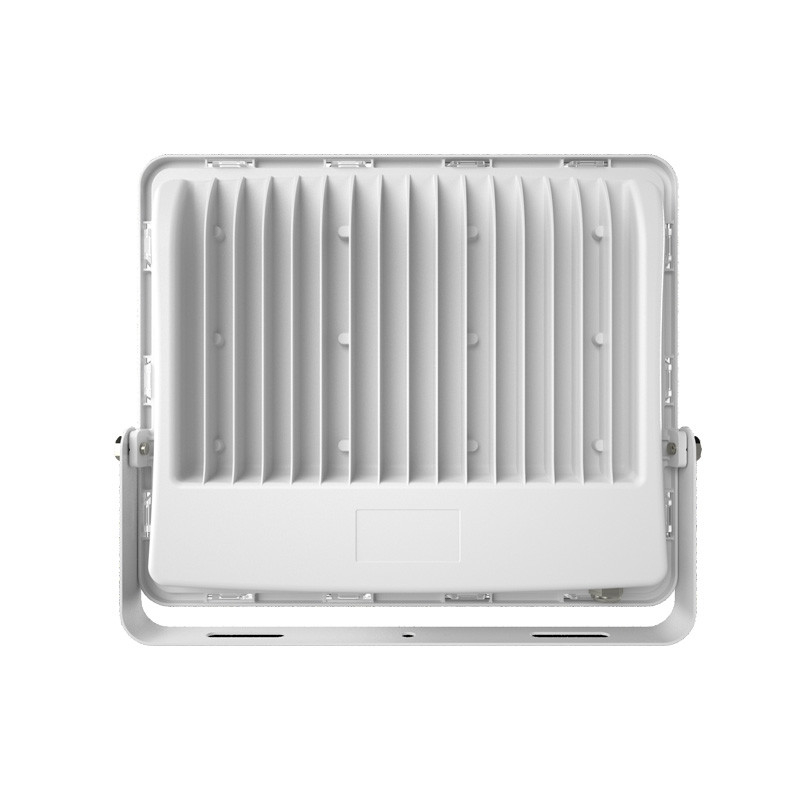

7. ADC12 die-casting aluminum radiator, efficiency up to 96W/M.K.
8. Strong support and strong installation.
Dimensions of White LED Floodlight:
Optical Lens 60 and 120 degree available of White LED Floodlight:
Installations of White LED Floodlight:
Frequent Questions of White LED Floodlight:
1. Can I have 1pc sample to test firstly?
Re: Yes, 1pc sample can be offered, and mixed samples are welcome.
2. Do you have customised service like box and logo?
Re: Yes, all of our products can be customised. Please kindly tell us your idea!
3. Can you do Black body for this model?
Re: Yes, we can. This model has White and Black body for your options.
4. How long can I get my package?
Re: 1pc could be got about 1 week.
5. Can the white LED floodlights be dimmable?
Re: Yes, this model can make dimmable such as 0-10V, Dali dimming etc. Please contact us for details!
6. Can you do colorful box?
Re: Yes, certainly. Colorful box and brown paper are possible.
7. Does the white LED floodlights include any driver?
Re: Yes, absolutely. This lamp includes constant-current isolated driver, PF>0.9 and warranty 3 years. Other brand driver is available.
8. How can you guarantee the quality?
Re: All raw materials must be checked before stocking and the finished products must have been tested and aged. Finally packed. If unfornately any fault happend, we will replace.
