Product Details:
|
| Name: | White Floodlight | LED Chip: | Osram Smd3030 |
|---|---|---|---|
| Material: | Aluminum | CCT: | 2700, 3000k, 4500k, 6500k |
| Feature: | Corrision-proof, Pressure-proof | Cover: | PC Cover |
| Beam Angle: | 60° | Light Efficiency: | 3900 Lumens |
| High Light: | led floodlight Indoor osram 100w SMD3030,led floodlight Indoor SMD3030 osram 100w,osram 100w led floodlight Indoor SMD3030 |
||
Osram SMD 3030 White Floodlight Manufacturer In Shen Zhen Indoor Outdoor
Quick details of White Floodlight:
► Product type: Flood Lights.
► Model: SU-WS100.
► LED qty.: 120 PCS.
► Lumen index: 13000 lumens.
► Light source type: super bright LED chips SMD 3030 osram.
► Input work voltage: AC85-265V, 50/60Hz.
► Optional color temperature: normal 2700K, 3000K, 4500K, 6500K, 7000K+ and customised color.
► Available wattages: 30w, 50w, 100w, 150w and 200w.
► Surge protection: 4KV.
► Shock-proof class: IK07.
► Water-proof class: IP66.
► Material: die casting aluminum and optical PC lens with 60 Deg. and 120 Deg. optional.
► Optional narrow beam angle 60 degree and wide beam angle 120 degree.
► Various smart type: 0-10V dimming, Dali dimmming, pir motion sensor, radar sensor, photocel sensor, microwave sensor, DMX512 and remote control.
Descriptions of White Floodlight:
Product Parameters of White Floodlight:
| Product Name | White Floodlight | ||
| Model | SU-WS50 | SU-WS100 | SU-WS150 |
| Input Voltage | AC85-265V, 50/60Hz | ||
| Power Consumption | 50W | 100W | 150W |
| Light Source | SMD 3030 Osram | ||
| Light Efficiency | 130lm/W | ||
| Color Temperature | 2700k, 3000k, 4500k, 5000k, 6500k | ||
| Product Size (mm) | L253*W211*H35 | L284*W241*H40 | L314*W272*H43 |
| Driver | Constant Current Isolated Driver | ||
| Body Material | ADC12 Aluminum | ||
| Cover Material | PC cover | ||
| CRI | >80 | ||
| PF | >0.9 | ||
| Housing Color | Black, White | ||
| Surge Protection | 4KV | ||
| Beam Angle | 60° | ||
| Class Protection | IK07, IP66 | ||
| Working Temperature: | -30 ~ 50 Deg. | ||
| Life Span | 50,000H | ||
| Warranty | 3 Years | ||
| Application | garden, yard, wall, stair, shop, door | ||

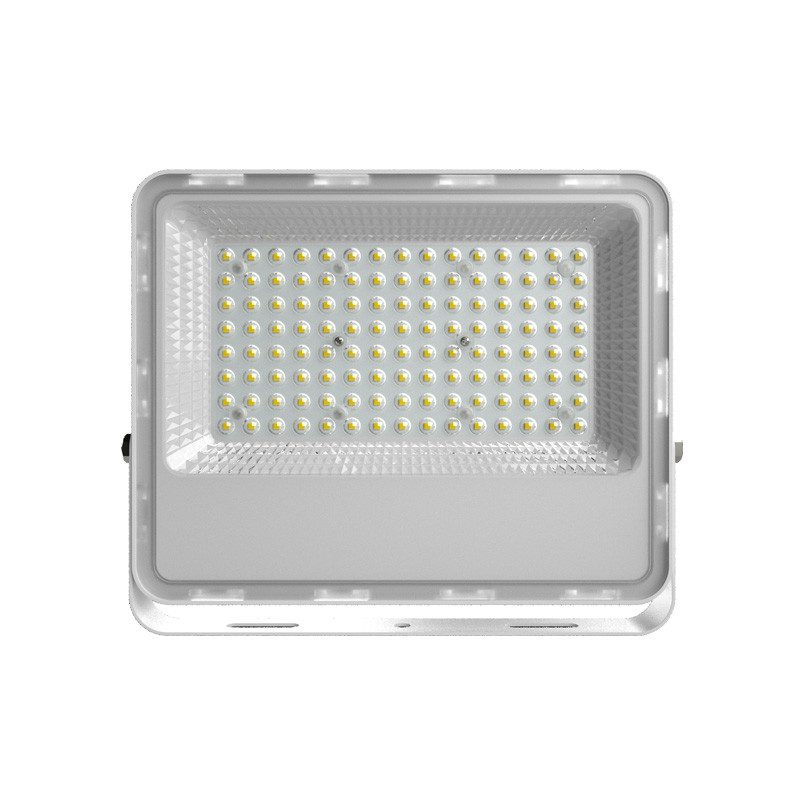

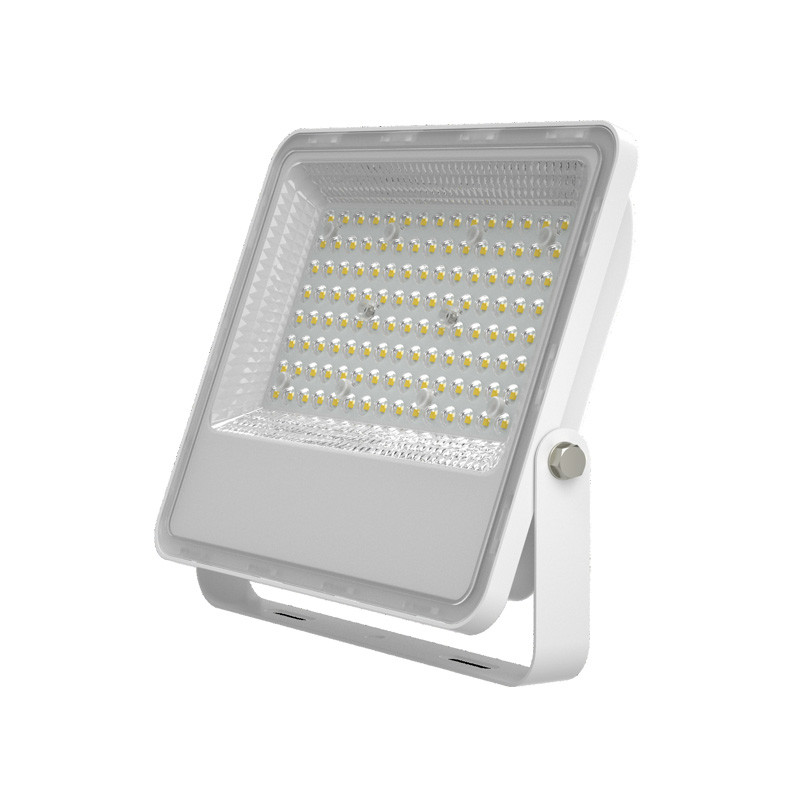

Product Show of White Floodlight:
Product figure of White Floodlight:
1. Optical PC lens against yellowing.
2. Waterproof silicon ring.
3. Nano-plastic reflector against the high temperature and UV, long use and never yellowing.
4. SMD3030 LED high light efficiency and lighting to further.
5. Aluminum base with high thermal conductivity,and faster heat running.
6. High-quality and famous brand driver: Meanwell, sosen etc.

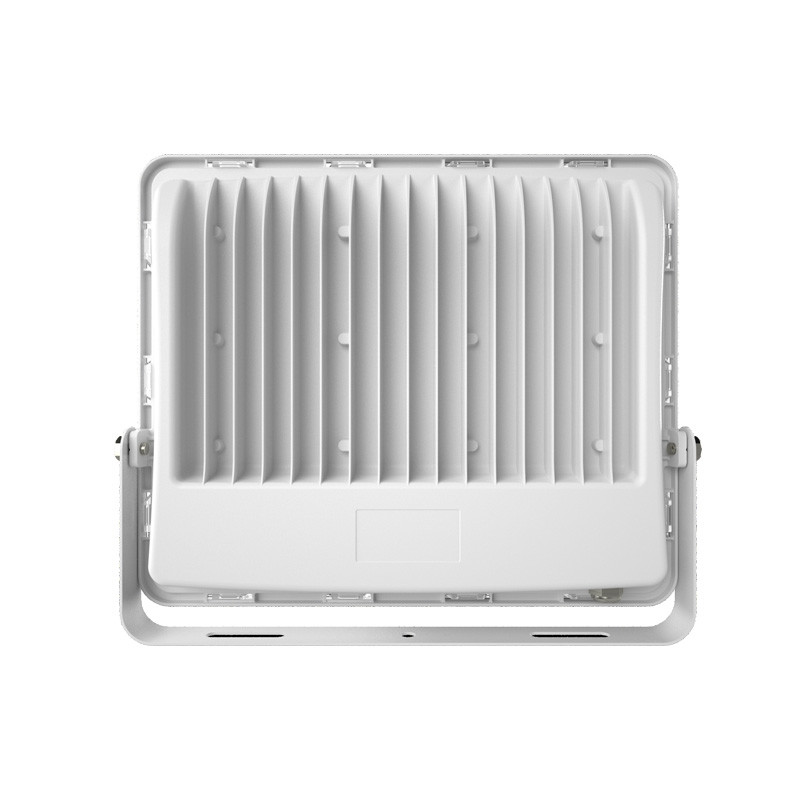

7. ADC12 die-casting aluminum radiator, efficiency up to 96W/M.K.
8. Strong support and strong installation.
Dimensions of White Floodlight:
Optical Lens 60 and 120 degree available of White Floodlight:
Installations of White Floodlight:
Frequent Questions of White Floodlight:
1. Can I have 1pc sample to test firstly?
Re: Yes, 1pc sample can be offered, and mixed samples are welcome.
2. Do you have customised service like box, logo?
Re: Yes, all of our products can be customised. Please kindly tell us your idea!
3. Can you do Black body for this model?
Re: Yes, we can. This model has White and Black body for your options.
4. How long can I get my package?
Re: 1pc could be got about 1 week.
5. Can the white floodlights be dimmable?
Re: Yes, this model can make dimmable such as 0-10V, Dali dimming etc. Please contact us for details!
6. Can you do colorful box?
Re: Yes, certainly. Colorful box and brown paper are possible.
7. Does the white floodlights include any driver?
Re: Yes, absolutely. This lamp includes constant-current isolated driver, PF>0.9 and warranty 3 years. Other brand driver is available.
8. How can you guarantee the quality?
Re: All raw materials must be checked before stocking and the finished products must have been tested and aged. Finally packed. If unfornately any fault happend, we will replace.
