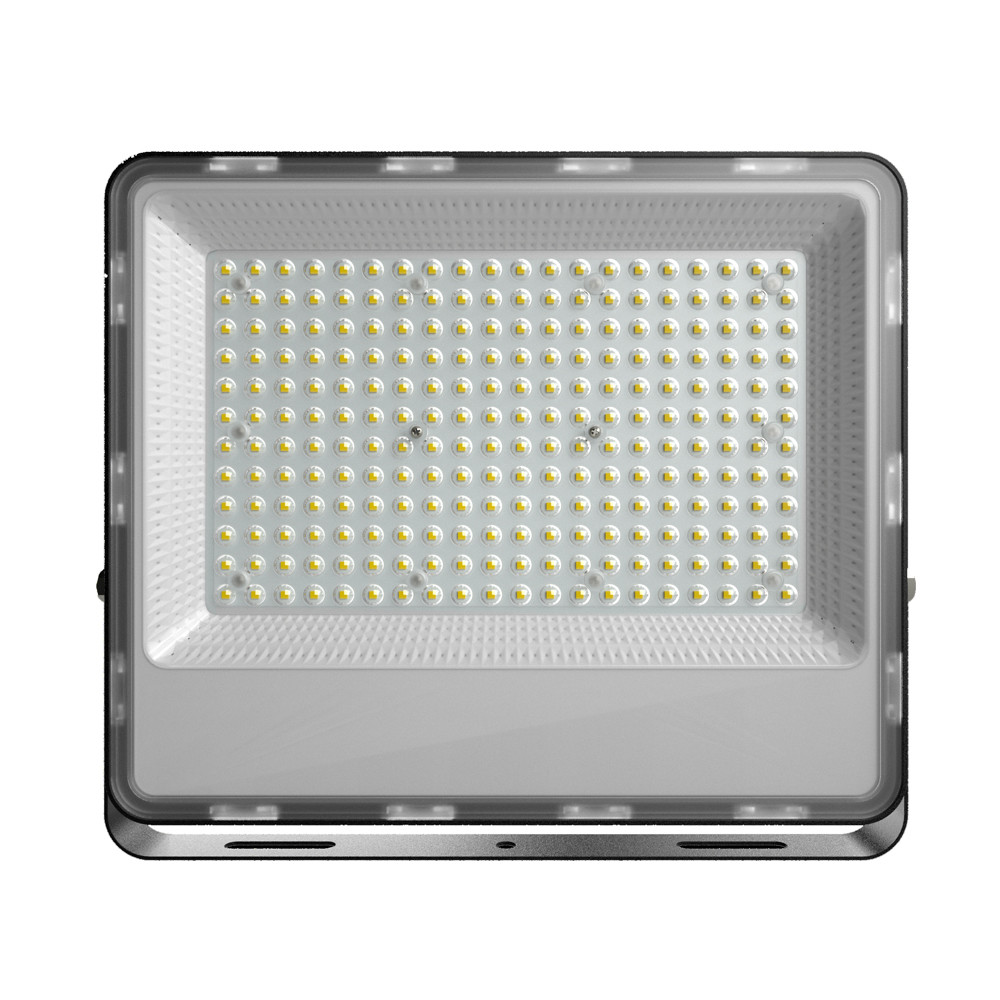

ODM 200 Watts Outdoor Waterproof Led Flood Light With 60 Degree

Minimum Order Quantity : 100 PCS Price : Negotiated
Packaging Details : carton or customised Delivery Time : 8-15 days
Payment Terms : T/T, Western Union, MoneyGram Supply Ability : 10000pcs/ctn
Place of Origin: Shen Zhen, China Brand Name: SUNRISE
Certification: CE, RoHS Model Number: SU-WS200

Detail Information

Name: LED Floodlight 200watt Beam Angle: 60°
Body Color: Black Light Efficiency: 26000 Lumens
CCT: 2700, 3000k, 4500k, 6500k Light Source: SMD3030 Lumiled Chips
Feature: Corrision-proof, Pressure-proof Material: Aluminum
High Light:

ODM 200 watts led flood light

,

outdoor waterproof led flood light 200w

,

60Deg waterproof outdoor flood lights

Product Description

Spot Focus Lighting LED Floodlight 200watt Outdoor Waterproof With 60 Degree

Quick details of LED Floodlight 200watt:
1. Product type: SMD 200 watts Floodlights.

2. Efficiency: 130W/m.
2. LED quantity: 240PCS super bright LED chips SMD 2835 or 3030..
3. Input work voltage: AC85-265V, 50/60Hz.

4. Surge protection: 4KV.

5. Support customisation.
6. Optional color temperature: normal 3000K, 4500K, 6500K, 7000K+ and customised color.
7. Available wattages: 30w, 50w, 100w, 150w and 200w.
8. Product size: L344*W301*H43mm.
9. Surge protection: 4KV.
10. Shock-proof class: IK07.
11. Water-proof class: IP66.
12. Material: die casting aluminum and optical PC lens with 60 Deg. and 120 Deg. optional.
13. Optional narrow beam angle 60 degree and wide beam angle 120 degree.
14. Various smart serier: 0-10V dimming, Dali dimmming, pir motion sensor, radar sensor, photocel sensor, microwave sensor, DMX512 and remote control.

15. Able to choose various brand drivers.

Descriptions of LED Floodlight 200watt:

► 240 LEDs 26000 Lumens
The built-in upgraded 240 pcs super bright LED smd chips can produce 26000lm high output brightness, which is much more brighter than other light sources.
Brightness Upgraded
Powered by high-quality 3030 LED chips, increased the number of light beads, better brightness and large illumination.
Thickened Aluminum
Superior & thickened ADC12# diecasting aluminum with corrosion-proof, shock-proof, dust-proof and weather-proof, faster heat sinking to keep long lifespan.
Constant Current Driver
High quality constant current driver with high work efficiency, PF>0.9, famous brand drivers customised.
Waterproof Upgrated
Rain-proof & water-proof protection IP66 upgraded, suitable for wet applications.
High Quality Glass Bead Cover
High-quality optical bead PC cover with 60 and 120 degree, no yellow, and high light transmission up to >95%.


Product Parameters of
LED Floodlight 200watt:

Product Name LED FLoodlight 200watt
SKU SU-WS100 SU-WS150 SU-WS200
Input Voltage AC85-265V, 50/60Hz
Rated Power 100 watts 150 watts 200 watts
Luminous Flux 13000lm 19500lm 26000lm
Light Source SMD3030 Lumileds led chip
Light Efficiency 130lm/W
CCT 2700k, 3000k, 4500k, 5000k, 6500k
Product Size (mm) L284*W241*H40 L314*W272*H43 L344*W301*H43
Driver Constant Current Isolated Driver
Body Material Diecasting aluminum
Cover Material Tempered Glass
CRI >80
PF >0.9
Housing Color Black, White
Surge Protection 4KV
Beam Angle 60° / 120°
Class Protection IK07, IP66
Working Temperature: -30 ~ 50 Deg.
Life Span 50,000H
Warranty 3 Years
Application Sports stadiums, road, garden, street, wall lighting


Product Show of
LED Floodlight 200watt:
ODM 200 Watts Outdoor Waterproof Led Flood Light With 60 Degree 0

Product figure of
LED Floodlight 200watt:

1. Optical PC lens 60 degree against yellowing.
2. Waterproof silicon ring.
3. Nano-plastic reflector against the high temperature and UV, long use and never yellowing.
4. SMD3030 Lumileds LED high light officiency and more brighter.
5. Aluminum PCB with high thermal conductivity, and faster heat running.
6. High-quality and famous brand driver: Meanwell, Sosen etc.
7. ADC12 die-casting aluminum radiator, efficiency up to 96W/M.K.
8. Strong & thickend bracket and easy installation.
ODM 200 Watts Outdoor Waterproof Led Flood Light With 60 Degree 1

Dimensions of
LED Floodlight 200watt:

ODM 200 Watts Outdoor Waterproof Led Flood Light With 60 Degree 2

ODM 200 Watts Outdoor Waterproof Led Flood Light With 60 Degree 3

Optical Lens 60 and 120 degree available of
LED Floodlight 200watt:
ODM 200 Watts Outdoor Waterproof Led Flood Light With 60 Degree 4
ODM 200 Watts Outdoor Waterproof Led Flood Light With 60 Degree 5


Installations of
LED Floodlight 200watt​:
ODM 200 Watts Outdoor Waterproof Led Flood Light With 60 Degree 6
Frequent Questions of
LED Floodlight 200watt:

1. Can I have 1pc sample to test firstly?
Re: Yes, 1pc sample can be offered, and mixed samples are welcome.


2. Can you make mygo on the box or the product?
Re: Yes, surely no problem. Please tell us your logo and idea, and we will give you a solution.


3. Can you do WHITE body for this model?
Re: Yes, we can. This model has White and Black body for your options.


4. Do you have the 200 watts floodlights with wide beam angle 110°?
Re: Yes, this same model can have 60° and 120°.


5. Can the led floodlight 200watt be dimmable?
Re: Yes, the model can make dimmable such as 0-10V, Dali dimming etc. Please contact us for details!

6. Can you do colorful box?
Re: Yes, certainly. We just want your draft to do what you hoped.

7. Does this LED floodlight 200watt include any driver?
Re: Yes, absolutely. This lamp includes constant-current isolated driver with warranty 3 years, and driver available.

8. How can you guarantee the quality?
Re: All raw materials must be checked before stocking and the finished products must have been tested and aged. Finally packed. If unfornately any fault happend, we will replace.
