AC 100 To 240V Outdoor LED Waterproof Flood Lights 150W IP66 For Wet Surroundings

Minimum Order Quantity : 100 PCS Price : Negotiated
Packaging Details : carton or customised Delivery Time : 10-15 days
Payment Terms : T/T, Western Union, MoneyGram Supply Ability : 20000pcs/month
Place of Origin: Shen Zhen, China Brand Name: SUNRISE
Certification: CE, RoHS Model Number: SU-TGS150W

Detail Information

Name: LED Waterproof Flood Lights Driver Mode: DOB (driver On Board)
Material: Aluminum Warranty: 3 Years
Feature: Corrision-proof, Pressure-proof Color: 3000K, 4500K, 6500K
IP Rating: IP66 Waterproof Application: Courtyard, Factory, Landscape
High Light:

AC 100V waterproof outdoor flood lights

,

150W LED Waterproof Flood Lights OEM

,

outdoor led flood light waterproof AC240V

Product Description

100-240V AC LED Waterproof Flood Lights 150W IP66 for Wet Surroundings

Quick Detals of LED Waterproof Flood Lights​:
• Product type: Flood Lights.
• SKU: SU-TGS150W.
• Work voltage: AC100-240V, 50/60Hz.
• Rated power: 150 watts.
• Real power: 150W.
• Luminous flux: 15000lm/W
• Size: L267xW229xH30mm.
• Color: 3000K, 4500K, 6500K or customised.
• Body color: grey color.
• Housing material: die-casting aluminum.
• Cover material: tempered glass.
• Waterproof protection: IP66.
• Shock-proof level: IK08.
• Surge protection: 2KV.
• LED junction temperature less than 50 degree.
• Optional functions: PIR motion sensor, radar sensor, dimmable or customised.
• Accpet logo customised.
• Cable: 3*0.75 PVC wire 100cm (39.37inch).
• Warranty is 3 years.


Characteristics of LED Waterproof Flood Lights:

• Super bright chips and low light failure
The built-in upgraded 196 pcs super bright LED smd chips can produce 15000 lumens high output brightness, which is much more brighter than other light sources.
• Brightness Upgraded
Powered by high-quality 2835 SMD LED chips, increased number of light beads, better brightness and large illumination.
• Thickened Aluminum
Superior & thickened ADC12# die-casting aluminum with corrosion-proof, shock-proof, dust-proof and weather-proof with faster heat sinking to keep long lifespan.
• DOB driver mode
High quality electrical components to make DOB AC solution with high work efficiency, PF>0.9, famous brand drivers customised. And this model can also have built-in driver choosed if needed.
• Waterproof Upgrated
Rain-proof & water-proof protection IP66 upgraded, suitable for wet surroundings.
• High Quality Tempered Glass Cover
High-quality tempered glass cover with 120 degree beam angle, high hardness and high light transmission up to >98%.
• Various wattages optional
The model can get 10W, 20W, 30W, 50W, 100W, 150W, 200W and 300W available. And we accept customization according to your requests.
• Fire-proof cable
Adopting fire-proof PVC wire 3*0.75 with 100cm long.


Descriptions of LED Waterproof Flood Lights:

    A new smart LED floodlights has been come out. It is color temperature dimmable function with 3 phases (3000K, 4000K and 6500K) operated by key switch (or wall switch).



Parameters of LED Waterproof Flood Lights:

Product Name LED Waterproof Flood Lights
Part No. SU-TGS50W SU-TGS100W SU-TGS150W
Rated Power 50W 100W 150W
Dimension (mm) L191xW164xH30 L231xW198xH30 L267xW229xH30
Input Voltage AC100-240V, 50/60Hz
Light Source SMD 2835 high lumen chip
Driver DOB driver
Light Efficiency 100lm/W
CCT 3000K, 4000K, 6500K
Material Die-casting Aluminum
Body Material Tempered Glass
Surge Protection 2KV- 4KV
Protection IP66 , IK08
Housing Color Grey (customised)
CRI >0.7
PF >0.9
Beam Angle 120°
Work Temperature -25 ~ 50 Deg.
Warranty 3 Years
Approval CE ROHS

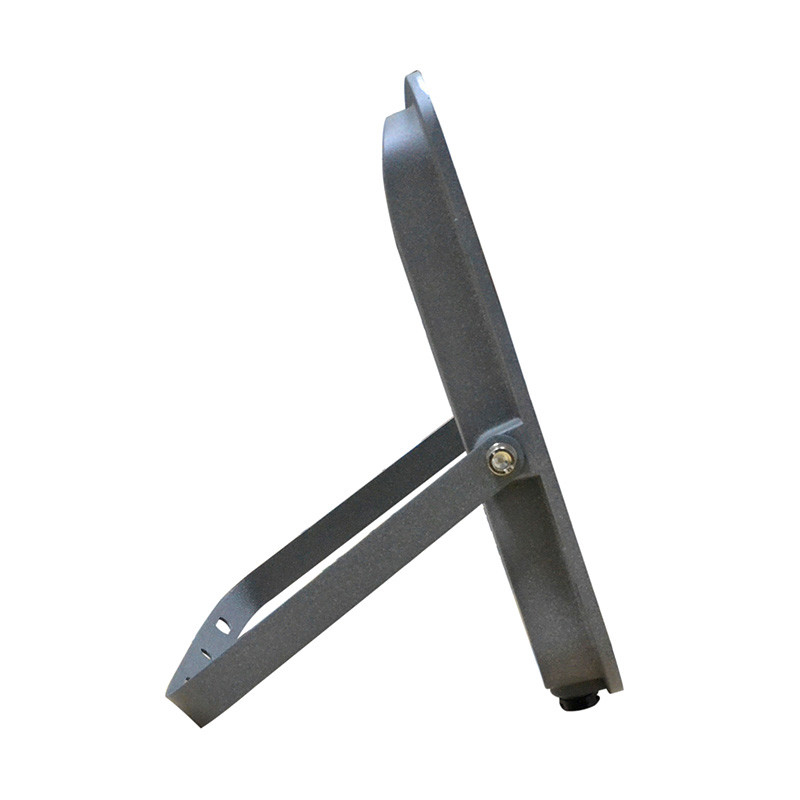

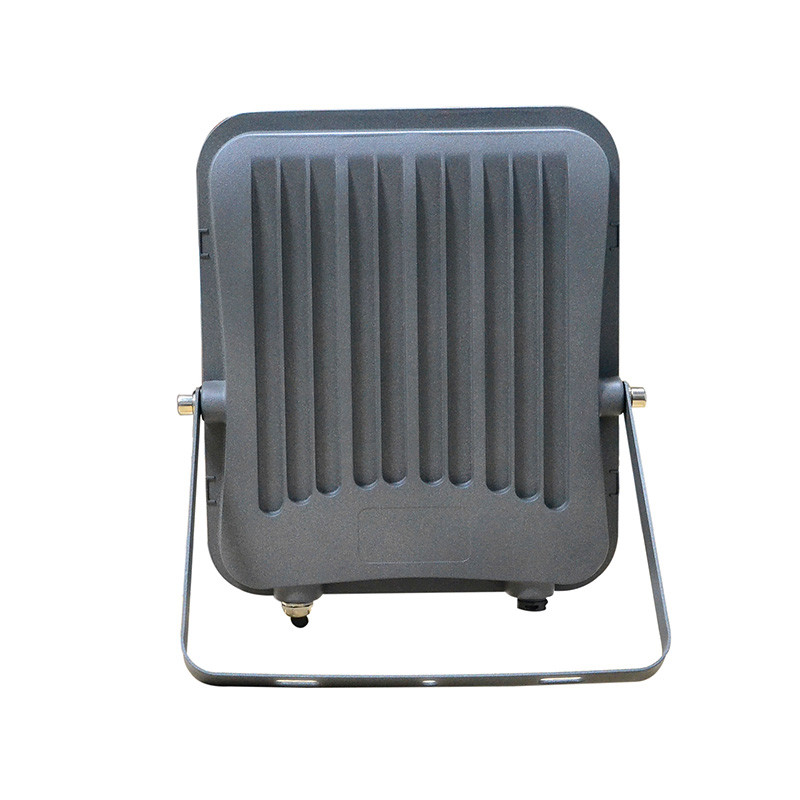

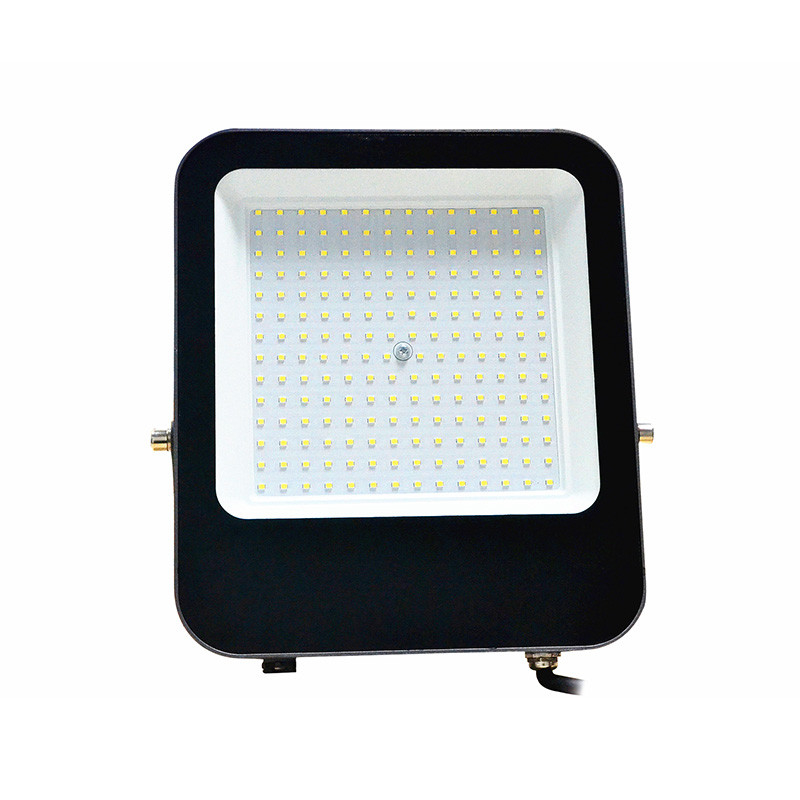

Product show of LED Waterproof Flood Lights:
AC 100 To 240V Outdoor LED Waterproof Flood Lights 150W IP66 For Wet Surroundings 0

AC 100 To 240V Outdoor LED Waterproof Flood Lights 150W IP66 For Wet Surroundings 1

AC 100 To 240V Outdoor LED Waterproof Flood Lights 150W IP66 For Wet Surroundings 2AC 100 To 240V Outdoor LED Waterproof Flood Lights 150W IP66 For Wet Surroundings 3AC 100 To 240V Outdoor LED Waterproof Flood Lights 150W IP66 For Wet Surroundings 4AC 100 To 240V Outdoor LED Waterproof Flood Lights 150W IP66 For Wet Surroundings 5

AC 100 To 240V Outdoor LED Waterproof Flood Lights 150W IP66 For Wet Surroundings 6



Color temperatures of LED Waterproof Flood Lights:
AC 100 To 240V Outdoor LED Waterproof Flood Lights 150W IP66 For Wet Surroundings 7



Applications of LED Waterproof Flood Lights:

AC 100 To 240V Outdoor LED Waterproof Flood Lights 150W IP66 For Wet Surroundings 8


Applications of LED Waterproof Flood Lights:
1. Can I buy 1pc sample before bulk quantity?
    Re: Yes, 1pc sample is welcome, and mixed samples are offered.

2. Is the lamp sufficient power?
    Re: Yes, we make sufficient power for this model.

3. How about the wires?
    Re: It comes with 3P cables. Red +, Black - and Yellow-green Ground.

4. Do you have stock for this 150w?
    Re:  We don't have stock for 150W, but we have 30W and 50W in stock. 150W sample can be ready within 5 days.


5. What driver does this LED floodlight 150w include?
    Re: The floodlight doesn't include driver. It is DOB solution, low cost and high work efficiency. It is very welcome in the markets, and quality is guaranteed 3 years. No worry about the quality!

6.  Is the quality reliable since there is no driver inside?
    Re: Yes, absolutely reliable. Presently lots of lamps with linear solution can get good-working and low cost.

7. How will you deal with the faulty?
    Re: Firstly, we promise that faulty rate is very very low, because we will test all materials before stocking, and during the production, each course must be tested step by step. Secondly, if any faulty happened, we will replace or refund. Customer's trust is our principle.
