ODM Waterproof Smart LED Flood Lights With 3 Phases CCT Changeable Driver Inside

Minimum Order Quantity : 100 PCS Price : Negotiated
Packaging Details : carton or customised Delivery Time : 10-15 days
Payment Terms : T/T, Western Union, MoneyGram Supply Ability : 20000pcs/month
Place of Origin: Shen Zhen, China Brand Name: SUNRISE
Model Number: SU-TGS30W

Detail Information

Name: Smart LED Floodlights Driver Mode: Constant Current
Feature: Corrision-proof, Pressure-proof Material: Aluminum
Warranty: 2 Years Color: 3000K, 4500K, 6500K
IP Rating: IP66 Waterproof Application: Park, Square, Area
High Light:

ODM Changeable Smart LED Flood lights

,

ODM waterproof led flood lights

,

ODM Changeable waterproof flood lights

Product Description

Waterproof Smart LED Floodlights with 3 Phases CCT Changeable Driver Inside

Quick Detals of Smart LED Floodlights:
• Product type: Flood Lights.
• SKU: SU-TGS30W.
• Work voltage: AC100-240V, 50/60Hz.
• Rated power: 30 watts.
• Real power: 30W ±100%.
• Luminous flux: 100lm/W
• Size: L156 x W135 x H26mm.
• Color: 3000K, 4500K, 6500K or customised.
• Body color: grey color.
• Housing material: die-casting aluminum.
• Cover material: tempered glass.
• Waterproof protection: IP66.
• Shock-proof level: IK08.
• Surge protection: 2KV.
• LED junction temperature less than 50 degree.
• Optional functions: PIR motion sensor, radar sensor or customised.
• Accpet logo customised.
• Cable: 3*0.75 PVC wire 100cm (39.37inch).
• Warranty is 3 years.


Characteristics of Smart LED Floodlights:

• Super bright chips and low light failure
The built-in upgraded 72pcs (36pcs 3000K + 36pcs 6500K) super bright LED smd chips can produce 3000 lumens high output brightness, which     is much more brighter than other light sources.
• Brightness Upgraded
Powered by high-quality 2835 SMD LED chips, increased number of light beads, better brightness and large illumination.
• Thickened Aluminum
Superior & thickened ADC12# die-casting aluminum with corrosion-proof, shock-proof, dust-proof and weather-proof with faster heat sinking to keep long lifespan.
• Constant Current Driver
High quality constant current driver with high work efficiency, PF>0.9, famous brand drivers customised. And this model can also have DOB    (driver on board) choosed if needed.
• Waterproof Upgrated
Rain-proof & water-proof protection IP66 upgraded, suitable for wet surroundings.
• High Quality Tempered Glass Cover
High-quality tempered glass cover with 120 degree beam angle, high hardness and high light transmission up to >98%.
• Various wattages optional
The model can get 10W, 20W, 30W, 50W, 100W, 150W, 200W and 300W available. And we accept customization according to your requests.
• Fire-proof cable
Adopting fire-proof PVC wire 3*0.75 with 100cm long.


Descriptions of Smart LED Floodlights:

    A new smart LED floodlights has been come out. It is color temperature dimmable function with 3 phases (3000K, 4000K and 6500K) operated by key switch (or wall switch).



Parameters of Smart LED Floodlights:

Product Name Smart LED Floodlights
Part No. SU-TGS10W SU-TGS20W SU-TGS30W
Rated Power 10W 20W 30W
Dimension (mm) L99xW85xH21 L118xW103xH21 L156xW135xH26
Input Voltage AC100-240V, 50/60Hz
Light Source SMD 2835
Driver Constant current driver
Light Efficiency 100lm/W
CCT 3000K-6500K
Material Die-casting Aluminum
Body Material Tempered Glass
Surge Protection 2KV
Protection IP66 , IK08
Housing Color Grey (customised)
CRI >0.7
PF >0.9
Beam Angle 120°
Work Temperature -25 ~ 50 Deg.
Warranty 3 Years
Approval CE ROHS


Product show of Smart LED Floodlights:

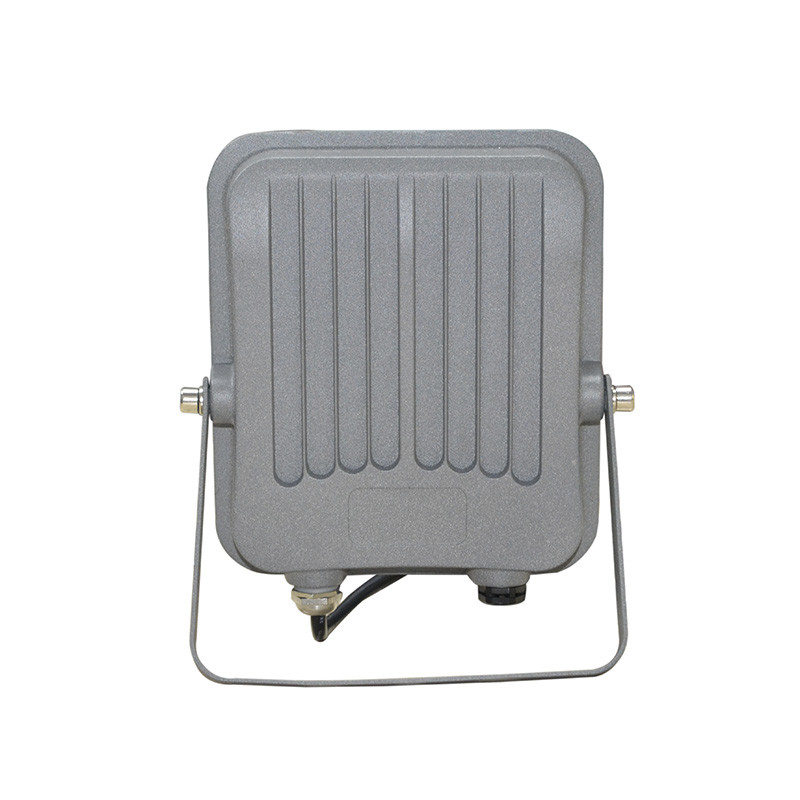

ODM Waterproof Smart LED Flood Lights With 3 Phases CCT Changeable Driver Inside 0

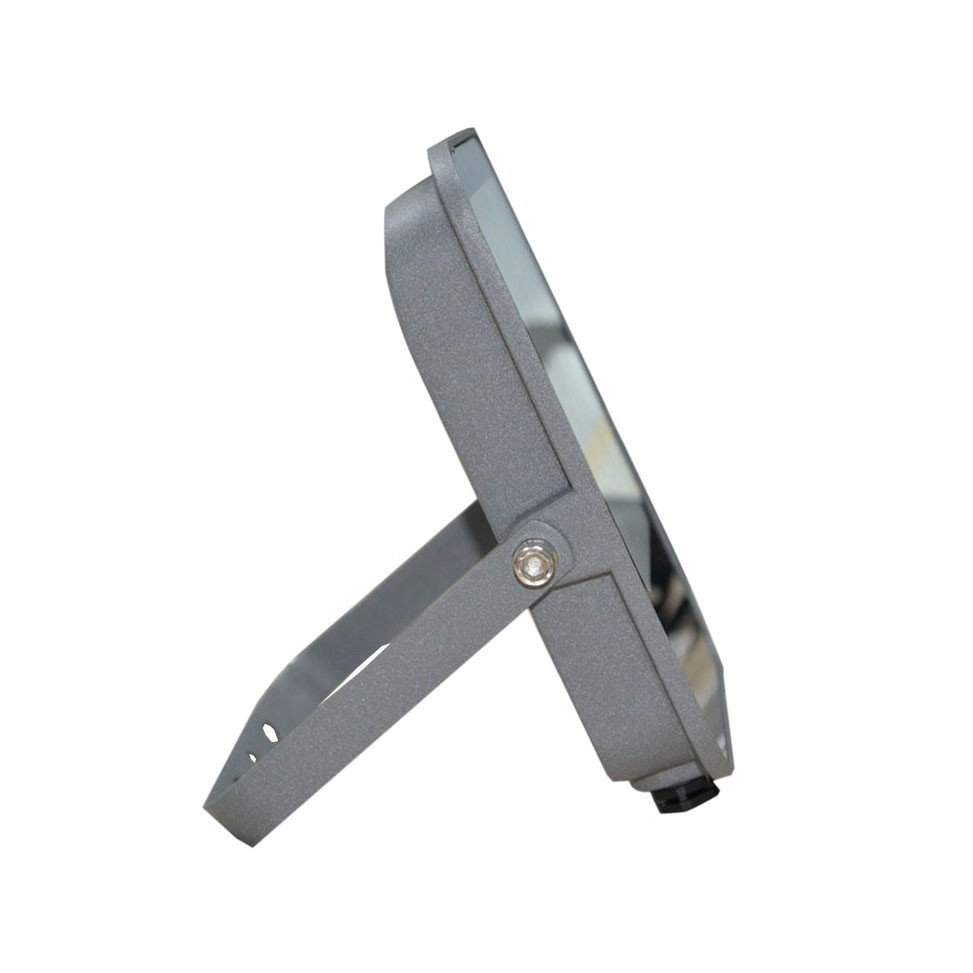

ODM Waterproof Smart LED Flood Lights With 3 Phases CCT Changeable Driver Inside 1

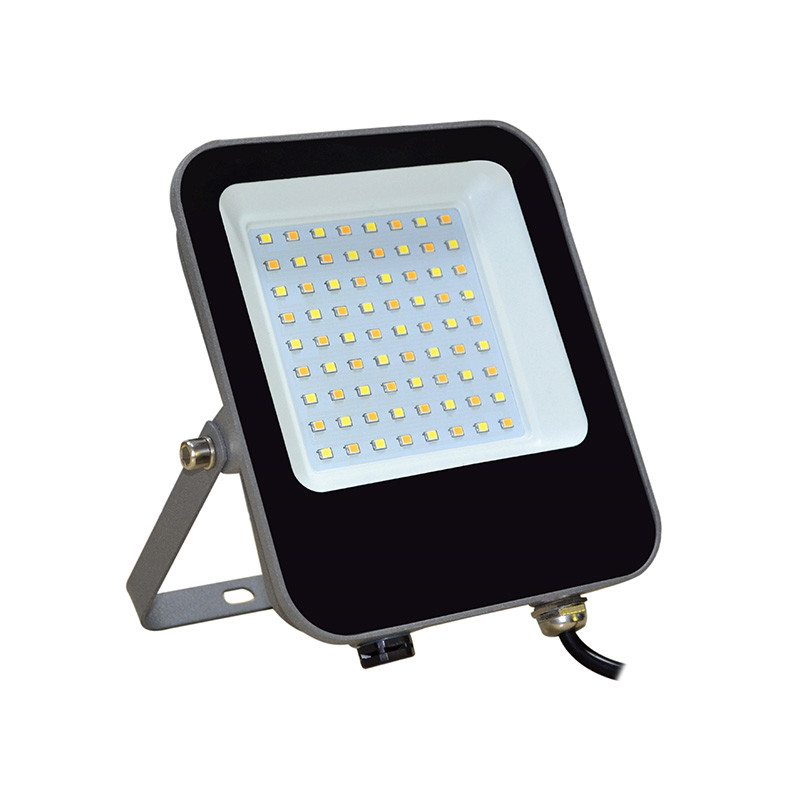

ODM Waterproof Smart LED Flood Lights With 3 Phases CCT Changeable Driver Inside 2
ODM Waterproof Smart LED Flood Lights With 3 Phases CCT Changeable Driver Inside 3

ODM Waterproof Smart LED Flood Lights With 3 Phases CCT Changeable Driver Inside 4


Applications of Smart LED Floodlights:
Rrequent Questions of Smart LED Floodlights:
1. Can I buy 1pc before bulk quantity?
    Re: Yes, 1pc sample is welcome, and mixed samples are OK.

2. Is the lamp full-load power?
    Re: Yes,this type is full power 100%..

3. How about the wires?
    Re: It comes with 3P cables. Red +, Black - and Yellow-green Ground.

4. Do you have stock for this 30w model?
    Re: Yes, we have stock now. We can send within 3 days if you ensure the sample now.

5. What driver does this ultra slim floodlight 50w include?
    Re: The floodlight doesn't include driver. It is driver on board, linear working solution.

6.  Is the quality reliable since there is no driver inside?
    Re: Yes, absolutely reliable. Presently lots of lamps with linear solution can get good-working and low cost.

7. How will you deal with the faulty?
    Re: First of all, we promise that faulty rate is very very low, because we will test all materials before stocking, and during the production, each course must be tested step by step. Secondly, if any faulty happend, we will replace or refund. Trust is our principle.
