IK08 20000lm 20000lm Slim LED Flood Lights For Large Area

Certification
China Shenzhen Sunrise Lighting Co.,Ltd. certification
China Shenzhen Sunrise Lighting Co.,Ltd. certification
I'm Online Chat Now

IK08 20000lm 20000lm Slim LED Flood Lights For Large Area

IK08 20000lm 20000lm Slim LED Flood Lights For Large Area
IK08 20000lm 20000lm Slim LED Flood Lights For Large Area IK08 20000lm 20000lm Slim LED Flood Lights For Large Area IK08 20000lm 20000lm Slim LED Flood Lights For Large Area

Large Image :  IK08 20000lm 20000lm Slim LED Flood Lights For Large Area

Product Details:
Place of Origin: Shen Zhen, China
Brand Name: SUNRISE
Model Number: SU-TGS200W
Payment & Shipping Terms:
Minimum Order Quantity: 100 PCS
Price: Negotiated
Packaging Details: carton or customised
Delivery Time: 10-15 days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 20000pcs/month

IK08 20000lm 20000lm Slim LED Flood Lights For Large Area

Description
Name: LED Floodlight 200 Watt IP Rating: IP66 Waterproof
Application: Courtyard, Factory, Landscape Driver Mode: DOB
Material: Die-casting Aluminum Body Color: Grey
Feature: Corrision-proof, Pressure-proof Color: 3000K, 4500K, 6500K
High Light:

IK08 20000lm Slim LED Flood Lights

,

Slim LED Flood Lights IK08 20000lm

,

IK08 Slim LED Flood Lights 20000lm

Shen Zhen Manufacturer LED Floodlight 200 Watt 20000lm for Large Area Lighting

Quick Detals of LED large area flood lights:
• Product type: Flood Lights.
• SKU: SU-TGS200W.
• Work voltage: AC100-240V, 50/60Hz.
• Rated power: 200 watts.
• Real power: 200W.
• Luminous flux: 20000lm/W
• Size: L303*W261*H31mm.
• Color: 3000K, 4500K, 6500K or customised.
• Body color: grey color.
• Housing material: die-casting aluminum.
• Cover material: clear tempered glass.
• IP protection: IP66 waterproof.
• Shock-proof level: IK08.
• Surge protection: 2KV.
• LED junction temperature less than 50 degree.
• Optional functions: PIR motion sensor, radar sensor or customised.
• Accpet logo customised.
• Cable: 3*0.75 PVC wire 100cm (39.37inch).
• Warranty is 3 years.


Characteristics of LED Floodlight 200 Watt:

• Super bright chips and low light failure
The built-in upgraded 289pcs super bright LED smd chips can produce 15000 lumens high output brightness, which is much more brighter than other light sources.
• Brightness Upgraded
Powered by high-quality 2835 SMD LED chips, increased number of light beads, better brightness and large illumination.
• Thickened Aluminum
Superior & thickened ADC12# die-casting aluminum with corrosion-proof, shock-proof, dust-proof and weather-proof with faster heat sinking to keep long lifespan.
• DOB driver mode
High quality electrical components to make DOB AC solution with high work efficiency, PF>0.9, famous brand drivers customised. And this model can also have built-in driver choosed if needed.
• Waterproof Upgrated
Rain-proof & water-proof protection IP66 upgraded, suitable for wet surroundings.
• High Quality Tempered Glass Cover
High-quality tempered glass cover with 120 degree beam angle, high hardness and high light transmission up to >98%.
• Various wattages optional
The model can get 10W, 20W, 30W, 50W, 100W, 150W, 200W and 300W available. And we accept customization according to your requests.
• Fire-proof cable
Adopting fire-proof PVC wire 3*0.75 with 100cm long.


Descriptions of LED Floodlight 200 Watt:

    A new smart LED floodlights has been come out. It is color temperature dimmable function with 3 phases (3000K, 4000K and 6500K) operated by key switch (or wall switch).



Parameters of LED Floodlight 200 Watt:

Product Name DOB LED Floodlights
Part No. SU-TGS100W SU-TGS150W SU-TGS200W
Rated Power 100W 150W 200W
Dimension (mm) L231*W198*H30 L267*W229*H30 L303*W261*H31
Input Voltage AC100-240V, 50/60Hz
Light Source SMD 2835 high lumen chip
Driver DOB driver
Light Efficiency 100lm/W
CCT 3000K, 4000K, 6500K
Material Die-casting Aluminum
Body Material Tempered Glass
Surge Protection 4KV
Protection IP66 , IK08
Housing Color Grey (customised)
CRI >0.7
PF >0.9
Beam Angle 120°
Work Temperature -25 ~ 50 Deg.
Warranty 3 Years
Approval CE ROHS

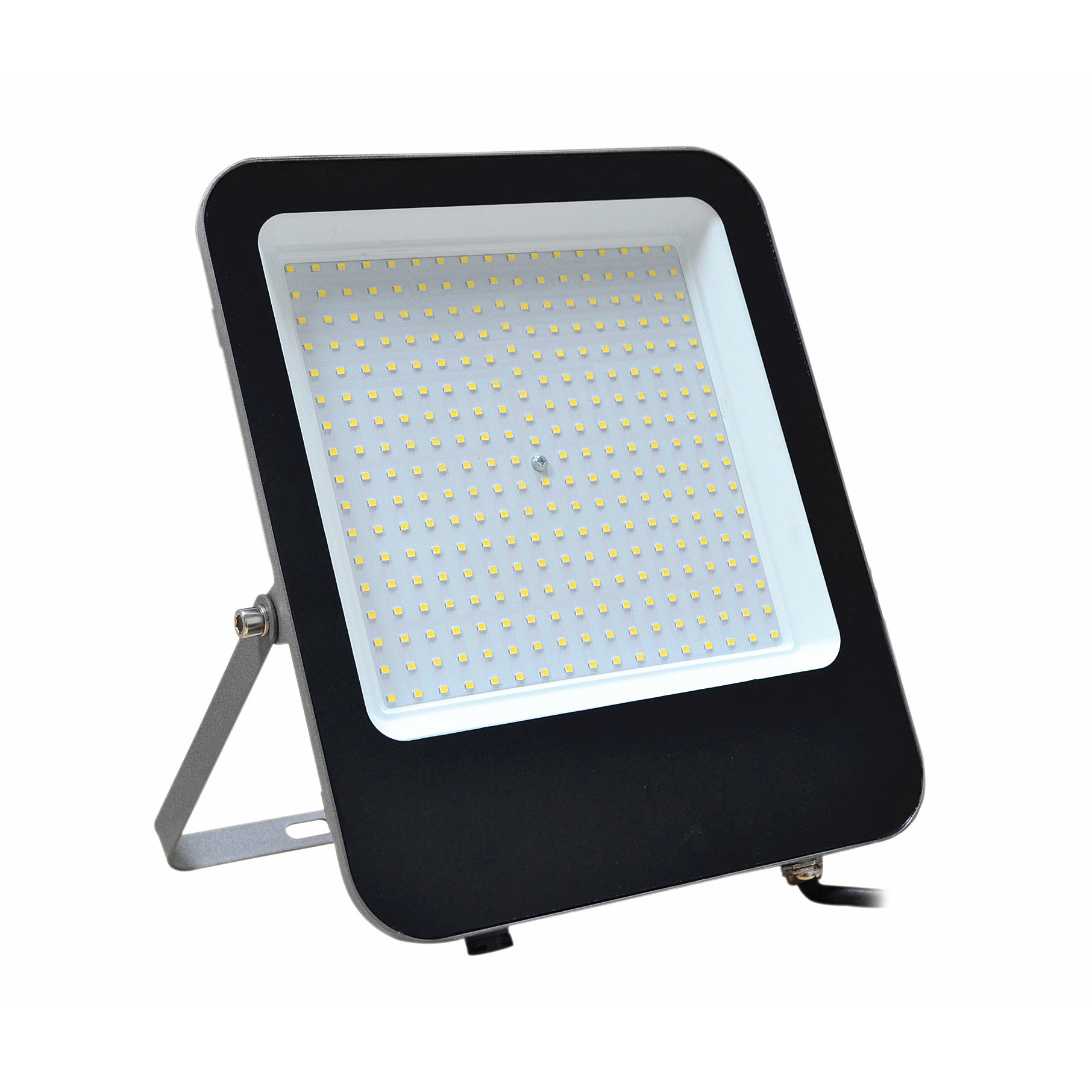

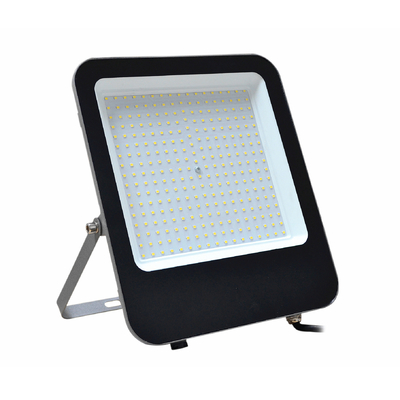

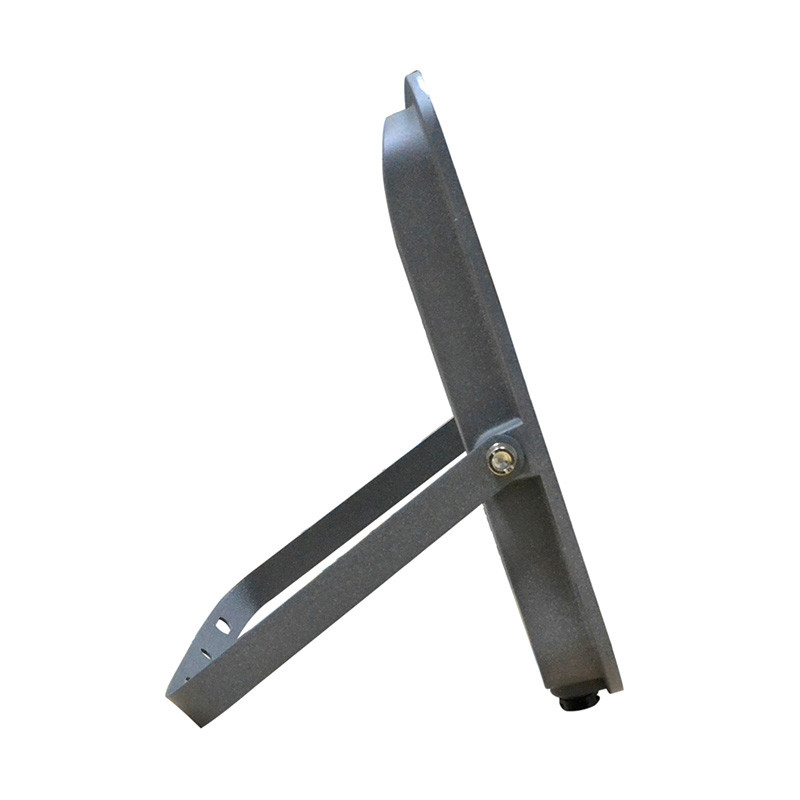

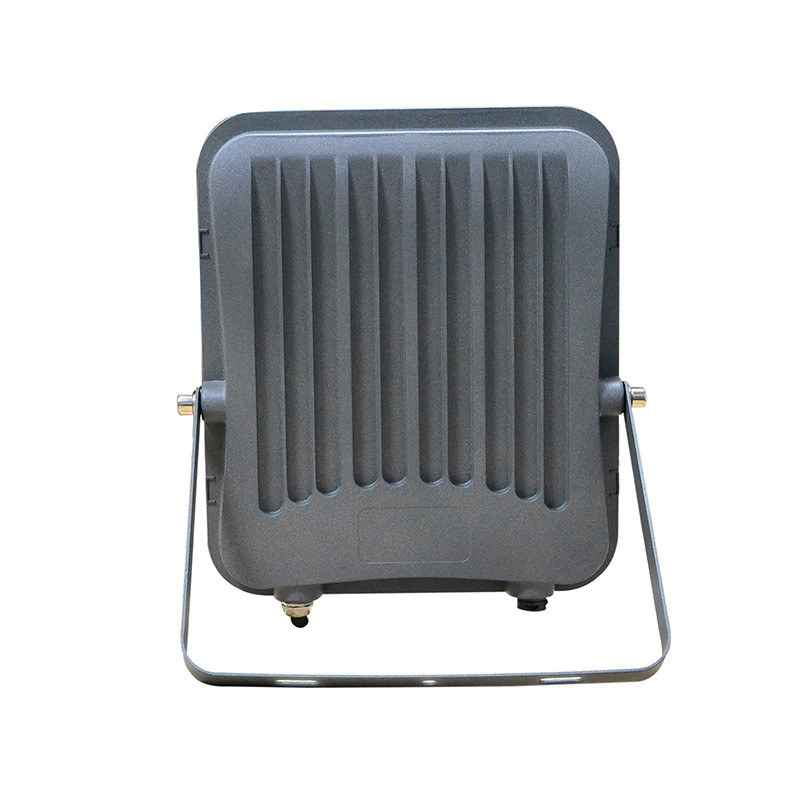

Product show of LED Floodlight 200 Watt:
IK08 20000lm 20000lm Slim LED Flood Lights For Large Area 0

IK08 20000lm 20000lm Slim LED Flood Lights For Large Area 1

IK08 20000lm 20000lm Slim LED Flood Lights For Large Area 2IK08 20000lm 20000lm Slim LED Flood Lights For Large Area 3IK08 20000lm 20000lm Slim LED Flood Lights For Large Area 4IK08 20000lm 20000lm Slim LED Flood Lights For Large Area 5

IK08 20000lm 20000lm Slim LED Flood Lights For Large Area 6



Color temperatures of LED Floodlight 200 Watt:
IK08 20000lm 20000lm Slim LED Flood Lights For Large Area 7



Applications of LED Floodlight 200 Watt:

IK08 20000lm 20000lm Slim LED Flood Lights For Large Area 8


Applications of LED Floodlight 200 Watt:
1. Can I buy 1pc before bulk quantity?
    Re: Yes, 1pc sample is welcome, and mixed samples are offered.

2. Is the lamp sufficient power?
    Re: Yes, we make sufficient power for this model.

3. How about the wires?
    Re: It comes with 3P cables. Red +, Black - and Yellow-green Ground. Cable with plug is available if needed.

4. Do you have stock for this 200w?
    Re:  We don't have stock for 150W, but we have 30W and 50W in stock. 200W can be ready in a week.


5. What driver does this LED floodlight 150w include?
    Re: The floodlight doesn't include driver. It is DOB solution, low cost and high work efficiency. It is very welcome in the markets, and quality is guaranteed 3 years. No worry about the quality!

6.  Is the quality reliable since there is no driver inside?
    Re: Yes, absolutely reliable. Presently lots of lamps with linear solution can get good-working and low cost.

7. How will you deal with the faulty?
    Re: Firstly, we promise that faulty rate is very very low, because we will test all materials before stocking, and during the production, each course must be tested step by step. Secondly, if any faulty happened, we will replace or refund. Customer's trust is our principle.
