30 Watts CCT Dimmable LED Floodlight 3000K To 6500K SMD Chip

Certification
China Shenzhen Sunrise Lighting Co.,Ltd. certification
China Shenzhen Sunrise Lighting Co.,Ltd. certification
I'm Online Chat Now

30 Watts CCT Dimmable LED Floodlight 3000K To 6500K SMD Chip

30 Watts CCT Dimmable LED Floodlight 3000K To 6500K SMD Chip
30 Watts CCT Dimmable LED Floodlight 3000K To 6500K SMD Chip 30 Watts CCT Dimmable LED Floodlight 3000K To 6500K SMD Chip 30 Watts CCT Dimmable LED Floodlight 3000K To 6500K SMD Chip

Large Image :  30 Watts CCT Dimmable LED Floodlight 3000K To 6500K SMD Chip

Product Details:
Place of Origin: Shen Zhen, China
Brand Name: SUNRISE
Model Number: SU-TGS30W
Payment & Shipping Terms:
Minimum Order Quantity: 100 PCS
Price: Negotiated
Packaging Details: carton or customised
Delivery Time: 10-15 days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 20000pcs/month

30 Watts CCT Dimmable LED Floodlight 3000K To 6500K SMD Chip

Description
Name: CCT Dimmable LED Floodlight Warranty: 3 Years
Application: Park, Square, Area Driver Mode: Constant Current
Feature: Corrision-proof, Pressure-proof Material: Aluminum
IP Rating: IP66 Waterproof Control Mode: Keyswitch
High Light:

30 Watts CCT LED Floodlight SMD Chip

,

30 Watts CCT SMD Chip 3000k led floodlight

,

30W 6000k led flood light

CCT Dimmable LED Floodlight 3000K-6500K SMD Chip 30 Watts 3 Years Guaranteed

Quick Detals of CCT Dimmable LED Floodlight:
• Product type: Flood Lights.
• SKU: SU-TGS30W.
• Work voltage: AC100-240V, 50/60Hz.
• Rated power: 30 watts.
• Luminous flux: 100lm/W
• Size: L156 x W135 x H26mm.
• Color: 3000K-6500K or customised.
• Body color: grey color.
• Housing material: die-casting aluminum.
• Cover material: tempered glass.
• Waterproof protection: IP66.
• Shock-proof level: IK08.
• Surge protection: 2KV.
• LED junction temperature less than 50 degree.
• Optional functions: PIR motion sensor, radar sensor or customised.
• Accpet logo customised.
• Cable: 3*0.75 PVC wire 100cm (39.37inch).
• Warranty is 3 years.


Characteristics of CCT Dimmable LED Floodlight:

• Super bright chips and low light failure
The built-in upgraded 72pcs (36pcs 3000K + 36pcs 6500K) super bright LED smd chips can produce 3000 lumens high output brightness, which     is much more brighter than other light sources.
• Brightness Upgraded
Powered by high-quality 2835 SMD LED chips, increased number of light beads, better brightness and large illumination.
• Thickened Aluminum
Superior & thickened ADC12# die-casting aluminum with corrosion-proof, shock-proof, dust-proof and weather-proof with faster heat sinking to keep long lifespan.
• Constant Current Driver
High quality constant current driver with high work efficiency, PF>0.9, famous brand drivers customised. And this model can also have DOB    (driver on board) choosed if needed.
• Waterproof Upgrated
Rain-proof & water-proof protection IP66 upgraded, suitable for wet surroundings.
• High Quality Tempered Glass Cover
High-quality tempered glass cover with 120 degree beam angle, high hardness and high light transmission up to >98%.
• Various wattages optional
The model can get 10W, 20W, 30W, 50W, 100W, 150W, 200W and 300W available. And we accept customization according to your requests.
• Fire-proof cable
Adopting fire-proof PVC wire 3*0.75 with 100cm long.


Descriptions of CCT Dimmable LED Floodlight:

    A new smart LED floodlights has been come out. It is color temperature dimmable function with 3 phases (3000K, 4000K and 6500K) operated by key switch (or wall switch).



Parameters of CCT Dimmable LED Floodlight:

Product Name CCT Dimmable LED Floodlight
Part No. SU-TGS20W SU-TGS30W SU-TGS50W
Rated Power 20W 30W 50W
Dimension (mm) L118xW103xH21 L156xW135xH26 L191xW164xH30
Input Voltage AC100-240V, 50/60Hz
Light Source SMD 2835 super bright chips
Driver Constant current driver
Light Efficiency 100lm/W
CCT 3000K-6500K
Material Die-casting Aluminum
Body Material Clear Tempered Glass
Surge Protection 2KV
Protection IP66 , IK08
Housing Color Grey (customised)
CRI >0.7
PF >0.9
Beam Angle 120°
Work Temperature -25 ~ 50 Deg.
Warranty 3 Years
Approval CE ROHS

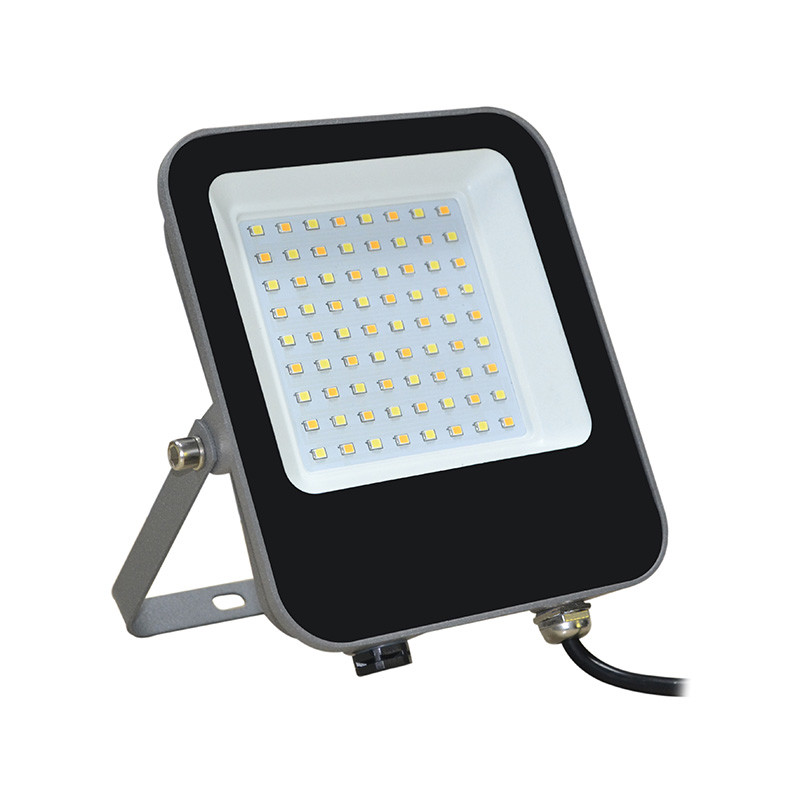

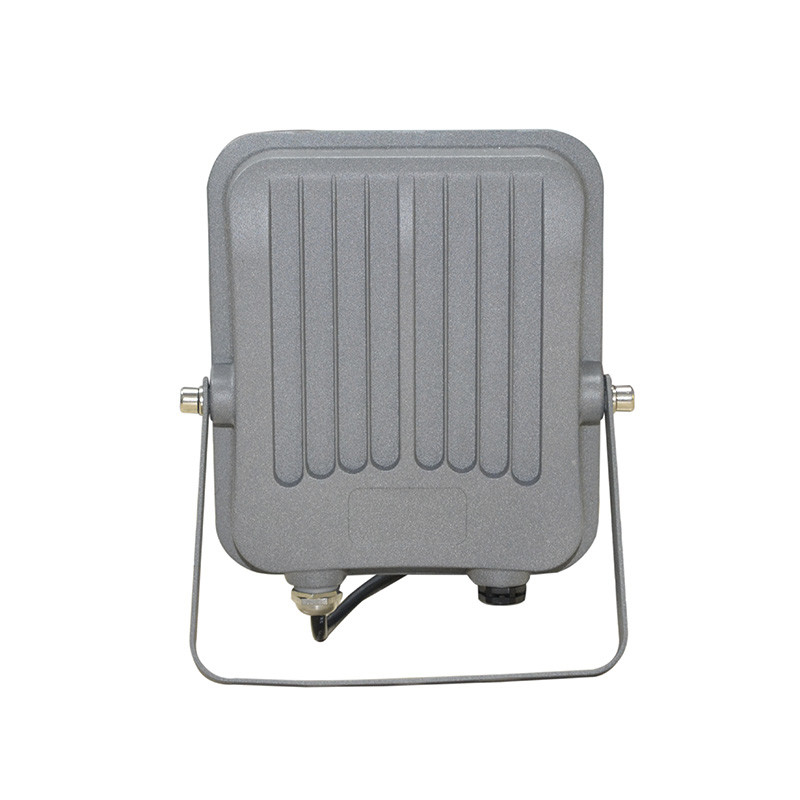

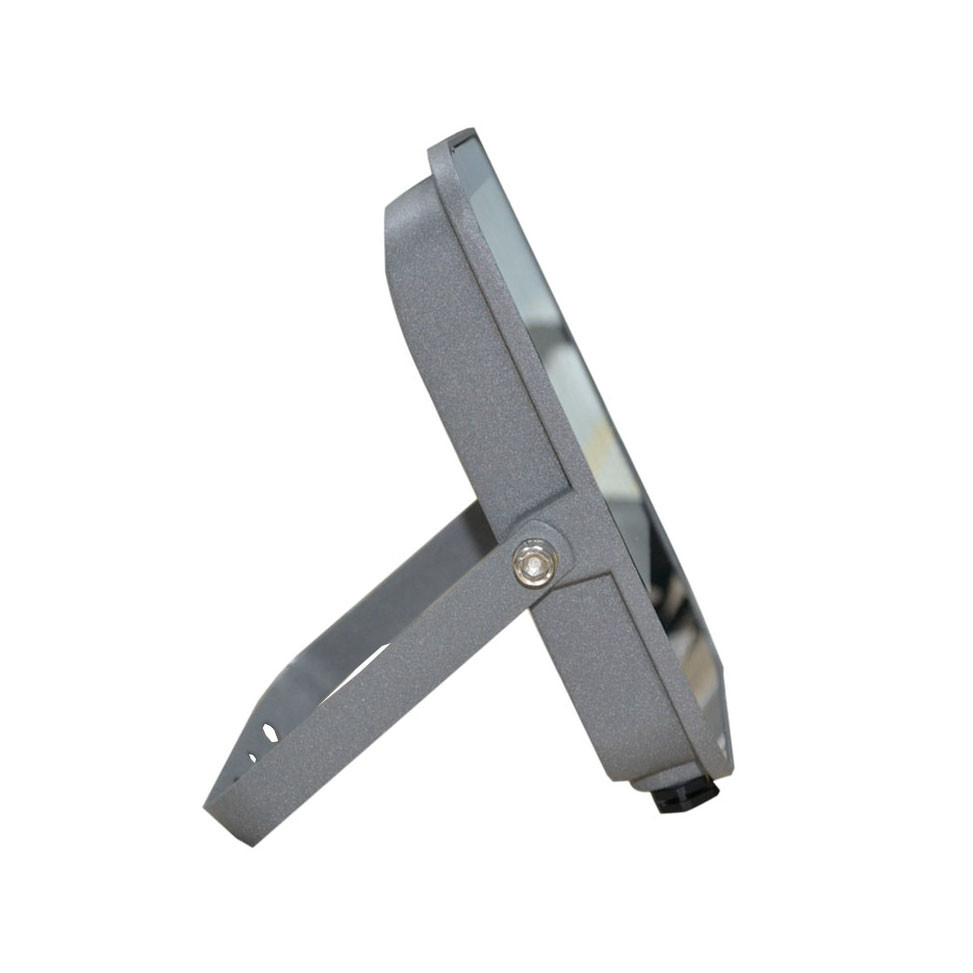

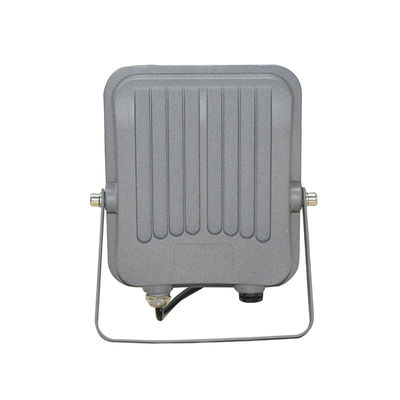

Product show of CCT Dimmable LED Floodlight:
30 Watts CCT Dimmable LED Floodlight 3000K To 6500K SMD Chip 0

30 Watts CCT Dimmable LED Floodlight 3000K To 6500K SMD Chip 1

30 Watts CCT Dimmable LED Floodlight 3000K To 6500K SMD Chip 2
30 Watts CCT Dimmable LED Floodlight 3000K To 6500K SMD Chip 3

30 Watts CCT Dimmable LED Floodlight 3000K To 6500K SMD Chip 4


Applications of CCT Dimmable LED Floodlight:
Rrequent Questions of Smart LED Floodlights:
1. Can I buy 1pc before bulk quantity?
    Re: Yes, 1pc sample is welcome, and mixed samples are OK.

2. Is the lamp full-load power?
    Re: Yes,this type is full power 100%..

3. How about the wires?
    Re: It comes with 3P cables. Red +, Black - and Yellow-green Ground.

4. Do you have stock for this 30w model?
    Re: Yes, we have stock now. We can send within 3 days if you ensure the sample now.

5. Does CCT dimmable LED floodlight include driver?
    Re: The floodlight is constant current driver, PF>0.9, and guaranteed 3 years.

6. How will you deal with the faulty?
    Re: First of all, we promise that faulty rate is very very low, because we will test all materials before stocking, and during the production, each course must be tested step by step. Secondly, if any faulty happend, we will replace or refund. Trust is our principle.
