Product Details:
|
| Name: | Waterproof LED Flood Light | Feature: | Explosion-proof, Anti-corrosion |
|---|---|---|---|
| Usage: | Construction Site, Wharf, Stadium | Body Color: | Black, White |
| Efficiency: | 100lm/W | Material: | Aluminum + Tempered Glass |
| Color: | 3000K, 4500K, 6500K | Warranty: | 2 Years |
| High Light: | 4KV Industrial LED Floodlights,400 watt led flood light IP66,Samsung Chip 400w led flood light |
||
400 Watts Waterproof LED Flood Light Samsung Chip IP66 Waterproof 4KV
Quick Details of Waterproof LED Flood Light:
• Product type: LED flood light.
• Power consumption: 400W
• Luminous flux: 40000lm ± 10%.
• Work voltage: 85-265VAC, 50/60Hz.
• Size: L595xW475xH95mm.
• CE, ROHS approved.
• Warranty is 2 years.
• Cable color: Red:+, Black: -, Ground: Yellow-green.
• LED junction temperature less than 50 degree.
• High light transmission up to 95%.
• Easy installation and maintenance, quality guaranteed.
• Waterproof IP66 design for indoor and outdoor landscape lighting.
• Waterproof Isolated driver, waterproof silicon loop and waterproof glue sealed for multi-layer waterproof protection.
• Brand drivers are customised.
• Smart modes are available such as 0-10V dimming, Dali dimmable, PIR motion sensor, photocell / Daylight sensor, radar sensor, DMX512, RGB etc.
Descriptions of Waterproof LED Flood Light:

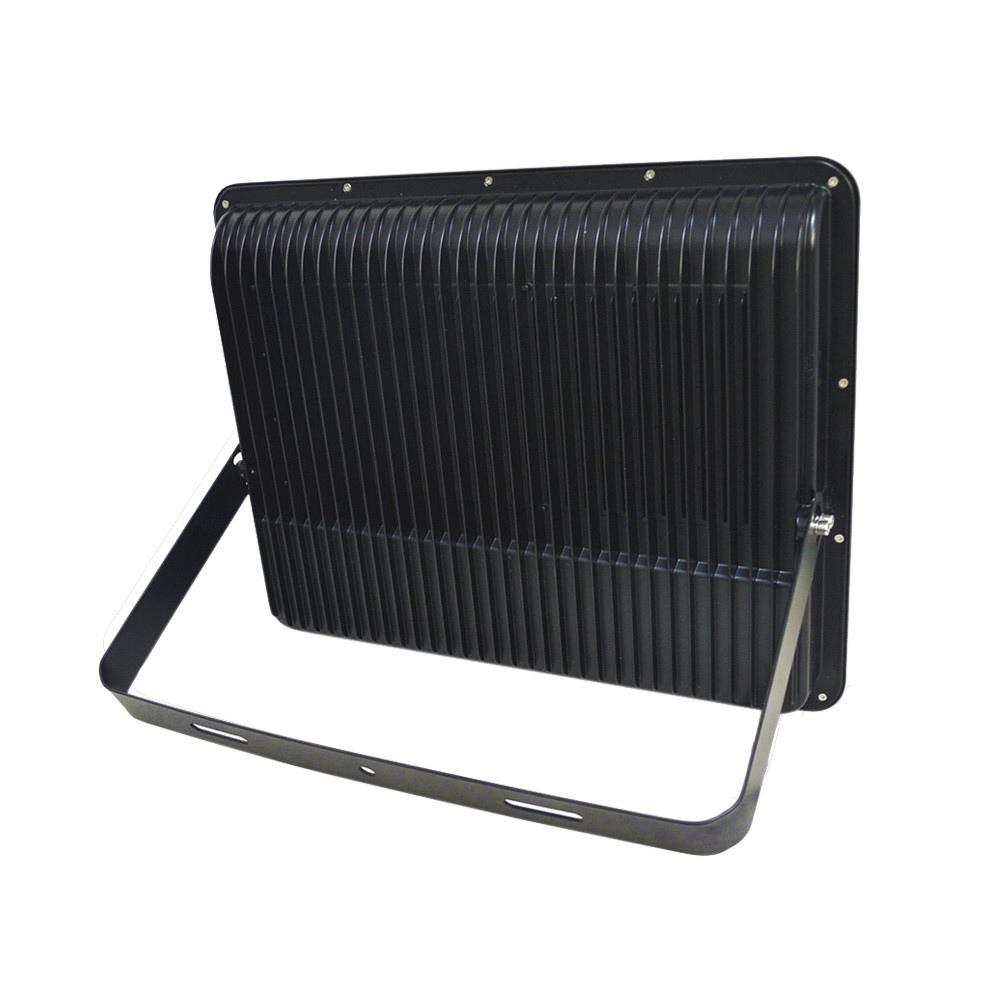

The waterproof LED floodlight adopts thickend and stronger diecasting aluminum as the body with shock-proof IK07, pressure-proof, corrision-proof and water-proof IP66. The radiator is stripe fin type, which could be quickly heat sinking to keep long lifespan.The cover is tempered clear glass, which can have light transmission up to 95%, so it will get high light efficiency. This model can make smart security lamps life PIR motion sensor, radar sensor, daylight sensor etc.
Product Specifications of Waterproof LED Flood Light:
| Product Name | 100 200 400 Watts Waterproof LED Flood Light | ||
| Model | SU-CBE100W | SU-CBE200W | SU-CBE400W |
| Rated Power | 100 Watts | 200 Watts | 400 Watts |
| Size (mm) | L296.5*W250*H57 | L428*W328*H65 | L595*W475*H95 |
| Available Power | 10W,20W, 30W, 50W, 100W, 150W, 200W, 400W | ||
| Input voltage | 85-265V AC, 50/60Hz | ||
| Light source | SMD 5730 LEDs | ||
| Luminous flux | 100-110lm/W | ||
| Color temperature | 3000K-6500K | ||
| Material | Die-casting aluminum + tempered glass cover | ||
| Surging protection | 4KV | ||
| Cable | 3x0.75 PVC cable | ||
| Drover Mode | Constant current driver | ||
| Anti-shock level | IK07 | ||
| Waterproof protection | IP66 | ||
| Housing color | White, Black | ||
| CRI | 80Ra | ||
| PF | >0.9 | ||
| Work temperature | -25 ~ +50 degree | ||
| Lifespan | 50,000H | ||

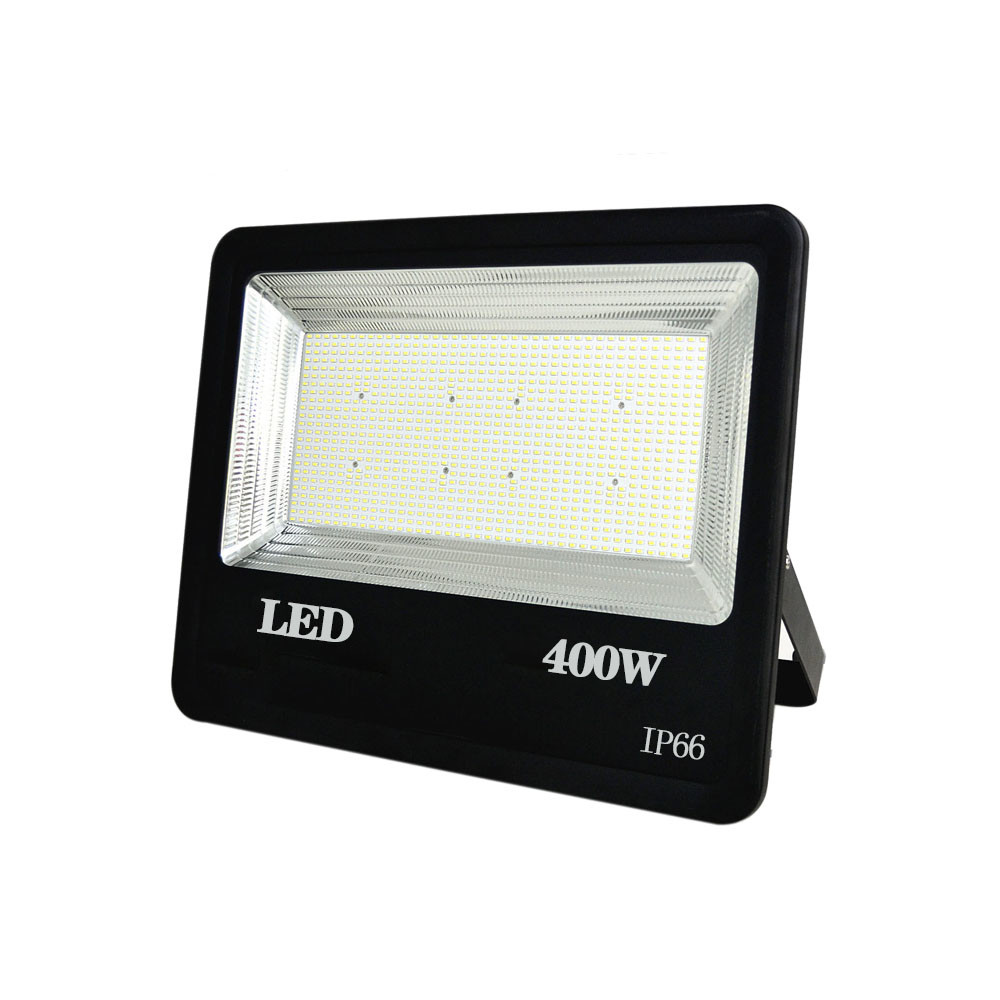

Product Show of Waterproof LED Flood Light:
Applications of Waterproof LED Flood Light:
Frequent Questions of Waterproof LED Flood Light:
1. Can I have 1pc sample to test firstly?
Re: Yes, 1pc sample can be offered, and mixed samples are welcome.
2. Do you have customised service like box, logo?
Re: Yes, we accept OEM or ODM. You please tell us your idea, and we will give you a solution.
3. Can you do WHITE body for this model?
Re: Yes, we can. This model has White and Black body for your options.
4. Can this led reflector floodlights have PIR motion sensor?
Re: Yes, we have pir motion sensor for the watts.
5. Do you have low voltage sensor?
Re: Yes, we can make 12V, 24V, 36V and 48V low voltage sensor for you.
6. Can you do colorful box?
Re: Yes, certainly. We just want your draft to do what you hoped.
7. Does this LED reflector floodlights include any driver?
Re: Yes, absolutely. This lamp includes constant-current isolated driver with warranty 3 years, and driver available.
8. How can you guarantee the quality?
Re: All raw materials must be checked before stocking and the finished products must have been tested and aged. Finally packed. If unfornately any fault happend, we will replace.
