Product Details:
|
| Name: | 20W LED Floodlight | IP Rating: | IP66 Waterproof |
|---|---|---|---|
| Luminous Flux: | 2000 Lumens | CRI: | 80Ra |
| Light Source: | SMD 5730 High Lumen LED Chips | Feature: | Explosion-proof, Anti-corrosion |
| Usage: | Wall, Ceiling For Indoor Outdoor | Material: | Aluminum |
| High Light: | 4500K Industrial LED Floodlights,Super Slim 20w pir led floodlight,IP66 20w waterproof led flood light |
||
Outdoor 20W LED Floodlight IP66 White 4500K Super Slim with Brand Driver
Quick Details of 20W LED Floodlight:
• Product type: 20W LED Floodlight.
• Luminous flux: 2000 lumens.
• LED type: SMD 5730 chips. (Samsung chip available).
• Efficiency: 100lm/W.
• 20W product size: L146*W126*H37mm.
• Color: 2700K, 3000K, 4500K, 6500K, RGBW.
• Body material: diecasting aluminum.
• Cover material: tempered clear glass.
• CE, ROHS approved.
• Warranty is 2 years.
• Cable color: Red:+, Black: -, Ground: Yellow-green.
• LED junction temperature less than 50 degree.
• High light transmission up to 95%.
• Easy installation and maintenance, quality guaranteed.
• Waterproof IP66 design for indoor and outdoor lighting.
• Waterproof Isolated driver, waterproof silicon loop and waterproof glue sealed for multi-layer waterproof protection.
• Brand drivers are customised.
• Smart modes are available such as 0-10V dimming, Dali dimming, PIR motion sensor, remote sensor, photocell / radar sensor, DMX512, RGBW etc.
Specifications of 20W LED Floodlight:
| Product Name | 20W LED Floodlight | ||
| Model | SU-CBE20W | SU-CBE30W | SU-CBE50W |
| Available power | 10W,20W, 30W, 50W, 100W, 150W, 200W, 400W | ||
| Size (mm) | L146xW126xH37 | L195xW165xH40 | L230xW194.7xH57 |
| Packing | 50 PCS/ctn | 20 PCS/ctn | 15 PCS/ctn |
| Input voltage | 85-265V AC, 50/60Hz | ||
| Light source | SMD 5730 LEDs | ||
| Luminous flux | 100-110lm/W | ||
| Color temperature | 3000K-6500K | ||
| Material | Die-casting aluminum + tempered glass cover | ||
| Surging protection | 4KV | ||
| Cable | 3x0.75 PVC cable | ||
| Drover Mode | Constant current driver | ||
| Anti-shock level | IK07 | ||
| Waterproof protection | IP66 | ||
| Housing color | White, Black | ||
| CRI | 80Ra | ||
| PF | >0.9 | ||
| Work temperature | -25 ~ +50 degree | ||
| Lifespan | 50,000H | ||

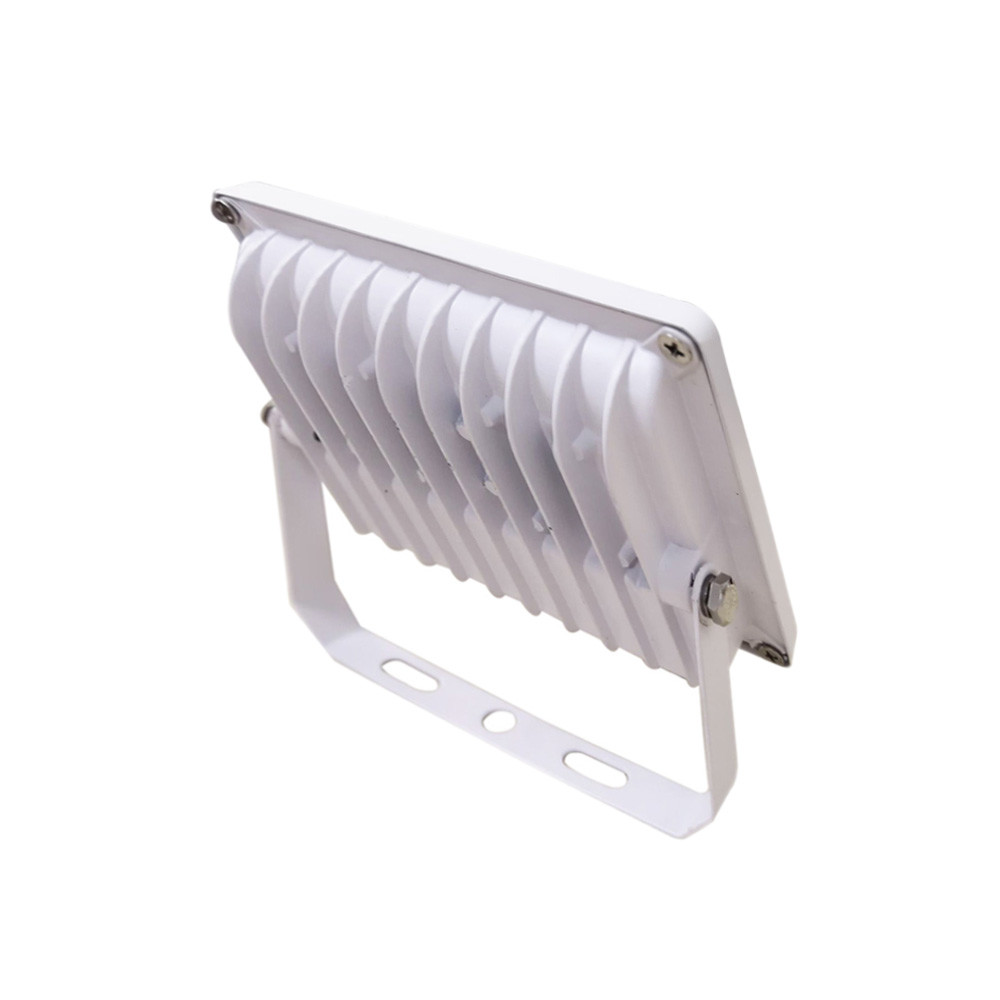

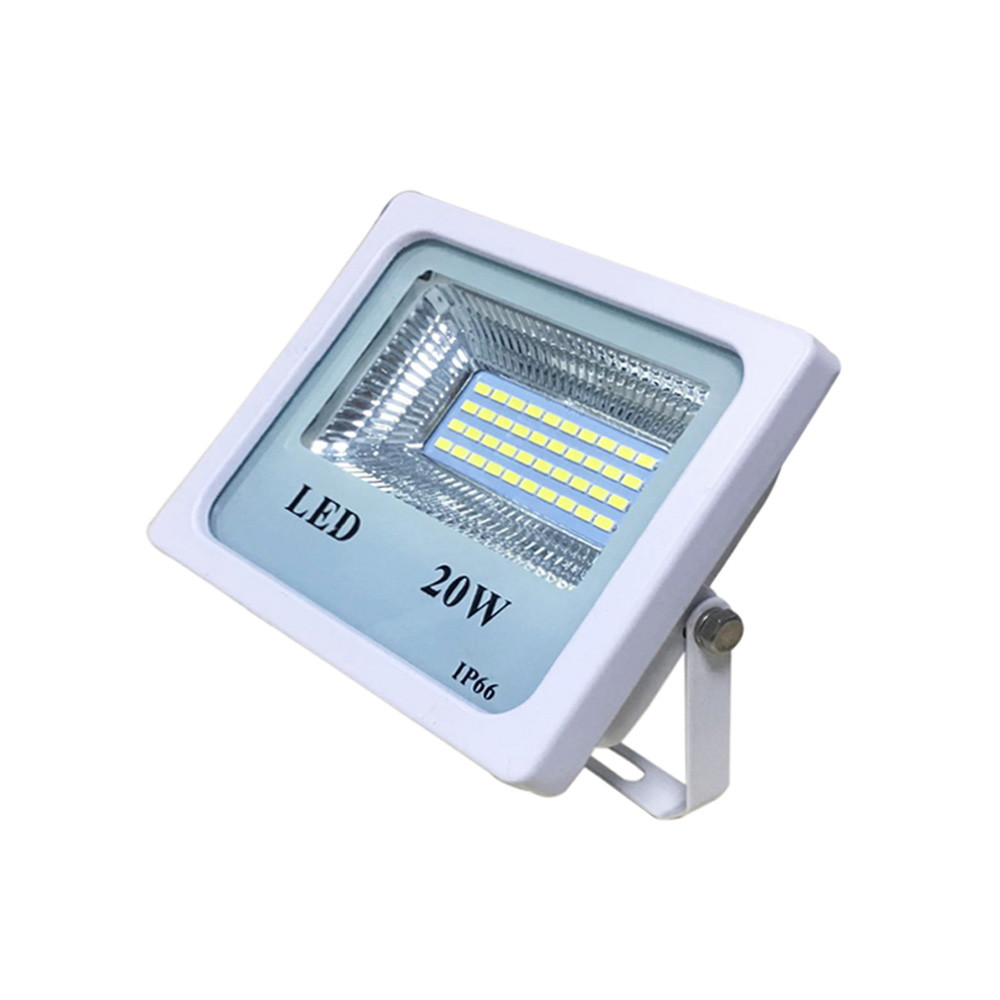

Product Show of 20W LED Floodlight:
Detailed Show of 20W LED Floodlight:
Applications of 20W LED Floodlight:
Frequent Questions of 20W LED Floodlight:
1. What is the MOQ for this item?
Re: MOQ is 100pcs. But 1 sample or mixed order is welcome.
2. What voltage can I get?
Re: There are AC85-265V, 50/60Hz for worldwide. Please do inform us when you start to order it.
3. Can you make customised kevin?
Re: Yes, we can customised different colors.
4. Can I have my logo on the product and box?
Re: Yes, certainly. LOGO can be printed on the product and box. Please kindly tell us your idea!
5. How to ship the goods?
Re: The shipping way can be choosed by the buyer. Different cost refers to the different courier.
6. Can you make the 20w floodlight with shorter bracket and longer wire?
Re: Yes, we have customised service, but the MOQ is 100pcs.
7. Can you send the goods to my forwarder when I order some lamps?
Re: Yes, absolutely OK, and the transportation fee will be included if the forwarder is in Shen Zhen.
8. What is the quality of the item?
Re: The product is ensured to be good before sending out. It is driverless model. The circuit board is especially designed by our engineer, good working and stable voltage.
