60deg LED Outdoor Floodlight White Reflector With Pir 100 150 200Watts

Minimum Order Quantity : 100 PCS Price : Negotiated
Packaging Details : carton or customised Delivery Time : 8-15 days
Payment Terms : T/T, Western Union, MoneyGram Supply Ability : 10000pcs/ctn
Place of Origin: Shen Zhen, China Brand Name: SUNRISE
Certification: CE, RoHS Model Number: SU-WS150

Detail Information

Name: Reflector LED Flood Light Luminous Flux: 19500lm
CCT: 2700, 3000k, 4500k, 6500k Dimmable Mode: 0-10V, DALI Dimming
Material: Die-casting Aluminum Light Source: SMD3030 OSRAM
Support Sensor: Yes Installation: Surface, Ceiling, Mounting, Ground
High Light:

60deg LED Outdoor Floodlight

,

white led floodlight 60deg

,

white led floodlight with pir 200Watts

Product Description

100 150 200 Watts LED Outdoor Floodlight Bulb White Reflector Black Body

Quick details of LED Outdoor Floodlight Bulb:
1. Lumen index: 19500lm for 150 watts.
2. 180PCS super bright LED chips SMD3030 light source.
3. Input work voltage: AC85-265V.
4. Optional color temperature: normal 3000K, 4500K, 6500K, 7000K+ and customised color.
5. Available wattages: 30w, 50w, 100w, 150w and 200w.
6. Product size: L314*W272*H43mm.
7. Surge protection: 4KV.
8. Shock-proof class: IK07.
9. Water-proof class: IP66.
10. Material: die casting aluminum and optical PC lens with 60 Deg. and 120 Deg. optional.
11. Optional narrow beam angle 60 degree and wide beam angle 120 degree.
12. Various smart serier: 0-10V dimming, Dali dimmming, pir motion sensor, radar sensor, photocel sensor, DMX512 and remote control.

Descriptions of LED Outdoor Floodlight Bulb:

► 120 LEDs 13000 Lumens
The built-in upgraded 120 pcs super bright LED smd chips can produce 13000lm high output brightness, which is much more brighter than other light sources.
► Brightness Upgraded
Powered by high-quality 3030 LED chips, increased the number of light beads, better brightness and large illumination.
► Thickened Aluminum
Superior & thickened ADC12# diecasting aluminum with corrosion-proof, shock-proof, dust-proof and weather-proof, faster heat sinking to keep long lifespan.
► Constant Current Driver
High quality constant current driver with high work efficiency, PF>0.9, famous brand drivers customised.
► Waterproof Upgrated
Rain-proof & water-proof protection IP66 upgraded, suitable for wet applications.
► High Quality Glass Bead Cover
High-quality optical bead PC cover with 60 degree, no yellow, and high light transmission up to >95%.


Product Parameters of LED Outdoor Floodlight Bulb:

Product Name Reflector LED flood lights
SKU SU-WS100 SU-WS150 SU-WS200
Input Voltage AC85-265V, 50/60Hz
Rated Power 100W 150W 200W
Light Source SMD3030 Lumileds chips
Light Efficiency 130lm/W
CCT 2700k, 3000k, 4500k, 5000k, 6500k
Product Size (mm) L284*W241*H40 L314*W272*H43 L344*W301*H43
Driver Constant Current Isolated Driver
Body Material ADC12 Aluminum
Cover Material Tempered Glass
CRI >80
PF >0.9
Housing Color Black, Grey
Surge Protection 4KV
Beam Angle 60°
Class Protection IK07, IP66
Working Temperature: -30 ~ 50 Deg.
Life Span 50,000H
Warranty 3 Years
Application Sports Stadiums, yard, garden, street, wall lighting

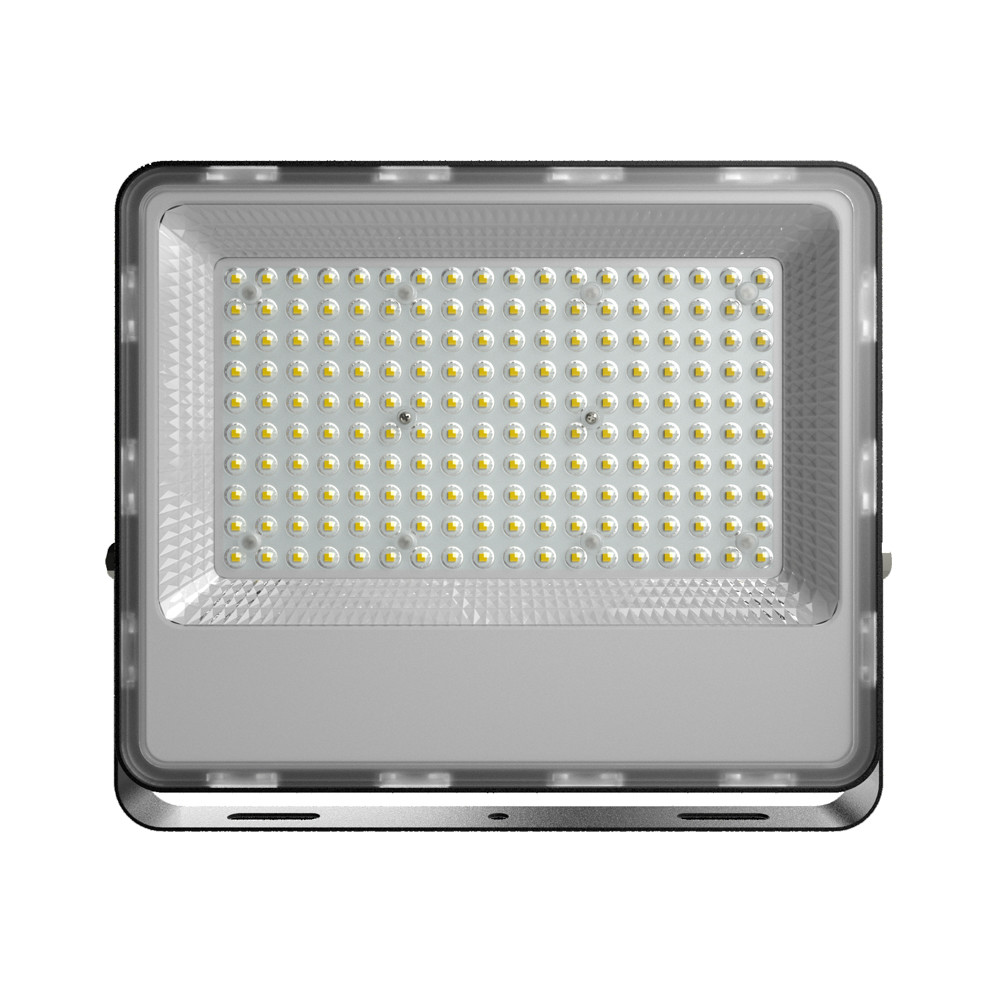

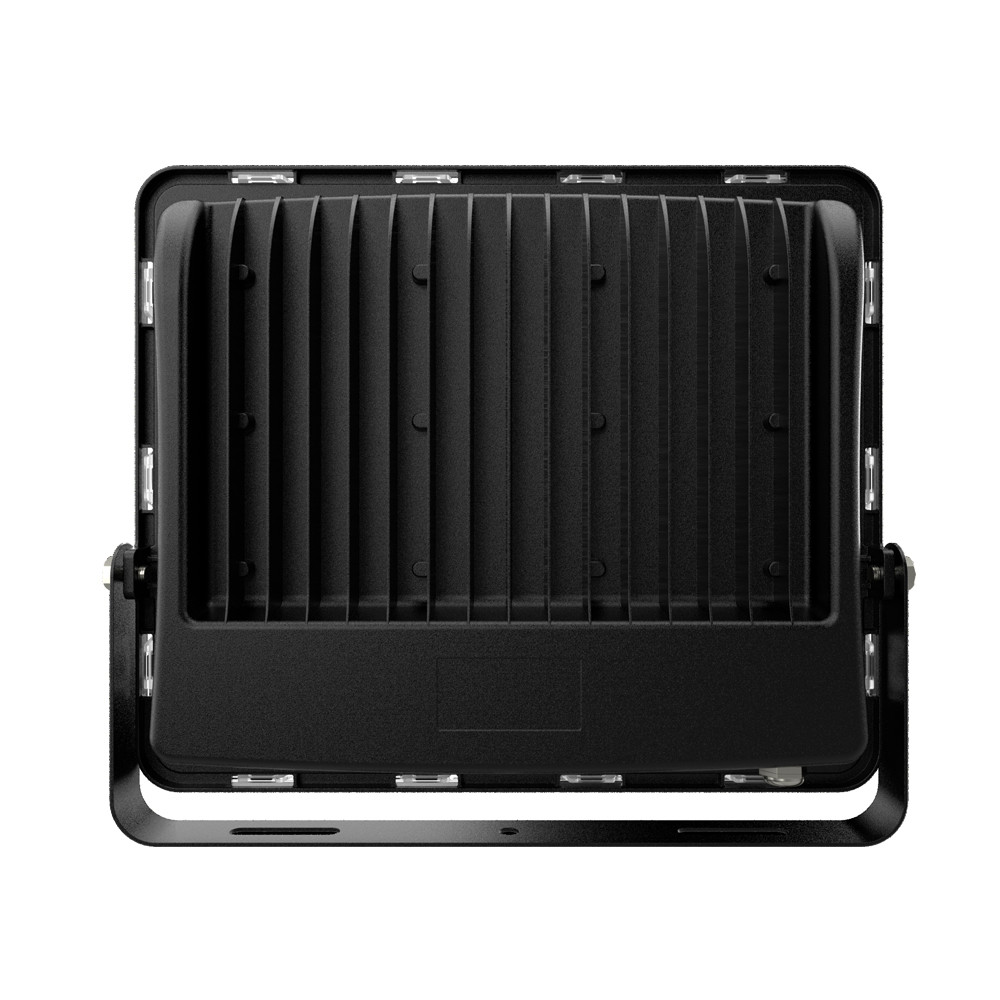

Product Show of LED Outdoor Floodlight Bulb:
60deg LED Outdoor Floodlight White Reflector With Pir 100 150 200Watts 0

Product figure of LED Outdoor Floodlight Bulb:

1. Optical PC lens 60 degree against yellowing.
2. Waterproof silicon ring.
3. Nano-plastic reflector against the high temperature and UV. long lifespan and never yellowing.
4. SMD3030 LED.high light officiency and lighting to further.
5. Aluminum base with high thermal conductivity,and faster heat running.
6. High-quality and famous brand driver: Meanwell.Sosen etc.
7. ADC12 dle-casting aluminum radiator, effidency up to 96W/M.K.
8. Strong support and strong installation.
60deg LED Outdoor Floodlight White Reflector With Pir 100 150 200Watts 1

Dimensions of LED Outdoor Floodlight Bulb​:

60deg LED Outdoor Floodlight White Reflector With Pir 100 150 200Watts 2

60deg LED Outdoor Floodlight White Reflector With Pir 100 150 200Watts 3

Optical Lens 60 and 120 degree available of LED Outdoor Floodlight Bulb:
60deg LED Outdoor Floodlight White Reflector With Pir 100 150 200Watts 4
60deg LED Outdoor Floodlight White Reflector With Pir 100 150 200Watts 5


Installations of LED Outdoor Floodlight Bulb​:
60deg LED Outdoor Floodlight White Reflector With Pir 100 150 200Watts 6
Frequent Questions of LED Outdoor Floodlight Bulb:

1. Can I have 1pc sample to test firstly?
Re: Yes, 1pc sample can be offered, and mixed samples are welcome.


2. Do you have customised service like box, logo?
Re: Yes, we accept OEM or ODM. You please tell us your idea, and we will give you a solution.


3. Can you do WHITE body for this model?
Re: Yes, we can. This model has White and Black body for your options.


4. Can this led outdoor floodlight bulb have PIR motion sensor?
Re: Yes, we have pir motion sensor for the watts.



5. Do you have low voltage sensor?

Re: Yes, we can make 12V, 24V, 36V and 48V low voltage sensor for you.

6. Can you do colorful box?
Re: Yes, certainly. We just want your draft to do what you hoped.

7. Does this LED outdoor floodlight bulb include any driver?
Re: Yes, absolutely. This lamp includes constant-current isolated driver with warranty 3 years, and driver available.

8. How can you guarantee the quality?
Re: All raw materials must be checked before stocking and the finished products must have been tested and aged. Finally packed. If unfornately any fault happend, we will replace.
