Outdoor Lumileds Industrial LED Floodlights 150 Watt 3030 Chip IK08

Certification
China Shenzhen Sunrise Lighting Co.,Ltd. certification
China Shenzhen Sunrise Lighting Co.,Ltd. certification
I'm Online Chat Now

Outdoor Lumileds Industrial LED Floodlights 150 Watt 3030 Chip IK08

Outdoor Lumileds Industrial LED Floodlights 150 Watt 3030 Chip IK08
Outdoor Lumileds Industrial LED Floodlights 150 Watt 3030 Chip IK08 Outdoor Lumileds Industrial LED Floodlights 150 Watt 3030 Chip IK08 Outdoor Lumileds Industrial LED Floodlights 150 Watt 3030 Chip IK08 Outdoor Lumileds Industrial LED Floodlights 150 Watt 3030 Chip IK08 Outdoor Lumileds Industrial LED Floodlights 150 Watt 3030 Chip IK08

Large Image :  Outdoor Lumileds Industrial LED Floodlights 150 Watt 3030 Chip IK08

Product Details:
Place of Origin: Shen Zhen, China
Brand Name: SUNRISE
Certification: CE ROHS
Model Number: SU-BJG150
Payment & Shipping Terms:
Minimum Order Quantity: 50 PCS
Price: Negotiation
Packaging Details: carton or customised
Delivery Time: 8-15 days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 20000pcs/months

Outdoor Lumileds Industrial LED Floodlights 150 Watt 3030 Chip IK08

Description
Name: LED Flood Lighting 150 Watts Color: 6500K, 4500K, 3000K
Beam Angle: 60°, 90°, 120° Surge Protection: 6KV
Usage: Stadium, Street, Square Material: Aluminum
Dimmable: Yes
High Light:

Lumileds Industrial LED Floodlights

,

3030 Chip flood light led 150 watt

,

IK08 150 watt outdoor flood light

Outdoor LED Flood Lighting 150 Watts Lumileds 3030 Chip 3 Years Warranty

Quick Infomations of LED Flood Lighting 150 Watts:
1. Rated wattage: 200 Watts.
2. Luminous flux: 24000lm.
3. Dimension: L351*W361*H63mm.
4. Light source: SMD3030 super bright LED chips.
5. Optional wattages: 30 watts, 50 watts, 100 watts, 150 watts and 200 watts.
6. Driver mode: Constant current isolated driver.
7. IP rating: IP66 waterproof.
8. Beam angle: 60°, 90°, 120°.
9. Body material: die-casting aluminum.
10. Cover material: tempered glass.
11. Packing: 5PCS/ctn or customised.
12. Warranty: 3-5 years.

Descriptions of LED Flood Lighting 150 Watts:
     The 150 watt outdoor flood light is the newest design with simple and classical appearance for outdoor industrial and commercial project high lumen lighting. The housing is pure die-casting aluminum ADC12# with anti-pressure, high-strength, anti-corrosion, and thick tempered glass cover. waterproof protection IP66. It adopts constant-current isolated driver AC solution. This product is full power with stablility and high light efficiency. It is widely used in hotel, home, gallery, stair, yard, road, street, door, room, yard, parking, car warehouse etc.
     Customization is served for the different wattages!


Parameters of LED Flood Lighting 150 Watts:
Product NameLED Flood Lighting
Part No.SU-BJG100SU-BJG150SU-BJG200
Input VoltageAC85-265V, 50/60Hz
Rated Power50W100W200W
Light SourceSMD3030
Light Efficiency120lm/W
CCT2700k, 3000k, 4500k, 5000k, 6500k
Product SizeL281xW291xH50L321xW331xH63L351xW361xH63
DriverConstant Current Isolated Driver
Body MaterialADC12 Aluminum
Cover MaterialTempered Glass
CRI>80
PF>0.9
Housing ColorBlack
Surge Protection6KV
Beam Angle60°, 90°, 120°
Class ProtectionIK08, IP66
Working Temperature-30 ~ 50 Deg.
Parking10 PCS5 PCS5 PCS
Carton Size65*32*37.538*36.5*41.539.5*38*43.5

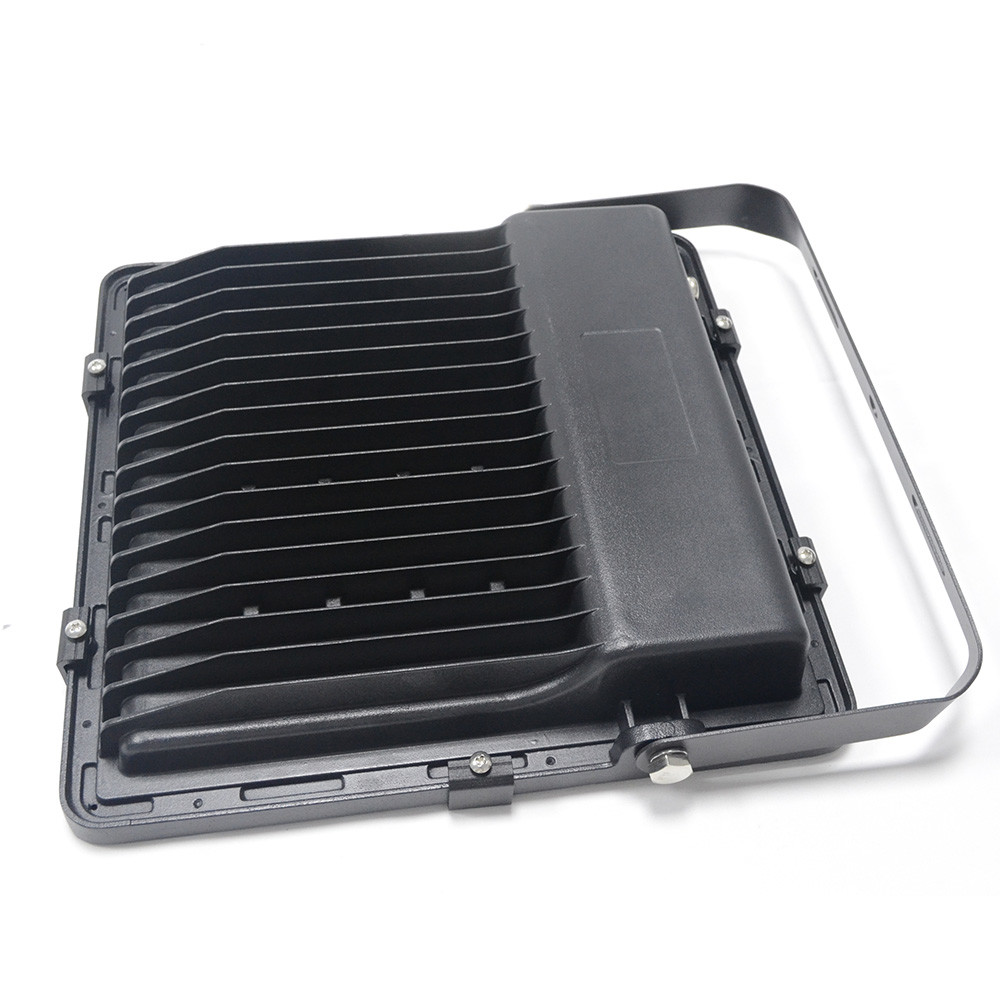

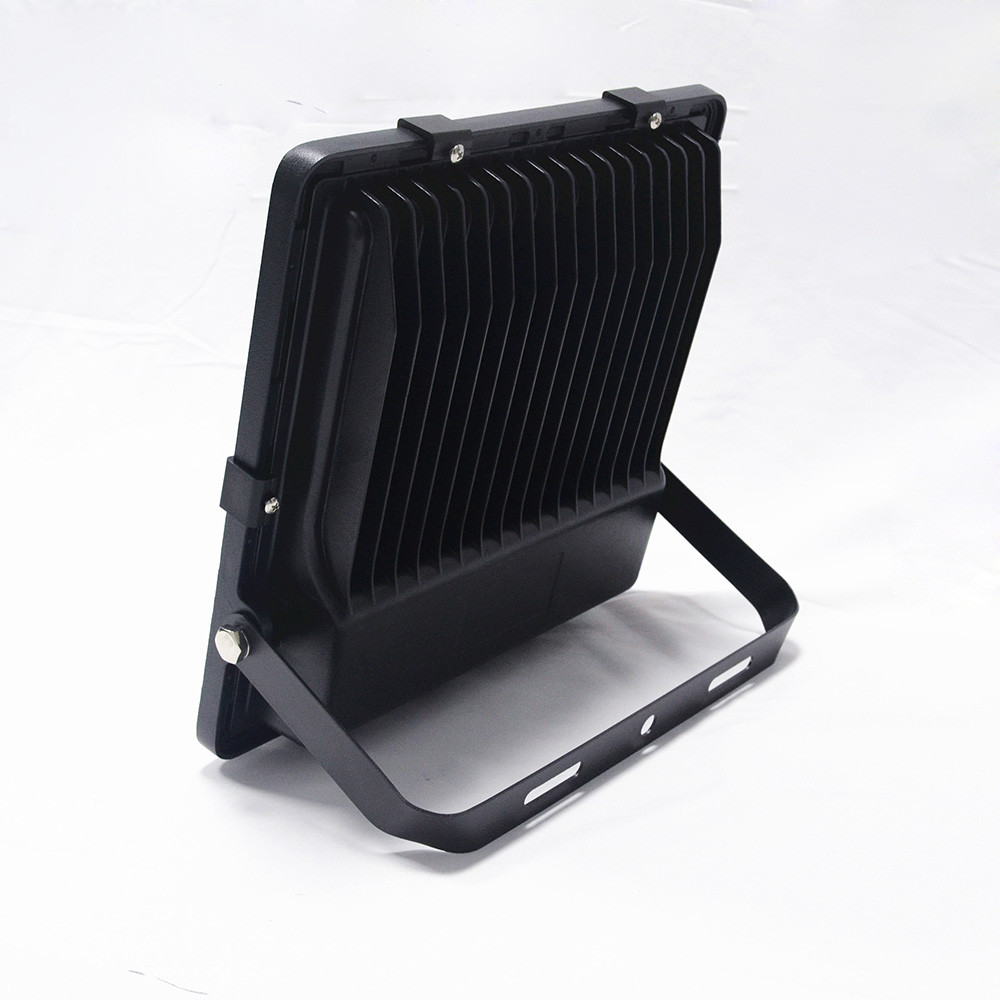

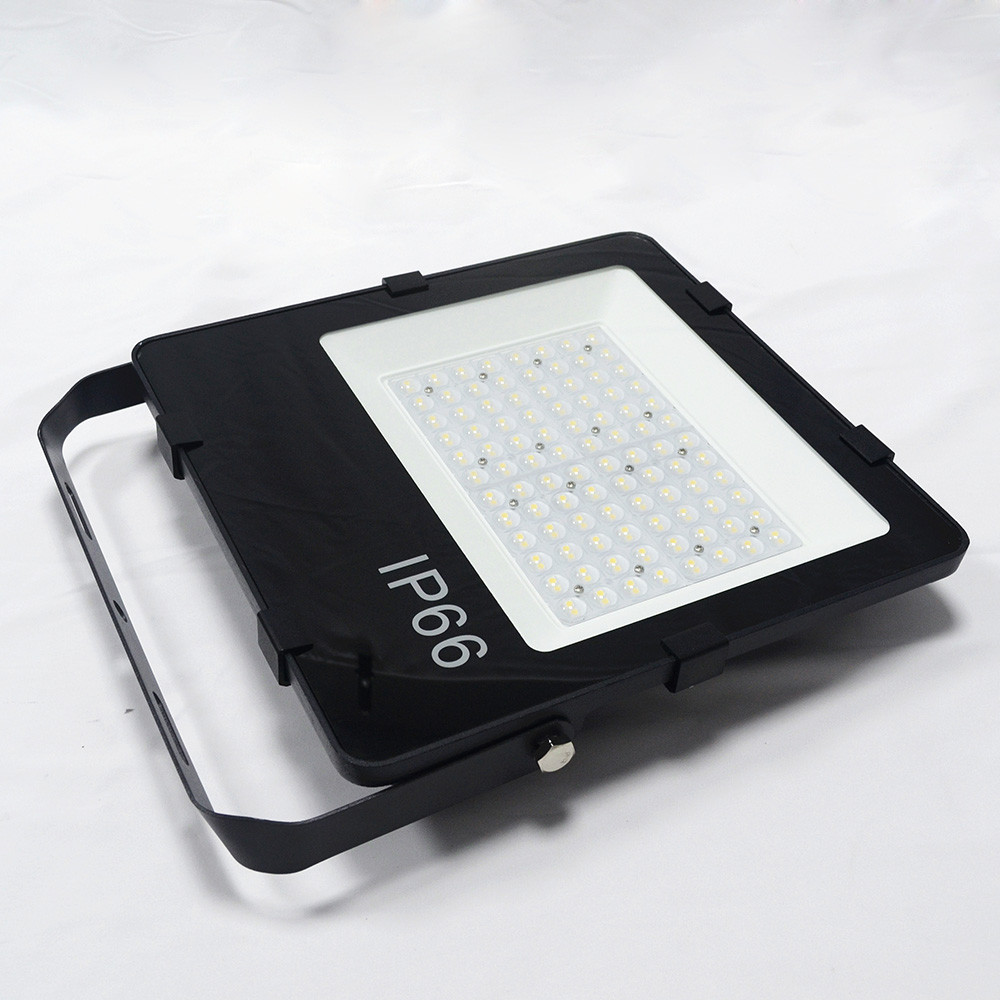

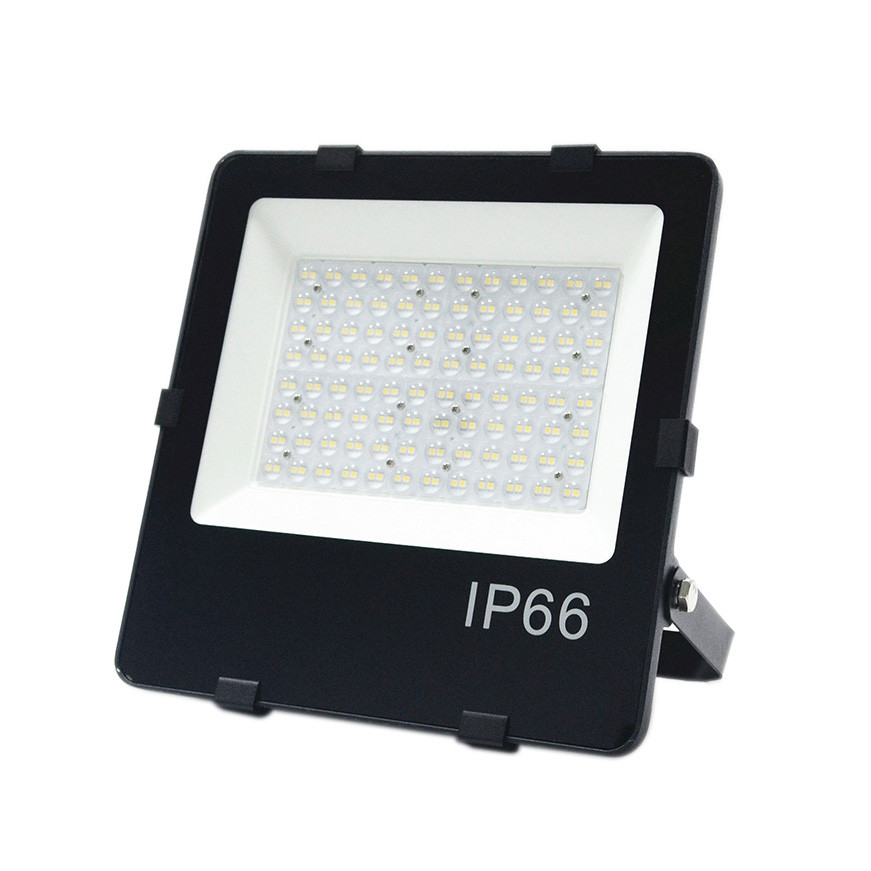

Details Show of LED Flood Lighting 150 Watts:
Outdoor Lumileds Industrial LED Floodlights 150 Watt 3030 Chip IK08 0

Dimensions of LED Flood Lighting 150 Watts:
Outdoor Lumileds Industrial LED Floodlights 150 Watt 3030 Chip IK08 1
Outdoor Lumileds Industrial LED Floodlights 150 Watt 3030 Chip IK08 2

Structure of LED Flood Lighting 150 Watts:
1. Tempered Glass Cover.
2. Waterproof Silicon Sealing Stripe.
3. Nano Plastic Reflector.
4. Optical PC Len against UV, Permanent Use Without Getting Yellow, High Temperature Assistance, No Deformation.
5. Suitable for SMD3030 LEDs, Higher Light Efficiency. is Available.
6. High-qualitied Aluminium PCB with High Heat Conduction, Faster Heat Cooling.
7. Able to work with MeanWell, SOSEN Brand Driver.
8. ADC12# Die-casting Aluminium Radiator, 96W/M.K
Outdoor Lumileds Industrial LED Floodlights 150 Watt 3030 Chip IK08 3




Lens 60 degree, 90 degree and 120 degree available of LED Flood Lighting 150 Watts:
Outdoor Lumileds Industrial LED Floodlights 150 Watt 3030 Chip IK08 4

Installations of LED Flood Lighting 150 Watts:
Outdoor Lumileds Industrial LED Floodlights 150 Watt 3030 Chip IK08 5

Applications of LED Flood Lighting 150 Watts:
Outdoor Lumileds Industrial LED Floodlights 150 Watt 3030 Chip IK08 6

Frequent Questions of LED Flood Lighting 150 Watts:
1. Can I have 1 sample to test before bulk quantity?
   Re: Yes, 1 sample or mixed order is welcome.

2. What brand of chip do you use?
   Re: We use lumileds SMD3030 LED chip with high lumen 120lm/W.

3. Can I have 2200K or 2500K for sample?
   Re: Yes, sure. But the colors need to be customised, so it will take 3-5 days to finish.

4. Is the waterproof LED floodlights dimmable?
   Re: Yes, it can make dimmable mode.

5. Can you make my logo on the glass and on the box as private?
   Re: Yes, we accept the customisation service. Please send us your logo diagram!

6. If I order 500pcs, how long will the lead time take?
   Re: Normally 500pcs will take 10-15 days. If you have other additional requirements, then we will check the leadtime for you again.

7. How to deal with the faulty?
   Re: First of all, we ensure all of products must have strict test before shipping. If unfortunately any faulty happend, we will replace or be returned.
