Product Details:
|
| Name: | Ip66 Led Floodlights | Light Efficiency: | 130lm/W |
|---|---|---|---|
| Surge Protection: | 4KV | Beam Angle: | 120° |
| Color: | 3000k, 4500k, 6500k | Driver: | Constant Current Driver |
| High Light: | led flood light SMD3030 100w ip66,SMD3030 100w ip66 led flood light,led flood light 100w ip66 SMD3030 |
||

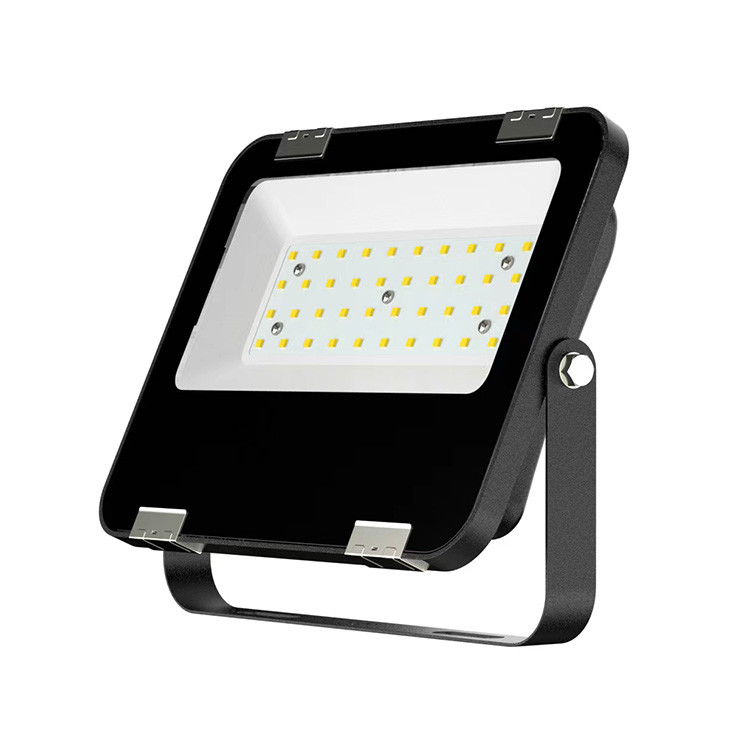

Waterproof IP66 Led Floodlights Ultra Slim SMD3030 for Yards Gateways
Descriptions of IP66 LED Floodlights:
The IP66 LED Floodlights is ultra slim appearance for outdoor project lighting. The casing is die casting aluminum with anti-pressure, high-strength, and anti-corrosion, and the cover is tempered glass. It takes the constant current driver AC solution. It is widely used in hotel, home, gallery, stair, yard, road, street, door, room, parking, gallery, gateway, walkway etc.
The customization is welcome for the different wattages!
Firgure of IP66 LED Floodlights:
1. Tempered glass strudy and durable.
2. Waterproof silicon ring.
3. Nano-plastic reflector against the high temperature and UV,long use and never yellowing.
4. SMD3030 LED, high light efficiency and lighting to further.
5. Aluminum base with high thermal conductivity,and faster heat running.
6. High-quality and famous brand driver: Meanwell,Sosen etc.
7. ADC12 die-casting aluminum radiator, efficiency up to 96W/M.K.
8. Strong support and strong installation.
Parameters of IP66 LED Floodlights:
| Product Name | IP66 LED Floodlights WS | ||
| Part No. | SU-WS30 | SU-WS50 | SU-WS100 |
| Input Voltage | AC85-265V, 50/60Hz | ||
| Rated Power | 30W | 50W | 100W |
| Light Source | SMD3030 | ||
| Light Efficiency | 130lm/W | ||
| CCT | 2700k, 3000k, 4500k, 5000k, 6500k | ||
| Product Size (mm) | L223xW181xH35 | L253xW211xH35 | L284xW241xH40 |
| Driver | Constant Current Isolated Driver | ||
| Body Material | ADC12 Die casting Aluminum | ||
| Cover Material | Tempered Glass | ||
| CRI | >80 | ||
| PF | >0.9 | ||
| Housing Color | Black, Grey | ||
| Surge Protection | 4KV | ||
| Beam Angle | 60° / 120° | ||
| Class Protection | IK08, IP66 | ||
| Working Temperature | -30 ~ 50 Deg. | ||
| Life Span | 50,000H | ||
Dimensions of IP66 LED Floodlights:
Optical Lens 60 and 120 degree available
Installations of IP66 LED Floodlights:
