Product Details:
|
| Name: | Dimmable Led Flood Light | Light Source: | SMD3030 OSRAM |
|---|---|---|---|
| Dimmable Mode: | 0-10V, DALI | Light Efficiency: | 130lm/W |
| Support Sensor: | Yes | CCT: | 2700, 3000k, 4500k, 6500k |
| Lifespan: | 50000H | Installation: | Surface, Ceiling, Mounting, Ground |
| High Light: | 200w dimmable led flood light SMD3030,SMD3030 led flood light 200w dimmable,SMD3030 150w dimmable outdoor led flood lights |
||

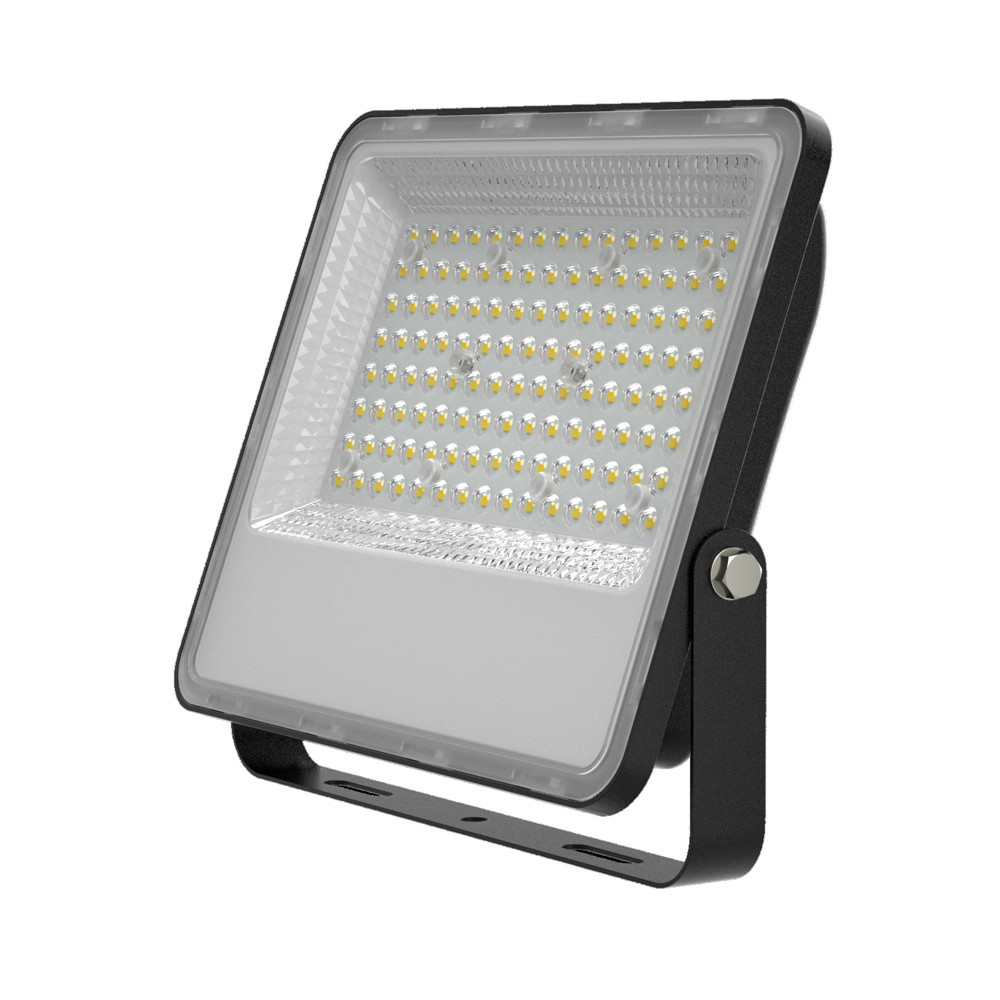

Smart Dimmable Led Flood Light 30w 50w 100w 150w 200w with 60 Degree
Quick details of dimmable LED flood light:
1. Lumen index: 19500lm.
2. 180PCS super bright LED chip SMD3030 light source.
3. Input work voltage: AC85-265V, DC12V, DC24V, DC36V, DC48V available.
4. Optional color temperature: normal 3000K, 4500K, 6500K, 7000K+ and customised color.
5. Available wattages: 30w, 50w, 100w, 150w and 200w.
6. Material: die casting aluminum and optical PC lens
7. Optional narrow beam angle 60 degree and wide beam angle 120 degree.
8. Various smart serier: 0-10V, Dali dimmer, pir motion sensor, radar sensor, photocel sensor, DMX512 and remote control.
Descriptions of dimmable LED flood light:
The dimmable led flood light is a new design in 2022, adopting high-density aluminum as main material, and the cover is thick tempered glass. The lamp can be waterproof, weatherproof, corrosion-proof, shock-proof, press-proof, so there are wide applications such as indoor supermarket, exhibition, cinema, meeting hall, warehouse, and outdoor sport fields, entrance, walkway, bridge, park, gallery, street. The driver is built-in, PF>0.9, with high-efficiency work.
Welcome to OEM, ODM!
Product Parameters of dimmable LED flood light:
| Product Name | dimmable LED Flood Light | ||
| SKU | SU-WS100 | SU-WS150 | SU-WS200 |
| Input Voltage | AC85-265V, 50/60Hz | ||
| Rated Power | 100W | 150W | 200W |
| Light Source | SMD3030 | ||
| Light Efficiency | 130lm/W | ||
| CCT | 2700k, 3000k, 4500k, 5000k, 6500k | ||
| Product Size (mm) | L284xW241xH40 | L314xW272xH43 | L344xW301xH43 |
| Driver | Constant Current Isolated Driver | ||
| Body Material | ADC12 Aluminum | ||
| Cover Material | Tempered Glass | ||
| CRI | >80 | ||
| PF | >0.9 | ||
| Housing Color | Black, Grey | ||
| Surge Protection | 4KV | ||
| Beam Angle | 60° | ||
| Class Protection | IK08, IP66 | ||
| Working Temperature: | -30 ~ 50 Deg. | ||
| Life Span | 50,000H | ||
| Warranty | 3 Years | ||
| Application | Sports Stadiums, yard, garden, street, wall lighting | ||
Product figure of dimmable LED flood light:
1. Optical PC lens against yellowing.
2. Waterproof silicon ring.
3. Nano-plastic reflector against the high temperature and UV.long use and never yellowing.
4. SMD3030 LED.high light officiency and lighting to further.
5. Aluminum base with high thermal conductivity,and faster heat running.
6. High-quality and famous brand driver:Meanwell.Sosen etc.
7. ADC12 dle-casting aluminum radiator,effidency up to 96W/M.K.
8. Strong support and strong installation.
Dimensions of dimmable LED flood light:
Optical Lens 60 and 120 degree available of dimmable LED flood light:
Installations of dimmable LED flood light:
