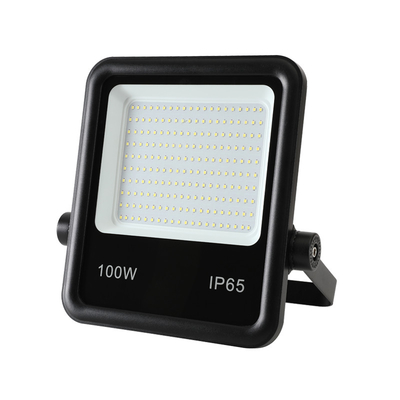

IP65 Led Floodlight Outdoor Lighting Device 300w 200w 100w 50w 30w High Density Aluminum

Product Details:
Place of Origin: Shenzhen, China
Brand Name: SUNRISE
Certification: CE, RoHS, FCC
Model Number: SU-DK100
Payment & Shipping Terms:
Minimum Order Quantity: 50
Price: Negotiated
Packaging Details: Normal box or customization
Delivery Time: 8-15 days
Payment Terms: D/P, Western Union, MoneyGram
Supply Ability: 30000pcs/month

Detail Information

Material: Aluminum Alloy Efficiency: 130lm/W
Working Humidity: 10%-90% Power: 20W-300W
Color Temperature: 3000K-6000K Work Temperature: -20 ~ 50℃

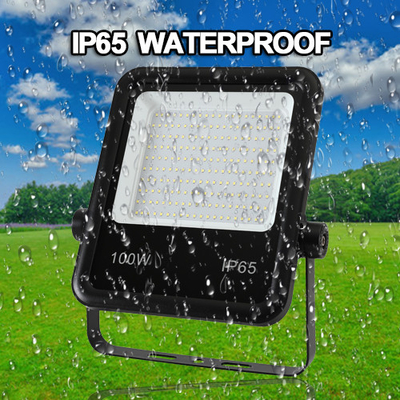

IP Rating: IP65 Waterproof
High Light:

High Density IP65 LED Floodlight

,

Aluminum IP65 LED Floodlight

,

FCC Outdoor LED Flood Lights

Product Description

High Density Aluminum IP65 LED Floodlight for Outdoor Lighting Devices

Product Description:

► 2 KINDS OF GLASS AVAILABLE - In order to provide different application lighting requests, Sunrise DK LED flood light offeres 2 kinds of different tempered glass: transparent glass and frosted glass.



► 2 BEAM ANGLES, NARROW + WIDE - 90º and 120º, more flexible beam angle lighting. When choosing 90º, it means the angle is narrow spot lighting. The light ray spreads more far than 120º. But when choosing 120º, it means the angle is wide flood lighting. The light ray spreads widely. Different angles can have different lighting results.

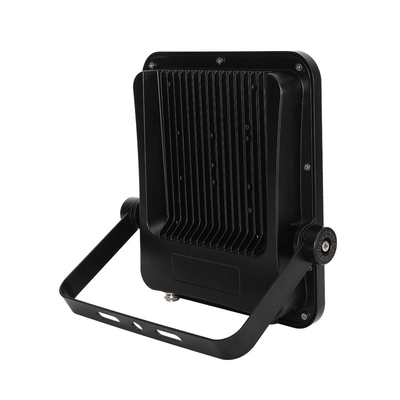

► AVIATION DIECASTING ALUMINUM, BETTER HEAT SINKING - High density and thick aviation aluminum 6063, faster heat sinking, Sunrise outdoor LED flood light is treated with graphene coating, which has better thermal conductivity and stronger weather resistance, heavy weight, efficient heat dissipation, and extended service life. This outdoor light also comes with a thickened metal bracket and a 39.37 inch cable, easy installation, more stable.



► SMART FUNCTIONS AVAILABLE - Based perfect performance, the LED flood light can be considered to produce smart functions: 0-10 dimming, Dali dimming, PIR motion sensor, radar sensor, mirowave sensor, or daylight / photocell sensor, DMX512 etc.



► HIGH LUMEN LED SOURCE - Because of those excellent materials, DK LED flood light is regarded as high quality project model, so it must have super bright brand SMD 2835 or 3030 150PCS LEDs as light source to meet high light luminous efficiency 150lm/W and keep long life span as well.



► HIGH-POWERED DRIVER - DK LED flood light adopts constant current driver with stable performance and circuit protection, able to meet power factor 0.9, perfectly meeting full load power.



► FREE REPLACEMENT, EASY INSTALLATION - DK LED flood lights offer warranty 5 years. During this period, any product problem can be replaced freely. The lamp is very easy installation, 2 expansion scres just.



Applications:

Outdoor LED floodlights offer a powerful and reliable solution for outdoor lighting, and SUNRISE's SU-DK100 is one of the most efficient models available today. This device is designed and manufactured in Shenzhen, China, and it is capable of providing up to 300W of power with an IP65 rating, making it weather resistant and suitable for a variety of outdoor lighting applications. The SU-DK100 has a 3 year warranty, and the color temperature can be adjusted from 3000K-6000K to meet the user's preference. The device also has a working humidity range of 10%-90%, making it ideal for any environment. This high-quality outdoor LED floodlight from SUNRISE is the perfect choice for outdoor lighting.



Technical Parameters:

IP65 Led Floodlight Outdoor Lighting Device 300w 200w 100w 50w 30w High Density Aluminum 0

Product Feature Specifications
Model SU-DK100
Work Voltage 85-265VAC, 50/60Hz
Luminous Flux 15000 Lumens
Product Size 288x246x53mm
LED Type SMD 2835 or 3030 (Brand LEDs is available)
CRI >0.80
PF >0.9
Material Aluminum Alloy
Surge Protection 6KV
Installation Wall Mounted
Power 20W-300W optional
Beam Angle 120° or 90°
Warranty 3 Years
Working Temperature -20℃-50℃
Color Temperature 3000K-6500K
IP Rating IP65 waterproof
Working Humidity 10%-90%



IP65 Led Floodlight Outdoor Lighting Device 300w 200w 100w 50w 30w High Density Aluminum 1IP65 Led Floodlight Outdoor Lighting Device 300w 200w 100w 50w 30w High Density Aluminum 2

IP65 Led Floodlight Outdoor Lighting Device 300w 200w 100w 50w 30w High Density Aluminum 3

IP65 Led Floodlight Outdoor Lighting Device 300w 200w 100w 50w 30w High Density Aluminum 4

IP65 Led Floodlight Outdoor Lighting Device 300w 200w 100w 50w 30w High Density Aluminum 5IP65 Led Floodlight Outdoor Lighting Device 300w 200w 100w 50w 30w High Density Aluminum 6IP65 Led Floodlight Outdoor Lighting Device 300w 200w 100w 50w 30w High Density Aluminum 7

Support and Services:

We provide technical support and service for our Outdoor LED Flood Lights. Our team of experts are available to answer any questions you have about our products and to provide assistance with installation, troubleshooting and maintenance.

We offer a comprehensive warranty that covers any defects in materials or workmanship that may occur during the warranty period. We also have a network of service technicians to provide onsite repair or replacement services in the event of a failure.

We also have a robust customer service team available to provide assistance via phone, email or live chat. Our team is here to help you with any issues or questions related to your Outdoor LED Flood Lights.



Packing and Shipping:

Packaging and Shipping

Outdoor LED Flood Lights will be securely and properly packaged to ensure safe delivery. They are shipped in protective packaging materials including bubble wrap and shipping boxes. The products are shipped using reliable delivery services such as UPS, FedEx, and DHL as well as sea shipment.



FAQ:

1. Can I buy a sample to test the quality?
SUNRISE: Yes, sample order can be offered, and mixed samples order is welcome.

2. How can we guarantee quality?
SUNRISE: All raw materials must be checked before stocking and finished products must have been tested and aged. Finally packed. Product is guaranteed 5 years. If any faulty, we will replace or refund.

3. How to ship the goods?
SUNRISE: It depends on your choice and cargo's volumn. If you have logistic agent in China mainland. We have DHL, UPS, Fedex, TNT or air shipment and sea shipment.

4. What about the leadtime?
SUNRISE: Sample order is only 3-8 days. Bulk order is 8-15 days for ≤500 units and 15-20 days for ≤2,000 units.

5. Can I have my own requests on this item?
SUNRISE: Yes, certainly. Welcome to OEM, ODM. If you have different requests, please communicate with us, and we will answer you soon.

6. Can this model be DC12V or 48V?
SUNRISE: Yes, sure. But presently we don't have circuit board in stock, so please allow us to design for you. Usually the drawing and sample taks 15-20 days.

7. Can I have frosted glass with 120º beam angle?
SUNRISE: Yes, it's possible. But this solution will have lower luminous efficiency because the transmission of the frosted glass is lower than clear glass.
