Product Details:
|
| Name: | LED Flood Lights | Dimming Support: | Yes |
|---|---|---|---|
| Waterproof Level: | IP66 | Material: | Die Casting Aluminum |
| Light Efficiency: | 130lm/W | Light Source: | SMD3030 OSRAM |
| CCT: | 2700, 3000k, 4500k, 6500k | Installation: | Surface, Ceiling, Mounting, Ground |
| High Light: | SMD3030 Outdoor LED Flood Lights,Outdoor LED Flood Lights 30w IP66,Die Casting Aluminum outside flood lights |
||

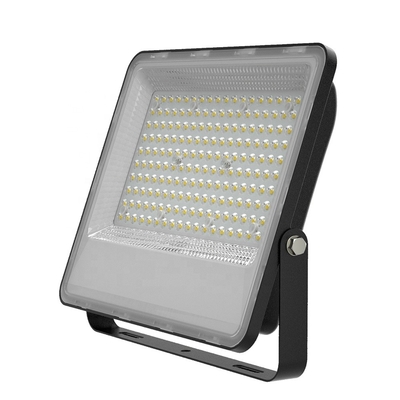

SMD3030 Outdoor LED Flood Lights Reflector 30w IP66 130lm/W
Descriptions
Parameters
| Product Name | Reflector LED 30W IP66 | ||
| SKU | SU-WS30 | SU-WS50 | SU-WS100 |
| Input Voltage | AC85-265V, 50/60Hz | ||
| Rated Power | 30W | 50W | 100W |
| Light Source | SMD 3030 / 2835 Osram | ||
| Light Efficiency | 130lm/W | ||
| CCT | 2700k, 3000k, 4500k, 5000k, 6500k | ||
| Product Size (mm) | L223*W181*H35 | L253*W211*H35 | L284*W241*H40 |
| Driver | Constant Current Isolated Driver | ||
| Body Material | ADC12 Aluminum | ||
| Cover Material | Tempered Glass | ||
| CRI | >80 | ||
| PF | >0.9 | ||
| Housing Color | Black, White | ||
| Surge Protection | 4KV | ||
| Beam Angle | 60° | ||
| Class Protection | IK07, IP66 | ||
| Working Temperature: | -30 ~ 50 Deg. | ||
| Life Span | 50,000H | ||
| Warranty | 3 Years | ||
| Application | garden, yard, wall, stair, shop, door | ||
Key Advantages
• Integral CMS (Sabre 2 & 3 only)
• Choice of mounting options, including post top
• Market-leading efficacy
• Fast payback – can reduce energy by more than 65%
• Choice of five application specific optical distributions – featuring Diamond+
• Choice of control options for further energy savings
• Long lifetime: >50,000H
• 2700k, 3000k, 4500k, 5000k, 6500k
• Suitable for exterior or interior applications
Product Show of Reflector Led 30w IP66:
Product figure of Reflector Led 30w IP66:
1. Optical PC lens against yellowing.
2. Waterproof silicon ring.
3. Nano-plastic reflector against the high temperature and UV, long use and never yellowing.
4. SMD3030 LED high light efficiency and lighting to further.
5. Aluminum base with high thermal conductivity,and faster heat running.
6. High-quality and famous brand driver: Meanwell, sosen etc.
7. ADC12 die-casting aluminum radiator, efficiency up to 96W/M.K.
8. Strong support and strong installation.
Dimensions of Reflector Led 30w IP66:
Optical Lens 60 and 120 degree available of Reflector Led 30w IP66:
Installations of Reflector Led 30w IP66:
Frequent Questions of Reflector Led 30w IP66:
1. Can I have 1pc sample to test firstly?
Re: Yes, 1pc sample can be offered, and mixed samples are welcome.
2. Do you have customised service like box, logo?
Re: Yes, we accept OEM or ODM. You please tell us your idea, and we will give you a solution.
3. Can you do WHITE body for this model?
Re: Yes, we can. This model has White and Black body for your options.
4. How long can I get my package?
Re: 1pc could be got about 1 week.
5. Can this led reflector led 30w dimmable?
Re: Yes, this model can make dimmable such as 0-10V, Dali dimming etc. Please contact us for details!
6. Can you do colorful box?
Re: Yes, certainly. Colorful box and brown paper are possible.
7. Does this reflector led 30w include any driver?
Re: Yes, absolutely. This lamp includes constant-current isolated driver, PF>0.9 and warranty 3 years. Other brand driver is available.
8. How can you guarantee the quality?
Re: All raw materials must be checked before stocking and the finished products must have been tested and aged. Finally packed. If unfornately any fault happend, we will replace.
