Product Details:
|
| Name: | Led Flood Reflector | Support Dimming: | Yes |
|---|---|---|---|
| Warranty: | 5 Years | Usage: | Street, Stadium Sport Fields |
| Angle: | 60°, 90°, 120° | Surge Protection: | 6KV |
| IP Rating: | IP66 Waterproof | LED Chip: | SMD 3030 |
| High Light: | SMD 3030 Industrial LED Floodlights,industrial flood lights outdoor SMD 3030,200W industrial floodlight |
||

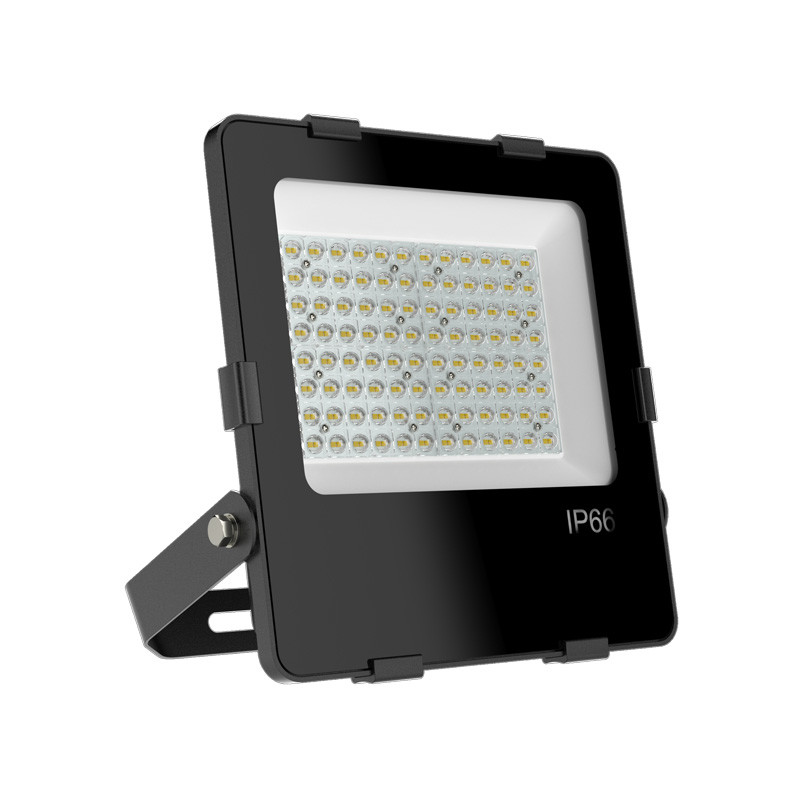

Factory Best Price Led Flood Reflector 200W SMD 3030 Outdoor IP66 In Shen Zhen
Quick details of Led Flood Reflector:
1. Product type: Flood Lights.
2. Model: SU-BJG200.
3. Rated power: 200W.
4. Luminous flux: 24000lm.
5. Light efficiency: 120lm/W.
7. Dimension: L351*W361*H63mm.
8. Light source: Lumileds SMD 3030 super bright LED chips, Optional wattages: 30 watt, 50 watt, 100 watt, 150 watt and 200 watt.
10. Driver mode: Constant current isolated driver.
11. IP rating: IP66 waterproof.
12. Beam angle: 60°, 90°, 120°.
13. Body material: die-casting aluminum.
14. Cover material: tempered glass.
15. Packing: 5PCS/ctn or customised box.
16. Warranty: 3-5 years.
17. Smart function available for 0-10V, Dali dimming, PIR / radar / microwave / photocell / light sensor, and DMX512 etc.
18. Driver brand can be choosed.
Descriptions of Led Flood Reflector:
The sports floodlight is the newest and high-end design with simple and classical appearance for outdoor industrial and commercial project high lumen waterproof lighting. The housing is pure die-casting aluminum ADC12# with anti-pressure, high-strength, anti-corrosion, and thick tempered glass cover. waterproof protection IP66. It adopts constant-current isolated driver AC solution. This product is full power with stablility and high light efficiency. It is widely used in hotel, home, gallery, stair, yard, road, street, door, room, yard, parking, car warehouse etc.
Customization is served for the different wattages!
| Product Name | LED Flood Reflector | ||
| Part No. | SU-BJG100 | SU-BJG150 | SU-BJG200 |
| Input Voltage | AC85-265V, 50/60Hz | ||
| Rated Power | 100W | 150W | 200W |
| Light Source | SMD3030 Lumileds | ||
| Light Efficiency | 120lm/W | ||
| CCT | 2700K, 3000K, 4000K, 5000K, 6500K | ||
| Product Size (mm) | L281*W291*H50 | L321*W331*H63 | L351*W361*H63 |
| Driver | Constant Current Isolated Driver | ||
| Body Material | ADC12 Aluminum | ||
| Cover Material | Thickened Tempered Glass | ||
| CRI | >80 | ||
| PF | >0.9 | ||
| Housing Color | Black | ||
| Surge Protection | 6KV | ||
| Beam Angle | 60°, 90°, 120° | ||
| Class Protection | IK08, IP66 | ||
| Working Temperature | -40 ~ 50 Deg. | ||
| Parking | 10 PCS/ctn | 5 PCS/ctn | 5 PCS/ctn |
| Lifespan | 50,000H | ||
| Carton Size | 65*32*37.5cm | 38*36.5*41.5cm | 39.5*38*43.5cm |

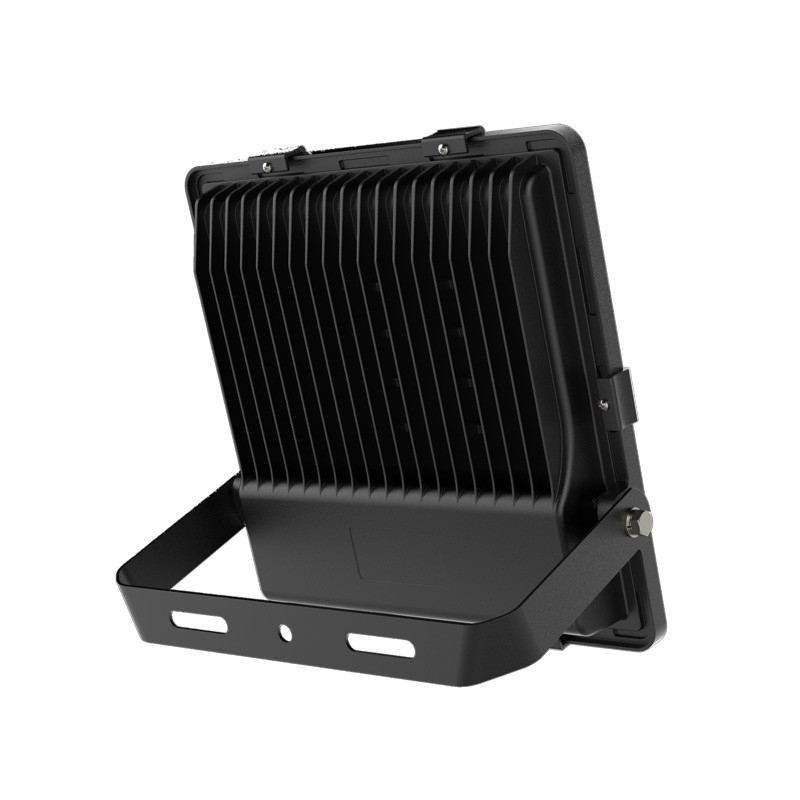

Details Show of Led Flood Reflector:
Dimensions of Led Flood Reflector:
Structure of Led Flood Reflector:
1. Tempered Glass Cover.
2. Waterproof Silicon Sealing Stripe.
3. Nano Plastic Reflector.
4. Optical PC Len against UV, Permanent Use Without Getting Yellow, High Temperature Assistance, No Deformation.
5. Suitable for SMD3030 LEDs, Higher Light Efficiency. is Available.
6. High-qualitied Aluminium PCB with High Heat Conduction, Faster Heat Cooling.
7. Able to work with MeanWell, SOSEN Brand Driver.
8. ADC12 Die-casting Aluminium Radiator, 96W/M.K
Lens 60 degree, 90 degree and 120 degree available of Led Flood Reflector:
Installations of Led Flood Reflector:
Applications of Led Flood Reflector:
- Indoor lighting: factory, workshop, warehouse, exhibition, showroom, gallery, stair, station.
- Outdoor lighting: garden, park, door, sign, street, road, stadium sport field, wharf, construction site, mineral estate.
Frequent Asked Questions of Led Flood Reflector:
1. Can I have 1 sample to test before bulk quantity?
Re: Yes, 1 sample can be offered, and mixed order is welcome.
2. What brand of chip do you use?
Re: We use SMD3030 LED chip with high lumen 120lm/W.
3. Can I have special color like 2200K or 2500K for sample?
Re: Yes, sure. But the colors need to be customised, so it will take 3-5 days to finish.
4. Can I have fixed driver for the LED flood reflector?
Re: Yes, that's possible. Please tell us your required driver brand! We can offer 3-5 years guarantee.
5. Can you make my logo on the glass and the box as private?
Re: Yes, we accept the customisation service. Please send us your logo diagram!
6. How long will the lead time take?
Re: Normally the leadtime takes 5-10 days. For exact data, it depends on the ordering quantity.
7. How to deal with the faulty?
Re: First of all, we ensure all of raw materials have been tested before stocking and products must have strict test and aged before shipping till good-working. If unfortunately any faulty happend, we will replace or refund.
