|Name:||High Intensity Led Flood Light||Usage:||Street, Stadium Sport Fields|
|Angle:||60°, 90°, 120°||Warranty:||5 Years|
|Surge Protection:||6KV||IP Rating:||IP66 Waterproof|
|Support Dimming:||Yes||LED Chip:||Philips SMD 3030|
Industrial LED Floodlights Lumiled,
120lm/ W high intensity led flood light,
SMD 3030 industrial flood lights

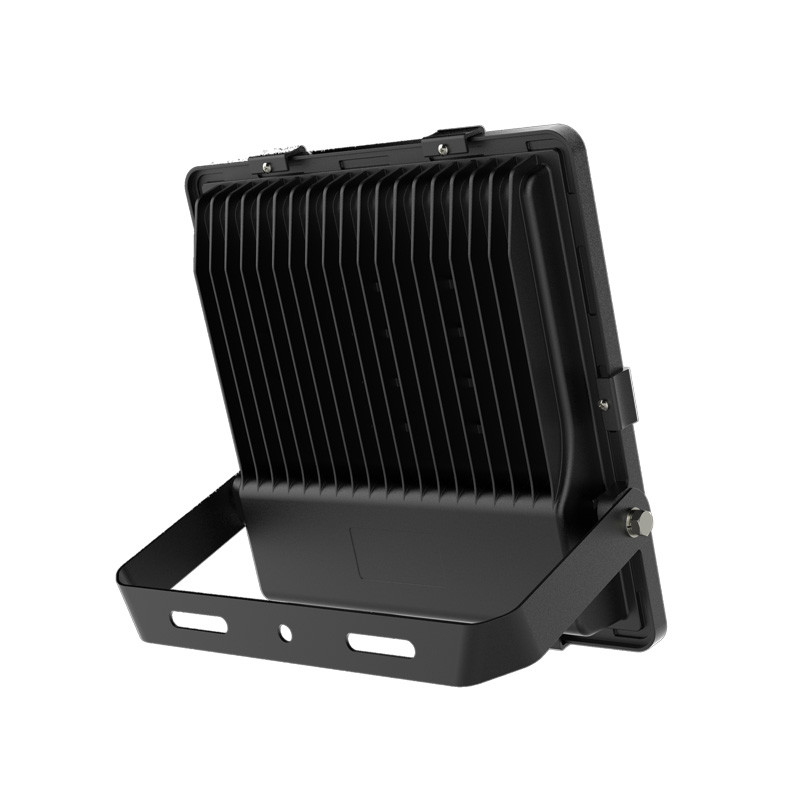

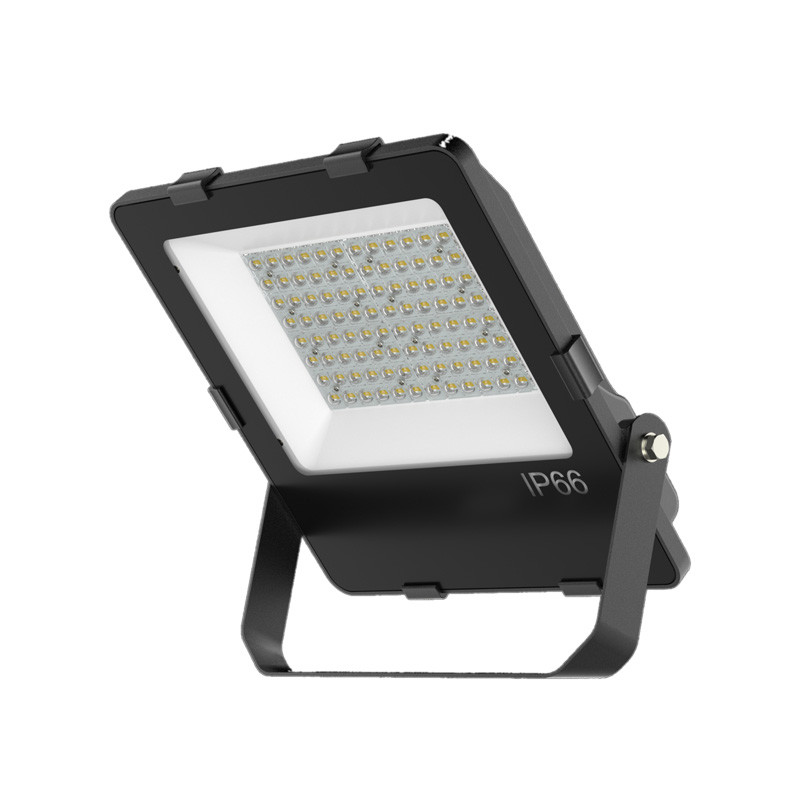

Indoor Outdoor Sports Floodlight LED Bulb Light Lumiled SMD 3030 Chip
Quick details of Sports Floodlight:
1. Product type: Floodlights.
2. Model: SU-BJG150.
3. Rated power: 150W.
4. Luminous flux: 18000lm.
5. Light efficiency: 120lm/W.
7. Dimension: 321x331x63mm.
8. Light source: Philips Lumileds SMD 3030 super bright LED chips.
9. Optional wattages: 30 watt, 50 watt, 100 watt, 150 watt and 200 watt.
10. Driver mode: Constant current isolated driver.
11. IP rating: IP66 waterproof.
12. Beam angle: 60°, 90°, 120°.
13. Body material: die-casting aluminum.
14. Cover material: tempered glass.
15. Packing: 5PCS/ctn or customised box.
16. Warranty: 3-5 years.
17. Smart function available for 0-10V, Dali dimming, PIR / radar / microwave / photocell / light sensor, and DMX512 etc.
18. Driver brand can be choosed.
Descriptions of Sports Floodlight:
The sports floodlight is the newest and high-end design with simple and classical appearance for outdoor industrial and commercial project high lumen waterproof lighting. The housing is pure die-casting aluminum ADC12# with anti-pressure, high-strength, anti-corrosion, and thick tempered glass cover. waterproof protection IP66. It adopts constant-current isolated driver AC solution. This product is full power with stablility and high light efficiency. It is widely used in hotel, home, gallery, stair, yard, road, street, door, room, yard, parking, car warehouse etc.
Customization is served for the different wattages!
|Product Name||Sports Floodlight|
|Input Voltage||AC85-265V, 50/60Hz|
|Light Source||SMD3030 Lumileds|
|CCT||2700K, 3000K, 4000K, 5000K, 6500K|
|Product Size (mm)||L254*W237*H51||L281*W291*H50||L321*W331*H63|
|Driver||Constant Current Isolated Driver|
|Body Material||ADC12 Aluminum|
|Cover Material||Thickened Tempered Glass|
|Beam Angle||60°, 90°, 120°|
|Class Protection||IK08, IP66|
|Working Temperature||-40 ~ 50 Deg.|
|Parking||15 PCS/ctn||10 PCS/ctn||5 PCS/ctn|
Details Show of Sports Floodlight:
Dimensions of Sports Floodlight:
Structure of Sports Floodlight:
1. Tempered Glass Cover.
2. Waterproof Silicon Sealing Stripe.
3. Nano Plastic Reflector.
4. Optical PC Len against UV, Permanent Use Without Getting Yellow, High Temperature Assistance, No Deformation.
5. Suitable for SMD3030 LEDs, Higher Light Efficiency. Philips is Available.
6. High-qualitied Aluminium PCB with High Heat Conduction, Faster Heat Cooling.
7. Able to work with MeanWell, SOSEN Brand Driver.
8. ADC12 Die-casting Aluminium Radiator, 96W/M.K
Lens 60 degree, 90 degree and 120 degree available of Sports Floodlight:
Installations of Sports Floodlight:
Applications of Sports Floodlight:
- Indoor lighting: factory, workshop, warehouse, exhibition, showroom, gallery, stair, station.
- Outdoor lighting: garden, park, door, sign, street, road, stadium sport field, wharf, construction site, mineral estate.
Frequent Asked Questions of Sports Floodlight:
1. Can I have 1 sample to test before bulk quantity?
Re: Yes, 1 sample can be offered, and mixed order is welcome.
2. What brand of chip do you use?
Re: We use lumileds SMD3030 LED chip with high lumen 120lm/W.
3. Can I have special color like 2200K or 2500K for sample?
Re: Yes, sure. But the colors need to be customised, so it will take 3-5 days to finish.
4. Can I have fixed driver for the sports floodlight?
Re: Yes, that's possible. Please tell us your required driver brand! We can offer 3-5 years guarantee.
5. Can you make my logo on the glass and the box as private?
Re: Yes, we accept the customisation service. Please send us your logo diagram!
6. If I order 500pcs, how long will the lead time take?
Re: Normally 500pcs will take 10-15 days. If you have other additional requirements, then we will check the leadtime for you soon.
7. How to deal with the faulty?
Re: First of all, we ensure all of raw materials have been tested before stocking and products must have strict test and aged before shipping till good-working. If unfortunately any faulty happend, we will replace or refund.
