150 Watts Dali Dimmable Industrial LED Floodlights Dustproof With Memory Function

Minimum Order Quantity : 50 PCS Price : Negotiation
Packaging Details : normal carton or customised Delivery Time : 8-15 days
Payment Terms : T/T, Western Union, MoneyGram Supply Ability : 10000pcs/months
Place of Origin: Shen Zhen, China Brand Name: SUNRISE
Certification: CE ROHS Model Number: SU-BJG150

Detail Information

Name: Dali Dimmable Led Lamp Warranty: 5 Years
Usage: Street, Stadium Sport Fields Surge Protection: 6KV
IP Rating: IP66 Waterproof Body Color: Black
LED Chip: SMD 3030 Angle: 60°, 90°, 120°
High Light:

Dali dimmable flood lights

,

150 Watts dimmable led floodlight

,

Industrial LED Floodlights dustproof

Product Description

150 Watts Dali Dimmable Led Lamp Outdoor Lights With Memory Function

Quick details of Dali Dimmable Led Lamp:
1. Product type: Floodlights.
2. Model: SU-BJG150.
3. Rated power: 150W.
4. Luminous flux: 18000lm.
5. Light efficiency: 120lm/W.
7. Dimension: 321x331x63mm.
8. Light source: Lumileds SMD 3030 super bright LED chips.
9. Optional wattages: 30 watt, 50 watt, 100 watt, 150 watt and 200 watt.
10. Driver mode: Constant current isolated driver.
11. IP rating: IP66 waterproof.
12. Beam angle: 60°, 90°, 120°.
13. Body material: die-casting aluminum.
14. Cover material: tempered glass.
15. Packing: 5PCS/ctn or customised box.
16. Warranty: 3-5 years.
17. Smart function available for 0-10V, Dali dimming, PIR / radar / microwave / photocell / light sensor, and DMX512 etc.
18. Driver brand can be choosed.

Descriptions of
Dali Dimmable Led Lamp:

 The dali dimmable led lamp is the newest and high-end design with simple and classical appearance for outdoor industrial and commercial project high lumen waterproof lighting. The housing is pure die-casting aluminum ADC12# with anti-pressure, high-strength, anti-corrosion, and thick tempered glass cover. waterproof protection IP66. It adopts constant-current isolated driver AC solution. This product is full power with stablility and high light efficiency. It is widely used in hotel, home, gallery, stair, yard, road, street, door, room, yard, parking, car warehouse etc.
     Customization is served for the different wattages!


Specifications of Dali Dimmable Led Lamp:
Product Name Dali Dimmable Led Lamp
Part No. SU-BJG50 SU-BJG100 SU-BJG150
Input Voltage AC85-265V, 50/60Hz
Rated Power 50W 100W 150W
Light Source SMD3030 Lumileds
Light Efficiency 120lm/W
CCT 2700K, 3000K, 4000K, 5000K, 6500K
Product Size (mm) L254*W237*H51 L281*W291*H50 L321*W331*H63
Driver Constant Current Isolated Driver
Body Material ADC12 Aluminum
Cover Material Thickened Tempered Glass
CRI >80
PF >0.9
Housing Color Black
Surge Protection 6KV
Beam Angle 60°, 90°, 120°
Class Protection IK08, IP66
Working Temperature -40 ~ 50 Deg.
Parking 15 PCS/ctn 10 PCS/ctn 5 PCS/ctn
Lifespan 50,000H
Carton Size 78.5*28*30.5cm 65*32*37.5cm 38*36.5*41.5cm


Details Show of
Dali Dimmable Led Lamp:

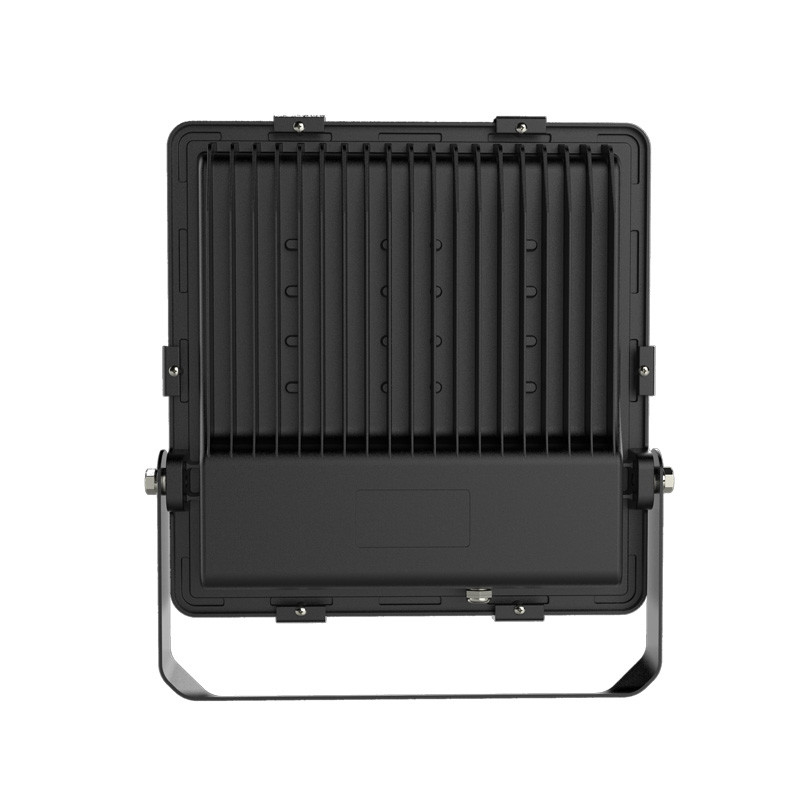

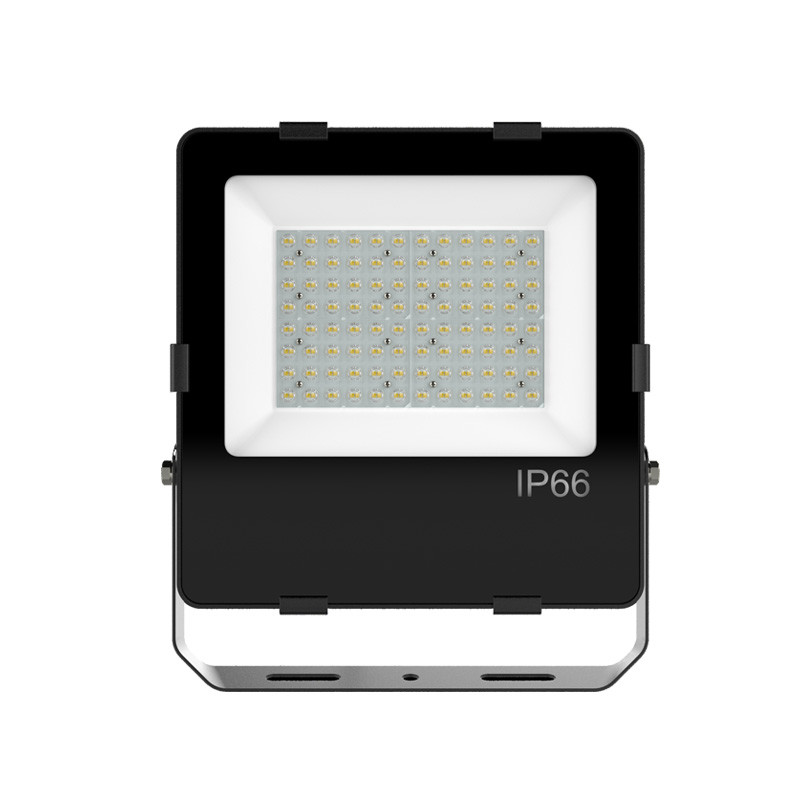

150 Watts Dali Dimmable Industrial LED Floodlights Dustproof With Memory Function 0

 150 Watts Dali Dimmable Industrial LED Floodlights Dustproof With Memory Function 1
Dimensions of Dali Dimmable Led Lamp:
150 Watts Dali Dimmable Industrial LED Floodlights Dustproof With Memory Function 2
150 Watts Dali Dimmable Industrial LED Floodlights Dustproof With Memory Function 3

Structure of
Dali Dimmable Led Lamp:

1. Tempered Glass Cover.
2. Waterproof Silicon Sealing Stripe.
3. Nano Plastic Reflector.
4. Optical PC Len against UV, Permanent Use Without Getting Yellow, High Temperature Assistance, No Deformation.
5. Suitable for SMD3030 LEDs, Higher Light Efficiency. is Available.
6. High-qualitied Aluminium PCB with High Heat Conduction, Faster Heat Cooling.
7. Able to work with MeanWell, SOSEN Brand Driver.
8. ADC12 Die-casting Aluminium Radiator, 96W/M.K
150 Watts Dali Dimmable Industrial LED Floodlights Dustproof With Memory Function 4


Lens 60 degree, 90 degree and 120 degree available of Dali Dimmable Led Lamp:
150 Watts Dali Dimmable Industrial LED Floodlights Dustproof With Memory Function 5

Installations of
Dali Dimmable Led Lamp:
150 Watts Dali Dimmable Industrial LED Floodlights Dustproof With Memory Function 6

Applications of
Dali Dimmable Led Lamp:

- Indoor lighting: factory, workshop, warehouse, exhibition, showroom, gallery, stair, station.

- Outdoor lighting: garden, park, door, sign, street, road, stadium sport field, wharf, construction site, mineral estate.
150 Watts Dali Dimmable Industrial LED Floodlights Dustproof With Memory Function 7

Frequent Asked Questions of
Dali Dimmable Led Lamp:

1. Can I have 1 sample to test before bulk quantity?
   Re: Yes, 1 sample can be offered, and mixed order is welcome.

2. What brand of chip do you use?
   Re: We use lumileds SMD3030 LED chip with high lumen 120lm/W.

3. Can I have special color like 2200K or 2500K for sample?
   Re: Yes, sure. But the colors need to be customised, so it will take 3-5 days to finish.



4. Can I have fixed driver for the dali dimmable led lamp?

   Re: Yes, that's possible. Please tell us your required driver brand! We can offer 3-5 years guarantee.

5. Can you make my logo on the glass and the box as private?
   Re: Yes, we accept the customisation service. Please send us your logo diagram!

6. If I order 500pcs, how long will the lead time take?
   Re: Normally 500pcs will take 10-15 days. If you have other additional requirements, then we will check the leadtime for you soon.

7. How to deal with the faulty?
   Re: First of all, we ensure all of raw materials have been tested before stocking and products must have strict test and aged before shipping till good-working. If unfortunately any faulty happend, we will replace or refund.
