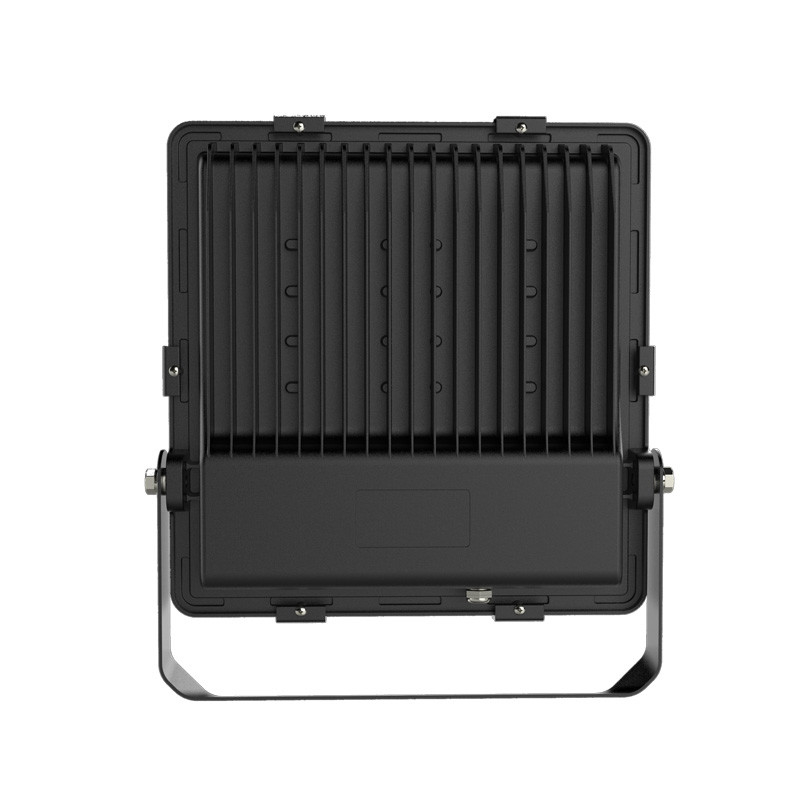

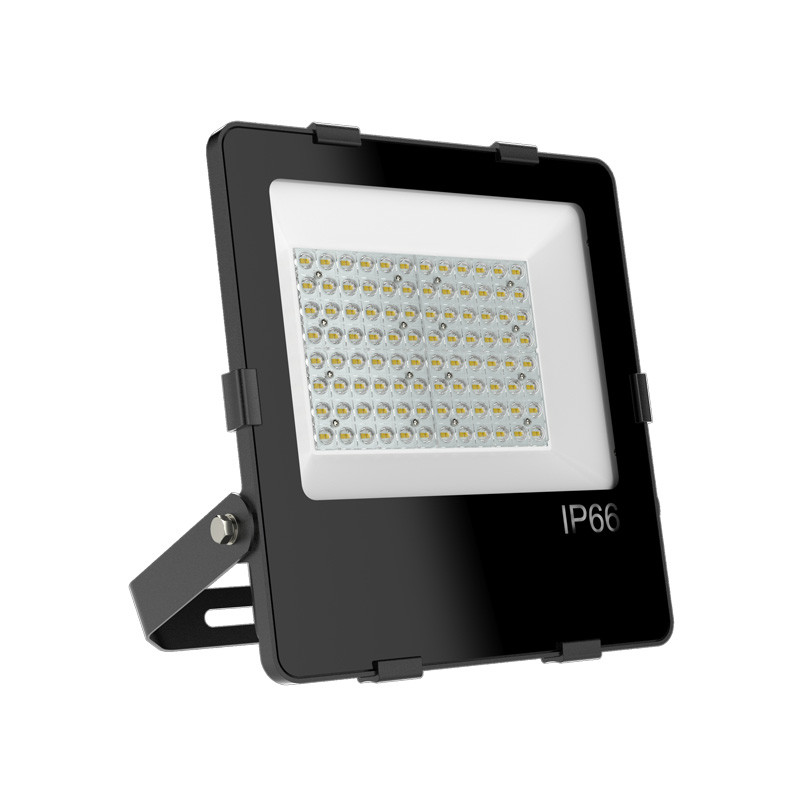

Urban Street Industrial LED Floodlights 150W Diecasting

Certification
China Shenzhen Sunrise Lighting Co.,Ltd. certification
China Shenzhen Sunrise Lighting Co.,Ltd. certification
I'm Online Chat Now

Urban Street Industrial LED Floodlights 150W Diecasting

Urban Street Industrial LED Floodlights 150W Diecasting
Urban Street Industrial LED Floodlights 150W Diecasting Urban Street Industrial LED Floodlights 150W Diecasting

Large Image :  Urban Street Industrial LED Floodlights 150W Diecasting

Product Details:
Place of Origin: Shen Zhen, China
Brand Name: SUNRISE
Certification: CE ROHS
Model Number: SU-BJG150
Payment & Shipping Terms:
Minimum Order Quantity: 50 PCS
Price: Negotiation
Packaging Details: normal carton or customised
Delivery Time: 8-15 days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 10000pcs/months

Urban Street Industrial LED Floodlights 150W Diecasting

Description
Name: 150W Flood Light Warranty: 5 Years
Usage: Street, Stadium Sport Fields Surge Protection: 6KV
IP Rating: IP66 Waterproof Support Dimming: Yes
LED Chip: Philips SMD 3030 Angle: 60°, 90°, 120°
High Light:

Diecasting Industrial LED Floodlights

,

Urban Street 150W Flood Light

,

150w led floodlight Diecasting

Urban Street Lighting 150W Flood Light Lumileds LED Diecasting Aluminum

Quick details of 150W Flood Light:
1. Product type: Floodlights.
2. Model: SU-BJG150.
3. Rated power: 150W.
4. Luminous flux: 18000lm.
5. Light efficiency: 120lm/W.
7. Dimension: 321x331x63mm.
8. Light source: Philips Lumileds SMD 3030 super bright LED chips.
9. Optional wattages: 30 watt, 50 watt, 100 watt, 150 watt and 200 watt.
10. Driver mode: Constant current isolated driver.
11. IP rating: IP66 waterproof.
12. Beam angle: 60°, 90°, 120°.
13. Body material: die-casting aluminum.
14. Cover material: tempered glass.
15. Packing: 5PCS/ctn or customised box.
16. Warranty: 3-5 years.
17. Smart function available for 0-10V, Dali dimming, PIR / radar / microwave / photocell / light sensor, and DMX512 etc.
18. Driver brand can be choosed.

Descriptions of
150W Flood Light:

 The 150w flood lamp is the newest and high-end design with simple and classical appearance for outdoor industrial and commercial project high lumen waterproof lighting. The housing is pure die-casting aluminum ADC12# with anti-pressure, high-strength, anti-corrosion, and thick tempered glass cover. waterproof protection IP66. It adopts constant-current isolated driver AC solution. This product is full power with stablility and high light efficiency. It is widely used in hotel, home, gallery, stair, yard, road, street, door, room, yard, parking, car warehouse etc.
     Customization is served for the different wattages!


Specifications of 150W Flood Light:
Product Name 150W Flood Light
Part No. SU-BJG50 SU-BJG100 SU-BJG150
Input Voltage AC85-265V, 50/60Hz
Rated Power 50W 100W 150W
Light Source SMD3030 Lumileds
Light Efficiency 120lm/W
CCT 2700K, 3000K, 4000K, 5000K, 6500K
Product Size (mm) L254*W237*H51 L281*W291*H50 L321*W331*H63
Driver Constant Current Isolated Driver
Body Material ADC12 Aluminum
Cover Material Thickened Tempered Glass
CRI >80
PF >0.9
Housing Color Black
Surge Protection 6KV
Beam Angle 60°, 90°, 120°
Class Protection IK08, IP66
Working Temperature -40 ~ 50 Deg.
Parking 15 PCS/ctn 10 PCS/ctn 5 PCS/ctn
Lifespan 50,000H
Carton Size 78.5*28*30.5cm 65*32*37.5cm 38*36.5*41.5cm


Details Show of
150W Flood Light:

Urban Street Industrial LED Floodlights 150W Diecasting 0

 Urban Street Industrial LED Floodlights 150W Diecasting 1
Dimensions of 150W Flood Light:
Urban Street Industrial LED Floodlights 150W Diecasting 2
Urban Street Industrial LED Floodlights 150W Diecasting 3

Structure of
150W Flood Light:

1. Tempered Glass Cover.
2. Waterproof Silicon Sealing Stripe.
3. Nano Plastic Reflector.
4. Optical PC Len against UV, Permanent Use Without Getting Yellow, High Temperature Assistance, No Deformation.
5. Suitable for SMD3030 LEDs, Higher Light Efficiency. Philips is Available.
6. High-qualitied Aluminium PCB with High Heat Conduction, Faster Heat Cooling.
7. Able to work with MeanWell, SOSEN Brand Driver.
8. ADC12 Die-casting Aluminium Radiator, 96W/M.K
Urban Street Industrial LED Floodlights 150W Diecasting 4


Lens 60 degree, 90 degree and 120 degree available of 150W Flood Light:
Urban Street Industrial LED Floodlights 150W Diecasting 5

Installations of
150W Flood Light:
Urban Street Industrial LED Floodlights 150W Diecasting 6

Applications of
150W Flood Light:

- Indoor lighting: factory, workshop, warehouse, exhibition, showroom, gallery, stair, station.

- Outdoor lighting: garden, park, door, sign, street, road, stadium sport field, wharf, construction site, mineral estate.
Urban Street Industrial LED Floodlights 150W Diecasting 7

Frequent Asked Questions of
150W Flood Light:

1. Can I have 1 sample to test before bulk quantity?
   Re: Yes, 1 sample can be offered, and mixed order is welcome.

2. What brand of chip do you use?
   Re: We use lumileds SMD3030 LED chip with high lumen 120lm/W.

3. Can I have special color like 2200K or 2500K for sample?
   Re: Yes, sure. But the colors need to be customised, so it will take 3-5 days to finish.



4. Can I have fixed driver for the 150w flood light?

   Re: Yes, that's possible. Please tell us your required driver brand! We can offer 3-5 years guarantee.

5. Can you make my logo on the glass and the box as private?
   Re: Yes, we accept the customisation service. Please send us your logo diagram!

6. If I order 500pcs, how long will the lead time take?
   Re: Normally 500pcs will take 10-15 days. If you have other additional requirements, then we will check the leadtime for you soon.

7. How to deal with the faulty?
   Re: First of all, we ensure all of raw materials have been tested before stocking and products must have strict test and aged before shipping till good-working. If unfortunately any faulty happend, we will replace or refund.
