|Name:||Led Lens Flood Light||Support Dimming:||Yes|
|LED Chip:||Philips SMD 3030||Surge Protection:||6KV|
|Angle:||60°, 90°, 120°||IP Rating:||IP66 Waterproof|
|Usage:||Industrial, Commercial||Warranty:||5 Years|
6KV Led Lens Flood Light,
shockproof lens led flood light,
IP66 Industrial LED Floodlights
5 Years Warranty Philips Led Lens Flood Light 6KV IP66 Waterproof
Quick details of Led Lens Flood Light:
1. Product type: Floodlights.
2. Model: SU-BJG50.
3. Rated power: 50 Watt.
4. Luminous flux: 6000lm.
5. Light efficiency: 120lm/W.
7. Dimension: 254x237x51mm.
8. Light source: Philips Lumileds SMD 3030 super bright LED chips.
9. Optional wattages: 30 watt, 50 watt, 100 watt, 150 watt and 200 watt.
10. Driver mode: Constant current isolated driver.
11. IP rating: IP66 waterproof.
12. Beam angle: 60°, 90°, 120°.
13. Body material: die-casting aluminum.
14. Cover material: tempered glass.
15. Packing: 15PCS/ctn or customised box.
16. Warranty: 3-5 years.
17. Smart function available for 0-10V, Dali dimming, PIR / radar / microwave / photocell / light sensor, and DMX512 etc.
18. Driver brand can be choosed.
Descriptions of Led Lens Flood Light:
The Led Lens LED flood light is the newest and high-end design with simple and classical appearance for outdoor industrial and commercial project high lumen waterproof lighting. The housing is pure die-casting aluminum ADC12# with anti-pressure, high-strength, anti-corrosion, and thick tempered glass cover. waterproof protection IP66. It adopts constant-current isolated driver AC solution. This product is full power with stablility and high light efficiency. It is widely used in hotel, home, gallery, stair, yard, road, street, door, room, yard, parking, car warehouse etc.
Customization is served for the different wattages!
|Product Name||Led Lens flood light|
|Input Voltage||AC85-265V, 50/60Hz|
|Light Source||SMD3030 Lumileds|
|CCT||2700K, 3000K, 4000K, 5000K, 6500K|
|Product Size (mm)||L214*W197*H53||L254*W237*H51||L281*W291*H50|
|Driver||Constant Current Isolated Driver|
|Body Material||ADC12 Aluminum|
|Cover Material||Thickened Tempered Glass|
|Beam Angle||60°, 90°, 120°|
|Class Protection||IK08, IP66|
|Working Temperature||-40 ~ 50 Deg.|
|Parking||20 PCS/ctn||15 PCS/ctn||10 PCS/ctn|

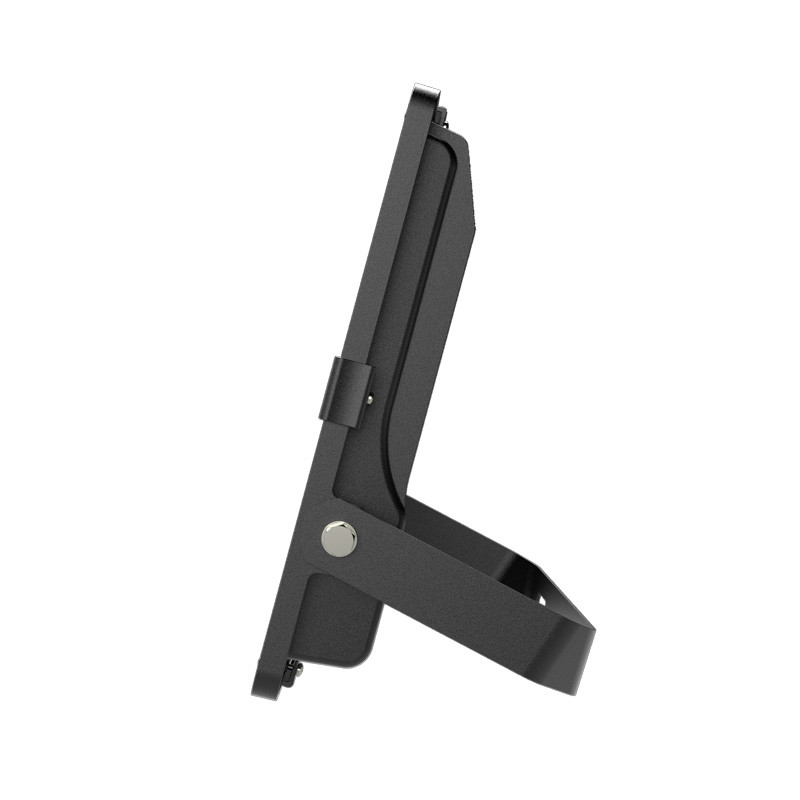

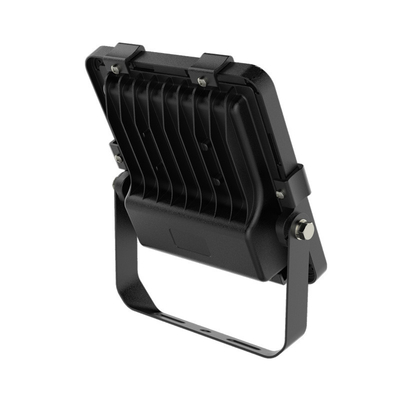

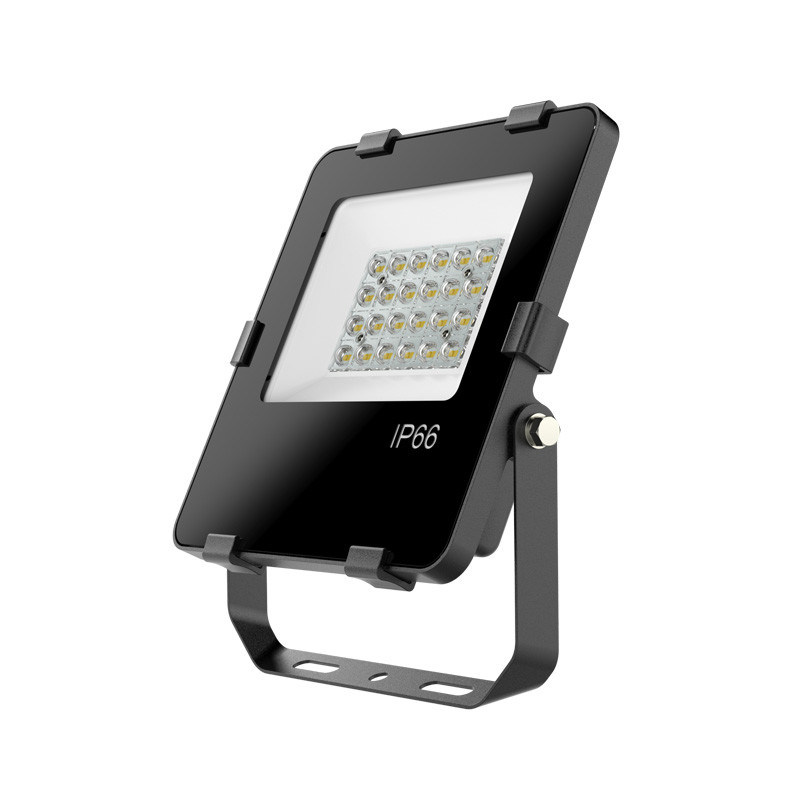

Details Show of Led Lens Flood Light:
Dimensions of Led Lens Flood Light:
Structure of Led Lens Flood Light:
1. Tempered Glass Cover.
2. Waterproof Silicon Sealing Stripe.
3. Nano Plastic Reflector.
4. Optical PC Len against UV, Permanent Use Without Getting Yellow, High Temperature Assistance, No Deformation.
5. Suitable for SMD3030 LEDs, Higher Light Efficiency. Philips is Available.
6. High-qualitied Aluminium PCB with High Heat Conduction, Faster Heat Cooling.
7. Able to work with MeanWell, SOSEN Brand Driver.
8. ADC12 Die-casting Aluminium Radiator, 96W/M.K
Lens 60 degree, 90 degree and 120 degree available of Led Lens Flood Light:
Installations of Led Lens Flood Light:
Applications of Led Lens Flood Light:
- Indoor lighting: factory, workshop, warehouse, exhibition, showroom, gallery, stair, station.
- Outdoor lighting: garden, park, door, sign, street, road, stadium sport field, wharf, construction site, mineral estate.
Frequent Asked Questions of Led Lens Flood Light:
1. Can I have 1 sample to test before bulk quantity?
Re: Yes, 1 sample can be offered, and mixed order is welcome.
2. What brand of chip do you use?
Re: We use lumileds SMD3030 LED chip with high lumen 120lm/W.
3. Can I have special color like 2200K or 2500K for sample?
Re: Yes, sure. But the colors need to be customised, so it will take 3-5 days to finish.
4. Can I have fixed driver for the 0-10V dimmable led flood light?
Re: Yes, that's possible. Please tell us your required driver brand! We can offer 3-5 years guarantee.
5. Can you make my logo on the glass and the box as private?
Re: Yes, we accept the customisation service. Please send us your logo diagram!
6. If I order 500pcs, how long will the lead time take?
Re: Normally 500pcs will take 10-15 days. If you have other additional requirements, then we will check the leadtime for you soon.
7. How to deal with the faulty?
Re: First of all, we ensure all of raw materials have been tested before stocking and products must have strict test and aged before shipping till good-working. If unfortunately any faulty happend, we will replace or refund.
