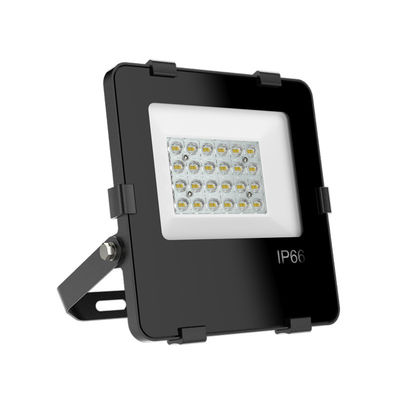

0-10V Dimmable LED Flood Light Outdoor Constant Current Driver CE ROHS

0-10V Dimmable LED Flood Light Outdoor Constant Current Driver CE ROHS
0-10V Dimmable LED Flood Light Outdoor Constant Current Driver CE ROHS

Large Image :  0-10V Dimmable LED Flood Light Outdoor Constant Current Driver CE ROHS

Product Details:
Place of Origin: Shen Zhen, China
Brand Name: SUNRISE
Certification: CE ROHS
Model Number: SU-BJG50
Payment & Shipping Terms:
Minimum Order Quantity: 50 PCS
Price: Negotiation
Packaging Details: normal carton or customised
Delivery Time: 8-15 days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 10000pcs/months

0-10V Dimmable LED Flood Light Outdoor Constant Current Driver CE ROHS

Description
Name: 0-10V Dimmable LED Flood Light Material: Aluminum
Surge Protection: 6KV LED Chip: Lumileds SMD 3030
Angle: 60°, 90°, 120° Color: 6500K, 4000K, 3000K
Usage: Industrial, Commercial Warranty: 5 Years
High Light:

10V Dimmable LED Flood Light

,

10V dim flood lights

,

dimmable flood light outdoor ROHS

0-10V Dimmable LED Flood Light Constant Current Driver 5 Years Warranty

Quick details of 0-10V Dimmable LED Flood Light:
1. Product type: Floodlights.
2. Model: SU-BJG50.
3. Rated power: 50 Watt.
4. Luminous flux: 6000lm.
5. Light efficiency: 120lm/W.
7. Dimension: 254x237x51mm.
8. Light source: Philips Lumileds SMD 3030 super bright LED chips.
9. Optional wattages: 30 watt, 50 watt, 100 watt, 150 watt and 200 watt.
10. Driver mode: Constant current isolated driver.
11. IP rating: IP66 waterproof.
12. Beam angle: 60°, 90°, 120°.
13. Body material: die-casting aluminum.
14. Cover material: tempered glass.
15. Packing: 15PCS/ctn or customised box.
16. Warranty: 3-5 years.
17. Smart function available for 0-10V, Dali dimming, PIR / radar / microwave / photocell / light sensor, and DMX512 etc.
18. Driver brand can be choosed.

Descriptions of
0-10V Dimmable LED Flood Light:

 The 0-10V dimmable LED flood light is the newest and high-end design with simple and classical appearance for outdoor industrial and commercial project high lumen waterproof lighting. The housing is pure die-casting aluminum ADC12# with anti-pressure, high-strength, anti-corrosion, and thick tempered glass cover. waterproof protection IP66. It adopts constant-current isolated driver AC solution. This product is full power with stablility and high light efficiency. It is widely used in hotel, home, gallery, stair, yard, road, street, door, room, yard, parking, car warehouse etc.
     Customization is served for the different wattages!


Parameters of 0-10V Dimmable LED Flood Light:
Product Name 0-10V dimmable led flood light
Part No. SU-BJG30 SU-BJG50 SU-BJG100
Input Voltage AC85-265V, 50/60Hz
Rated Power 30W 50W 100W
Light Source SMD3030 Lumileds
Light Efficiency 120lm/W
CCT 2700K, 3000K, 4000K, 5000K, 6500K
Product Size (mm) L214*W197*H53 L254*W237*H51 L281*W291*H50
Driver Constant Current Isolated Driver
Body Material ADC12 Aluminum
Cover Material Thickened Tempered Glass
CRI >80
PF >0.9
Housing Color Black
Surge Protection 6KV
Beam Angle 60°, 90°, 120°
Class Protection IK08, IP66
Working Temperature -40 ~ 50 Deg.
Parking 20 PCS/ctn 15 PCS/ctn 10 PCS/ctn
Carton Size 67*28*51cm 78.5*28*30.5cm 65*32*37.5cm


Details Show of
0-10V Dimmable LED Flood Light:
0-10V Dimmable LED Flood Light Outdoor Constant Current Driver CE ROHS 0

Dimensions of
0-10V Dimmable LED Flood Light:
0-10V Dimmable LED Flood Light Outdoor Constant Current Driver CE ROHS 1
0-10V Dimmable LED Flood Light Outdoor Constant Current Driver CE ROHS 2

Structure of
0-10V Dimmable LED Flood Light:

1. Tempered Glass Cover.
2. Waterproof Silicon Sealing Stripe.
3. Nano Plastic Reflector.
4. Optical PC Len against UV, Permanent Use Without Getting Yellow, High Temperature Assistance, No Deformation.
5. Suitable for SMD3030 LEDs, Higher Light Efficiency. Philips is Available.
6. High-qualitied Aluminium PCB with High Heat Conduction, Faster Heat Cooling.
7. Able to work with MeanWell, SOSEN Brand Driver.
8. ADC12 Die-casting Aluminium Radiator, 96W/M.K
0-10V Dimmable LED Flood Light Outdoor Constant Current Driver CE ROHS 3


Lens 60 degree, 90 degree and 120 degree available of 0-10V Dimmable LED Flood Light:
0-10V Dimmable LED Flood Light Outdoor Constant Current Driver CE ROHS 4

Installations of
0-10V Dimmable LED Flood Light:
0-10V Dimmable LED Flood Light Outdoor Constant Current Driver CE ROHS 5

Applications of
0-10V Dimmable LED Flood Light:

- Indoor lighting: factory, workshop, warehouse, exhibition, showroom, gallery, stair, station.

- Outdoor lighting: garden, park, door, sign, street, road, stadium sport field, wharf, construction site, mineral estate.
0-10V Dimmable LED Flood Light Outdoor Constant Current Driver CE ROHS 6

Frequent Asked Questions of
0-10V Dimmable LED Flood Light:

1. Can I have 1 sample to test before bulk quantity?
   Re: Yes, 1 sample can be offered, and mixed order is welcome.

2. What brand of chip do you use?
   Re: We use lumileds SMD3030 LED chip with high lumen 120lm/W.

3. Can I have special color like 2200K or 2500K for sample?
   Re: Yes, sure. But the colors need to be customised, so it will take 3-5 days to finish.



4. Can I have fixed driver for the 0-10V dimmable led flood light?

   Re: Yes, that's possible. Please tell us your required driver brand! We can offer 3-5 years guarantee.

5. Can you make my logo on the glass and the box as private?
   Re: Yes, we accept the customisation service. Please send us your logo diagram!

6. If I order 500pcs, how long will the lead time take?
   Re: Normally 500pcs will take 10-15 days. If you have other additional requirements, then we will check the leadtime for you soon.

7. How to deal with the faulty?
   Re: First of all, we ensure all of raw materials have been tested before stocking and products must have strict test and aged before shipping till good-working. If unfortunately any faulty happend, we will replace or refund.
