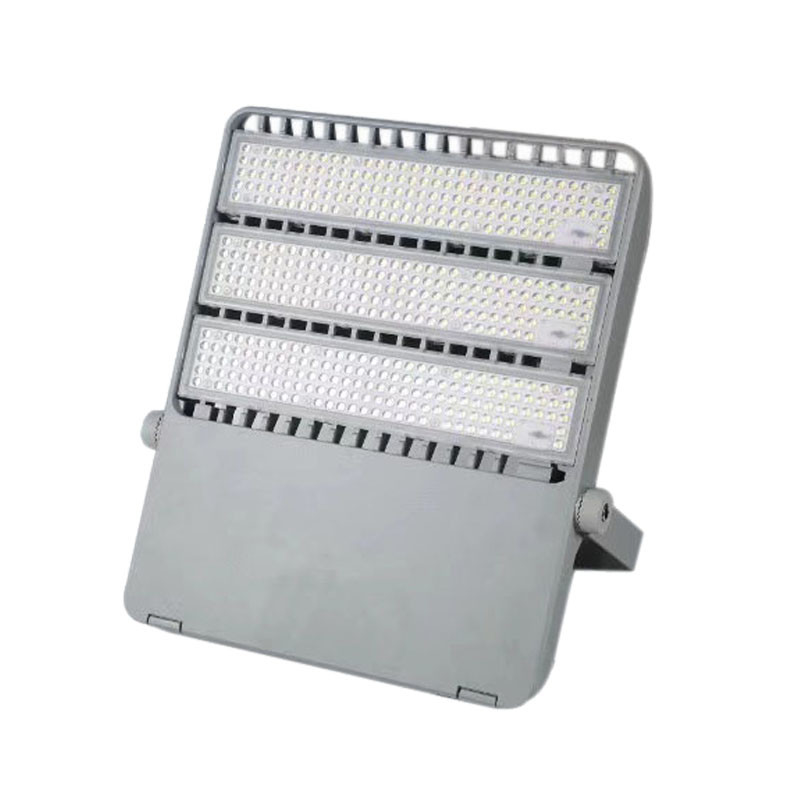

Lumileds Chip SMD LED Floodlight 300 Watt 36000 High Lumens For Sport Fields
Quick details of LED Floodlight 300 Watt:
► Product type: Flood Lights.
► Model: SU-FA300W.
► 36000 lumens for LED Floodlight 300 Watt.
► Product size: L438xW360xH58mm.
► Super bright SMD 3030 Lumileds LEDs chip.
► Beam angle: 90°.
► Smart functions available such as 0-10V dimming, Dali dimming, color temperature dimming, sensor, remote etc.
► Taking a integrated of high-quality ADC12# aluminum, ultra thin appearance and imported optical lens PC cover, 90 degree beam angle for spot lighting.
► model copy with high rate similarity but lower product cost.

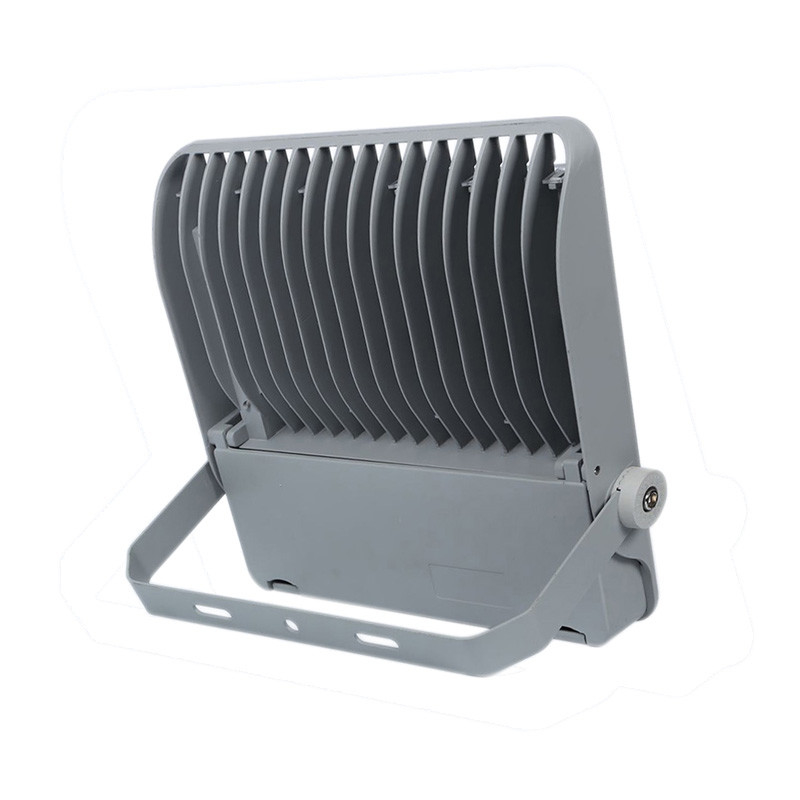

► Backside waving radiating design, beautiful surface structure and fast cross-ventilation to keep longer life span of the lamp. life span 50000H under 35 centigrated use.
Product Descriptions of LED Floodlight 300 Watt:
The LED floodlight 300 watt is copy model of lamp, classical and popular, and with simple and novel appearance for commercial or industrial lighting. Its housing is high-density die-casting aluminum ADC12# with pressure resistance, shock-proof, and corrosion resistance, and high quality imported PMMA PC lens cover against yellowing, dust-proof and waterproof IP65. It adopts constant current isolated high quality waterproof driver. Mean Well driver can be available.
It is widely used for outdoor lighting like street, road, highway, square, plaza, playground, construction site, mineral estates, building, supermarkets etc.
Specifications of LED Floodlight 300 Watt:
| SKU |
SU-FA100W |
SU-FA200W |
SU-FA300W |
| Input Voltage |
85-265V AC ~ 50/60Hz |
| Rated Power |
100 Watts |
200 Watts |
300 Watts |
| Product Size (mm) |
L438 x W248 x H58 |
L438 x W360 x H58 |
L438 x W495 x H65 |
| Light Source |
SMD3030 LEDs ( LED) |
| Driver |
Constant-current, Isolated Driver |
| Light Efficiency |
120lm/W |
| Color Temperature |
2700K, 3000K, 4000K, 6500K |
| Boy Material |
ADC12# Aluminum |
| Optical Glass |
Imported PC cover |
| Surging Protection |
10KV |
| Color Tolorance |
SDCM < 7 |
| Anti-shock Level |
IK08 |
| Wind Protection |
14 levels typhoon |
| Waterproof Protection |
IP65 |
| Body Color |
Grey |
| CRI |
>80 |
| PF |
>0.9 |
| Beam Angle |
90° |
| Work Temperature |
-40 ~ +50 Degree |
| Life Span |
50000H |
| Warranty |
5 Years |
| Application |
Sport field, Street, Wharf, Construction Site, Mineral Estates |
Packing & Delivery of LED Floodlight 300 Watt:
1. 1 piece of 300w gets 1 carton with size 500*590*660mm.
- To better ensure the safety of the goods, it is very important to have professional, environmental, convenient and efficient packaging materials.
Applications of LED Floodlight 300 Watt:
Installations of LED Floodlight 300 Watt:
1. Please take care of the high voltage when installing and using, and please don't exceed the limited Max. voltage value.2.
Please turn off when installation or removal.
3. Please don't take apart the lamp in case it's broken.
Frequent Asked Questions of LED Floodlight 300 Watt:
1. What color wire is the ground offered?
Re: Yellow-green wire is the standard.
2. What type of LED is used in this product?
Re: Lumileds LED chips SMD3030, 120lm/W.
3. How to ship the goods?
Re: There are various transportation services for choices such as by sea, by air or by express (DHL, Fedex, UPS). It could be chosen based on your time and speed.
4. How long can I get my package?
Re: For sample, it only takes 3 days to ship except customised product.
5. Can I only order one sample firstly?
Re: Yes, we are honored if your sample order can be confirmed. And mixed sample order is welcome.
6. Can I have private package?
Re: Yes, we have customization service for package, product and others.
7. How to guarantee the faulty?
Re: All of products must have strictly tested til good-working. If fortunately any faulty will be replaced or refund.
