Product Description
60 Degree Narrow Angle Floodlight White Aluminum For Outdoor Playground
Quick details of Narrow Angle Floodlight:
► Product type: Flood Lights.
► Model: SU-WS200.
► LED qty.: 240 PCS.
► Lumen index: 26000 lumens.
► Light source type: super bright LED chips SMD 3030 osram.
► Input work voltage: AC85-265V, 50/60Hz.
► Optional color temperature: normal 2700K, 3000K, 4500K, 6500K, 7000K+ and customised color.
► Available wattages: 30w, 50w, 100w, 150w and 200w.
► Surge protection: 4KV.
► Shock-proof class: IK07.
► Water-proof class: IP66.
► Material: die casting aluminum and optical PC lens with 60 Deg. and 120 Deg. optional.
► Optional narrow beam angle 60 degree and wide beam angle 120 degree.
► Various smart type: 0-10V dimming, Dali dimmming, pir motion sensor, radar sensor, photocel sensor, microwave sensor, DMX512 and remote control.
Descriptions of Narrow Angle Floodlight:
► 240 LEDs 26000 Lumens
The built-in upgraded 240pcs super bright LED smd chips can make 26000lm high output brightness, which is much more brighter than other light sources.
► Brightness Upgraded
Powered by high-quality 3030 LED chips, increased the number of light beads, better brightness and large illumination.
► Thickened Aluminum
Superior & thickened ADC12# die-casting aluminum with corrosion-proof, shock-proof, dust-proof and weather-proof, faster heat sinking to keep long lifespan.
► Constant Current Driver
High quality constant current driver with high work efficiency, PF>0.9, famous brand drivers available.
► Waterproof Upgrated
Rain-proof & water-proof protection IP66 upgraded, suitable for wet applications.
► High Quality Glass Bead Cover
High-quality optical bead PC cover with 60 degree, no yellow, and high light transmission up to >95%.
Product Parameters of Narrow Angle Floodlight:
| Product Name |
Narrow Angle Floodlight |
| Model |
SU-WS100 |
SU-WS150 |
SU-WS2000 |
| Input Voltage |
AC85-265V, 50/60Hz |
| Power Consumption |
100W |
150W |
200W |
| Light Source |
SMD 3030 Osram |
| Light Efficiency |
130lm/W |
| Color Temperature |
2700k, 3000k, 4500k, 5000k, 6500k |
| Product Size (mm) |
L284*W241*H40 |
L314*W272*H43 |
L344*W301*H43 |
| Driver |
Constant Current Isolated Driver |
| Body Material |
ADC12 Aluminum |
| Cover Material |
PC cover |
| CRI |
>80 |
| PF |
>0.9 |
| Housing Color |
Black, White |
| Surge Protection |
4KV |
| Beam Angle |
60° |
| Class Protection |
IK07, IP66 |
| Working Temperature: |
-30 ~ 50 Deg. |
| Life Span |
50,000H |
| Warranty |
3 Years |
| Application |
Square, Plaza, Construction Site, Mineral Estate, Supermarket, Wharf |

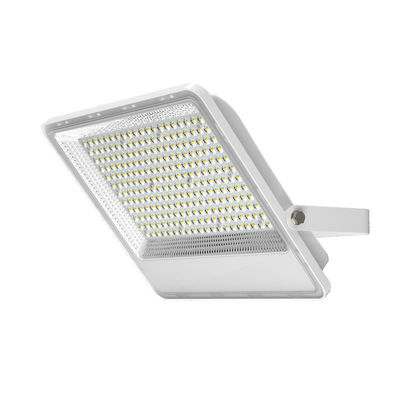

Product Show of Narrow Angle Floodlight:
Product figure of Narrow Angle Floodlight:
1. Optical PC lens against yellowing.
2. Waterproof silicon ring.
3. Nano-plastic reflector against the high temperature and UV, long use and never yellowing.
4. SMD3030 LED high light efficiency and lighting to further.
5. Aluminum base with high thermal conductivity,and faster heat running.
6. High-quality and famous brand driver: Meanwell, sosen etc.
7. ADC12 die-casting aluminum radiator, efficiency up to 96W/M.K.
8. Strong support and strong installation.
Dimensions of Narrow Angle Floodlight:
Optical Lens 60 and 120 degree available of Narrow Angle Floodlight:
Installations of Narrow Angle Floodlight:
Frequent Questions of Narrow Angle Floodlight:
1. Can I have 1pc sample to test firstly?
Re: Yes, 1pc sample can be offered, and mixed samples are welcome.
2. Do you have customised service like box, logo?
Re: Yes, all of our products can be customised. Please kindly tell us your idea!
3. Can you do Black body for this model?
Re: Yes, we can. This model has White and Black body for your options.
4. Can you make 120 degree for this narrow angle floodlight?
Re: Yes, this model can make 60 degree and 120 degree.
5. Can the narrow angle floodlight be dimmable?
Re: Yes, it supports to make dimmable like 0-10V, Dali dimming etc. Please contact us for details!
6. Can you design private carton box if I buy your goods?
Re: Yes, certainly. We often design and customise box for our clients. Please tell us your ideas and requests!
7. Does the narrow angle floodlight include any driver?
Re: Yes, absolutely. This lamp includes constant-current isolated driver, PF>0.9 and warranty 3 years. Other brand driver is available.
8. How can you guarantee the quality?
Re: All raw materials must be checked before stocking and the finished products must have been tested and aged. Finally packed. If unfornately any fault happend, we will replace.
