Product Description
Osram SMD Chips White Flood Light 100 Watts 13000 Lumens Outdoor IP66 Waterproof
Quick details of White Flood Light :
► Product type: Flood Lights.
► Model: SU-WS100.
► LED qty.: 120 PCS.
► Lumen index: 13000 lumens.
► Light source type: super bright LED chips SMD 3030 osram.
► Input work voltage: AC85-265V, 50/60Hz.
► Optional color temperature: normal 2700K, 3000K, 4500K, 6500K, 7000K+ and customised color.
► Available wattages: 30w, 50w, 100w, 150w and 200w.
► Surge protection: 4KV.
► Shock-proof class: IK07.
► Water-proof class: IP66.
► Material: die casting aluminum and optical PC lens with 60 Deg. and 120 Deg. optional.
► Optional narrow beam angle 60 degree and wide beam angle 120 degree.
► Various smart type: 0-10V dimming, Dali dimmming, pir motion sensor, radar sensor, photocel sensor, microwave sensor, DMX512 and remote control.
Descriptions of White Flood Light :
► 120 LEDs 13000 Lumens
The built-in upgraded 120pcs super bright LED smd chips can make 13000lm high output brightness, which is much more brighter than other light sources.
► Brightness Upgraded
Powered by high-quality 3030 LED chips, increased the number of light beads, better brightness and large illumination.
► Thickened Aluminum
Superior & thickened ADC12# diecasting aluminum with corrosion-proof, shock-proof, dust-proof and weather-proof, faster heat sinking to keep long lifespan.
► Constant Current Driver
High quality constant current driver with high work efficiency, PF>0.9, famous brand drivers available.
► Waterproof Upgrated
Rain-proof & water-proof protection IP66 upgraded, suitable for wet applications.
► High Quality Glass Bead Cover
High-quality optical bead PC cover with 60 degree, no yellow, and high light transmission up to >95%.
Product Parameters of White Flood Light :
| Product Name |
White Flood Light |
| Model |
SU-WS50 |
SU-WS100 |
SU-WS150 |
| Input Voltage |
AC85-265V, 50/60Hz |
| Power Consumption |
50W |
100W |
150W |
| Light Source |
SMD 3030 Osram |
| Light Efficiency |
130lm/W |
| Color Temperature |
2700k, 3000k, 4500k, 5000k, 6500k |
| Product Size (mm) |
L253*W211*H35 |
L284*W241*H40 |
L314*W272*H43 |
| Driver |
Constant Current Isolated Driver |
| Body Material |
ADC12 Aluminum |
| Cover Material |
PC cover |
| CRI |
>80 |
| PF |
>0.9 |
| Housing Color |
Black, White |
| Surge Protection |
4KV |
| Beam Angle |
60° |
| Class Protection |
IK07, IP66 |
| Working Temperature: |
-30 ~ 50 Deg. |
| Life Span |
50,000H |
| Warranty |
3 Years |
| Application |
garden, yard, wall, stair, shop, door |

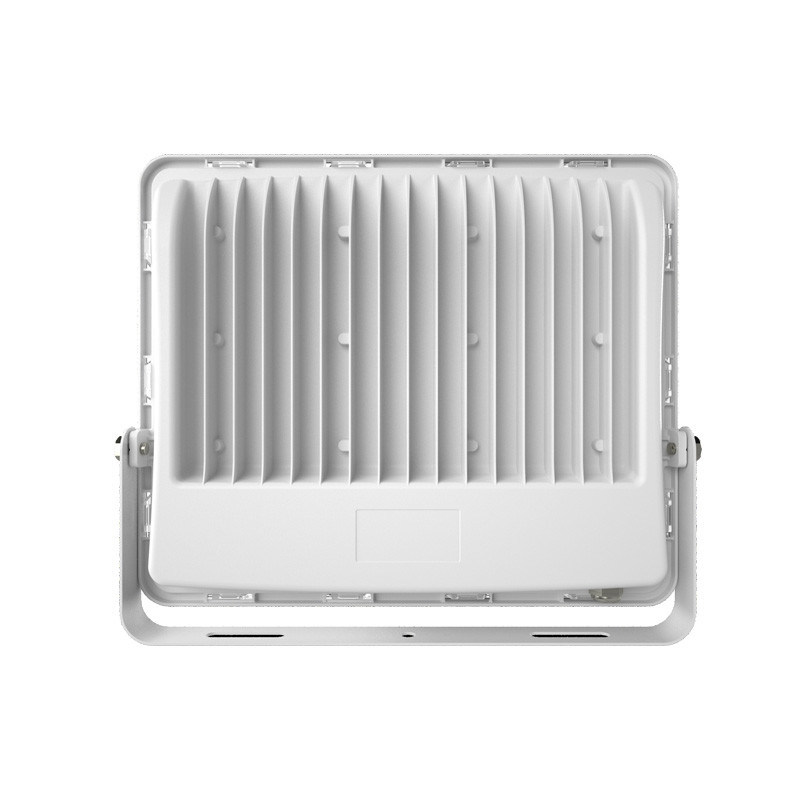

Product Show of White Flood Light :
Product figure of White Flood Light :
1. Optical PC lens against yellowing.
2. Waterproof silicon ring.
3. Nano-plastic reflector against the high temperature and UV, long use and never yellowing.
4. SMD3030 LED high light efficiency and lighting to further.
5. Aluminum base with high thermal conductivity,and faster heat running.
6. High-quality and famous brand driver: Meanwell, sosen etc.
7. ADC12 die-casting aluminum radiator, efficiency up to 96W/M.K.
8. Strong support and strong installation.
Dimensions of White Flood Light :
Optical Lens 60 and 120 degree available of White Flood Light :
Installations of White Flood Light :
Frequent Questions of White Flood Light :
1. Can I have 1pc sample to test firstly?
Re: Yes, 1pc sample can be offered, and mixed samples are welcome.
2. Do you have customised service like box, logo?
Re: Yes, all of our products can be customised. Please kindly tell us your idea!
3. Can you do Black body for this model?
Re: Yes, we can. This model has White and Black body for your options.
4. How long can I get my package?
Re: 1pc could be got about 1 week.
5. Can the white flood lights be dimmable?
Re: Yes, this model can make dimmable such as 0-10V, Dali dimming etc. Please contact us for details!
6. Can you do colorful box?
Re: Yes, certainly. Colorful box and brown paper are possible.
7. Does the white flood lights include any driver?
Re: Yes, absolutely. This lamp includes constant-current isolated driver, PF>0.9 and warranty 3 years. Other brand driver is available.
8. How can you guarantee the quality?
Re: All raw materials must be checked before stocking and the finished products must have been tested and aged. Finally packed. If unfornately any fault happend, we will replace.
