Product Details:
|
| Name: | LED Flood Light Bulb | Usage: | Construction Site, Wharf, Stadium |
|---|---|---|---|
| Beam Angle: | 60°, 120° | Material: | Aluminum |
| Light Efficiency: | 26000lm | IP Rating: | IP66 Waterproof |
| Feature: | High Illumination, Low Cost, | Surge Protection: | 4KV |
| High Light: | led construction flood lights 30W,high power LED flood light 200w anti Surge,30W construction site flood lights 4KV |
||
High Power LED Flood Light Bulb From 30W To 200W For Construction Sites
Quick Details of LED Flood Light Bulb:
1. Luminous flux: 26000lm for 200 Watts.
2. Input work voltage: AC85-265V, 50/60Hz.
3. 150W Size: L344xW301xH43mm
4. SMD 2835 or SMD3030 super bright chips.
5. Optional wattages: 30W, 50W, 100W, 150W and 200W.
6. 2700K, 3000K, 4500K, 6500K.
7. 60 degree and 120 degree optional.
8. Protection: IP66 waterproof / IK08.
9. Surge protection: 4KV.
10. Optional function: 0-10V dimming, Dali dimming, PIR motion sensor, remote sensor, radar sensor, daylight sensor, DMX512 etc.
11. Driver mode: built-in contstant current isolated driver.
12. Ｗarranty: 3 years.
Descriptions of LED Flood Light Bulb:
The LED flood light bulb is the latest design in 2022 with classical appearance for outdoor project lighting. The shell is pure die-casting aluminum ADC12# with anti-pressure, high-strength, and anti-corrosion, and thick tempered glass cover. waterproof IP66. It adopts constant-current driver AC solution. It is widely used in hotel, home, gallery, stair, road, street, door, room, yard, parking, car warehouse etc.
We accept the customization for the different models!
Parameters of LED Flood Light Bulb:
| Product Name | LED flood light bulb | ||
| Part No. | SU-WS100 | SU-WS150 | SU-WS200 |
| Input Voltage | AC85-265V, 50/60Hz | ||
| Rated Power | 100W | 150W | 200W |
| Luminous Flux | 13000lm | 19500lm | 26000lm |
| Light Source | Osram SMD3030 LED chips | ||
| Light Efficiency | 130lm/W | ||
| CCT | Warm White 2700k or 3000k | ||
| Nautral White 4000K-4500K | |||
| Pure White 6000K-6500K | |||
| Product Size (mm) | L284xW241xH40 | L314xW272xH43 | L344xW301xH43 |
| Driver | Constant Current Isolated Driver | ||
| Body Material | ADC12 Aluminum | ||
| Cover Material | Tempered Glass | ||
| CRI | >80 | ||
| PF | >0.9 | ||
| Housing Color | Black, Grey | ||
| Surge Protection | 4KV | ||
| Beam Angle | 60° / 120° | ||
| Class Protection | IK08, IP66 | ||
| Working Temperature | -30 ~ 50 Deg. | ||
| Life Span | 50,000H | ||

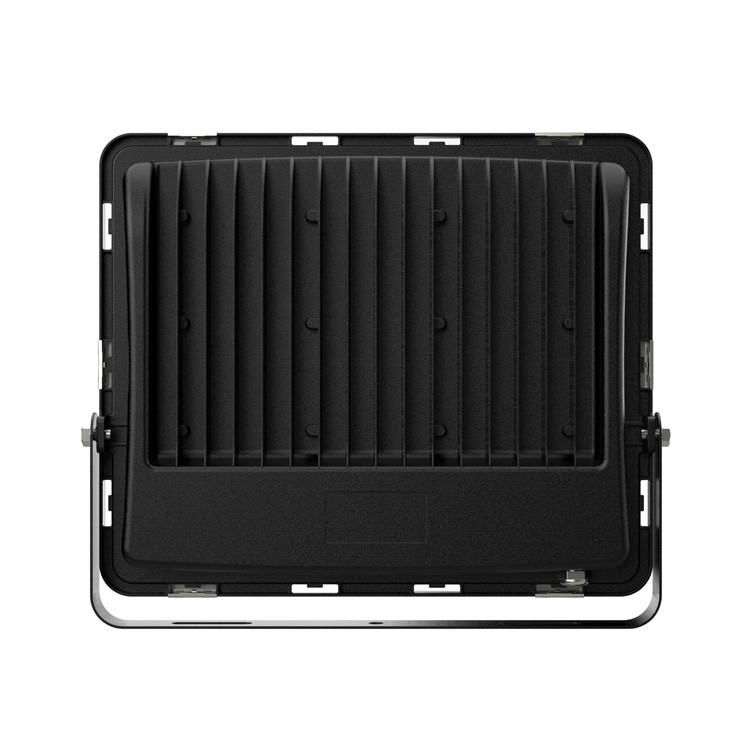

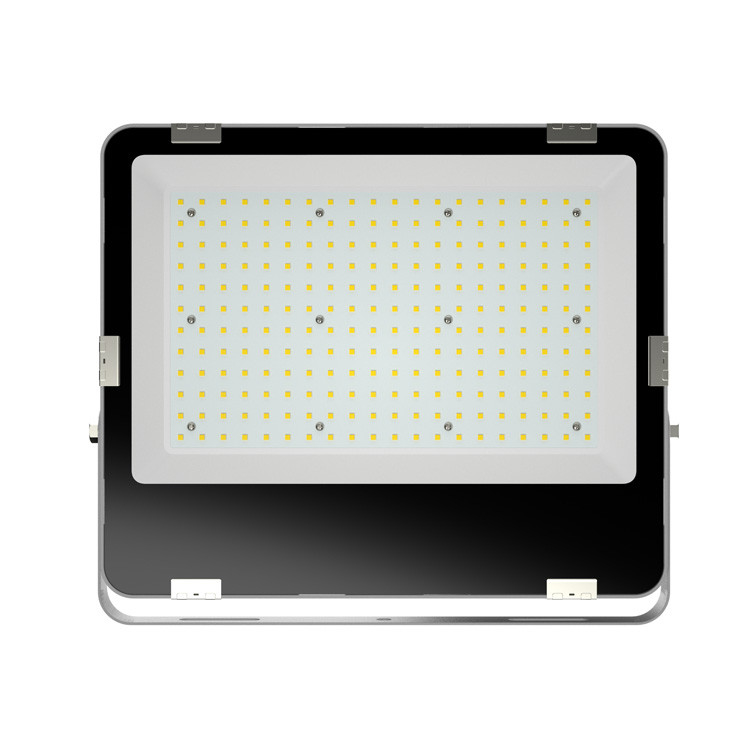

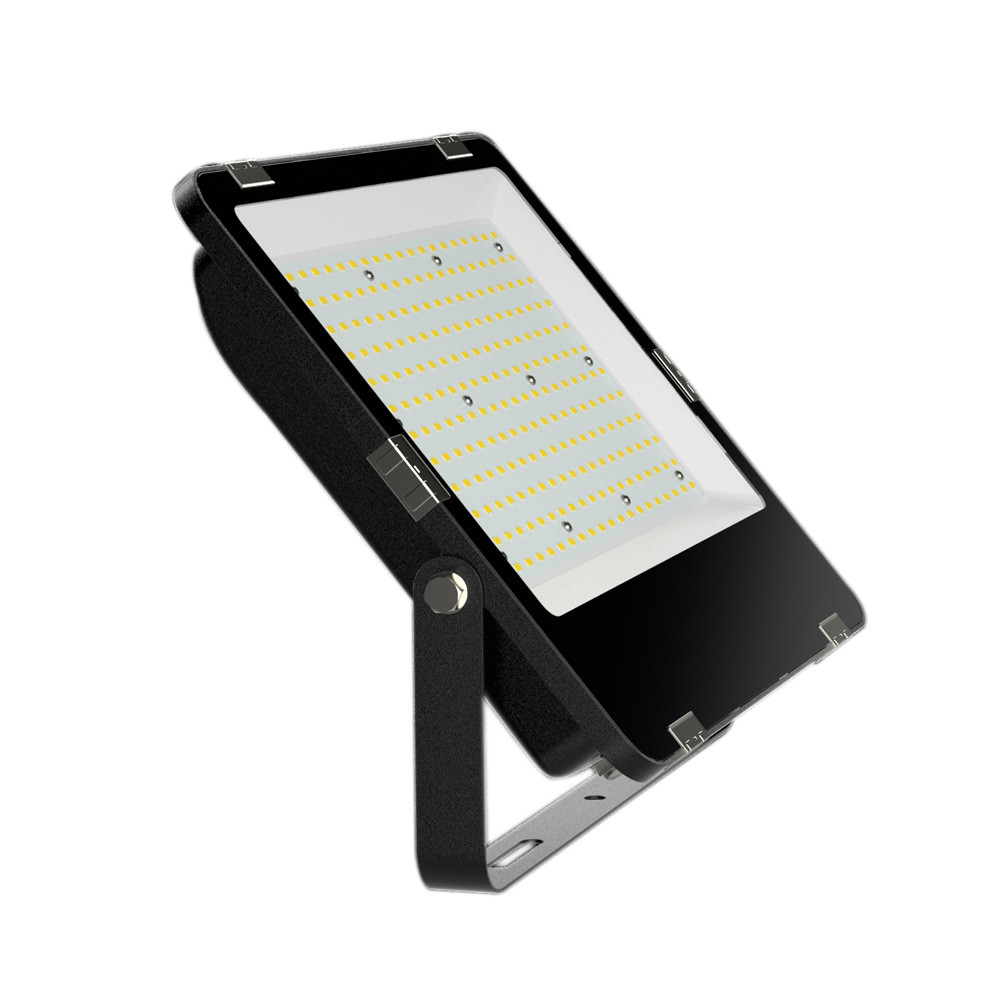

Product Shows of LED Flood Light Bulb:
Dimensions of LED Flood Light Bulb:
Product Figure of LED Flood Light Bulb:
1.Tempered glass strudy and durable
2.Waterproof silicon ring.
3.Nano-plastic reflector against the high temperature and UV, long use and never yellowing.
4.SMD3030 LED,high light efficiency and lighting to further.
5.Aluminum base with high thermal conductivity,and faster heat running.
6.High-quality and famous brand driver: Meanwell, Sosen etc.
7.ADC12 die-casting aluminum radiator, efficiency up to 96W/M.K.
8.Strong support and strong installation.
Optical Lens 60 and 120 degree of LED Flood Light Bulb:
Installations of LED Flood Light Bulb:
Frequency Asked Questions of LED Flood Light Bulb:
1. Can I have 1pc sample to test firstly?
Re: Yes, 1pcs can be offered. Mixed samples order is welcome.
2. Do you have customised service?
Re: Yes, we accept OEM or ODM. You please tell us your idea, and we will give you a solution.
3. Can you do BLACK body for this model?
Re: Yes, we can. This model has White and Black body for your options.
4. How long can I get my package?
Re: 1pc could be got about 1 week.
5. Can this LED flood light bulb dimmable?
Re: Yes, this model can make dimmable. Please contact us for details!
6. Can you do colorful box?
Re: Yes, certainly. We just want your draft to do what you hoped.
7. Does this led flood light bulb include any driver?
Re: This lamp includes constant-current isolated driver with warranty 3 years.
8. How can you guarantee the quality?
Re: All raw materials must be checked before stocking and the finished products must have been tested and aged. Finally packed. If unfornately any fault happend, we will replace. The warranty is 3 years.
